LAP-JET Damper Control Servomotor Circuit

Lap-Jet Damper Control Servo Motor Circuit

DESCRIPTION
The damper servo is controlled by the A/C amplifier, and the A/C amplifier moves the damper servo (lap-jet) to the desired position.

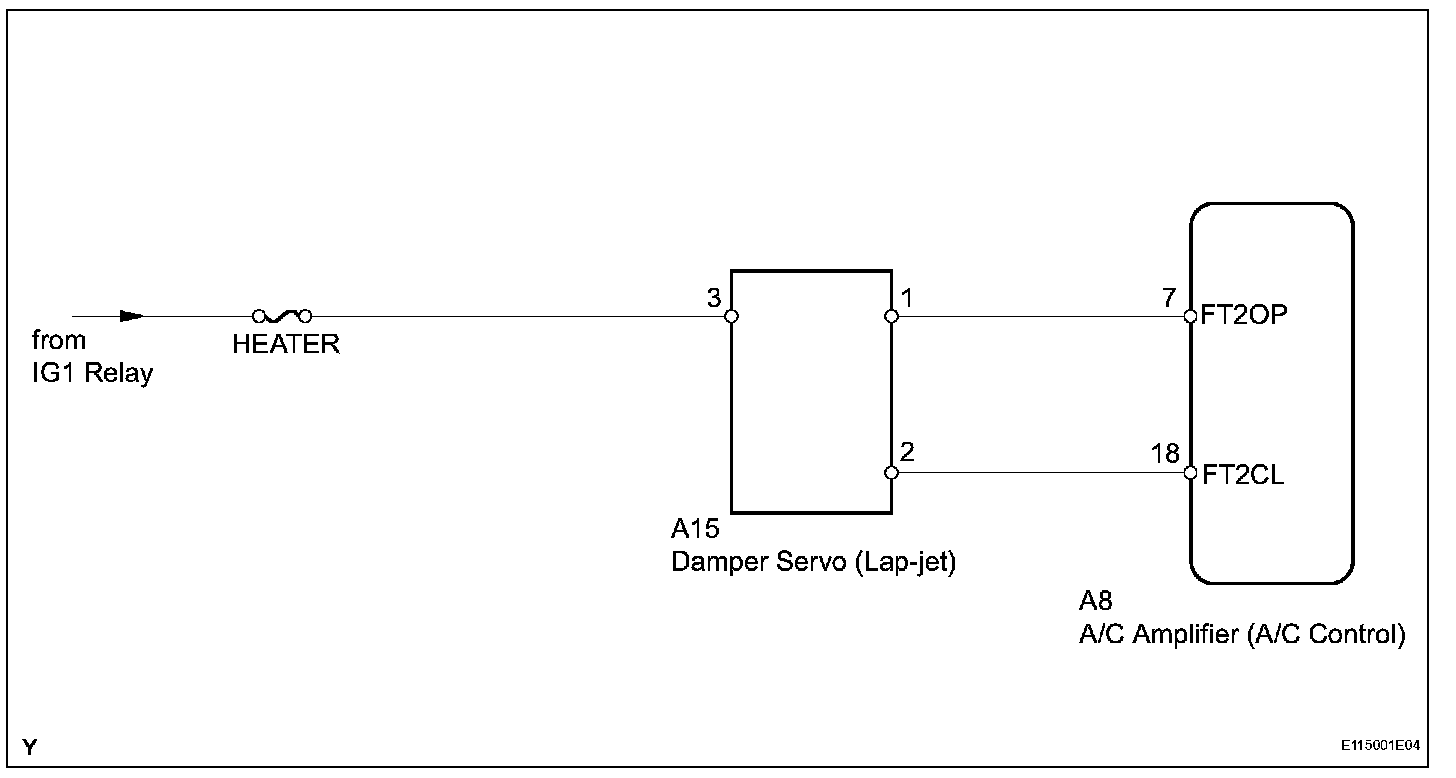

Wiring Diagram:

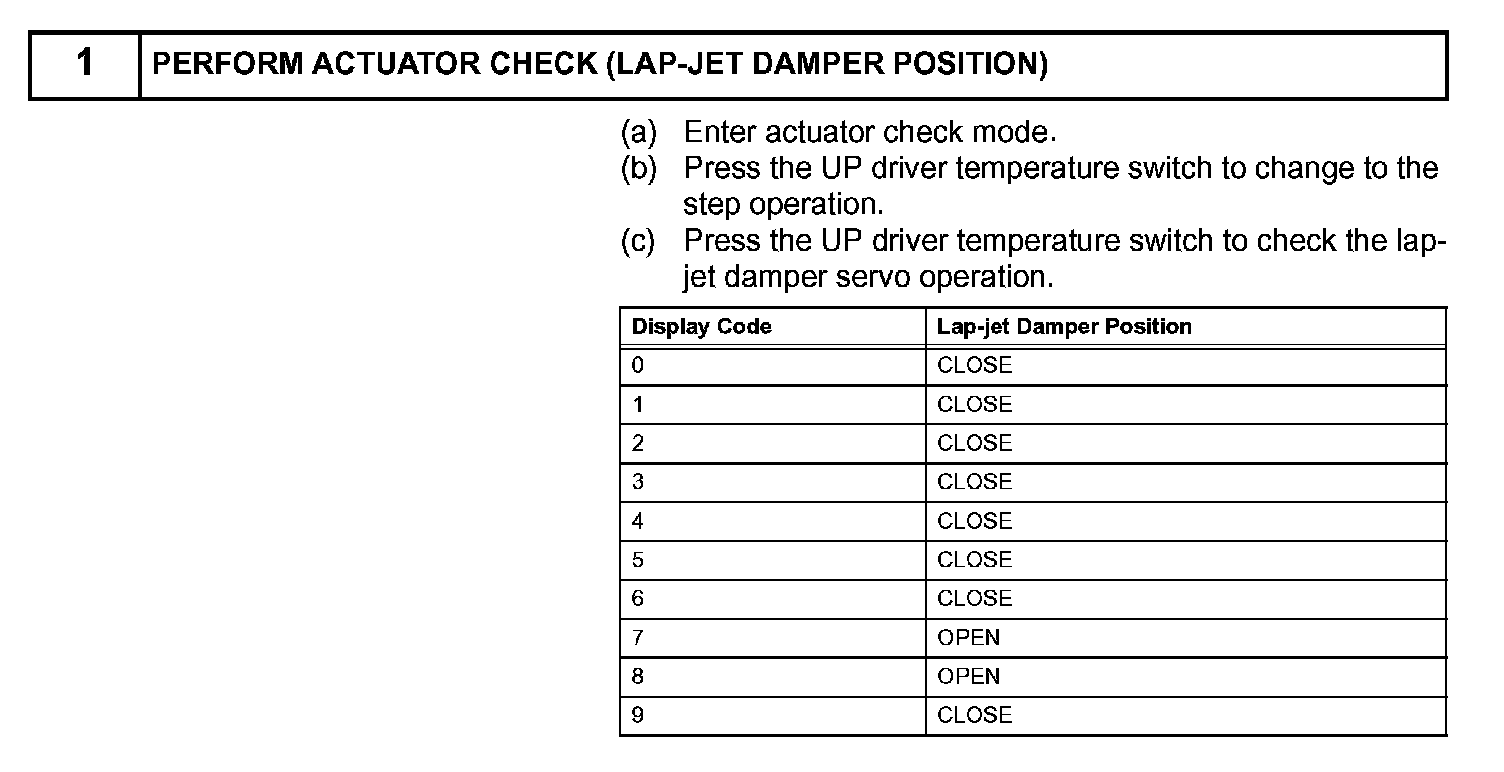

Step 1:

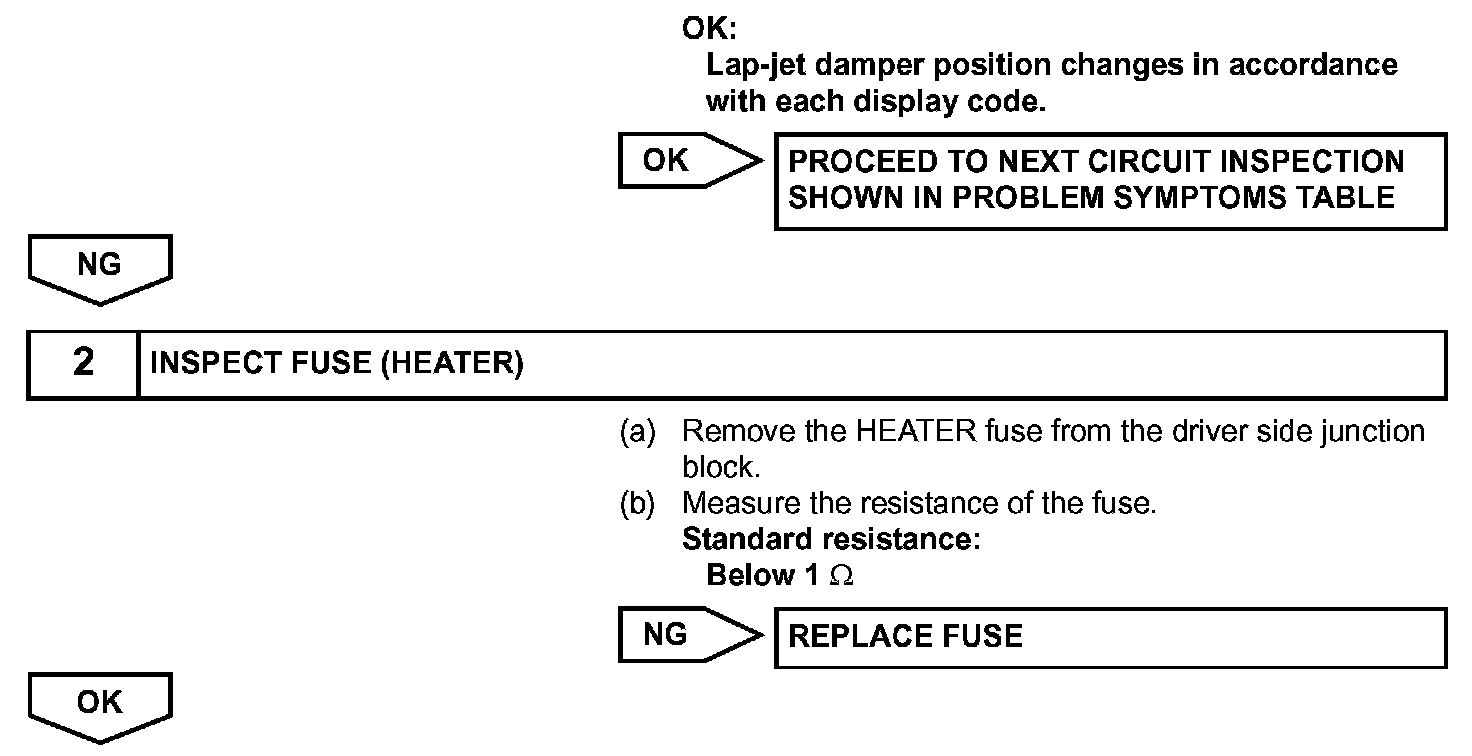

Step 1 (Continued)-2:

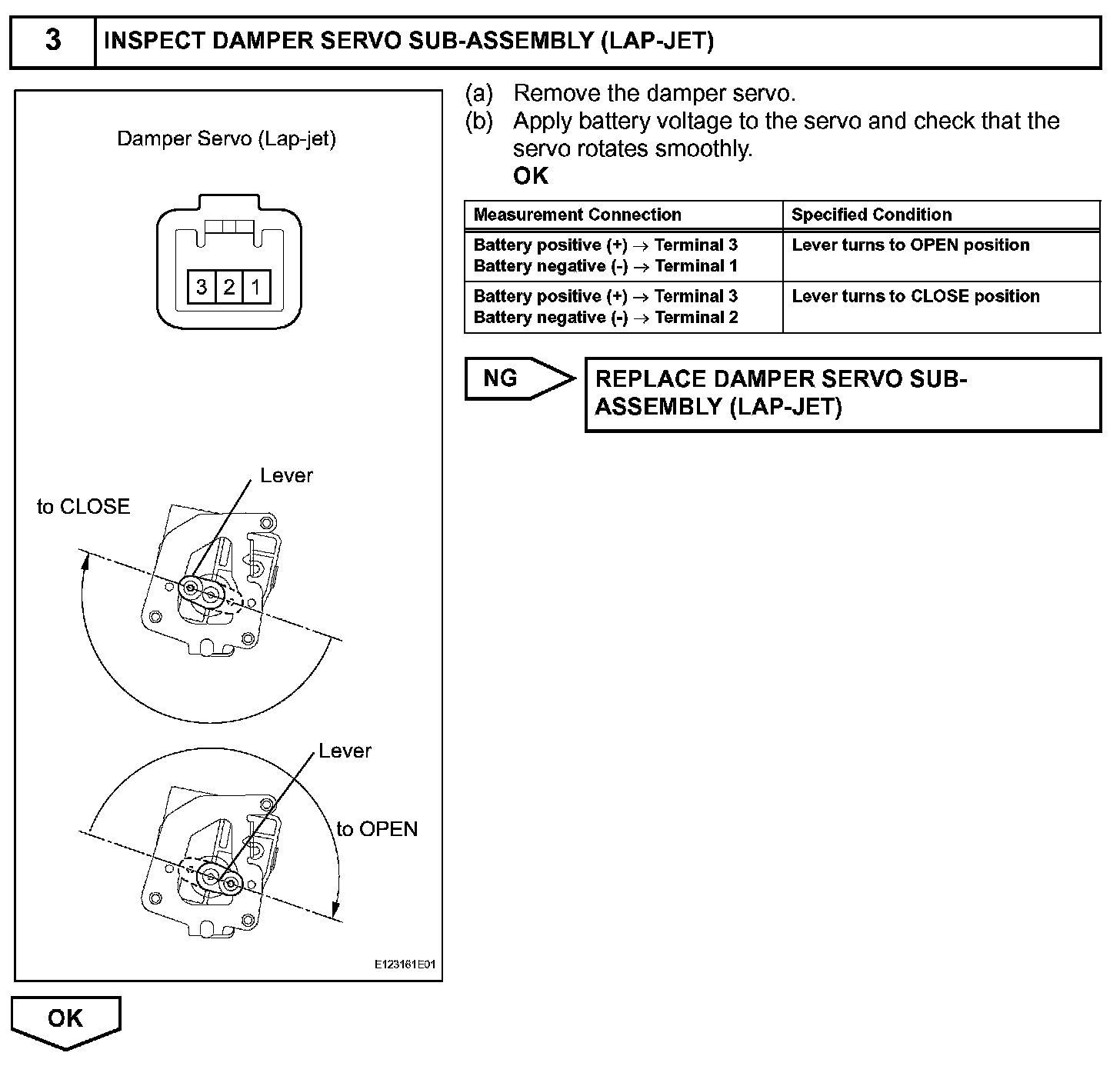

Step 3:

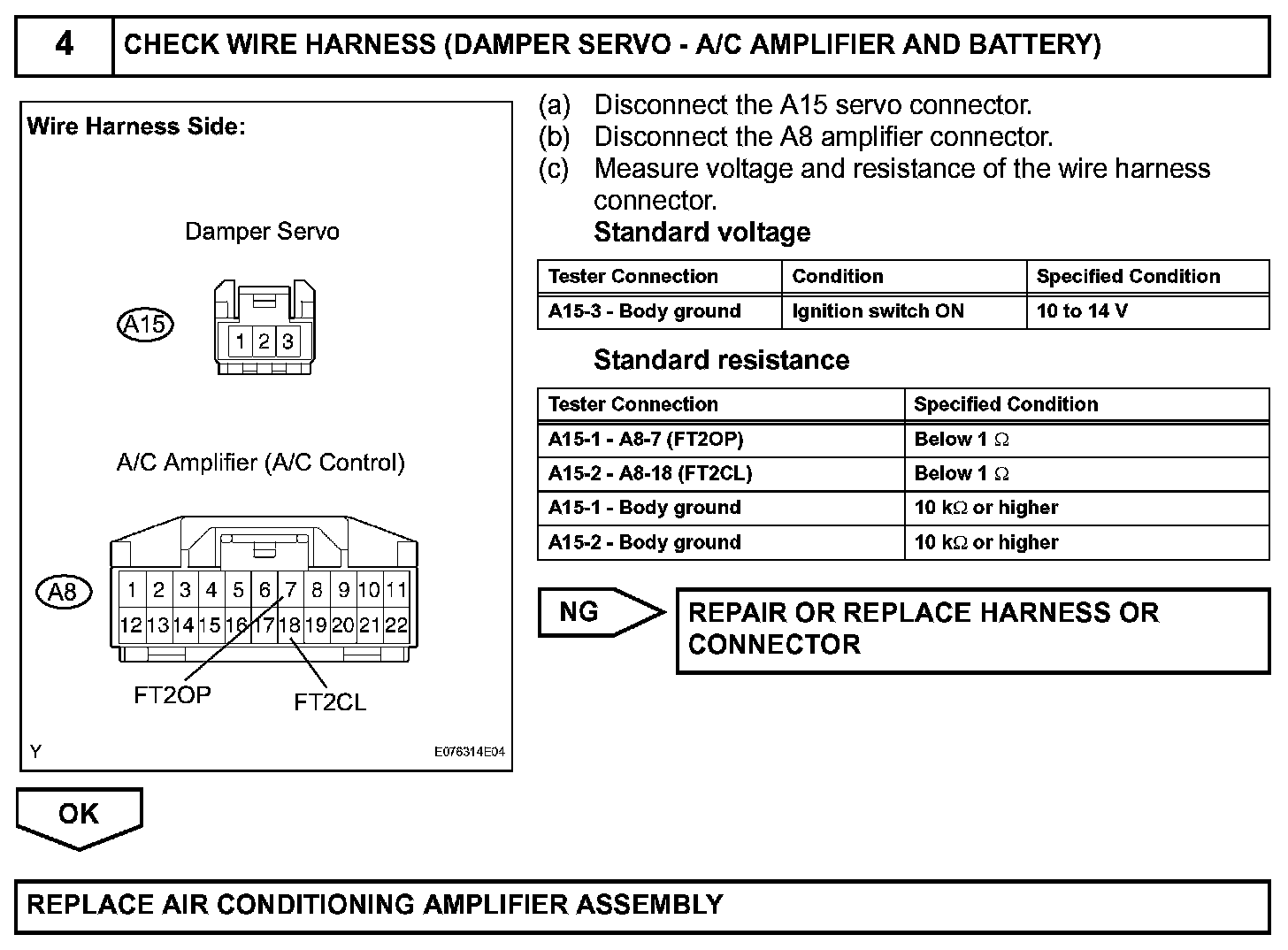

Step 4:

INSPECTION PROCEDURE
