IG Power Source Circuit
IG Power Source CircuitDESCRIPTION
The circuit supplies a power source to the A/C amplifier, servo motor, etc.

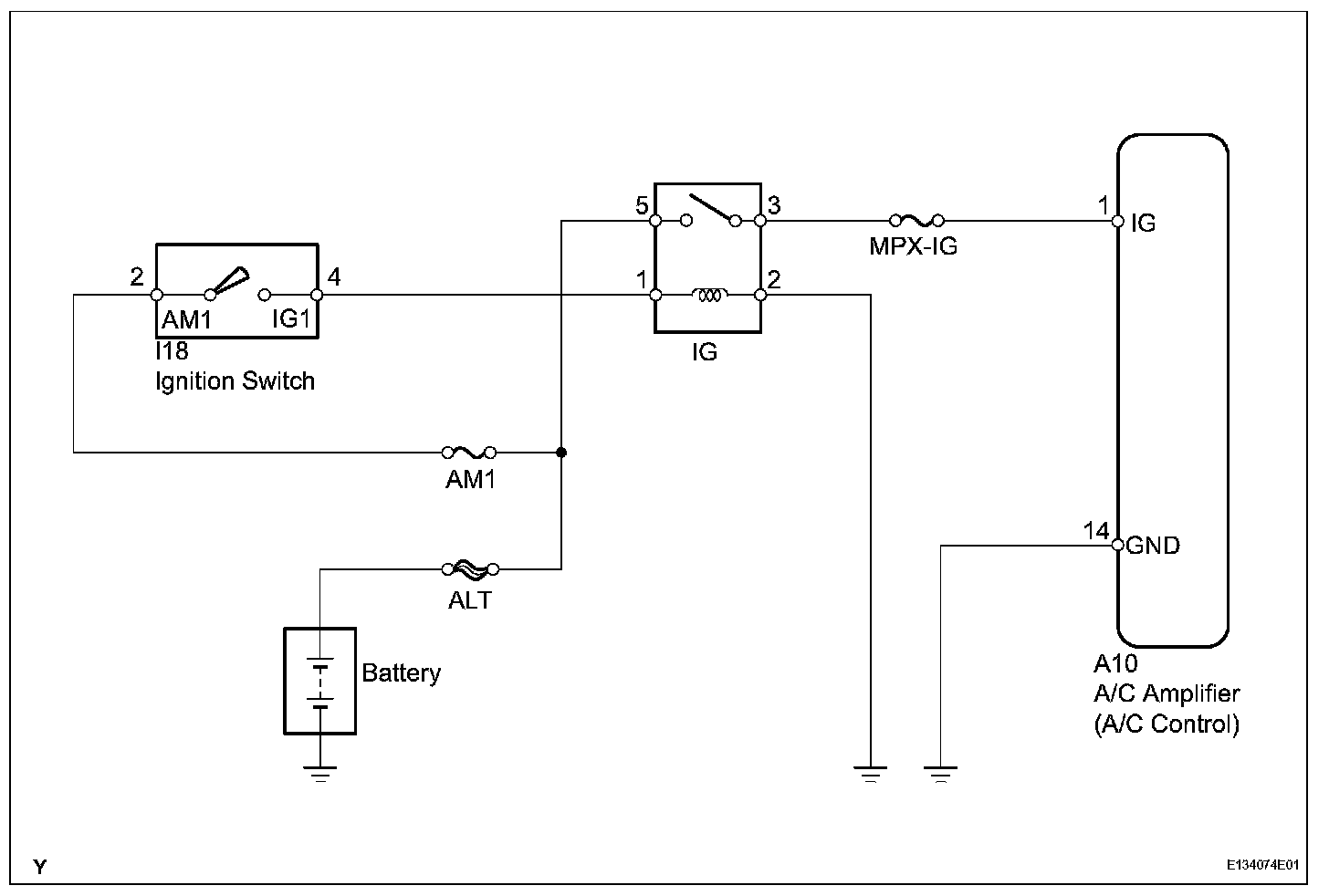

Wiring Diagram:

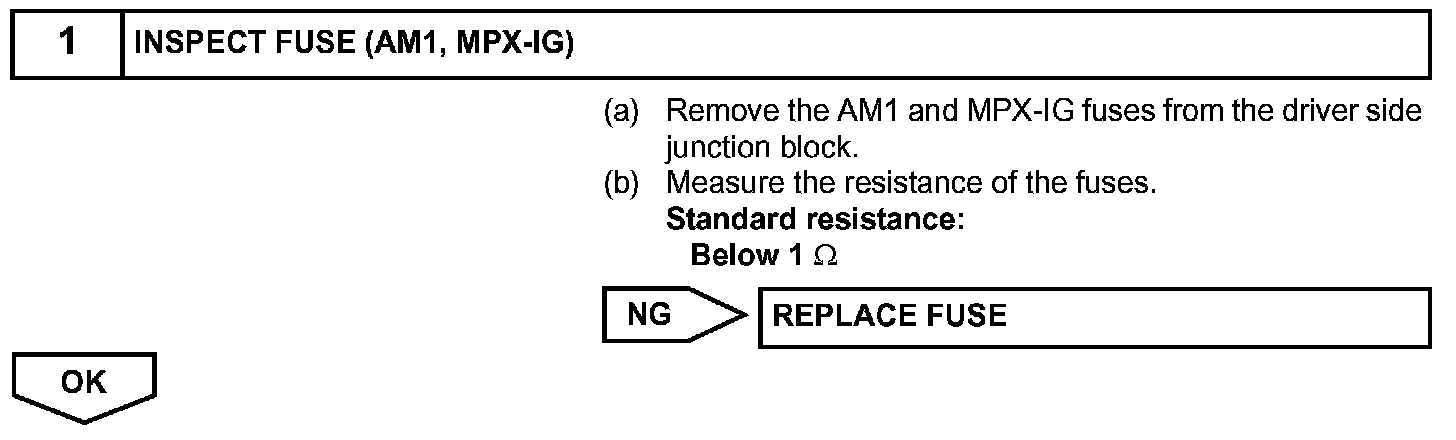

Step 1:

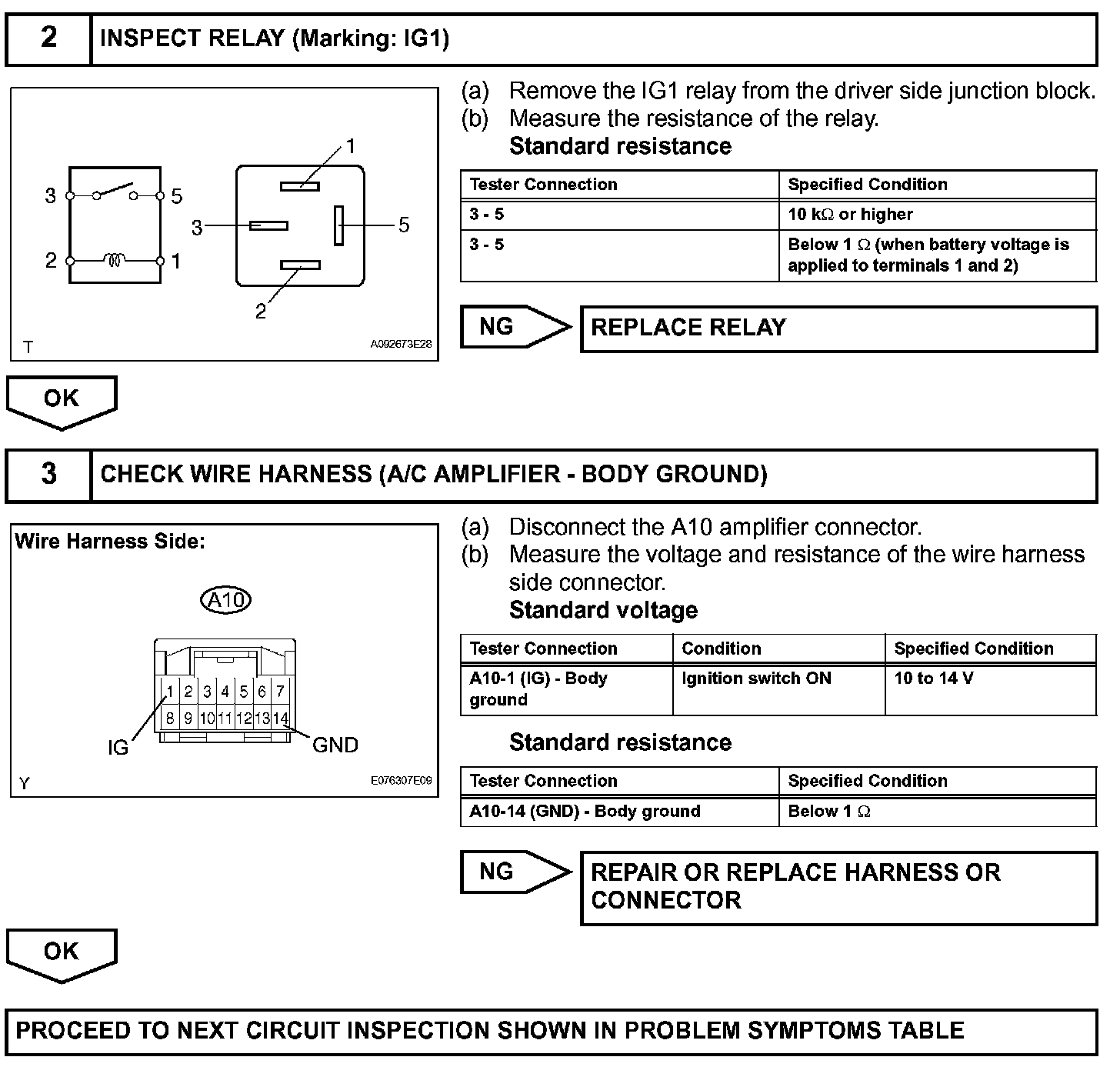

Step 2-3:
INSPECTION PROCEDURE
DESCRIPTION
The circuit supplies a power source to the A/C amplifier, servo motor, etc.
INSPECTION PROCEDURE
