Compressor Magnetic Clutch Circuit

Compressor Circuit

DESCRIPTION
The A/C amplifier outputs the magnet clutch ON signal to the ECM by way of MPX line. The ECM receives this signal, and it sends a signal from terminal ACMG to the magnet clutch relay, turning the magnet clutch ON.

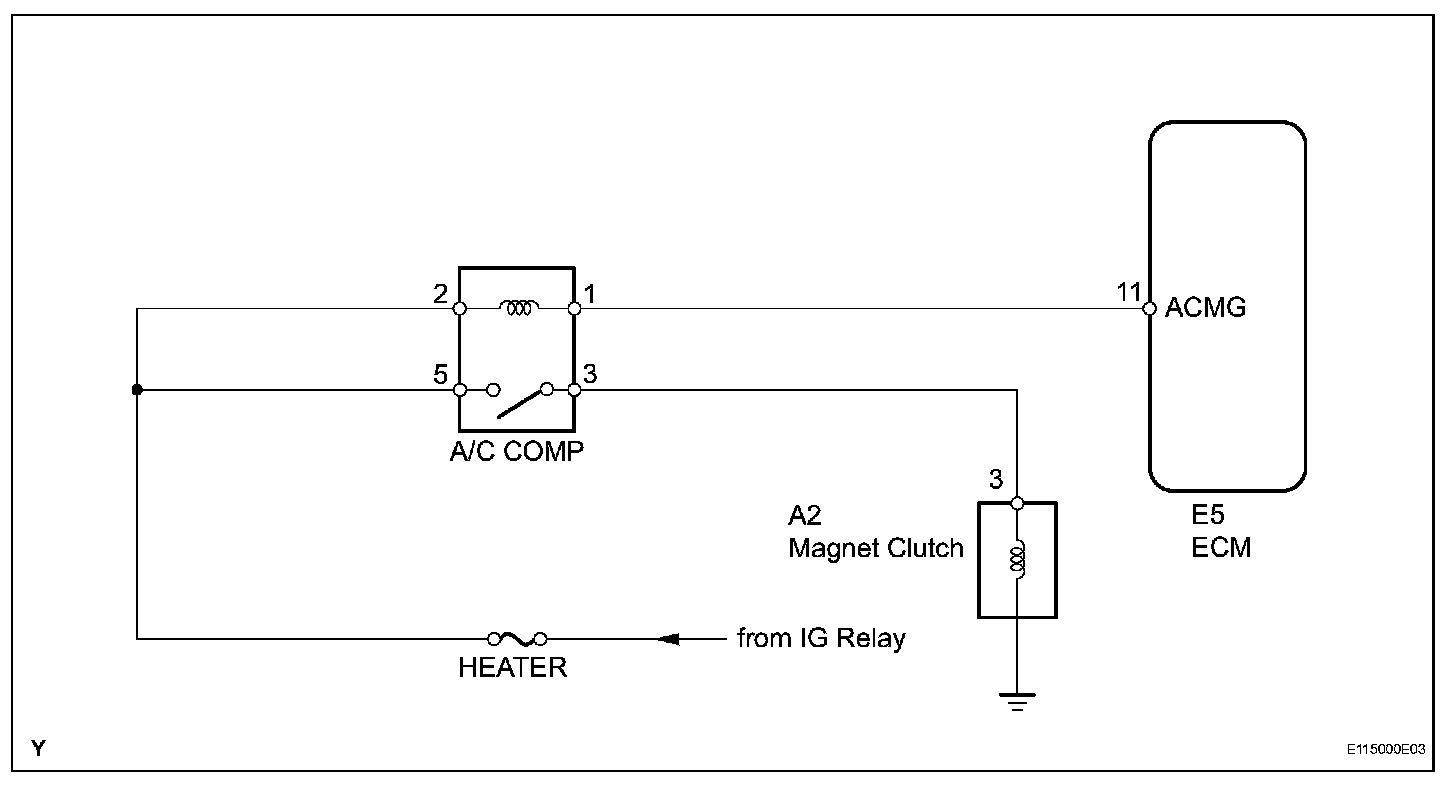

Wiring Diagram:

Step 1:

Step 2-4:

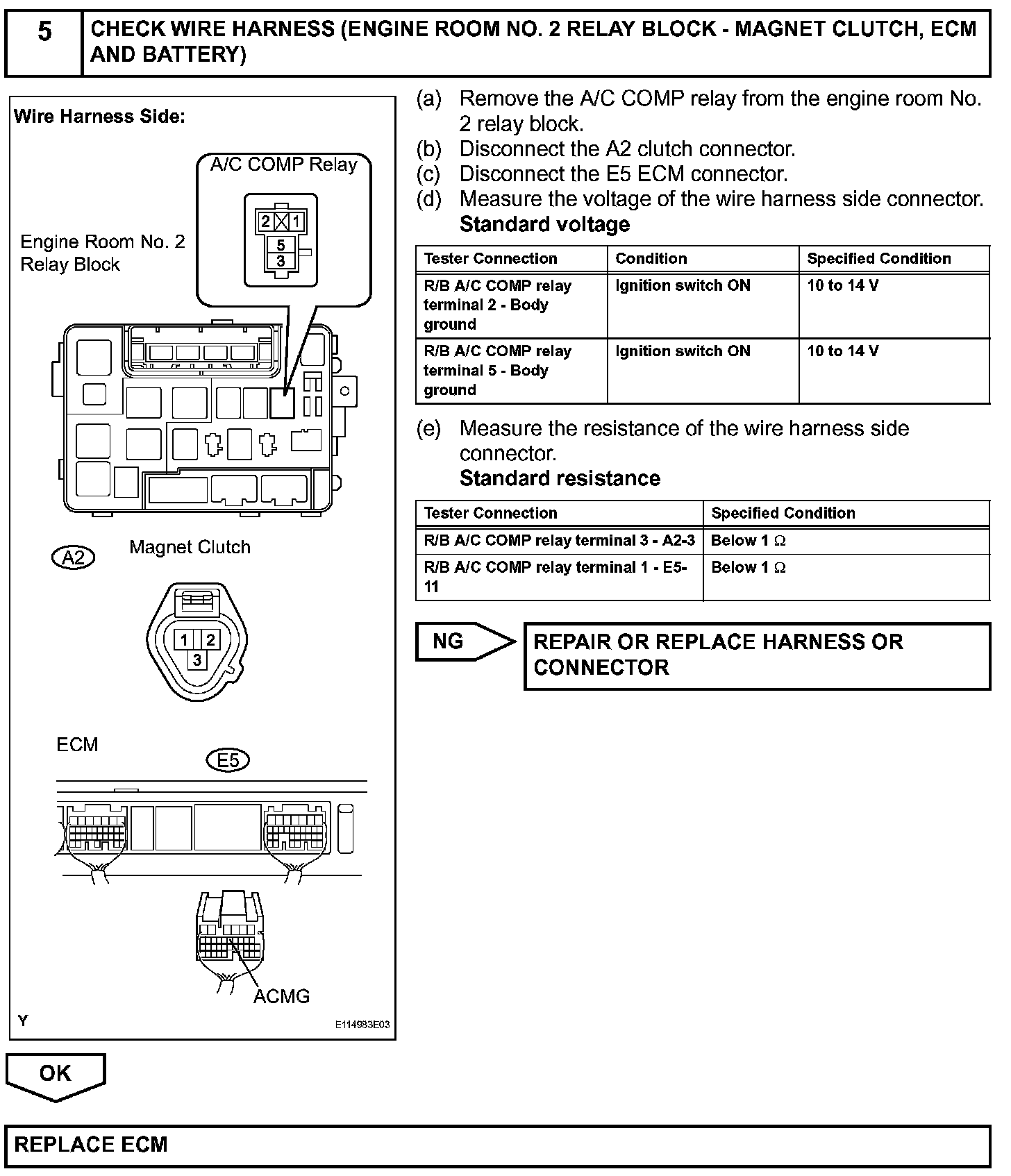

Step 5:

INSPECTION PROCEDURE
