Back-Up Power Source Circuit

Back-up Power Source Circuit

DESCRIPTION
This circuit supplies a back-up power source for the A/C amplifier. Power is supplied even if the ignition switch is OFF and is used for diagnostic trouble code memory, etc.

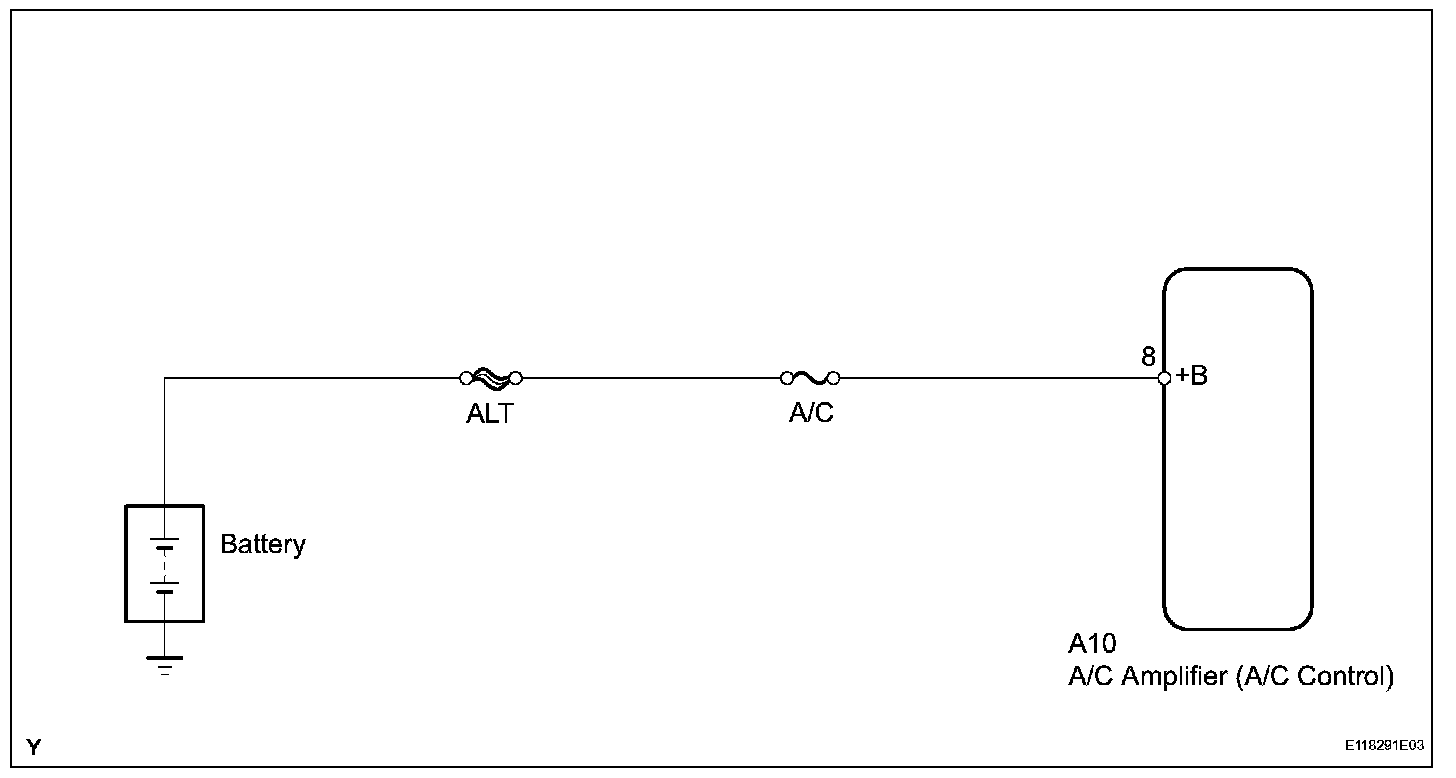

Wiring Diagram:

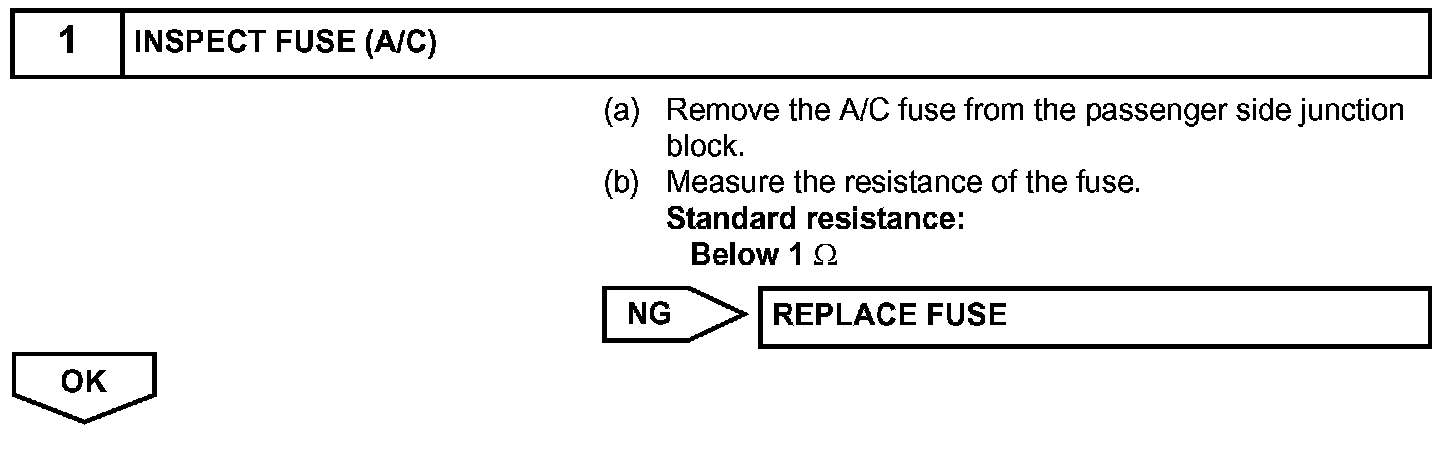

Step 1:

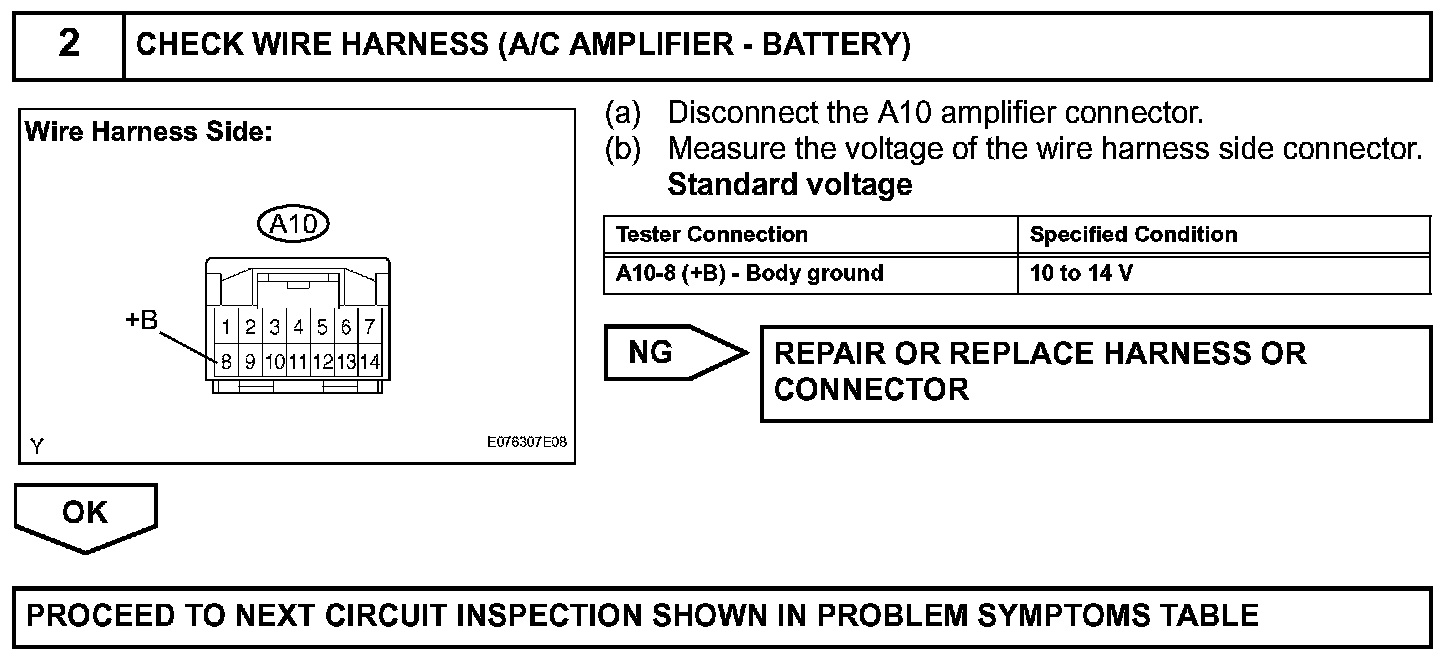

Step 2:




INSPECTION PROCEDURE
