Blower Unit

INSPECTION

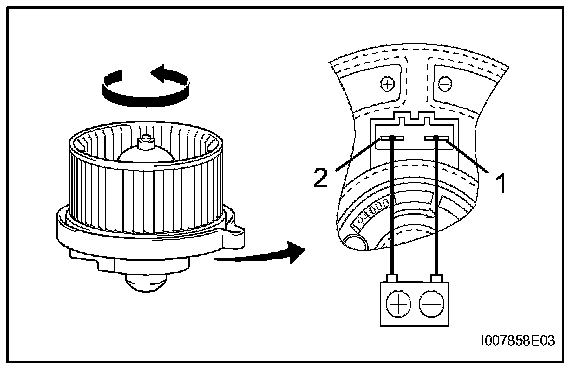

1. INSPECT BLOWER W/ FAN MOTOR SUB-ASSEMBLY

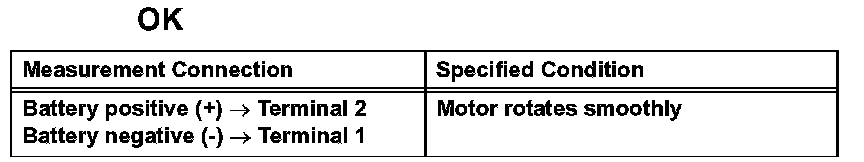

a. Apply battery voltage to the motor and check that the motor rotates smoothly.

If the result is not as specified, replace the motor sub-assembly.
