Replacement

OIL PUMP

COMPONENTS (Part 1):

COMPONENTS (Part 2):

COMPONENTS (Part 3):

COMPONENTS (Part 4):

COMPONENTS (Part 5):

REPLACEMENT

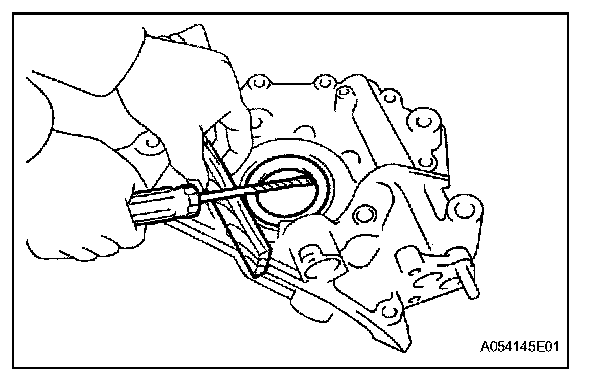

1. REMOVE OIL PUMP SEAL
(a) Using a screwdriver, pry out the seal.

HINT: Tape the screwdriver tip before use.

NOTICE: To protect the oil pump body while prying out the seal, place a wooden block between the screwdriver and oil pump body.

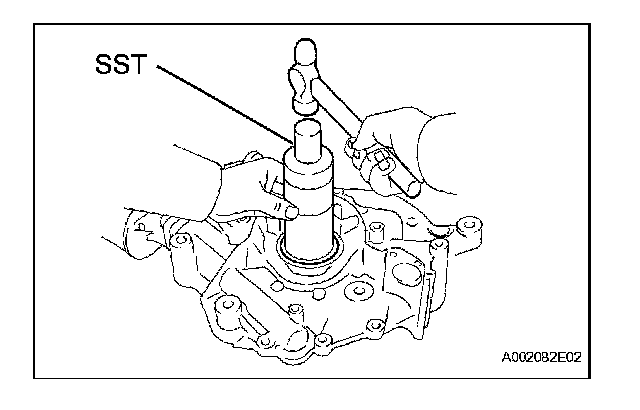

2. INSTALL OIL PUMP SEAL
(a) Using SST and a hammer, tap in a new oil seal until its surface is flush with the oil pump body edge.
SST 09316-60011 (09316-00011)

NOTICE: Be careful not to tap the oil seal in at an angle.

(b) Apply a small amount of MP grease to the oil seal lip.
