Multiplex Communication System - J/B ECU Part 4

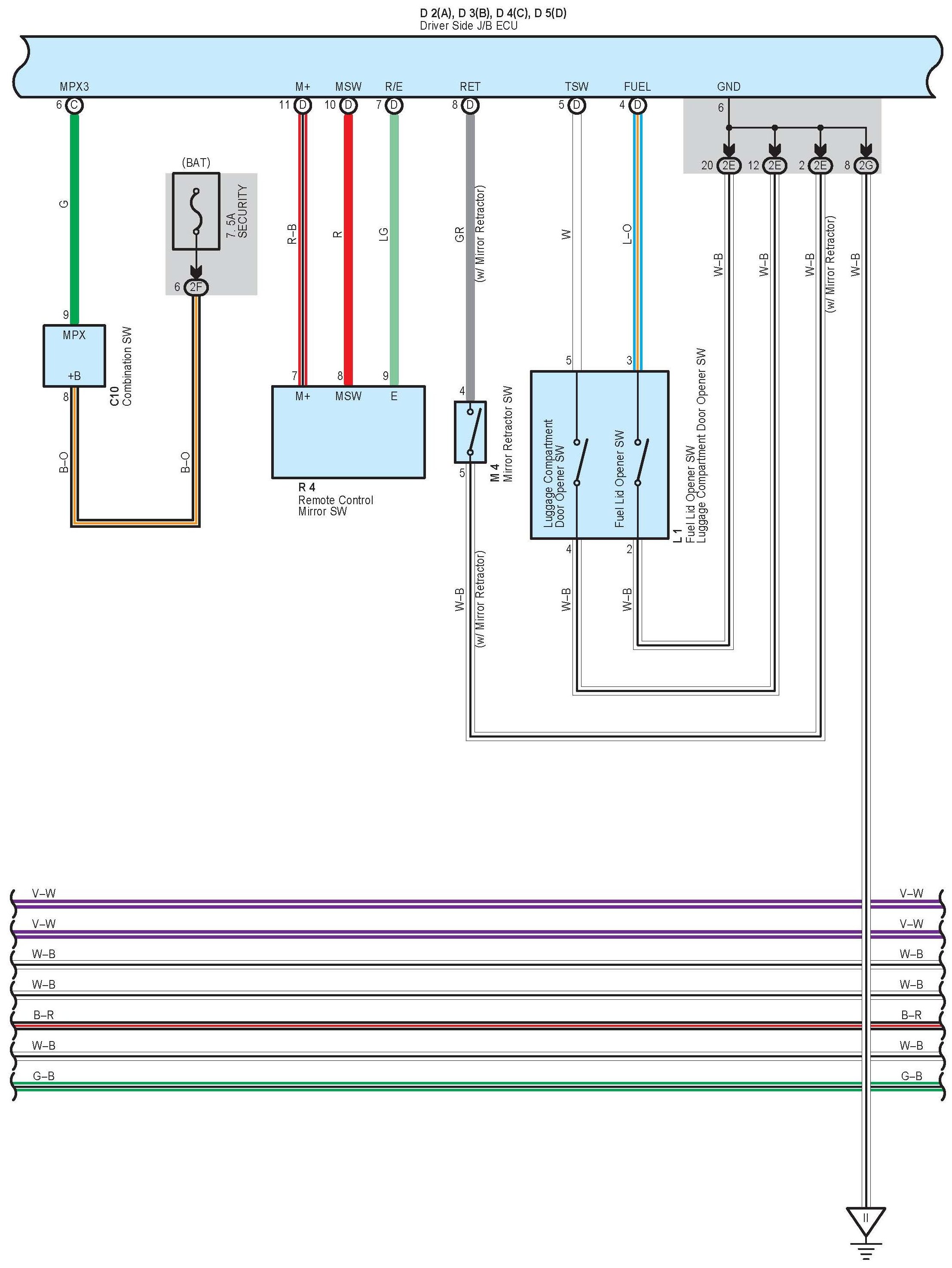

Multiplex Communication System - J/B ECU Part 4:

Diagram Legend Part 1:

Diagram Legend Part 2:

Next Diagram Multiplex Communication System - J/B ECU Part 5


Previous Diagram Multiplex Communication System - J/B ECU Part 3


Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
