Multiplex Communication System - Door ECU Part 1

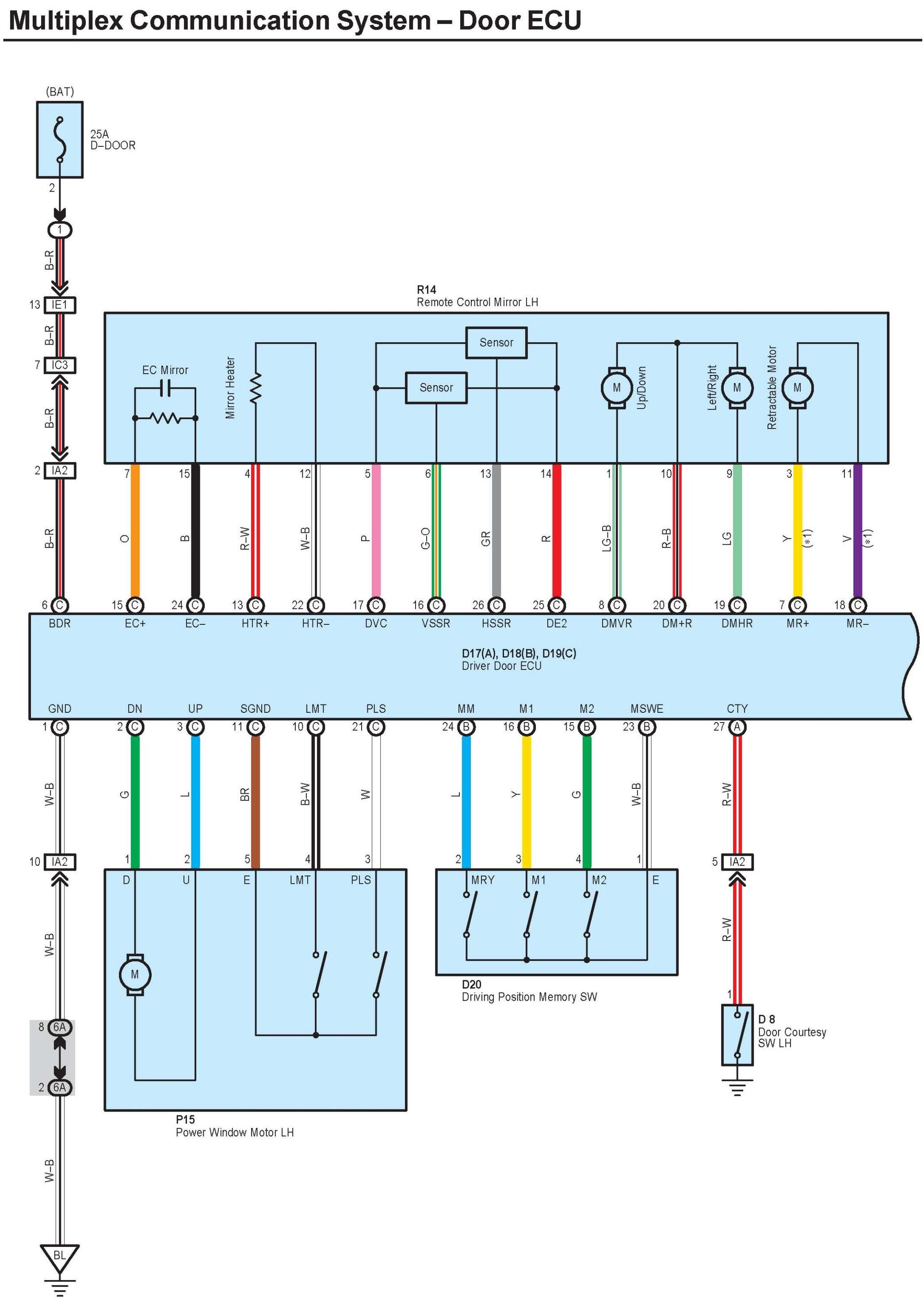

Multiplex Communication System - Door ECU Part 1:




Diagram Legend:






Next Diagram Multiplex Communication System - Door ECU Part 2


Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
