Procedures

HYDRAULIC BRAKE BOOSTER

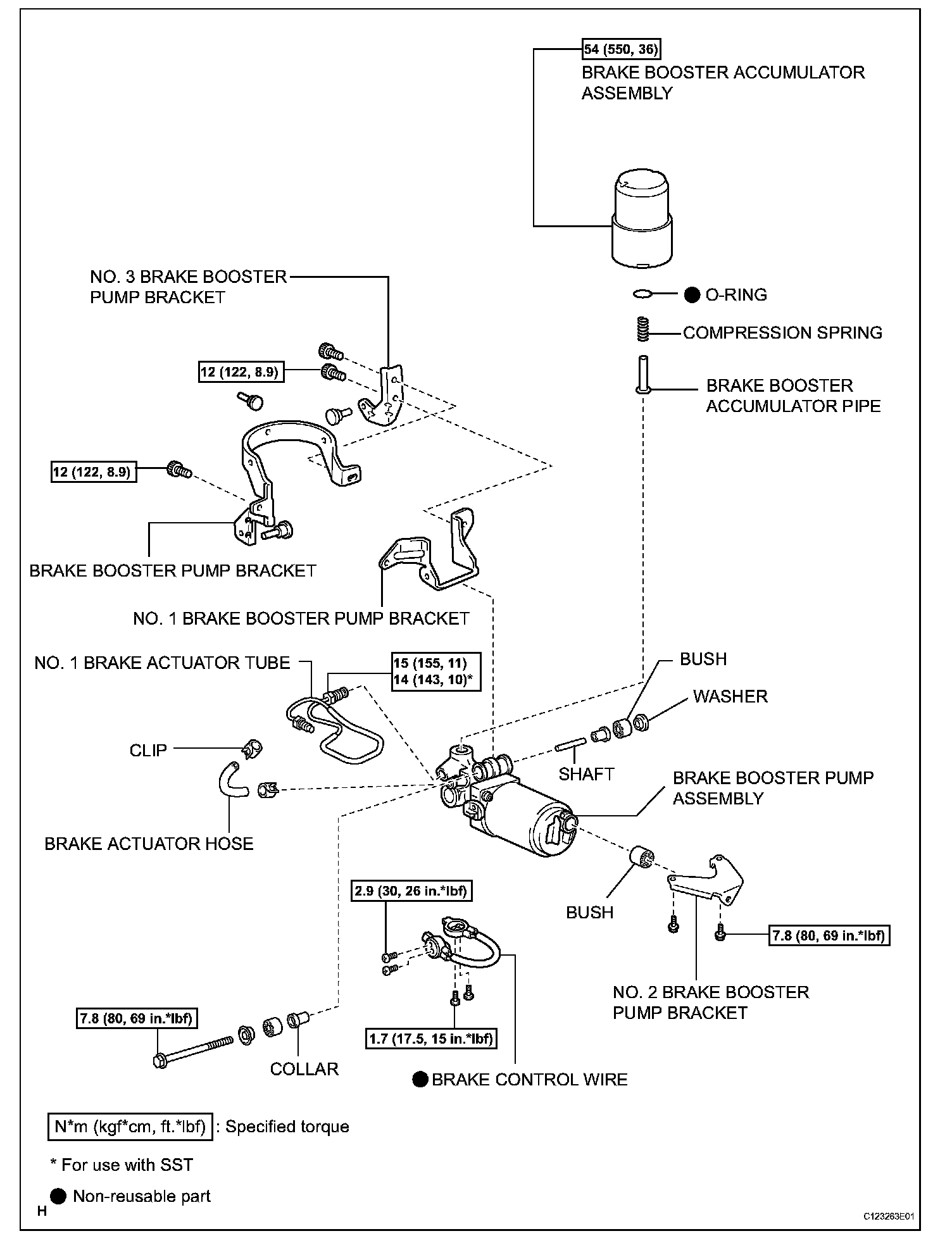

COMPONENTS (Part 1):

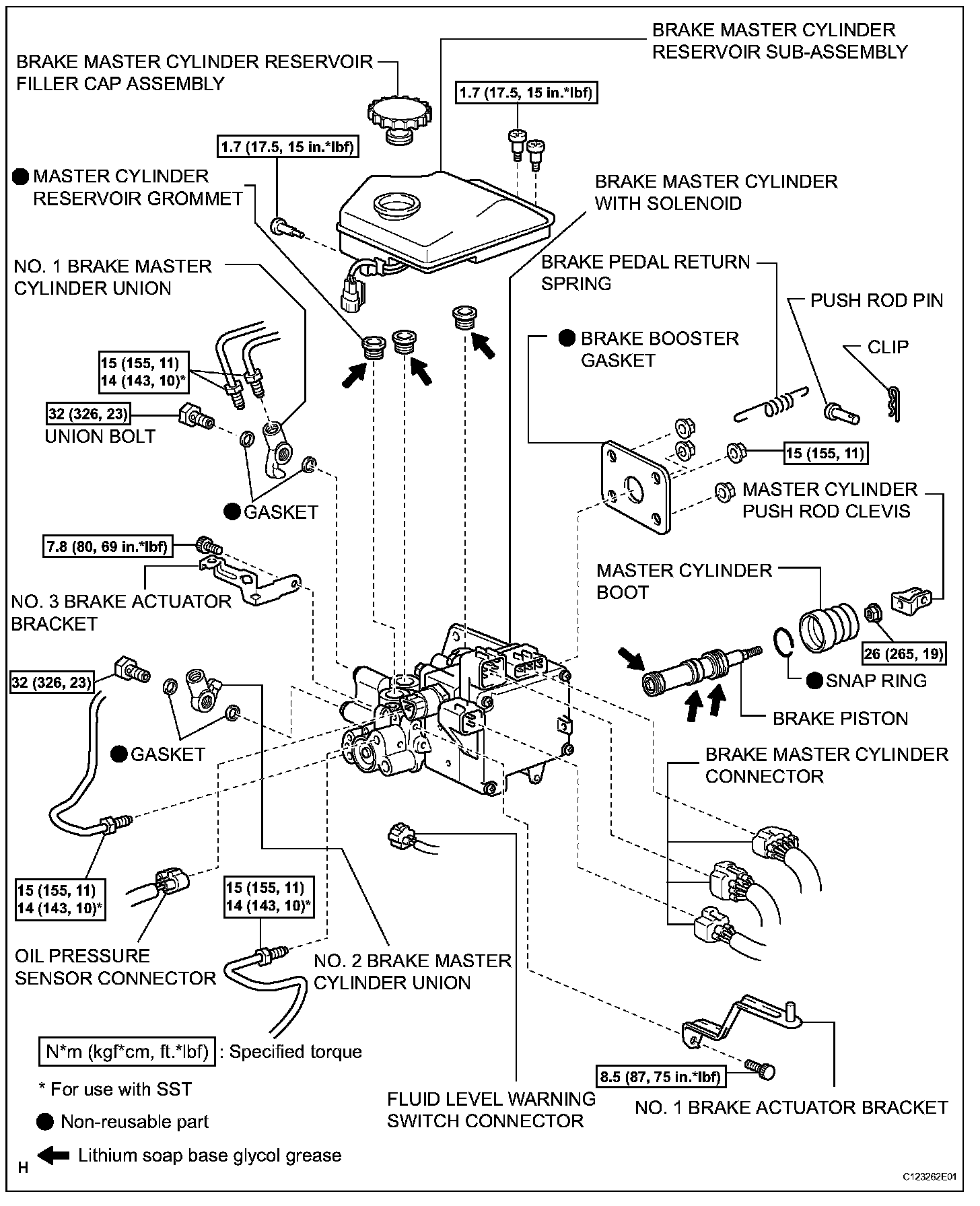

COMPONENTS (Part 2):

COMPONENTS (Part 3):

DISPOSAL





1. DISPOSE OF BRAKE BOOSTER ACCUMULATOR ASSEMBLY
(a) Discharge the high pressure gas from the accumulator.
(1) Mount the accumulator in a vise.

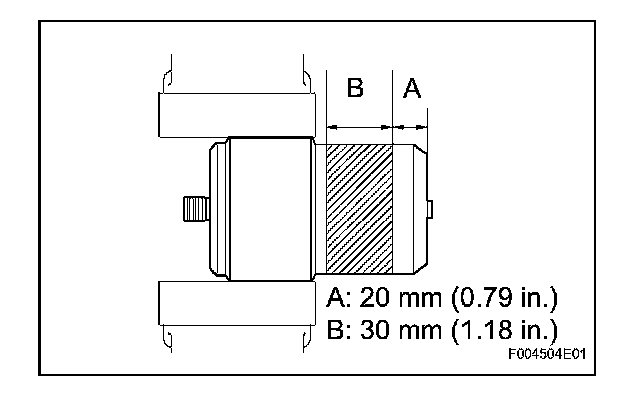

(2) Set a saw to the area (B) to be cut. Cover the saw with a cloth.
(3) Gradually cut the accumulator body.

HINT: When the outer body of the accumulator is cut, gas discharges.
