ABS Warning Light Circuit (Remains on)

ABS Warning Light Remains ON

DESCRIPTION

When checking for a 2 digit DTC, the ABS warning light remains on.

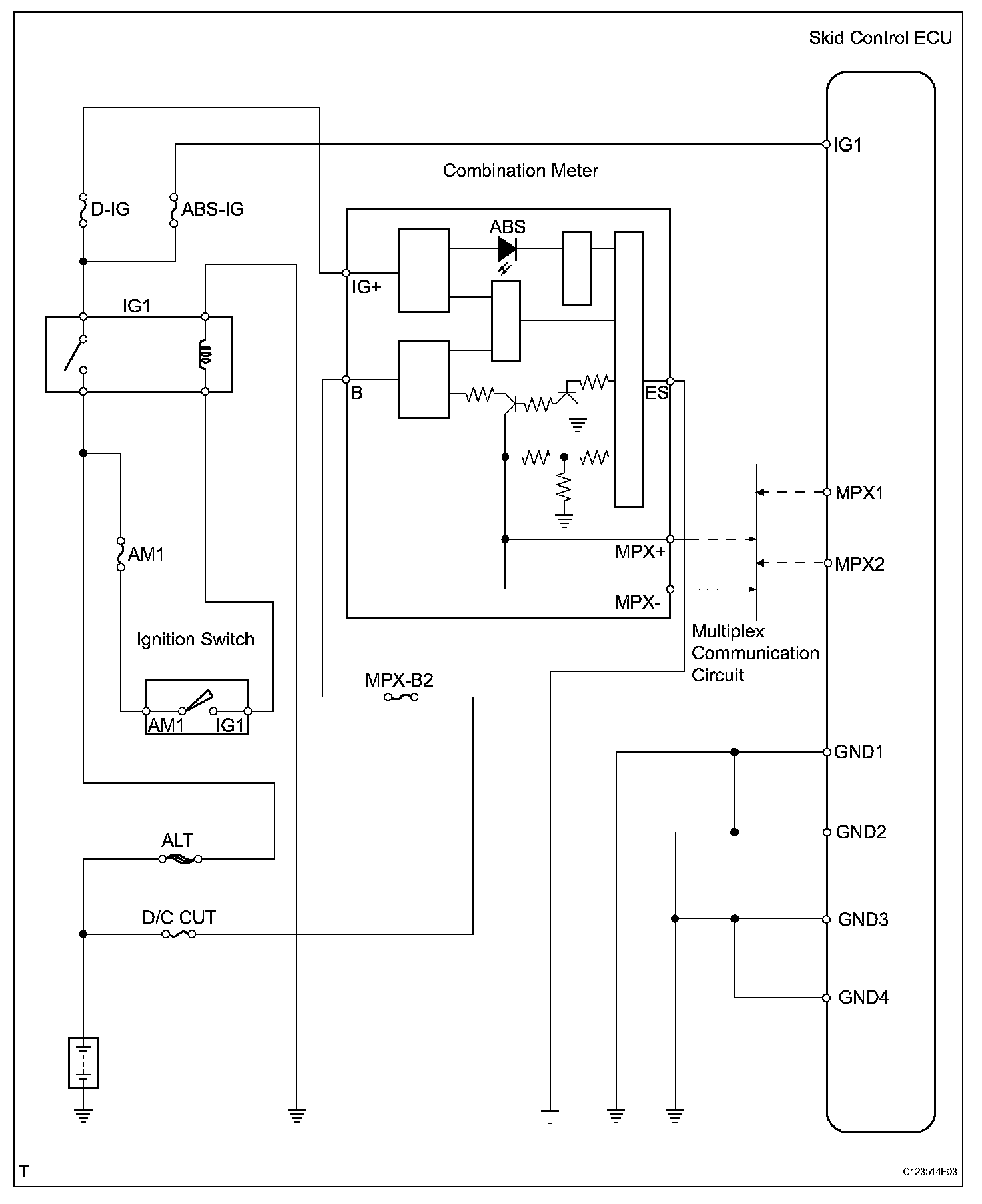

Wiring Diagram:

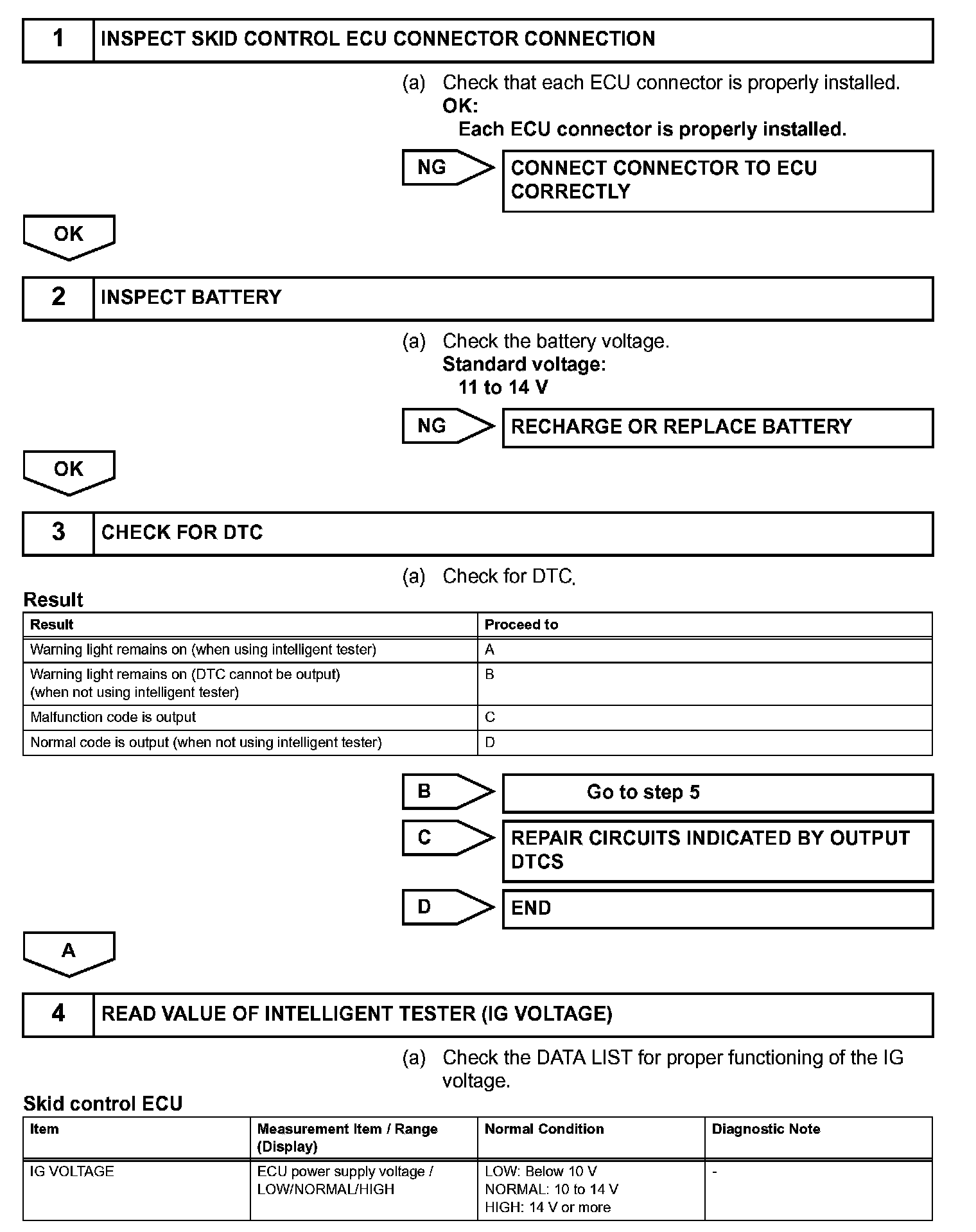

Step 1-4:

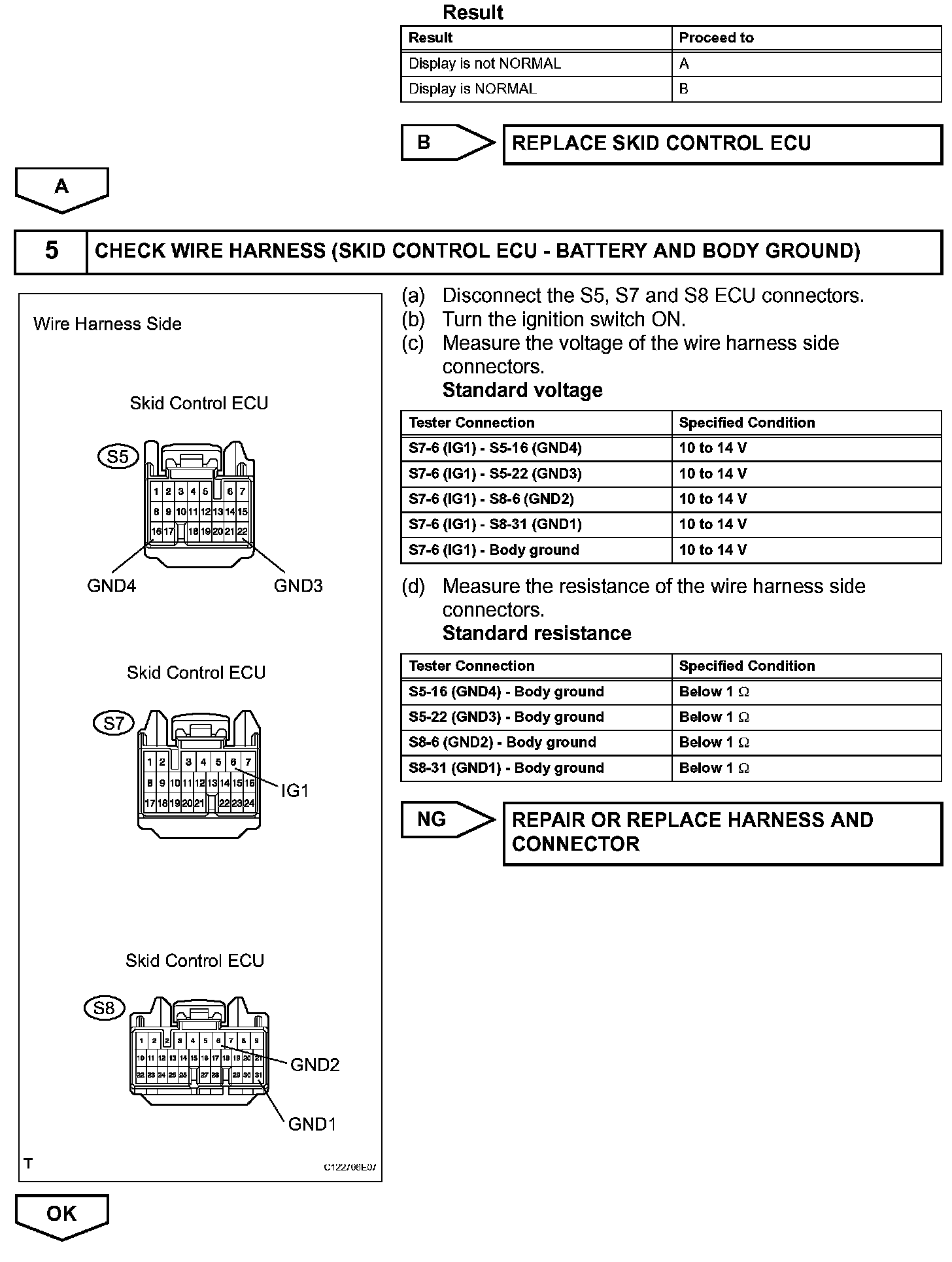

Step 4(Continued)-5:

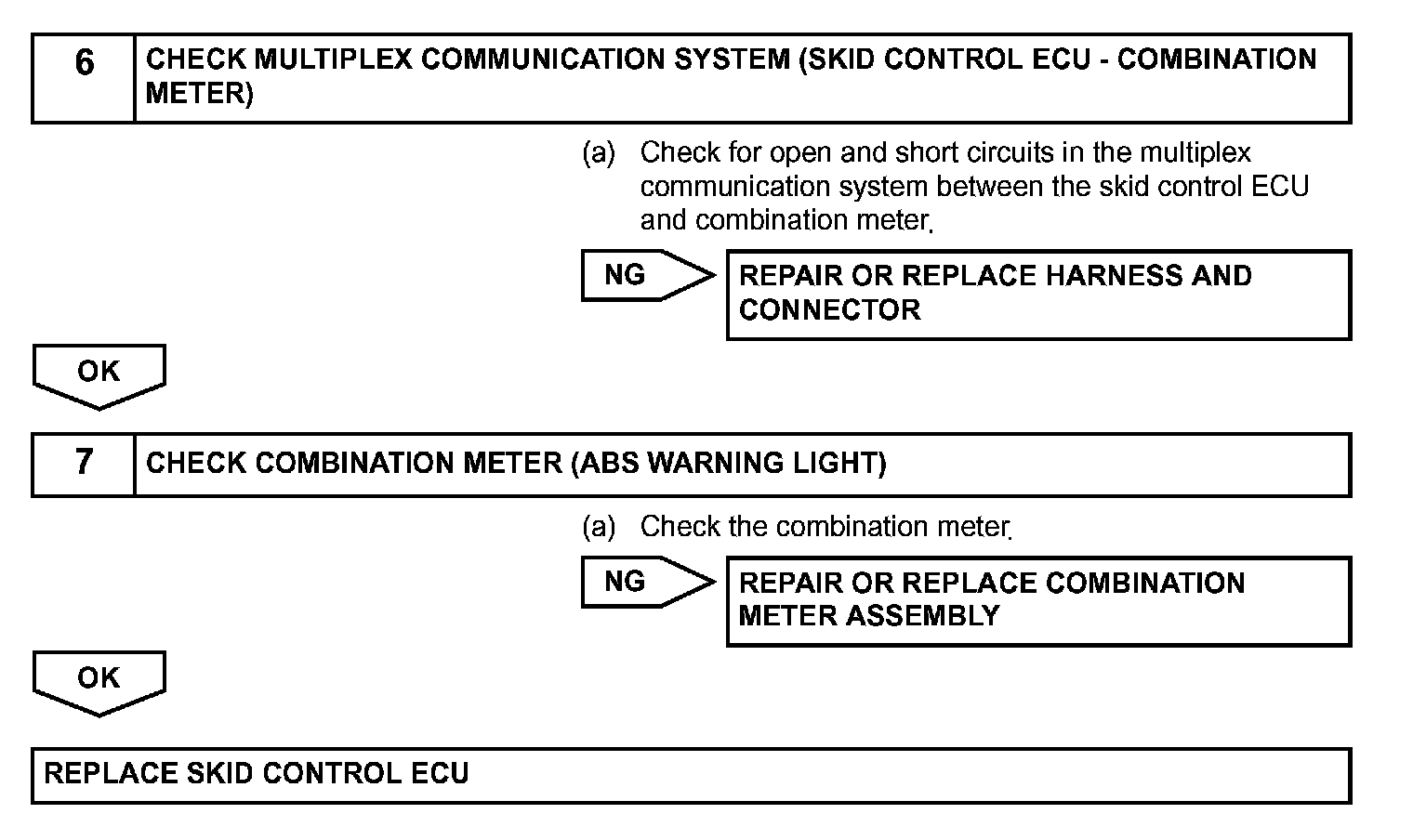

Step 6-7:

INSPECTION PROCEDURE
