Without Scan Tool

CHECK DTC (When not using intelligent tester)

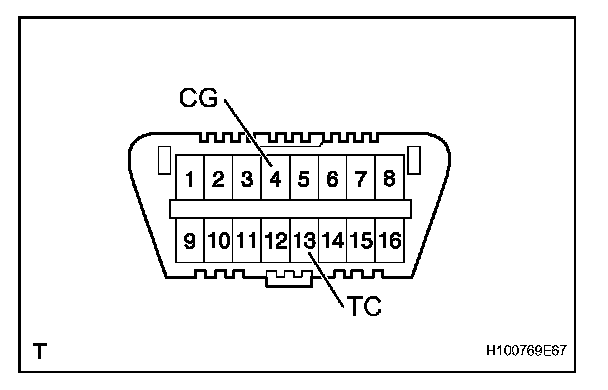

a. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.

SST 09843-18040

b. Turn the ignition switch ON.
c. Read the DTCs from the ABS warning light and VSC OFF indicator light on the combination meter.

HINT:
- If no code appears, check the TC and CG terminal circuit, ABS warning light circuit or VSC OFF indicator light circuit.

Trouble Area
TC and CG terminal circuit
ABS warning light circuit
VSC OFF indicator light circuit

- If more than 1 DTC is detected at the same time, the lowest numbered code will be displayed first.

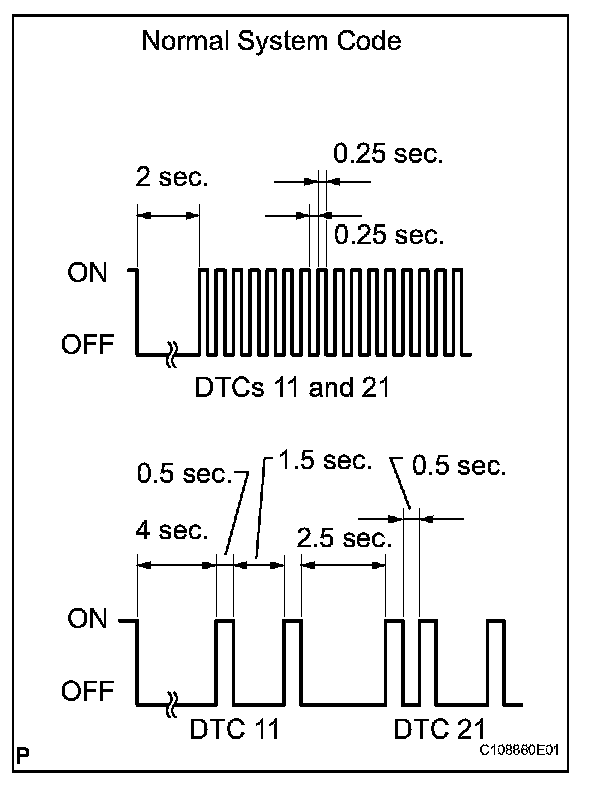

- The blinking patterns for a normal system code and trouble codes 11 and 21 are given in the illustration.
- The conditions are explained in the Diagnostic Trouble Code chart.




d. After completing the check, disconnect terminals 13 (TC) and 4 (CG) of the DLC3, and turn the ignition switch OFF.
