Without Scan Tool

CLEAR DTC (When not Using Intelligent Tester)

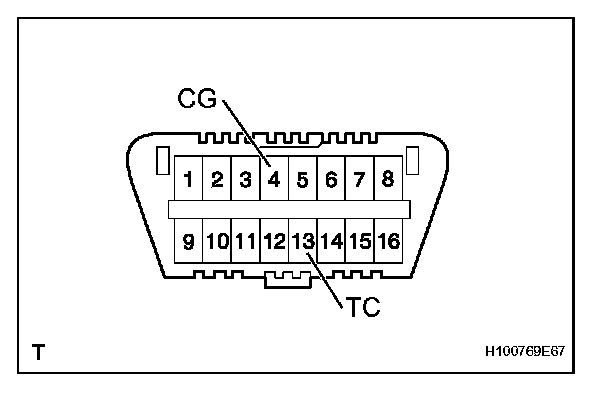

a. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.

SST 09843-18040

b. Turn the ignition switch ON.

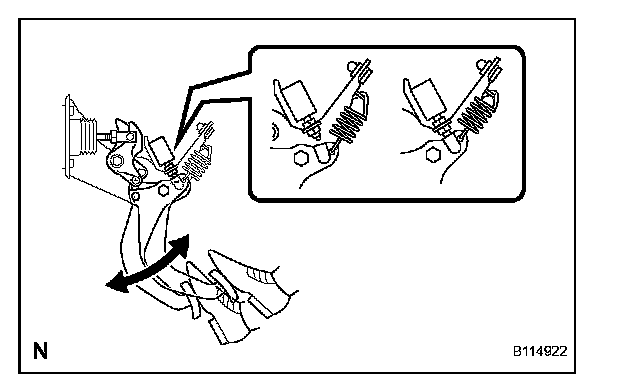

c. Clear the DTCs stored in the ECU by depressing the brake pedal 8 times or more within 5 seconds.
d. Check that the warning light indicates the normal system code.
e. Remove SST from the terminals of the DLC3.

HINT: DTCs cannot be cleared by removing the battery cable or ABS-IG fuse.
