TC and CG Terminal Circuit

TC and CG Terminal Circuit

DESCRIPTION

Connecting terminals TC and CG of the DLC3 causes the ECU to display the DTC by flashing the ABS warning light.

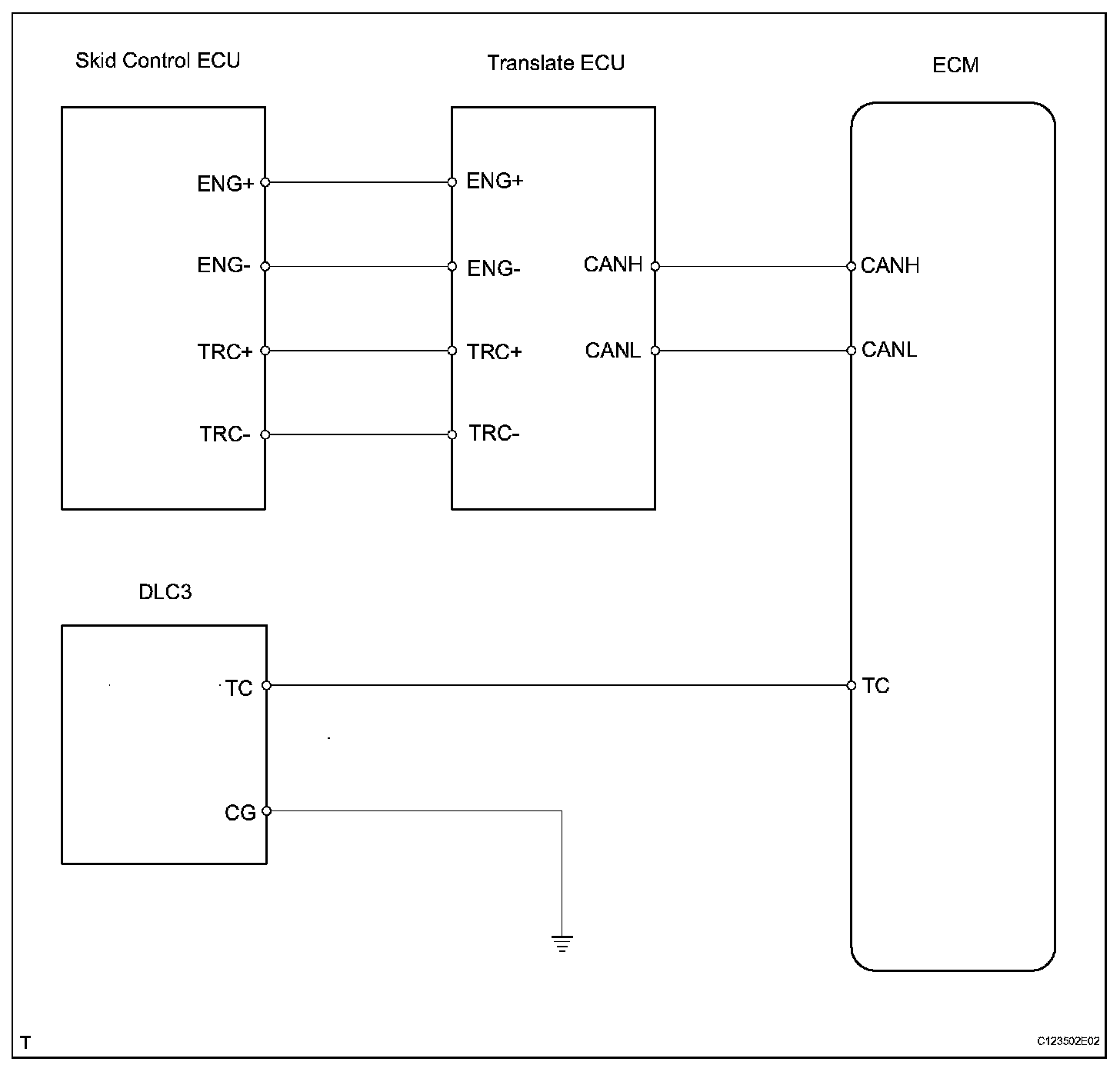

Wiring Diagram:

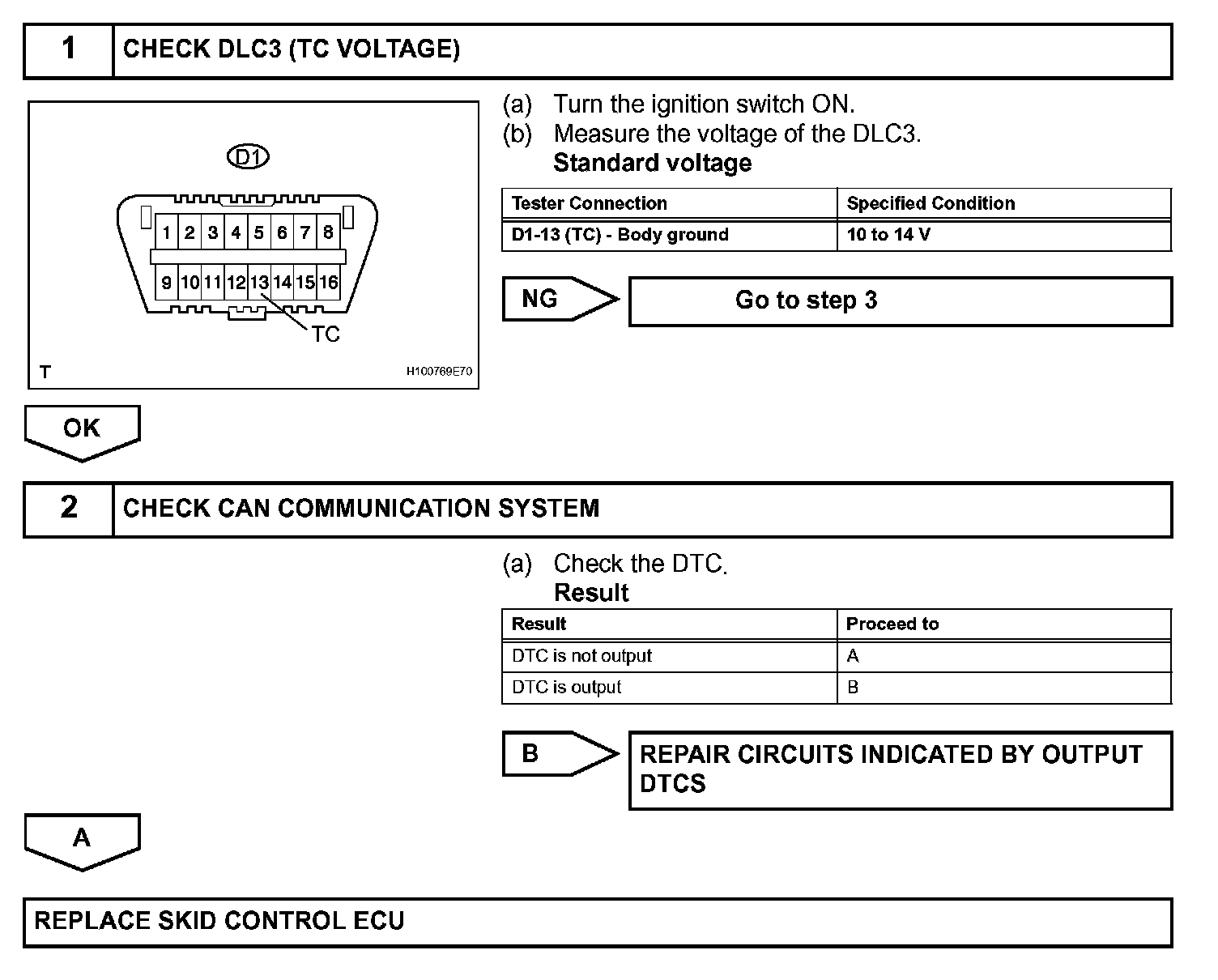

Step 1-2:

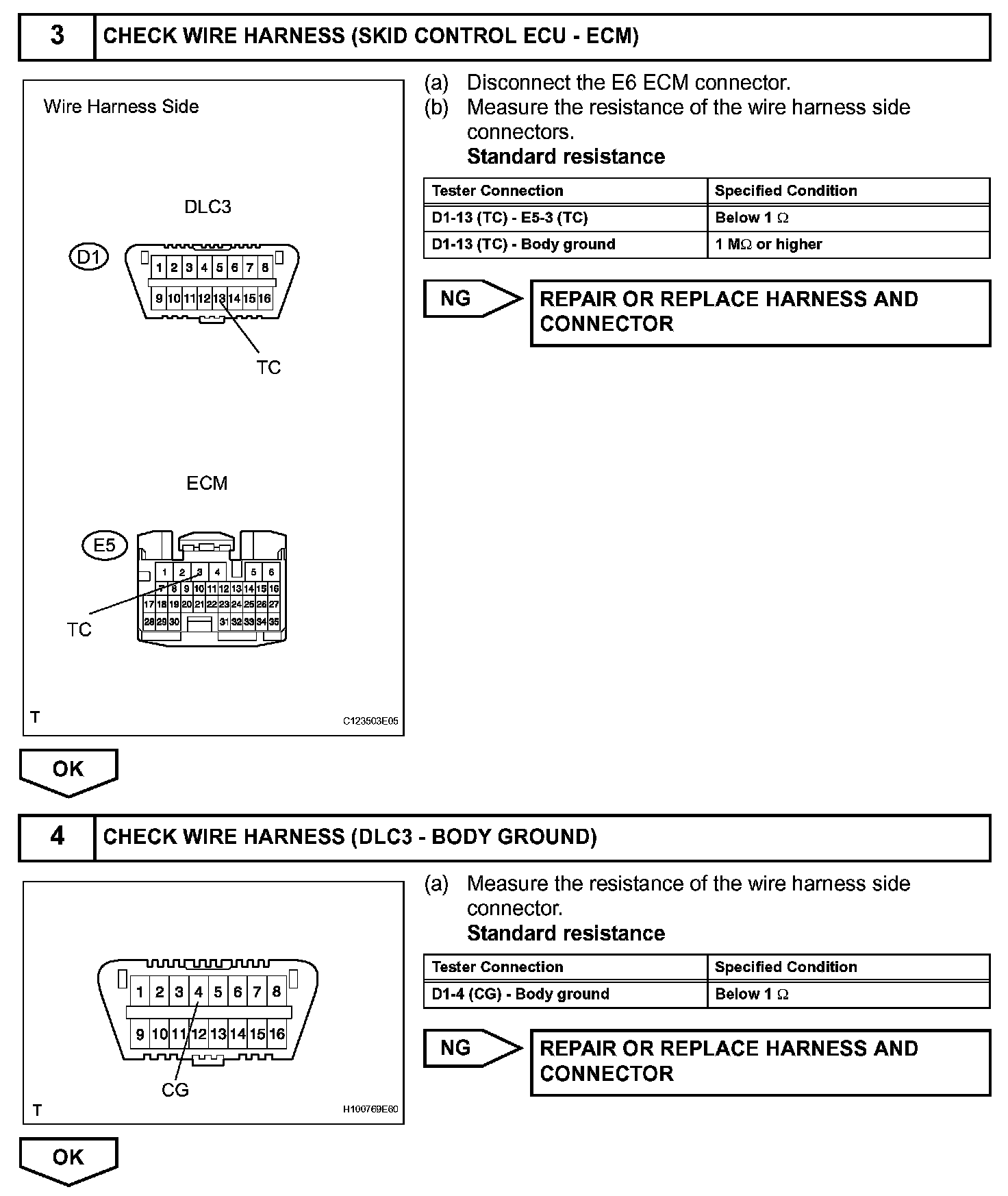

Step 3-4:

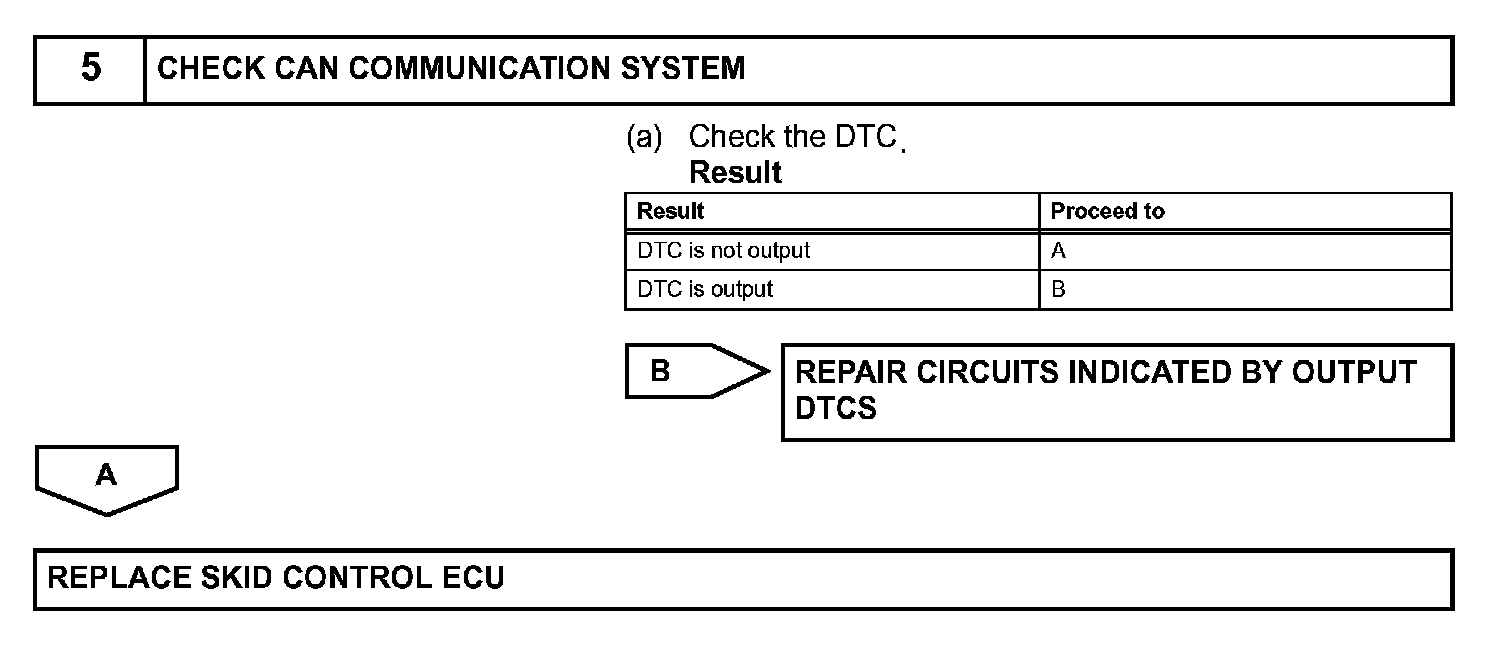

Step 5:

INSPECTION PROCEDURE
