Slip Indicator Lamp Circuit

Slip Indicator Light Circuit

DESCRIPTION

The SLIP indicator light blinks during TRAC & VSC operation.

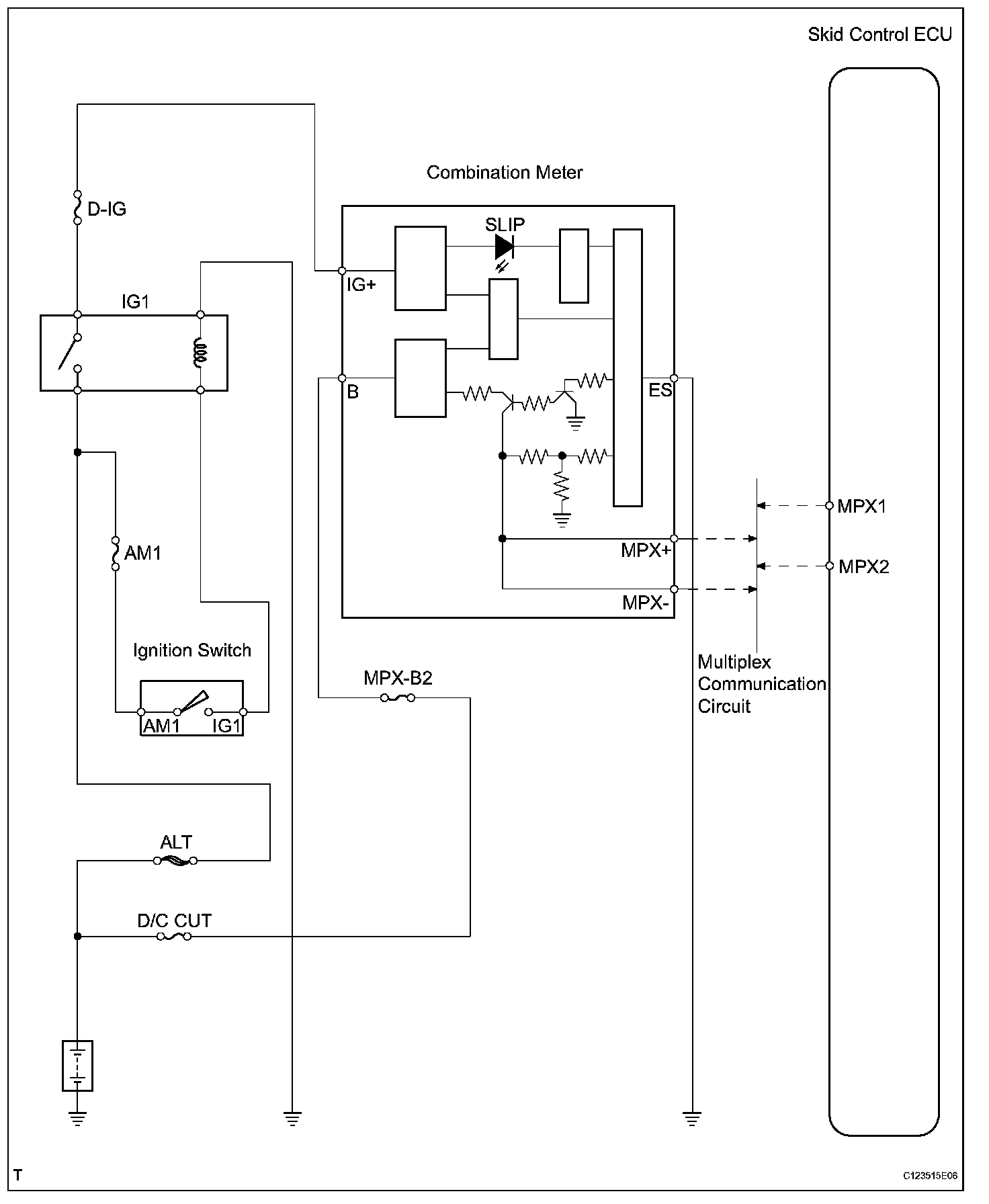

Wiring Diagram:

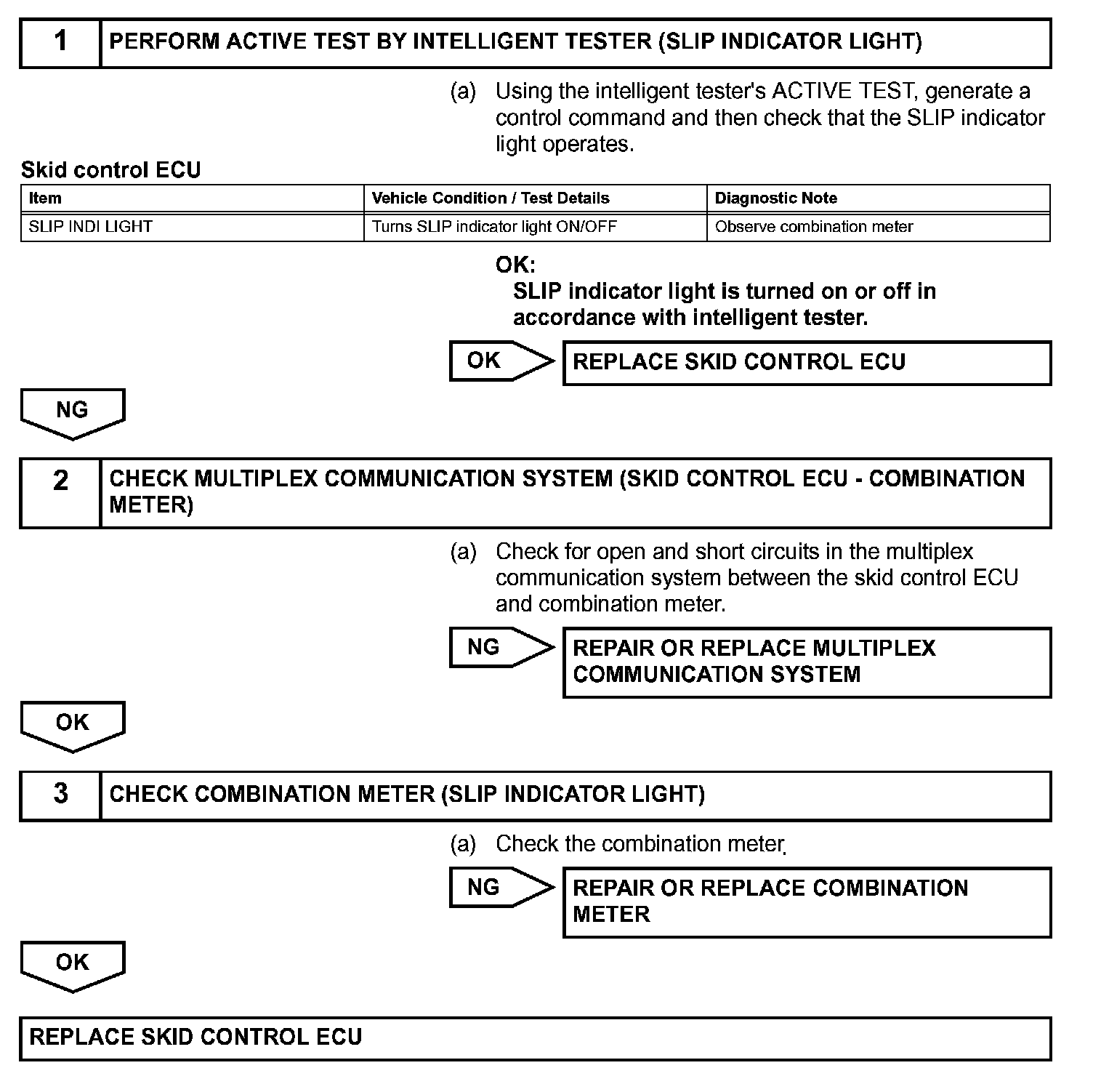

Step 1-3:




INSPECTION PROCEDURE
