Skid Control Buzzer Circuit

Skid Control Buzzer Circuit

DESCRIPTION

The skid control buzzer sounds during VSC operation.

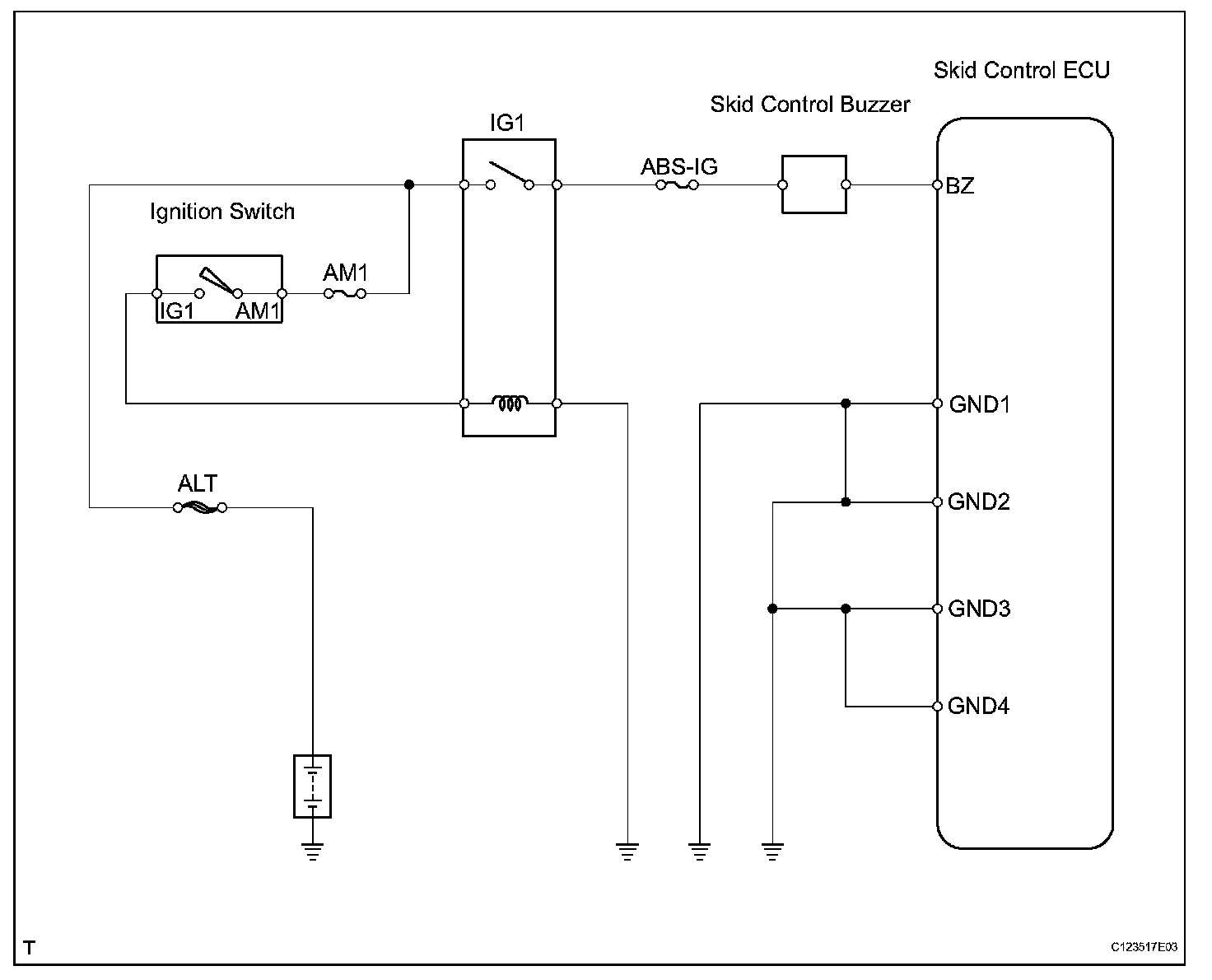

Wiring Diagram:

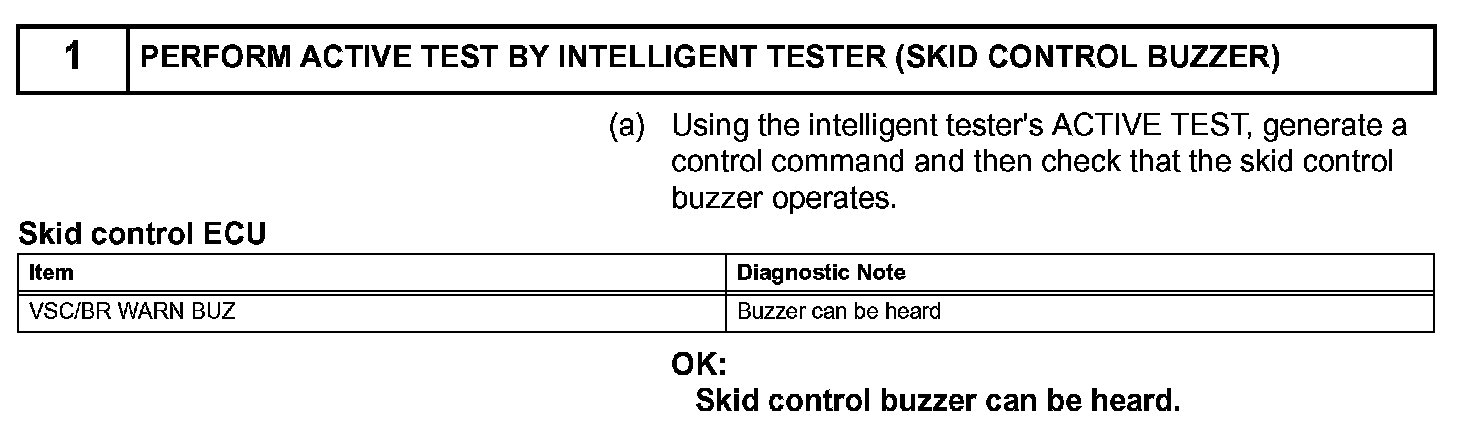

Step 1:

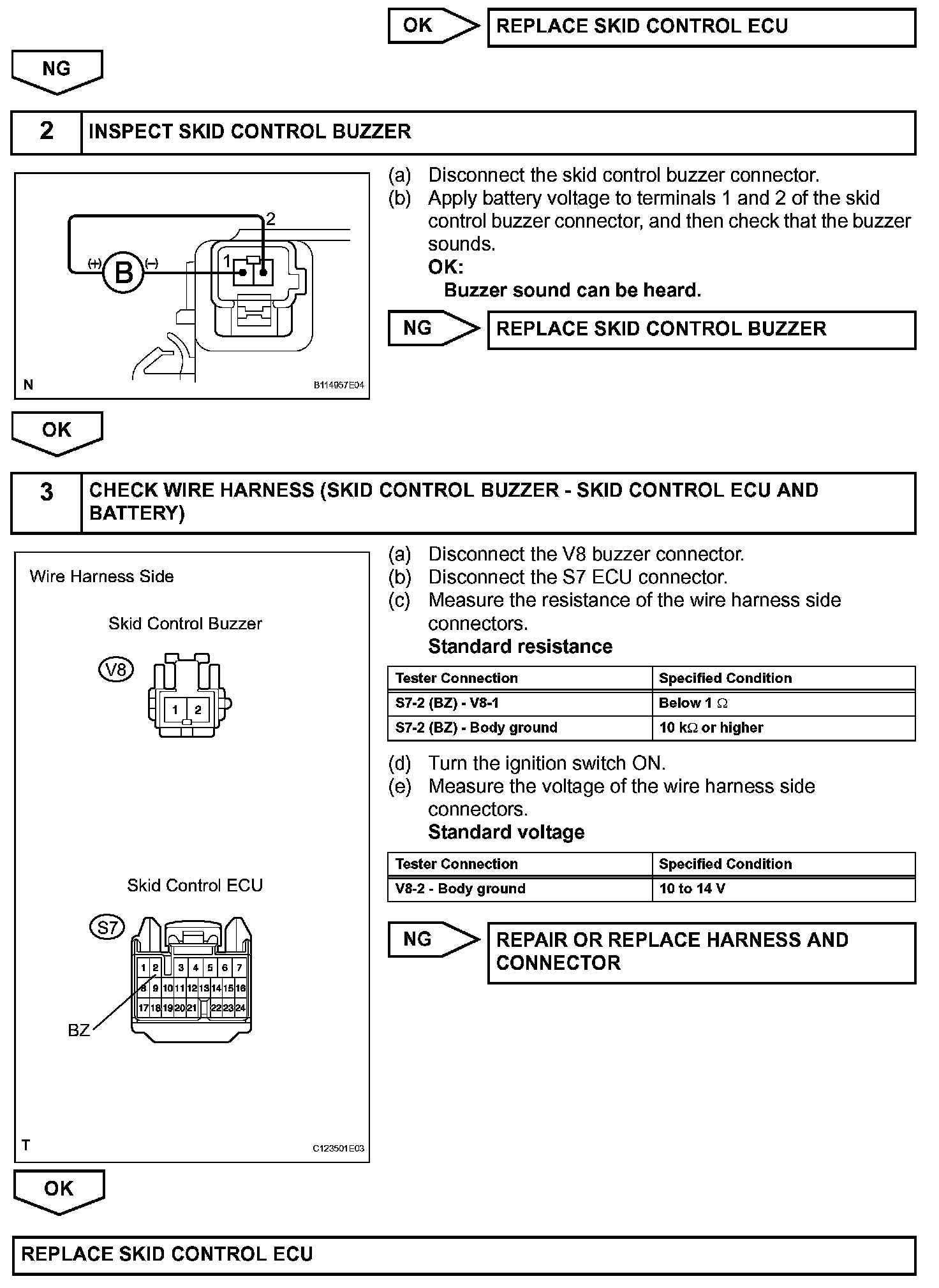

Step 1(Continued)-3:




INSPECTION PROCEDURE
