ABS Warning Light Circuit
ABS Warning Light CircuitDESCRIPTION
If the ECU detects trouble, it illuminates the ABS warning light and prohibits ABS control. At this time, the ECU records a DTC in memory.
Connecting terminals TC and CG of the DLC3 blinks the ABS warning light and outputs the DTC.
Wiring Diagram:

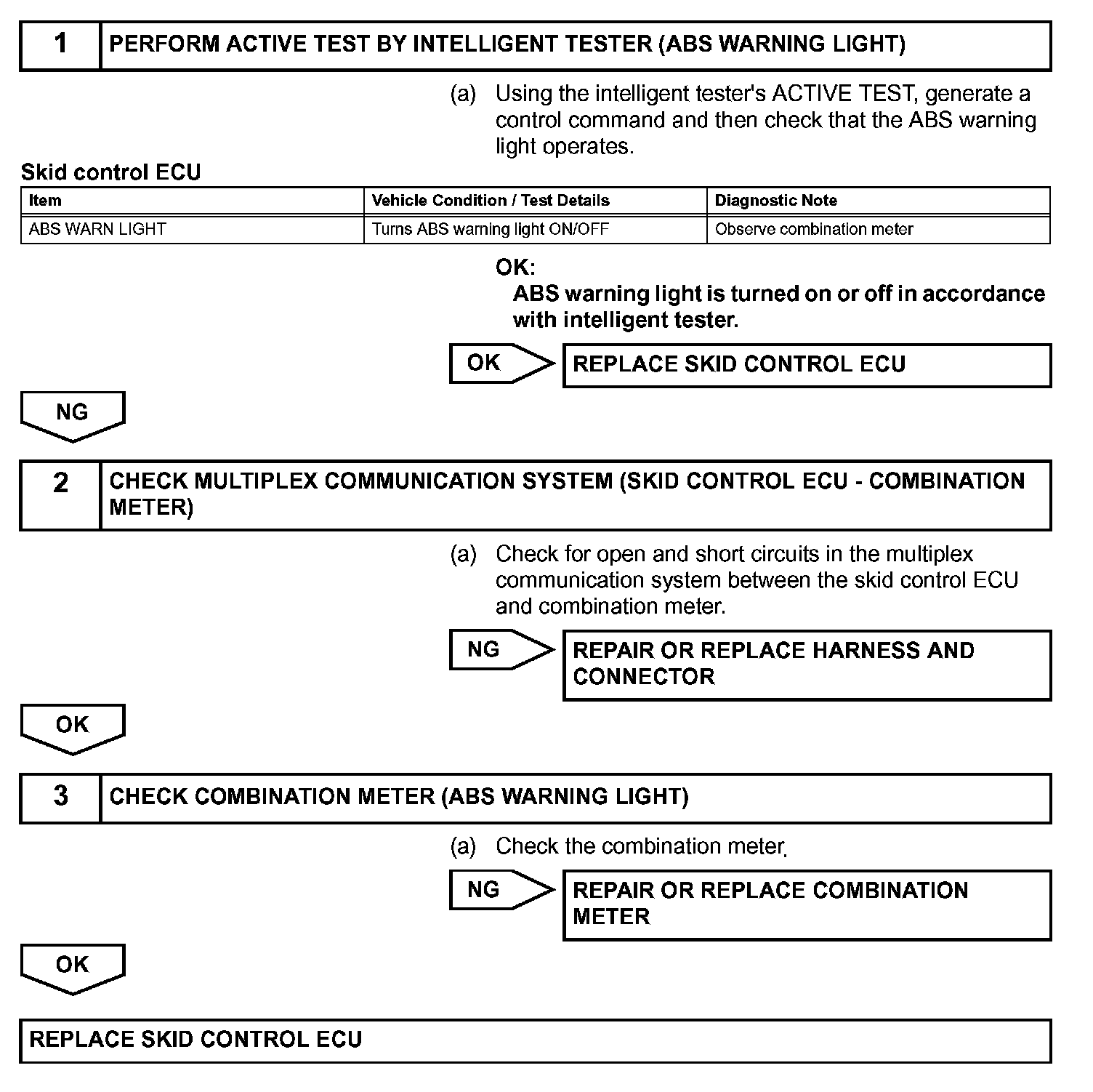

Step 1-3:
INSPECTION PROCEDURE
