Spoiler: Service and Repair

REAR SPOILER

Rear Spoiler:

REMOVAL

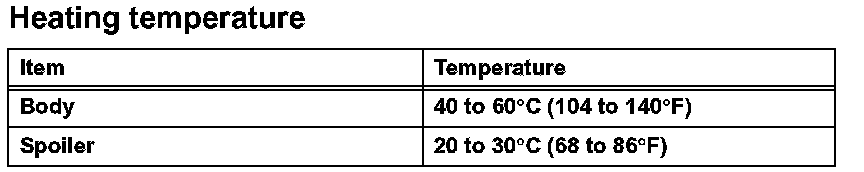

HINT: When removing the spoiler, heat the body and spoiler using a heat light.






NOTICE: Do not heat the body and moulding excessively.

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER
Remove the luggage compartment door cover.

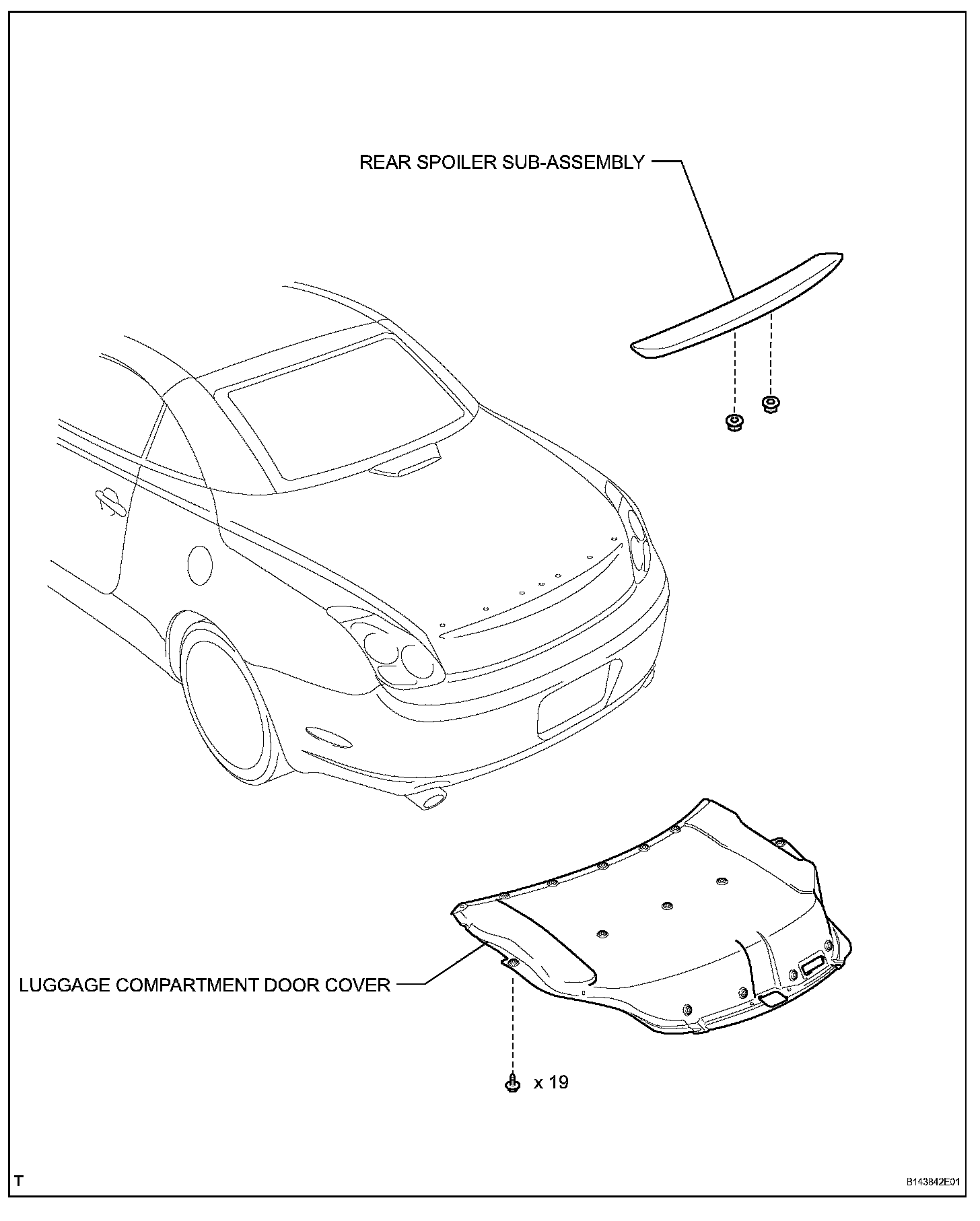

2. REMOVE REAR SPOILER SUB-ASSEMBLY
a. Remove the 2 nuts.






b. Apply protective tape around the spoiler.
c. Heat the spoiler.
d. Tie objects that can serve as handles (for example, wooden blocks) to the ends of a piano wire.
e. Remove the 3 pins, 2 clips and spoiler.

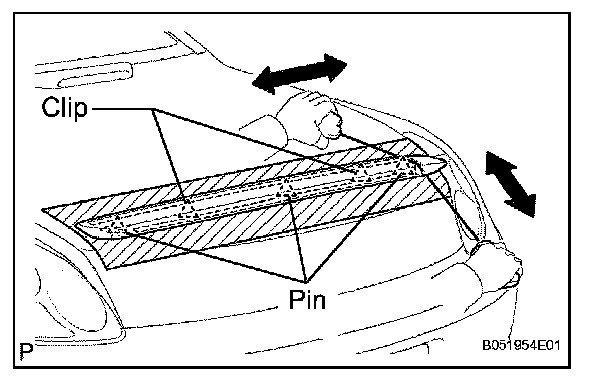

1. Pull the piano wire under the spoiler to cut through the adhesive.
2. Cut through the adhesive until a pin or clip obstructs the wire. Remove the pin or clip and then continue cutting through the adhesive until the spoiler is fully removed.

NOTICE:
- If planning to reuse the spoiler, take care not to damage it.
- Do not damage the body.

INSTALLATION

HINT:

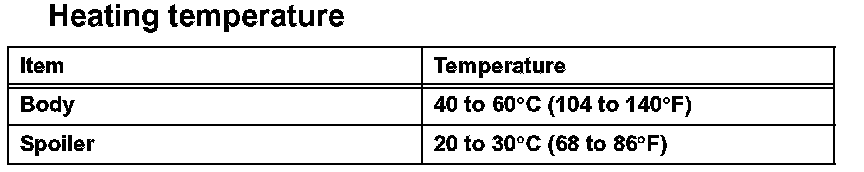

- When installing the spoiler, heat the body and spoiler using a heat light.






- A bolt without a torque specification is shown in the standard bolt chart.

1. INSTALL REAR SPOILER SUB-ASSEMBLY
a. Clean the luggage compartment door surface:
1. Using a heat light, heat the luggage compartment door surface.

NOTICE: Do not heat the luggage compartment door excessively.

2. Remove the double-sided tape from the luggage compartment door.
3. Wipe off the stains with cleaner.

b. If reusing the spoiler: Clean the spoiler.
1. Using a heat light, heat the spoiler.

NOTICE: Do not heat the spoiler excessively.

2. Remove the double-sided tape from the spoiler.
3. Wipe off the stains with cleaner.

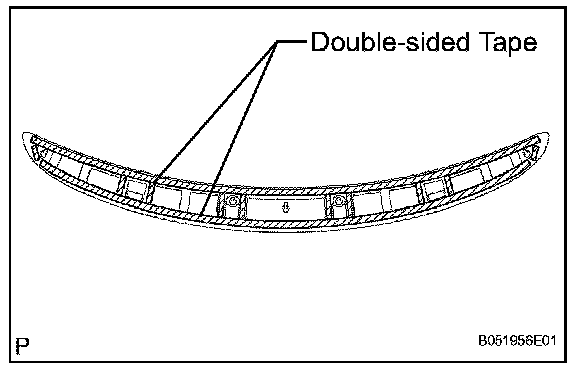

4. Apply new double-sided tape to the spoiler as shown in the illustration.
5. Remove the peeling paper from the spoiler.

HINT: After removing the peeling paper, keep the exposed adhesive free from foreign matter.

6. Install the spoiler to the luggage compartment door.

2. INSTALL LUGGAGE COMPARTMENT DOOR COVER
a. Install the luggage compartment door cover.
