Package Tray Limit Switch

INSPECTION

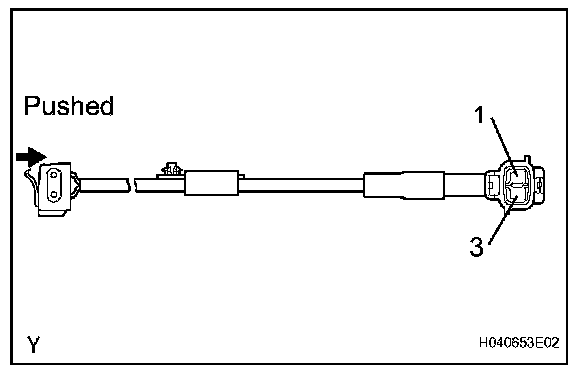

1. INSPECT NO. 1 PACKAGE TRAY SLIDE ROOF LIMIT SWITCH

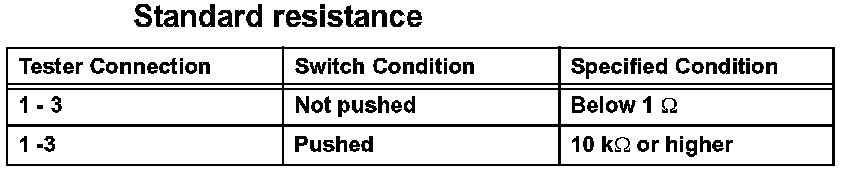

a. Measure the resistance of the switch.

If the result not as specified, replace the slide roof limit switch.

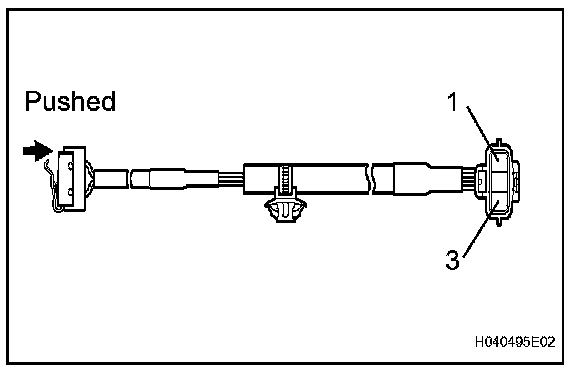

2. INSPECT NO. 2 PACKAGE TRAY SLIDE ROOF LIMIT SWITCH

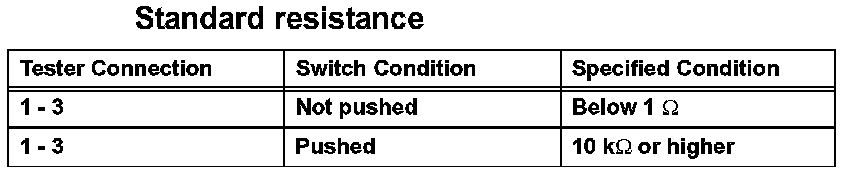

a. Measure the resistance of the switch.

If the result not as specified, replace the slide roof limit switch.
