Front Power Seat Does Not Operate With Front Power Seat Switch

Front Power Seat Does Not Operate With Front Power Seat Switch

DESCRIPTION
Signals of the front power switch are monitored by the position control ECU. The ECU then activates the driver and front passenger side motors.

WIRING DIAGRAM

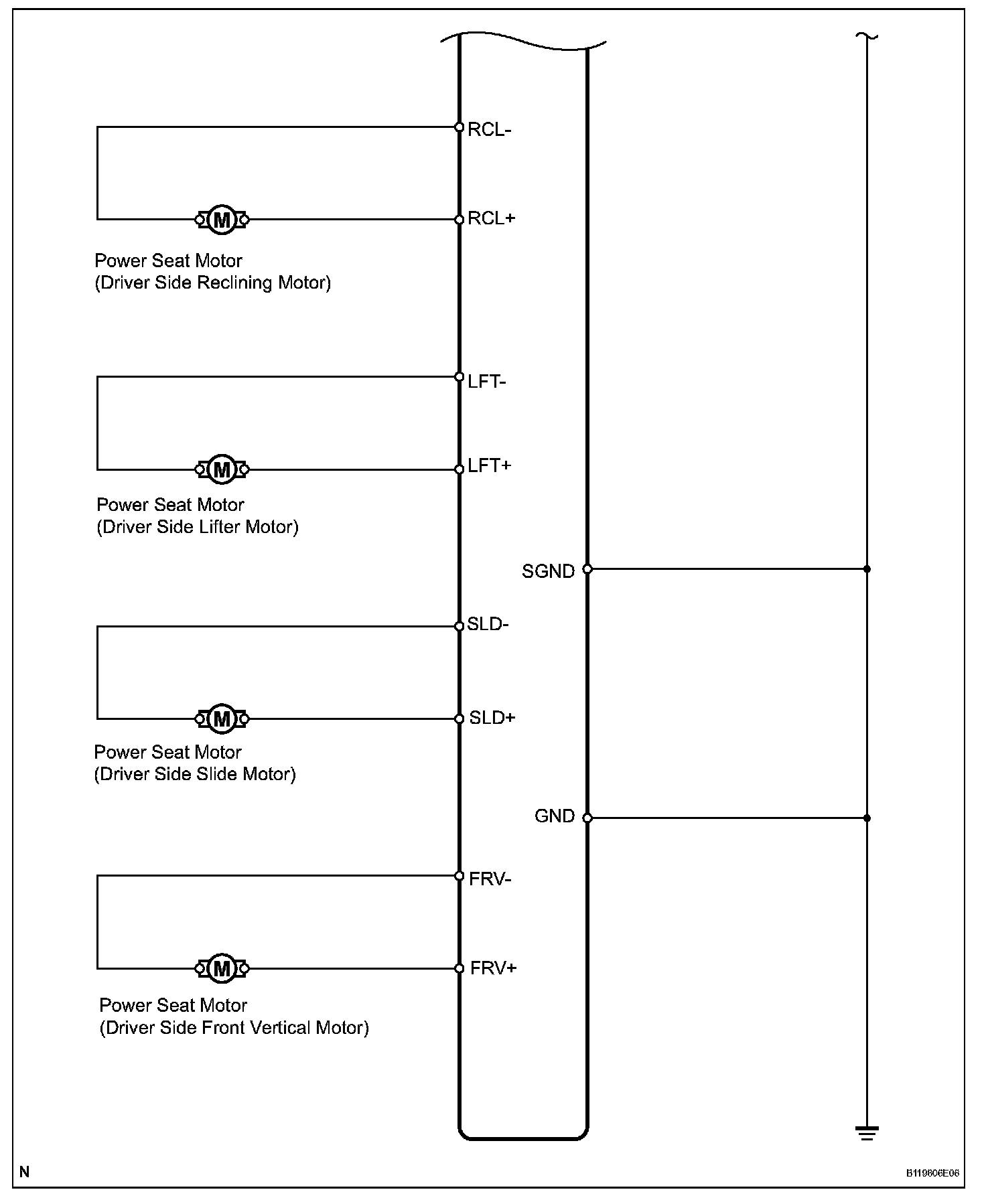

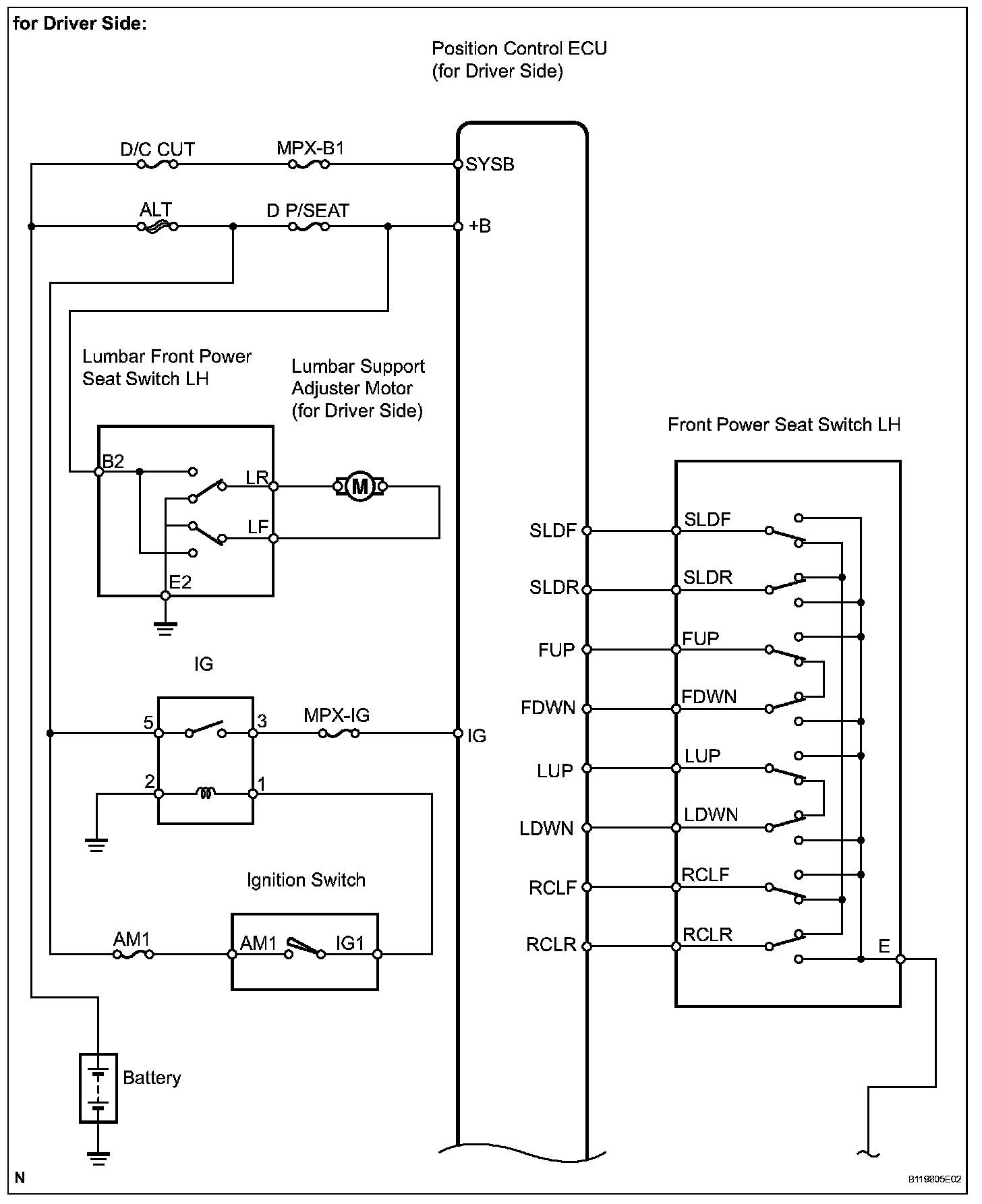

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

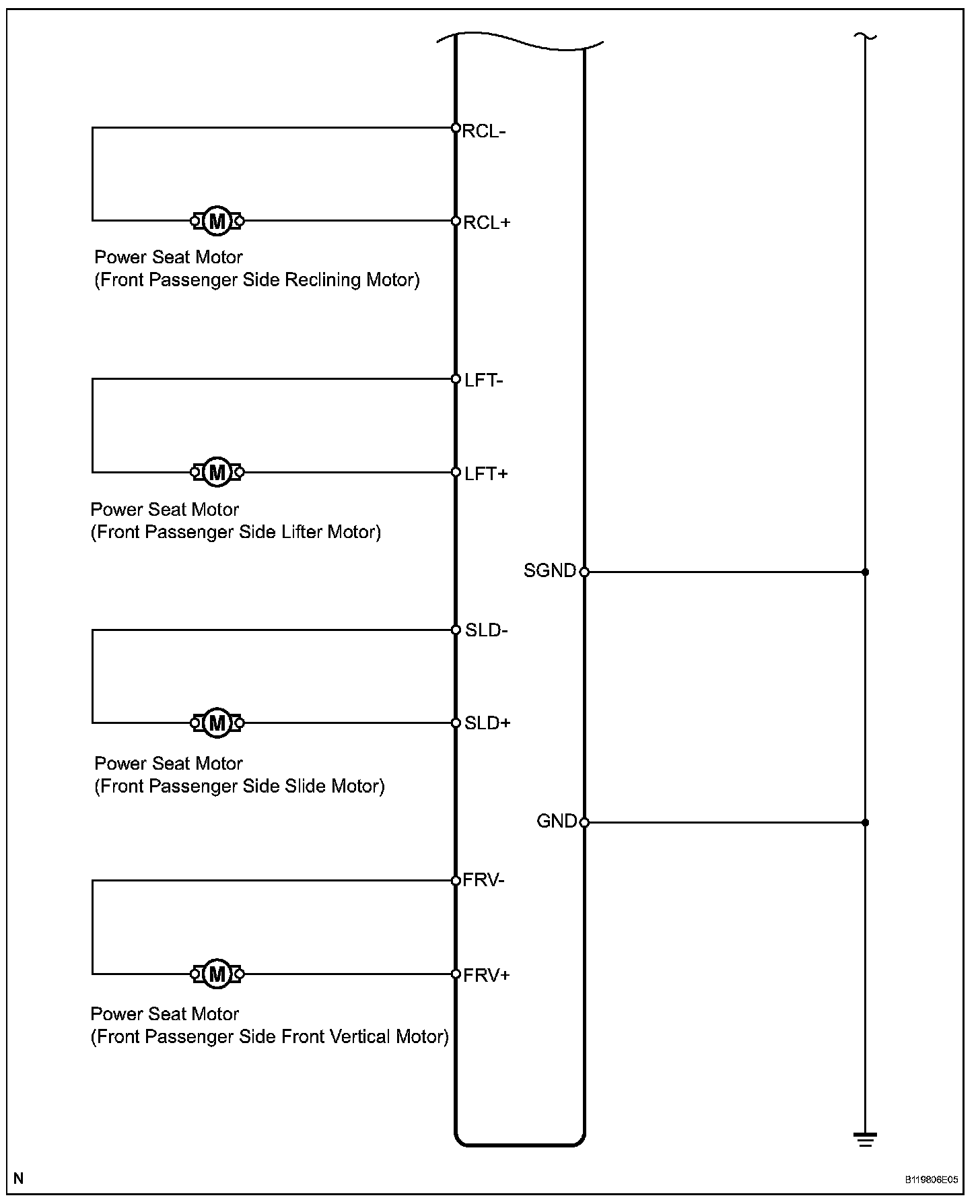

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

INSPECTION PROCEDURE

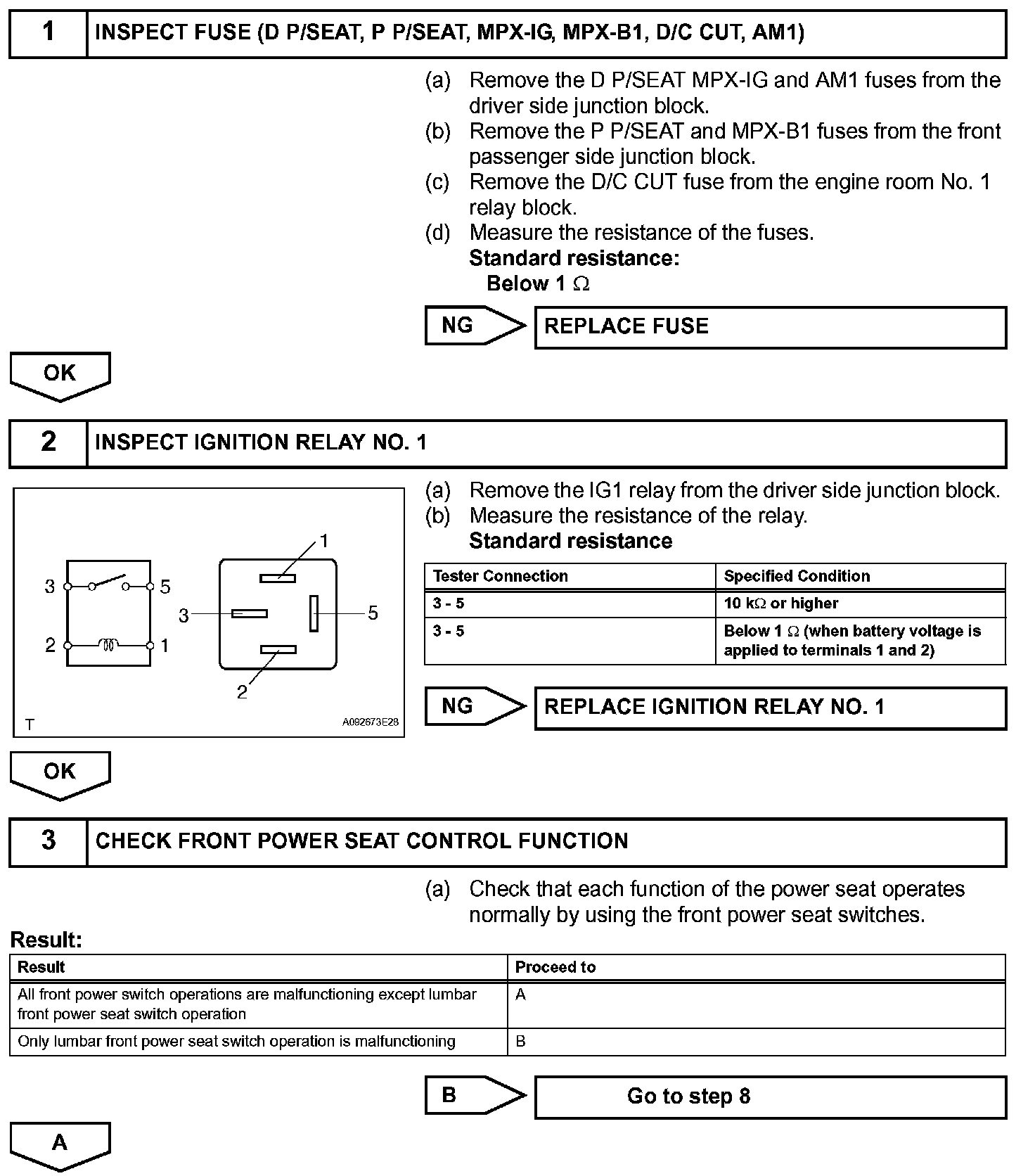

Step 1 - 3:

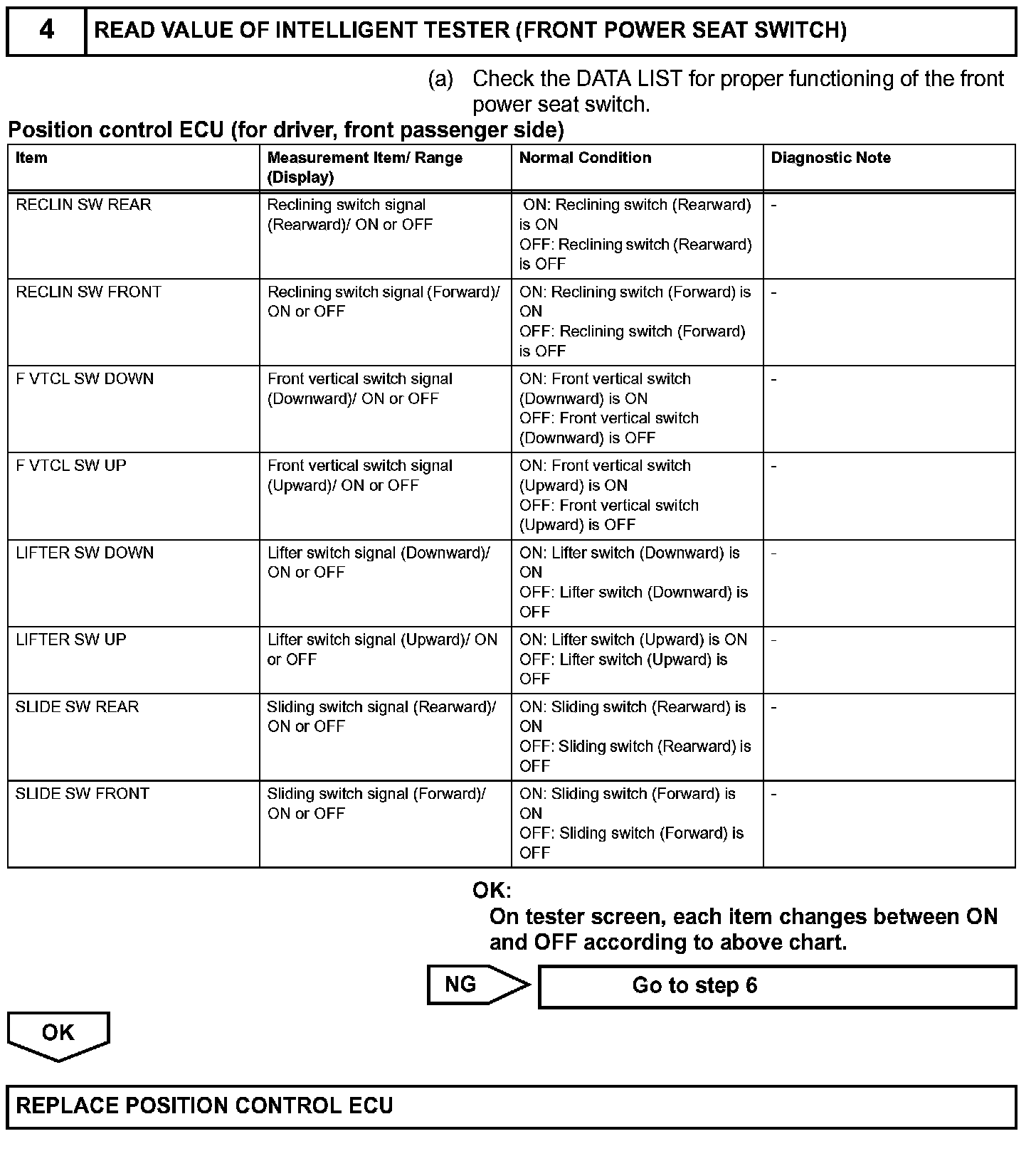

Step 4:

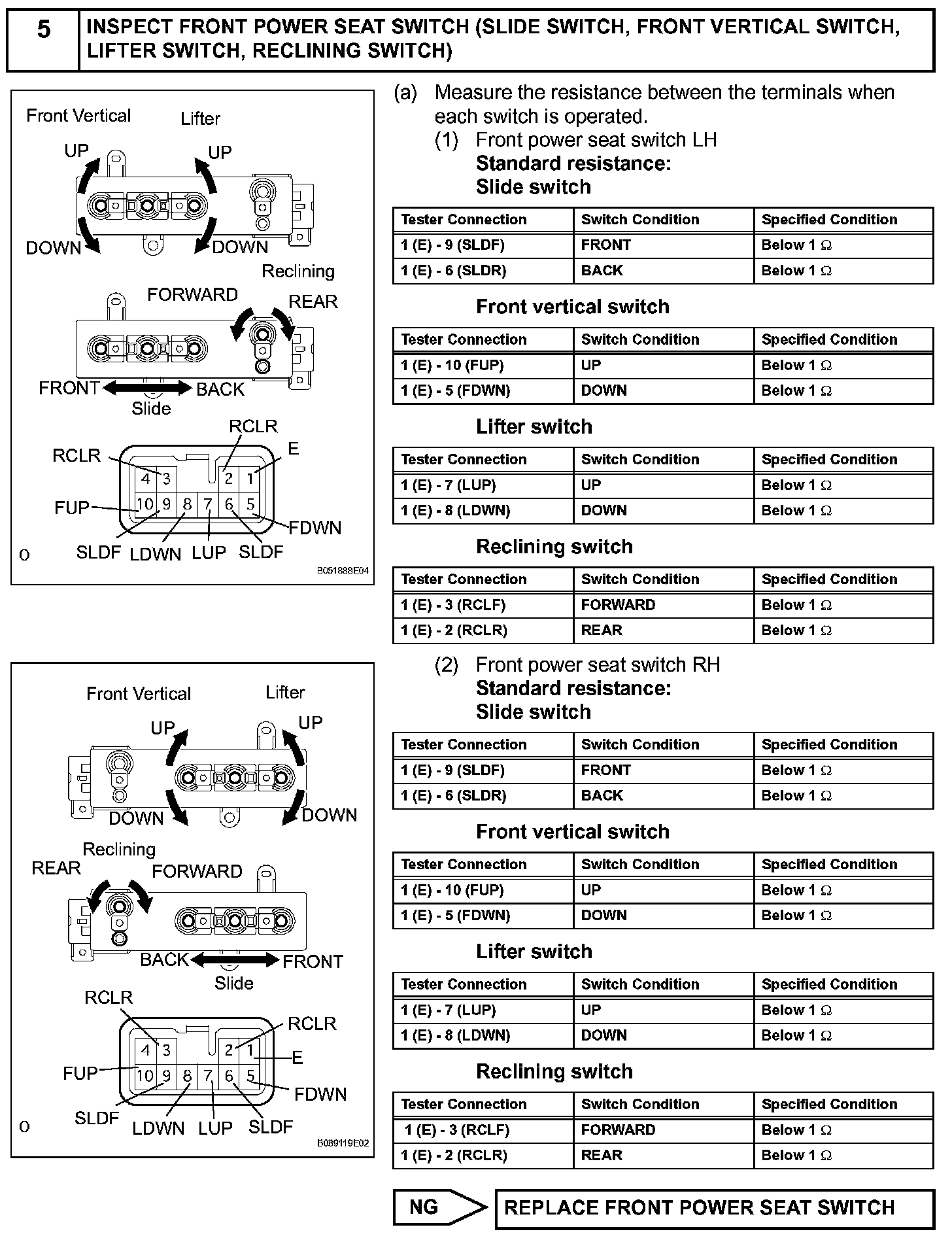

Step 5:

Step 5(Continued) - Step 6:

Step 6(Continued):

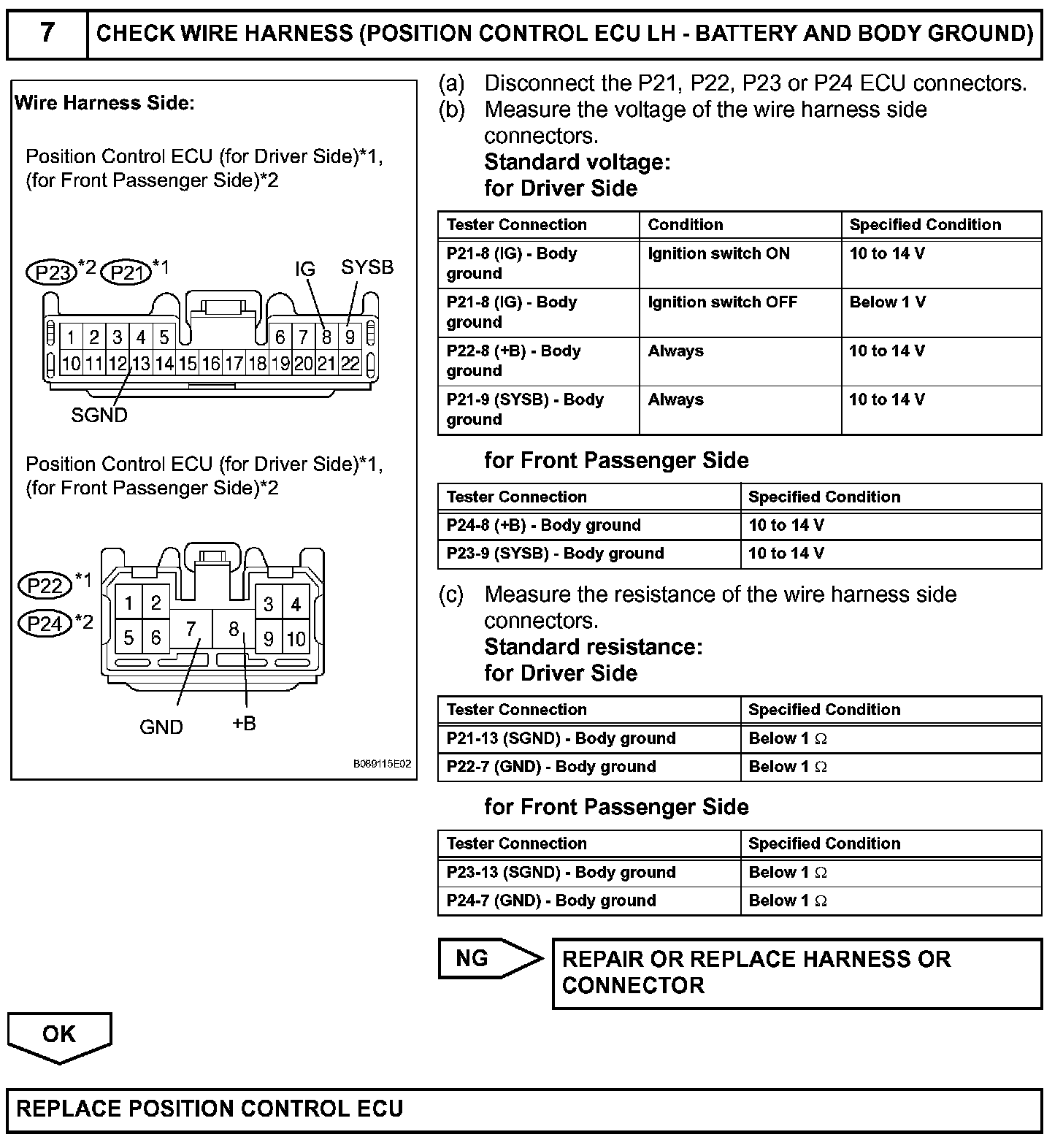

Step 7:

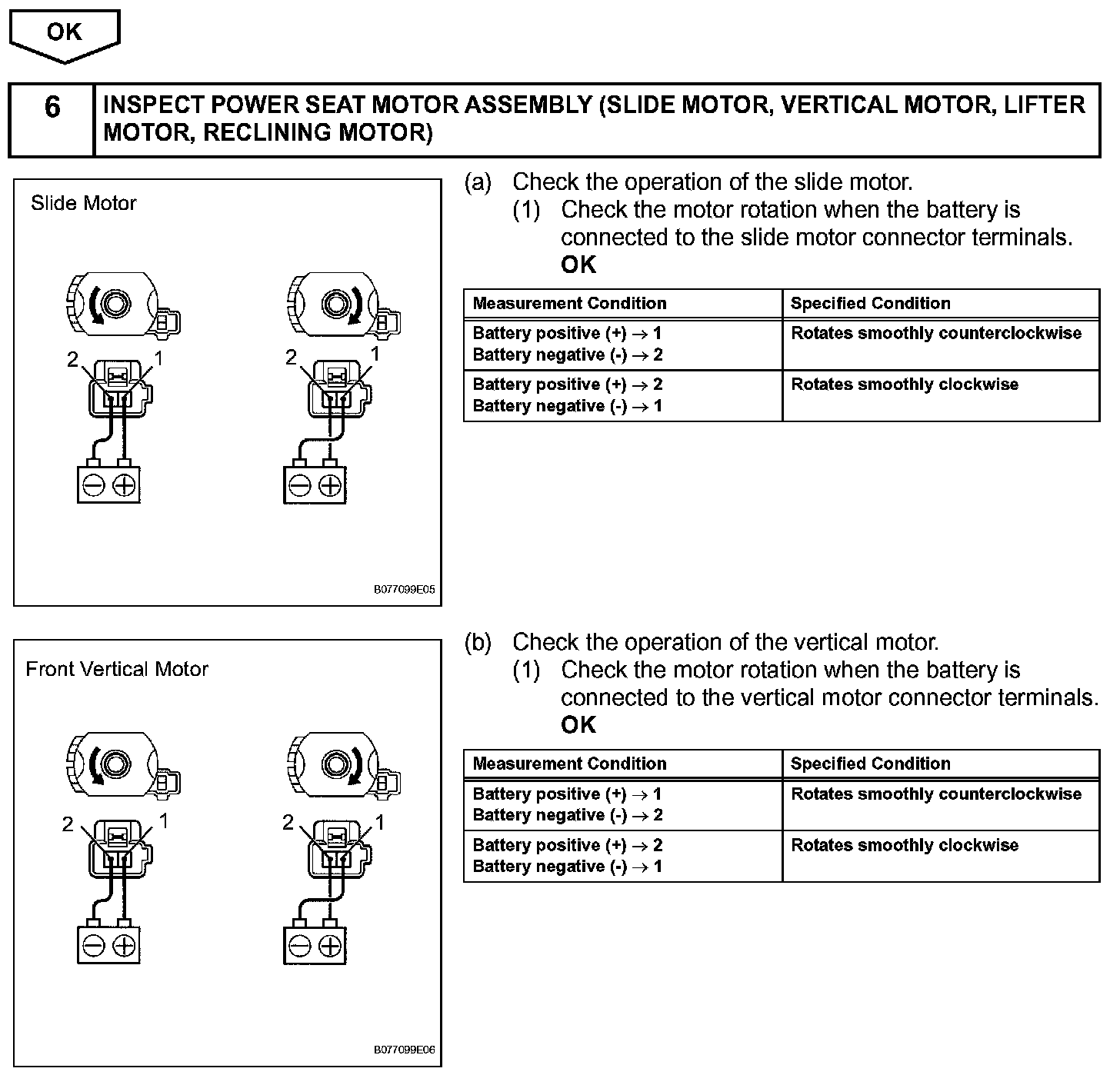

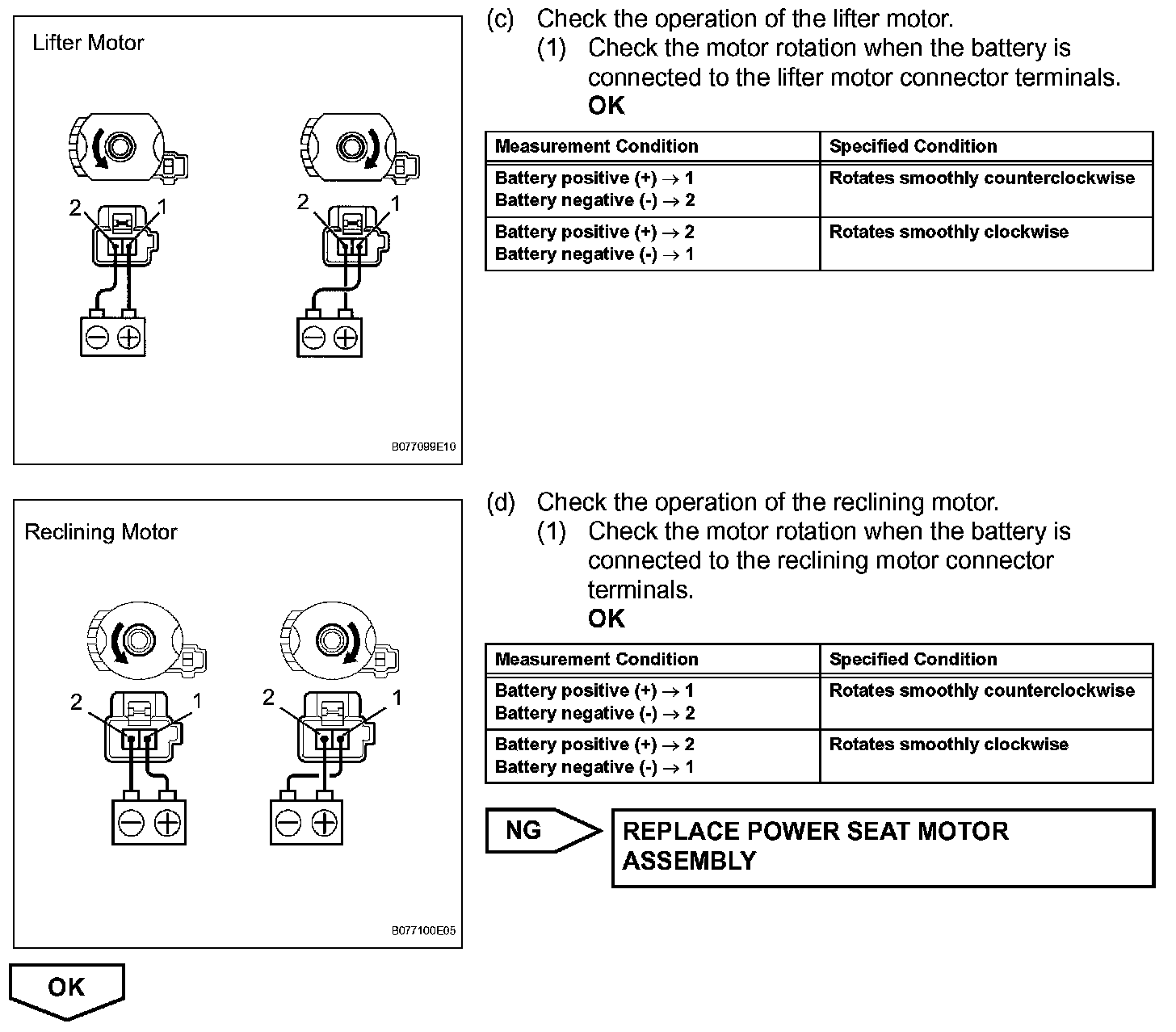

Step 8 - 9:

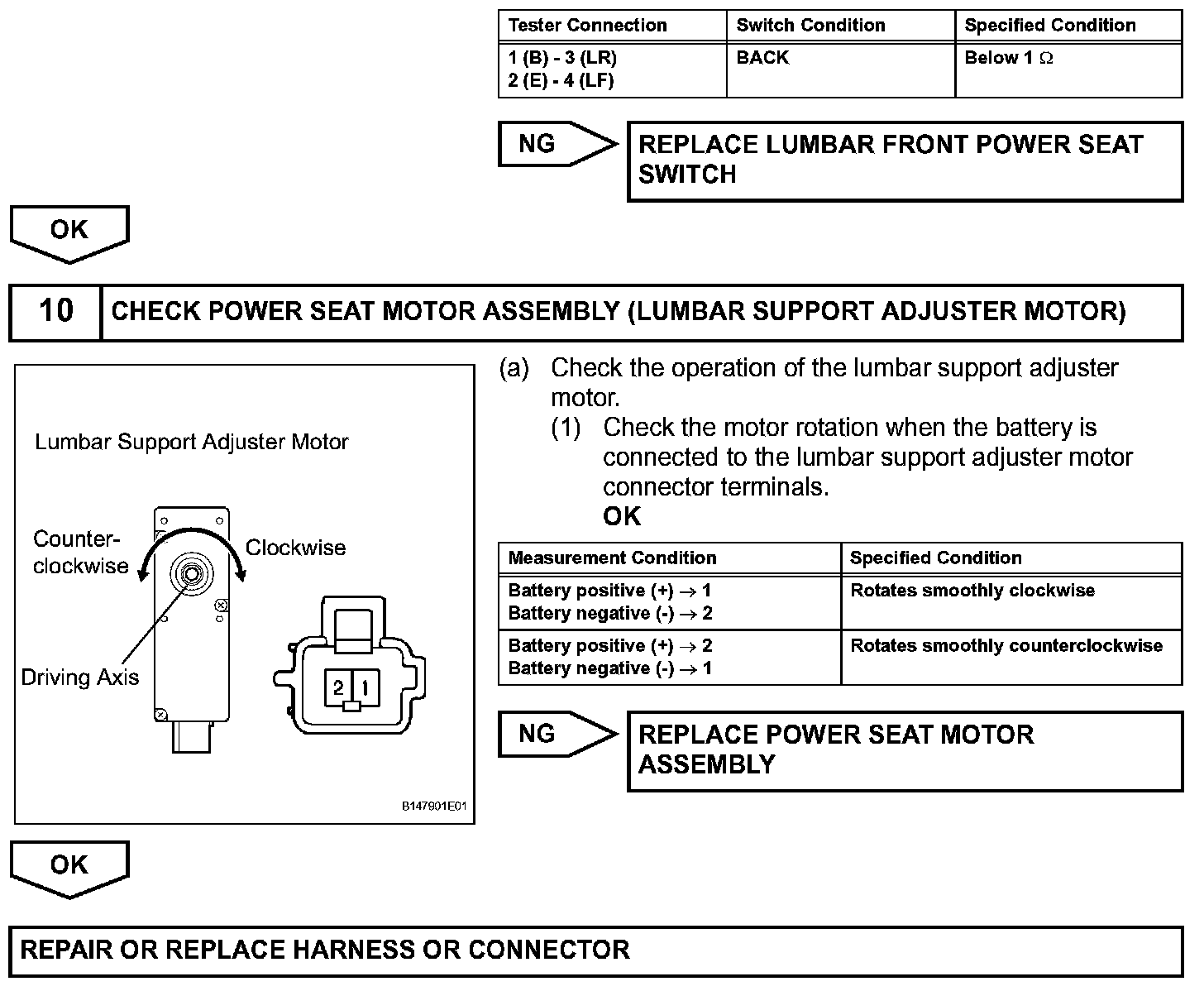

Step 9(Continued) - 10:
