On-Vehicle Inspection

ON-VEHICLE INSPECTION

1. INSPECT SEAT HEATER CONTROL SUB-ASSEMBLY LH

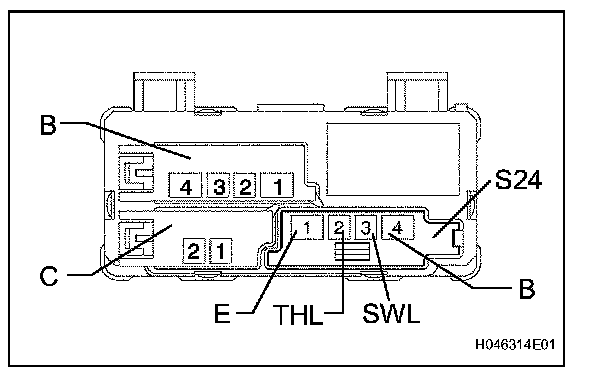

a. Disconnect the 3 (S24, B and C) connectors.

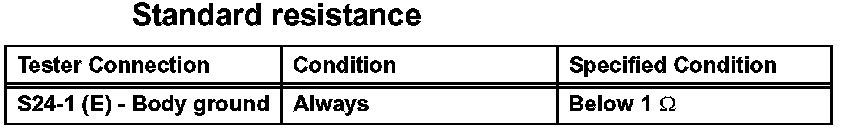

b. Measure the resistance and voltage of the wire harness side connector.









c. Reconnect the 3 connectors.

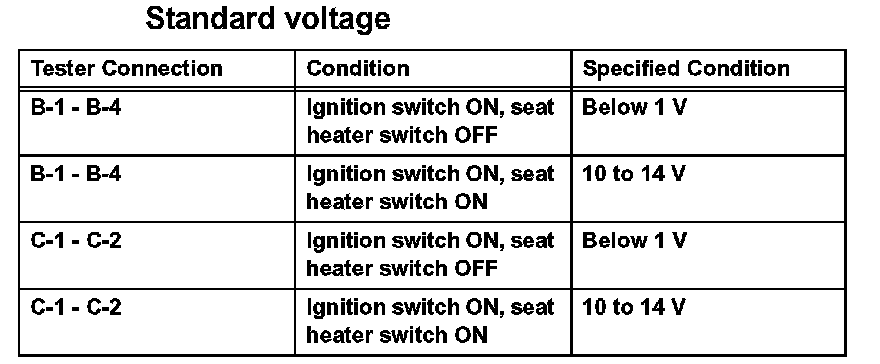

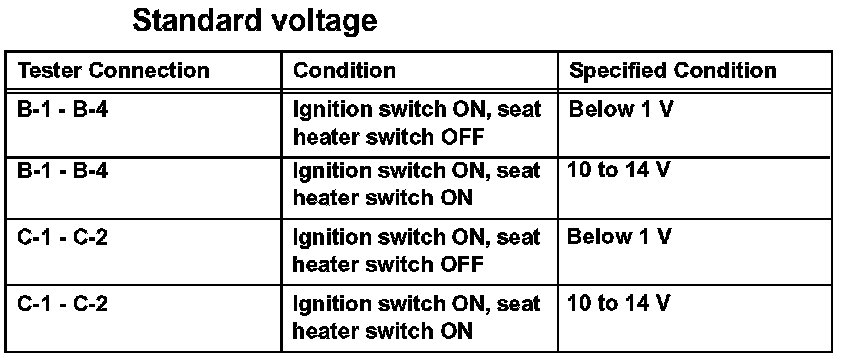

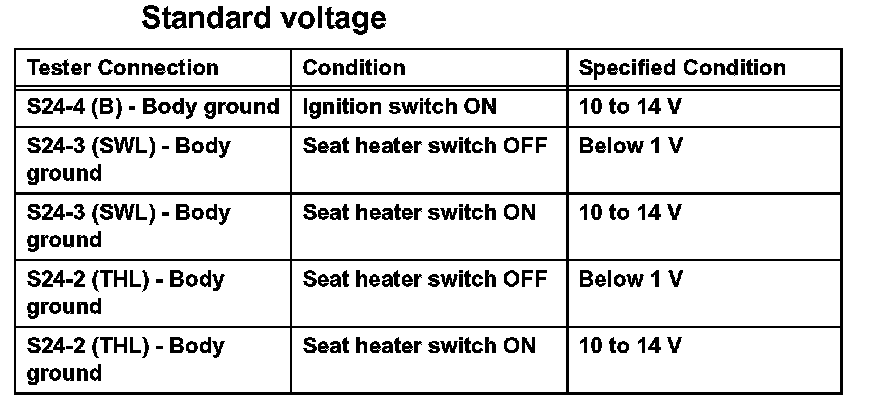

d. Measure the voltage of the connectors.






If the result is not as specified, replace the seat heater control.

2. INSPECT SEAT HEATER CONTROL SUB-ASSEMBLY RH

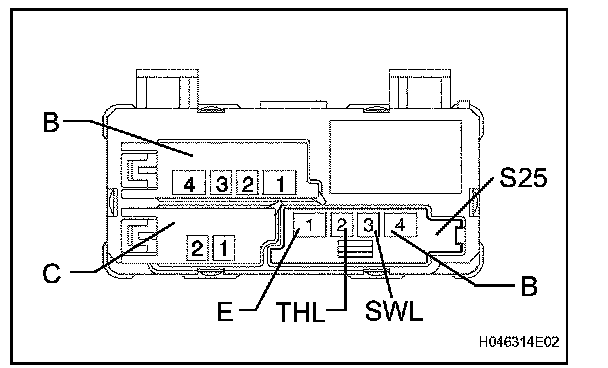

a. Disconnect the 3 (S25, B and C) connectors.

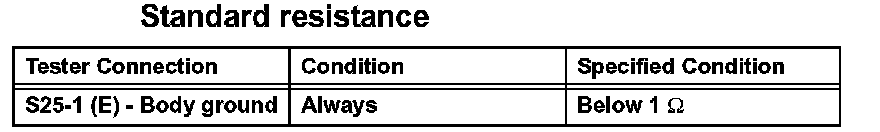

b. Measure the resistance and voltage of the wire harness side connector.









c. Reconnect the 3 connectors.

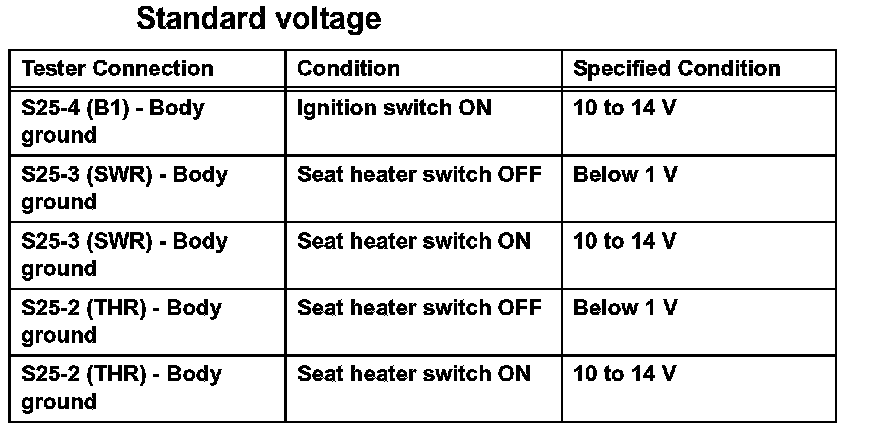

d. Measure the voltage of the connectors.






If the result is not as specified, replace the seat heater control.
