Diagnosis System

DIAGNOSIS SYSTEM

1. DESCRIPTION
Retractable hardtop system data and Diagnostic Trouble Codes (DTCs) can be read using the Data Link Connector 3 (DLC3) of the vehicle. When the system seems to be malfunctioning, use the intelligent tester to check for malfunctions and perform repairs.

2. CHECK DLC3

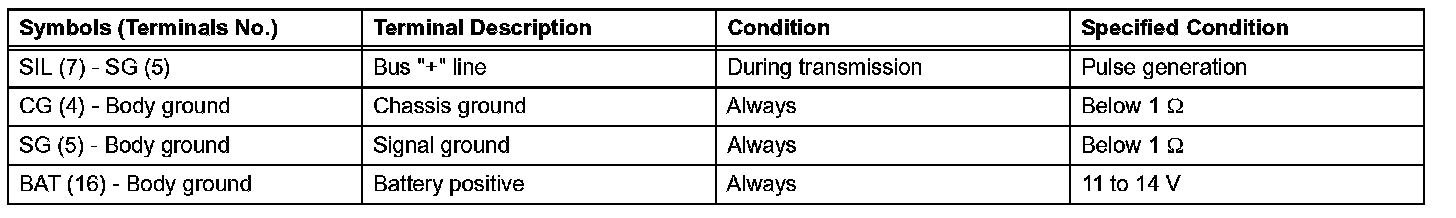

HINT: The vehicle's ECU uses ISO 9141-2 for communication. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 9141-2 format.

If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.

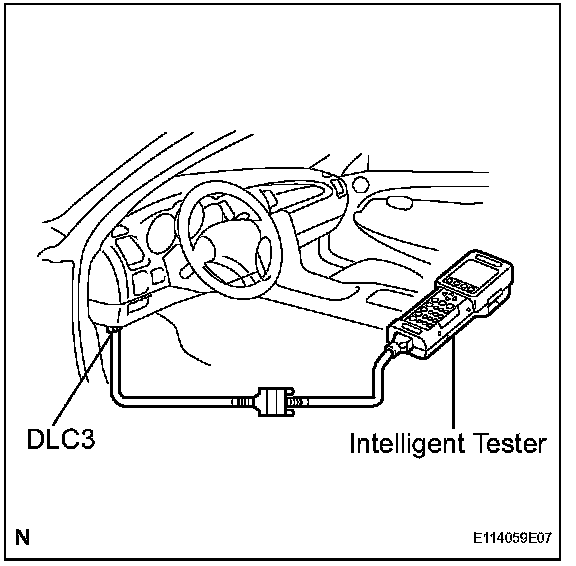

HINT: Connect the cable of the intelligent tester to the DLC3, turn the ignition switch ON and attempt to use the tester. If the screen displays the message UNABLE TO CONNECT TO VEHICLE, there is a problem either with the vehicle or with the tester.

- If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the original vehicle.
- If communication is still not possible when the tester is connected to another vehicle, the problem is probably in the tester itself. Consult the Service Department listed in the tester's instruction manual.

3. CHECK INDICATOR LIGHT






a. Prepare the vehicle by satisfying all of the following conditions:
1. Vehicle speed is 5 km/h (3 mph) or less
2. Luggage door opener main switch is ON
3. Tonneau cover switch is ON (Only when roof is open)
4. Luggage courtesy switch is ON

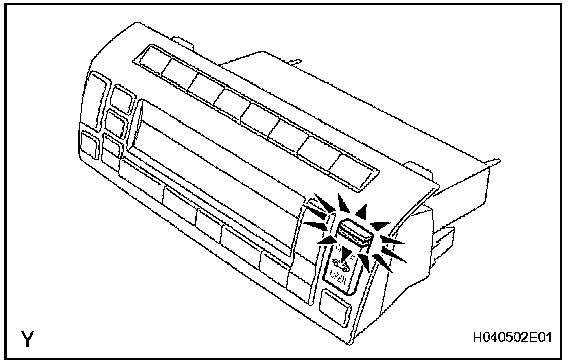

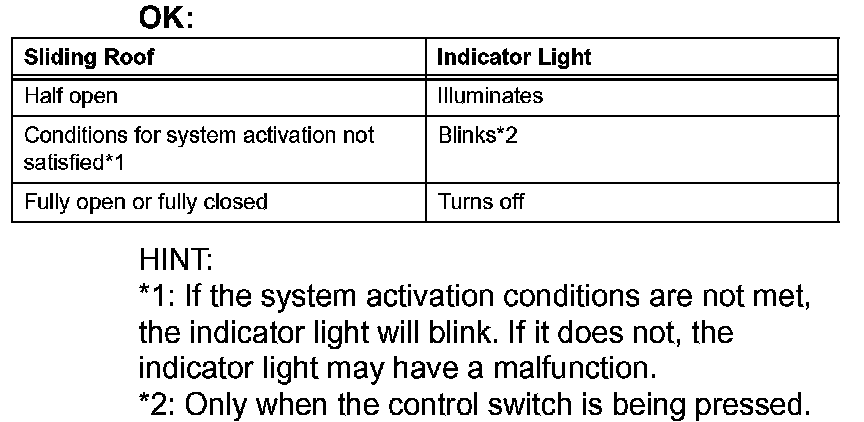

b. Operate the sliding roof using the control switch and check that the indicator light operates as described in the table below.
