Inspection

INSPECTION

1. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (QUARTER WINDOW MOTOR)

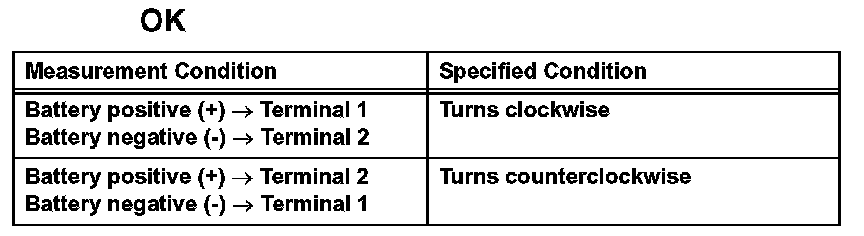

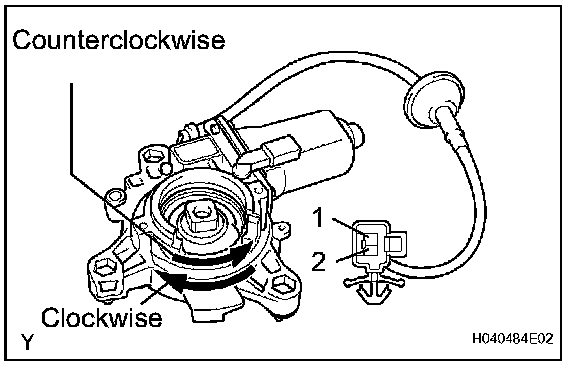

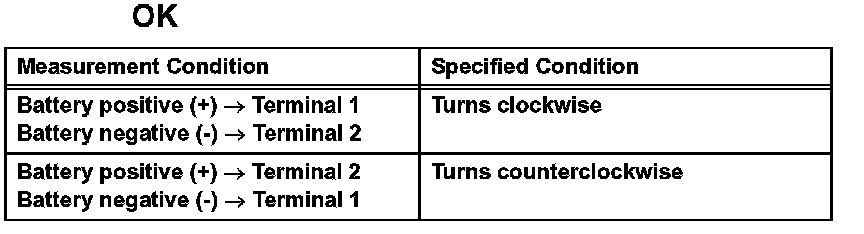

a. Apply battery voltage to the motor terminals and check operation of the power window regulator motor RH.

If the result is not as specified, replace the power window regulator motor assembly RH.

2. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (QUARTER WINDOW MOTOR)

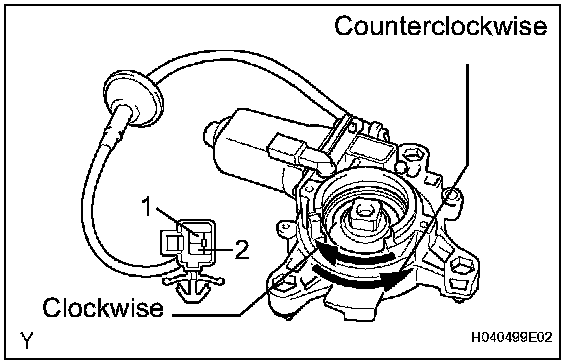

a. Apply battery voltage to the motor terminals and check operation of the power window regulator motor LH.

If the result is not as specified, replace the power window regulator motor assembly LH.

3. INSPECT LIMIT SWITCH ASSEMBLY (LUGGAGE DOOR OPEN, CLOSE)

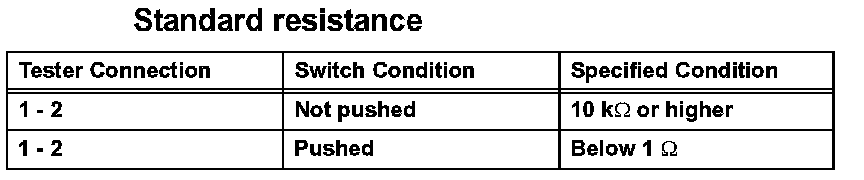

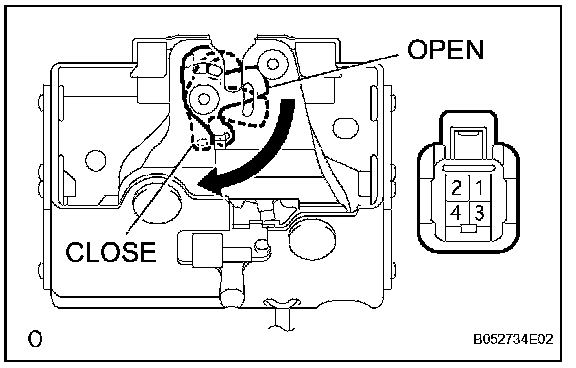

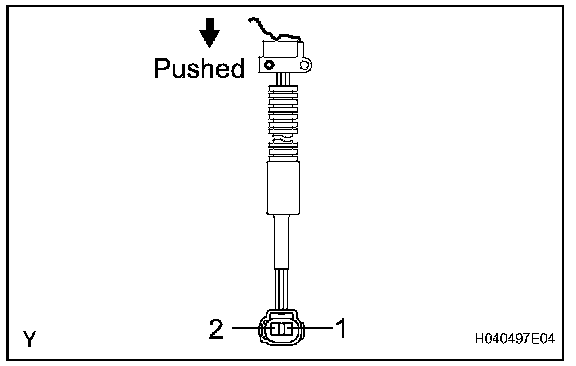

a. Measure the resistance of the switch (luggage door close).






If the result is not as specified, replace the limit switch assembly.

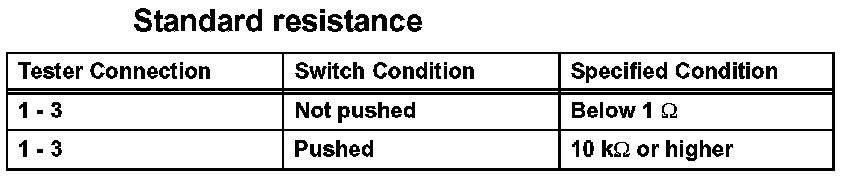

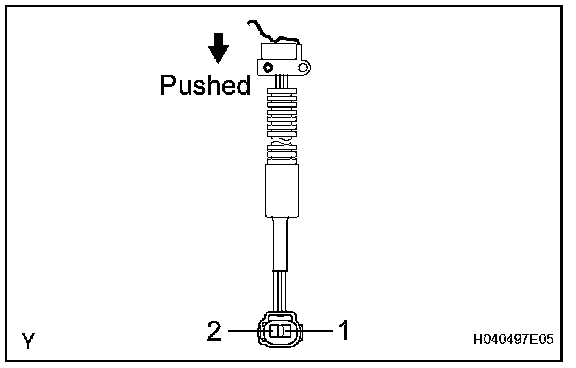

b. Measure the resistance of the switch (luggage door open).






If the result is not as specified, replace the limit switch assembly.

4. INSPECT LIMIT SWITCH ASSEMBLY (LUGGAGE FRONT LOCK RH)

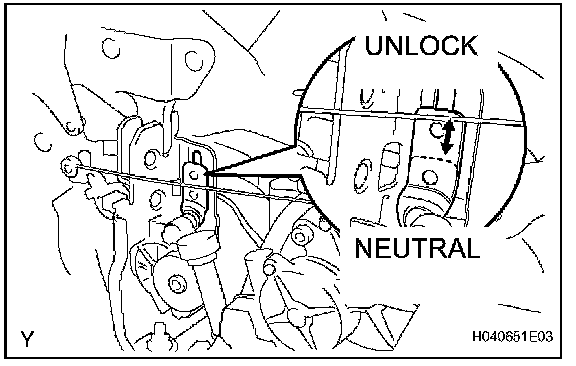

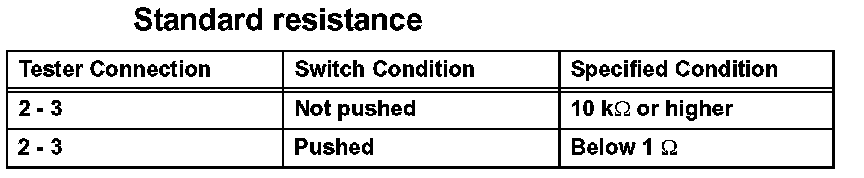

a. Measure the resistance of the switch.

If the result is not as specified, replace the limit switch assembly.

5. INSPECT LIMIT SWITCH ASSEMBLY (LUGGAGE FRONT LOCK LH)

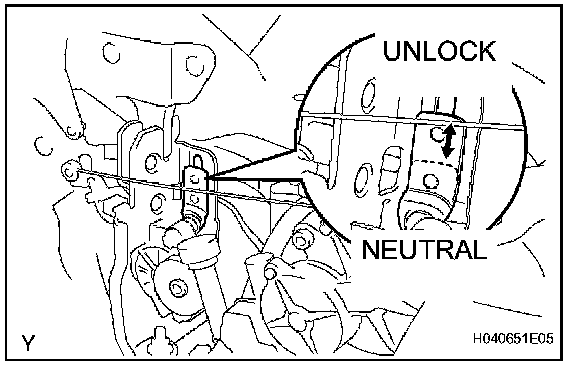

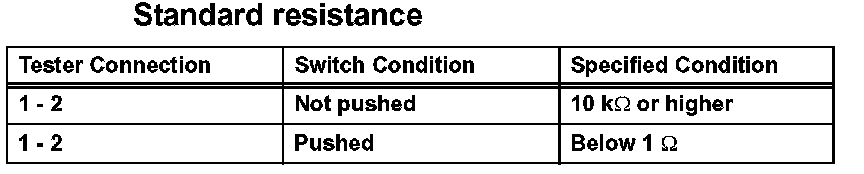

a. Measure the resistance of the switch.

If the result is not as specified, replace the limit switch assembly.

6. INSPECT LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY (COURTESY SWITCH)









a. Measure the resistance of the switch.

If the result is not as specified, replace the luggage compartment door lock assembly.

7. INSPECT LUGGAGE DOOR CLOSER ASSEMBLY RH (DOOR CLOSE RH)

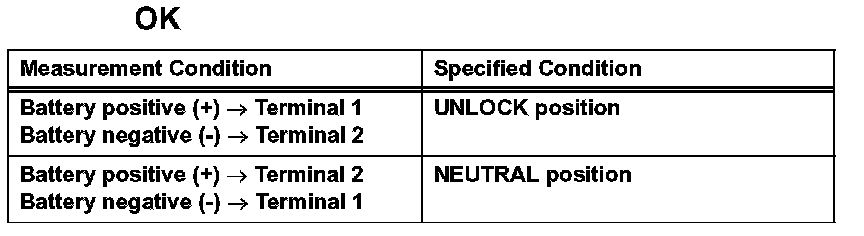

a. Apply battery voltage to the closer terminals and check operation of the luggage closer RH.

If the result is not as specified, replace the luggage closer RH.

8. INSPECT LUGGAGE DOOR CLOSER ASSEMBLY LH (DOOR CLOSE LH)









a. Apply battery voltage to the closer terminals and check operation of the luggage closer LH.

If the result is not as specified, replace the luggage closer LH.
