ECU Power Source Circuit
ECU Power Source CircuitDESCRIPTION
When the ignition switch is turned ON, battery positive voltage is applied to the coil which closes the contacts of the IG1 relay and supplies power to terminal SIG of the sliding roof control ECU.

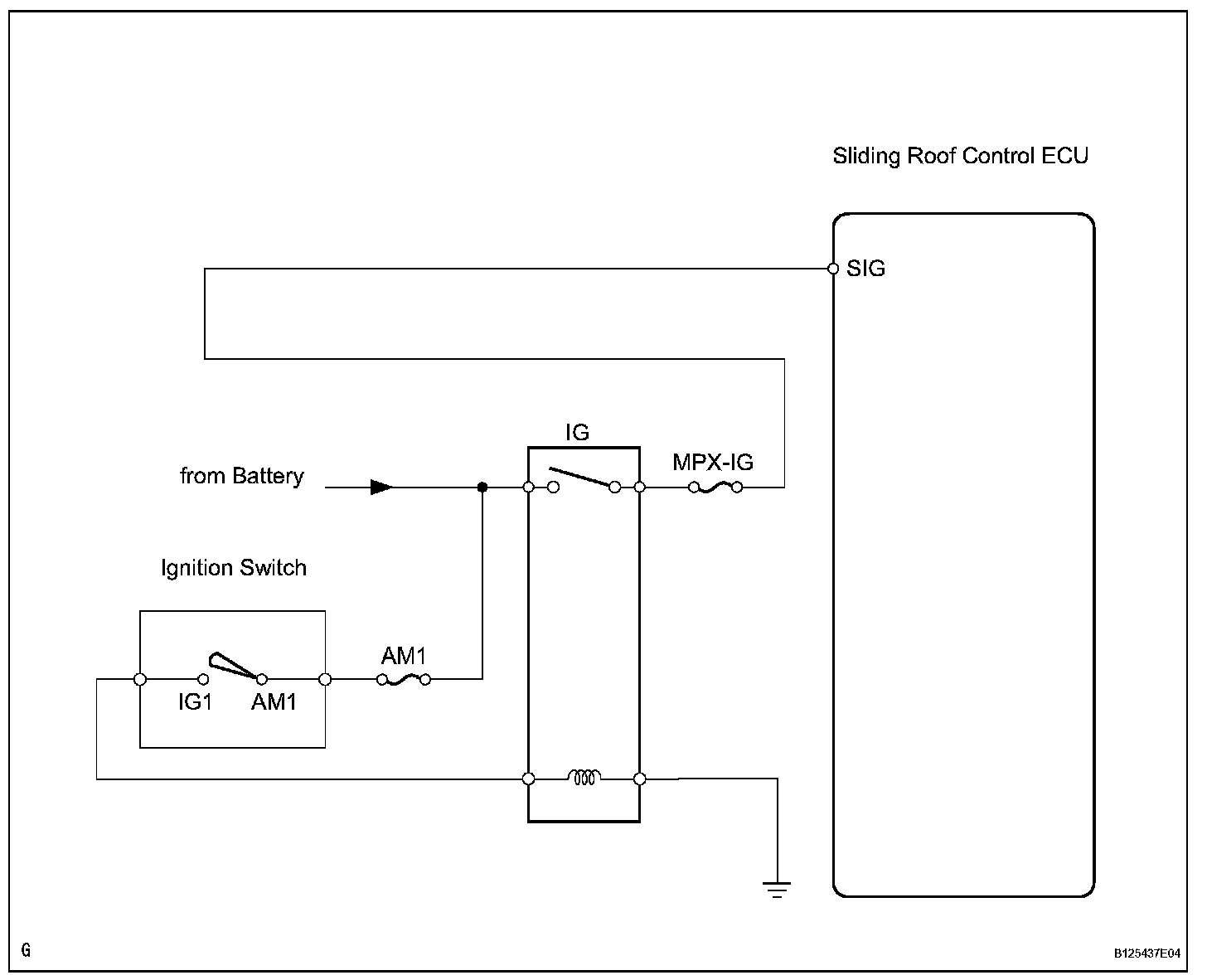

WIRING DIAGRAM
Wiring Diagram:
INSPECTION PROCEDURE

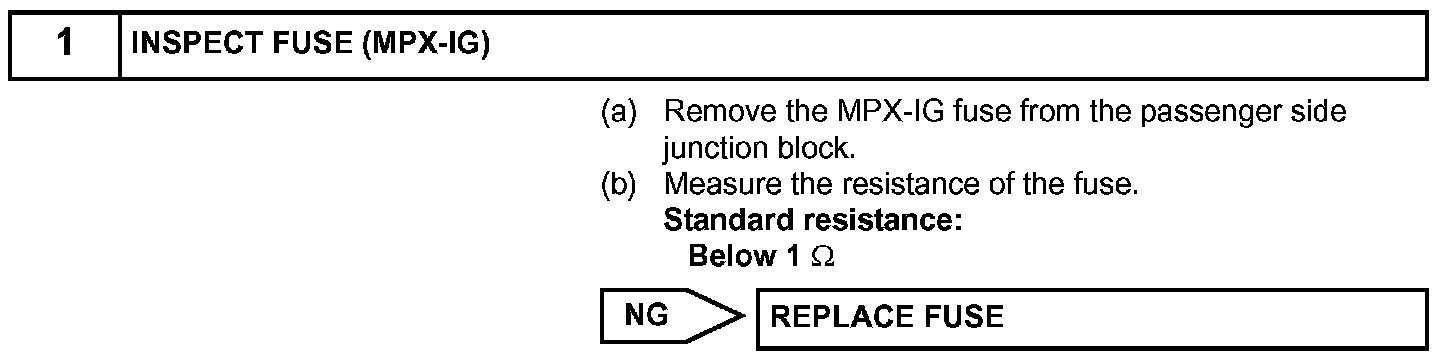

Step 1:

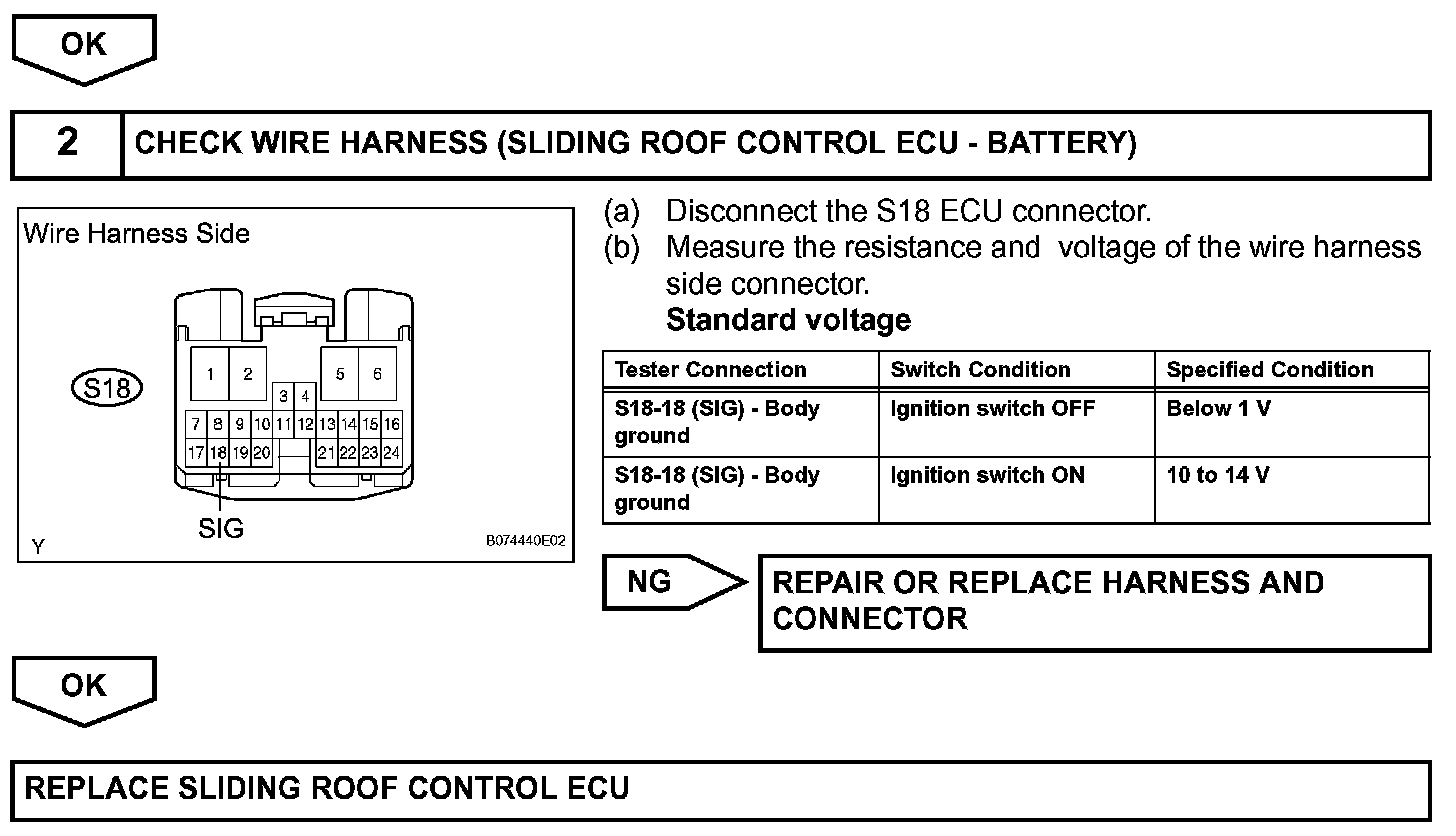

Step 1(Continued) - 2:
