Luggage Door Drive Motor

INSPECTION

1. INSPECT LUGGAGE DOOR DRIVE GEAR ASSEMBLY RH (LUGGAGE DOOR DRIVE MOTOR RH)

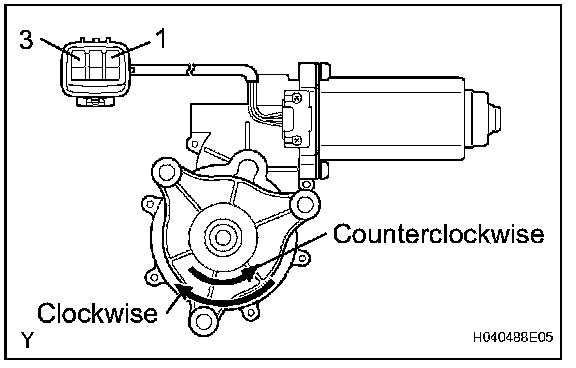

a. Apply battery voltage to the drive gear terminals and check the motor operation of the luggage door drive gear RH.

If the result not as specified, replace the luggage door drive gear assembly RH.

b. Apply battery voltage to the drive gear terminals and check the motor operation of the luggage door drive gear RH.
1. Connect the electrical tester's positive (+) lead to terminal 5 and negative (-) lead to terminal 4.
2. Connect 5 1.5 V dry cell batteries in series.
3. Connect terminal 6 to the dry cell batteries' positive (+) terminal, and terminal 4 to the dry cell batteries' negative (-) terminal.
4. Connect the battery's positive (+) lead to terminal 1, and negative (-) lead to terminal 3.
5. Check the output voltage of terminals 1 and 3.

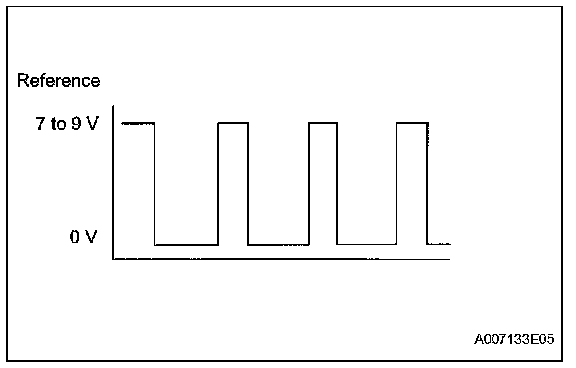

OK: Pulse is generated while motor is running

6. Reverse the polarity of terminals 1 and 3.






7. Check the output voltage of terminals 4 and 5.

OK: Pulse is generated while motor is running

If the result is not as specified, replace the luggage door drive gear assembly RH.

2. INSPECT SLIDING ROOF DRIVE GEAR ASSEMBLY LH (LUGGAGE DOOR DRIVE MOTOR LH)









a. Apply battery voltage to the drive gear terminals and check the motor operation of the luggage door drive gear LH.

If the result is not as specified, replace the luggage door drive gear assembly LH.

1. Connect the electrical tester's positive (+) lead to terminal 5 and negative (-) lead to terminal 4.
2. Connect 5 1.5 V dry cell batteries in series.
3. Connect terminal 6 to the dry cell batteries' positive (+) terminal, and terminal 4 to the dry cell batteries' negative (-) terminal.
4. Connect the battery's positive (+) lead to terminal 1, and negative (-) lead to terminal 3.
5. Check the output voltage of terminals 1 and 3.

OK: Pulse is generated while motor is running

6. Reverse the polarity of terminals 1 and 3.






7. Check the output voltage of terminals 4 and 5.

OK: Pulse is generated while motor is running

If the result is not as specified, replace the luggage door drive gear assembly LH.

3. INSPECT LUGGAGE CLOSER MOTOR ASSEMBLY RH (CLOSE MOTOR RH)

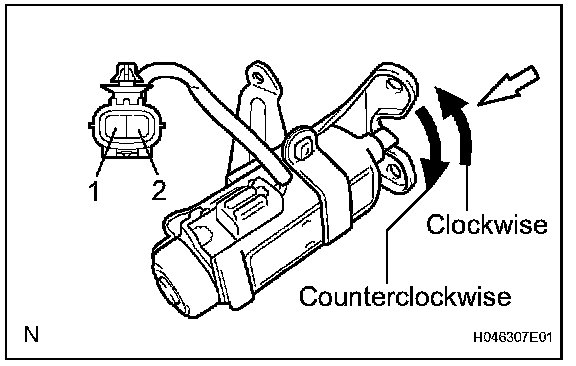

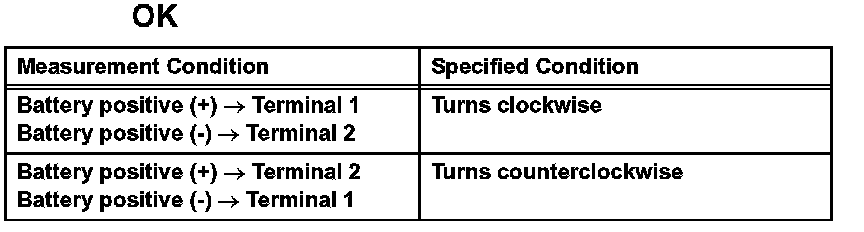

a. Apply battery voltage to the motor terminals and check operation of the luggage closer motor RH.

HINT: Visually check the motor from the direction of the white arrow in the illustration. If the result not as specified, replace the luggage closer motor assembly RH.

4. INSPECT LUGGAGE CLOSER MOTOR ASSEMBLY LH (CLOSE MOTOR LH)

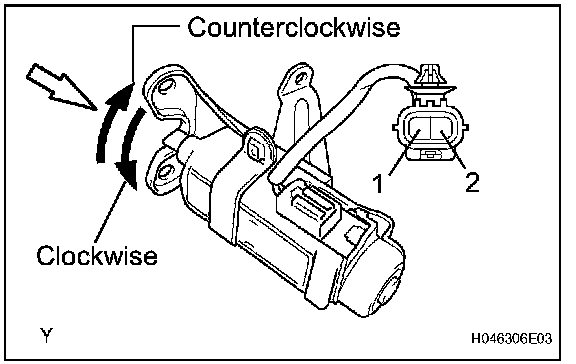

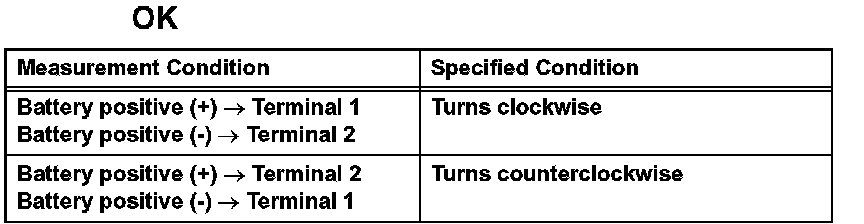

a. Apply battery voltage to the motor terminals and check operation of the luggage closer motor LH.

HINT: Visually check the motor from the direction of the white arrow in the illustration. If the result not as specified, replace the luggage closer motor assembly LH.
