Driver Side or Front Passenger Side Power Mirrors Cannot Be Adjusted With Power Mirror Switch
Driver Side or Front Passenger Side Power Mirrors Cannot Be Adjusted With Power Mirror SwitchDESCRIPTION
The driver side junction block sends power mirror switch signals through the multiplex communication line to the multiplex network door ECU front LH and RH (driver and front passenger door ECU). While the theft warning ECU is sending an ACC signal through the multiplex communication line to the door ECU front LH and RH, the RIGHT, LEFT, UP and DOWN mirror surface operation occurs.
WIRING DIAGRAM

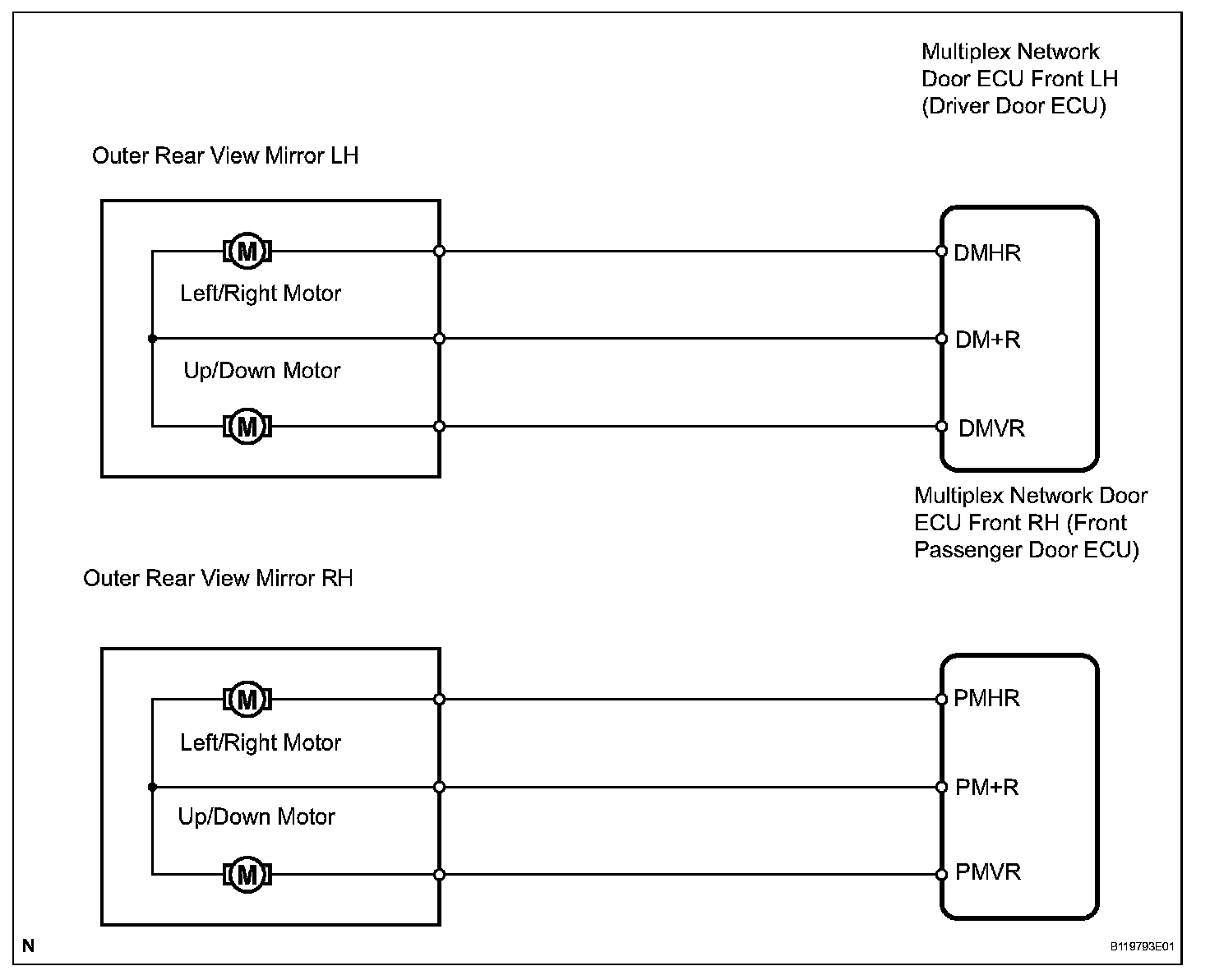

Wiring Diagram:
INSPECTION PROCEDURE

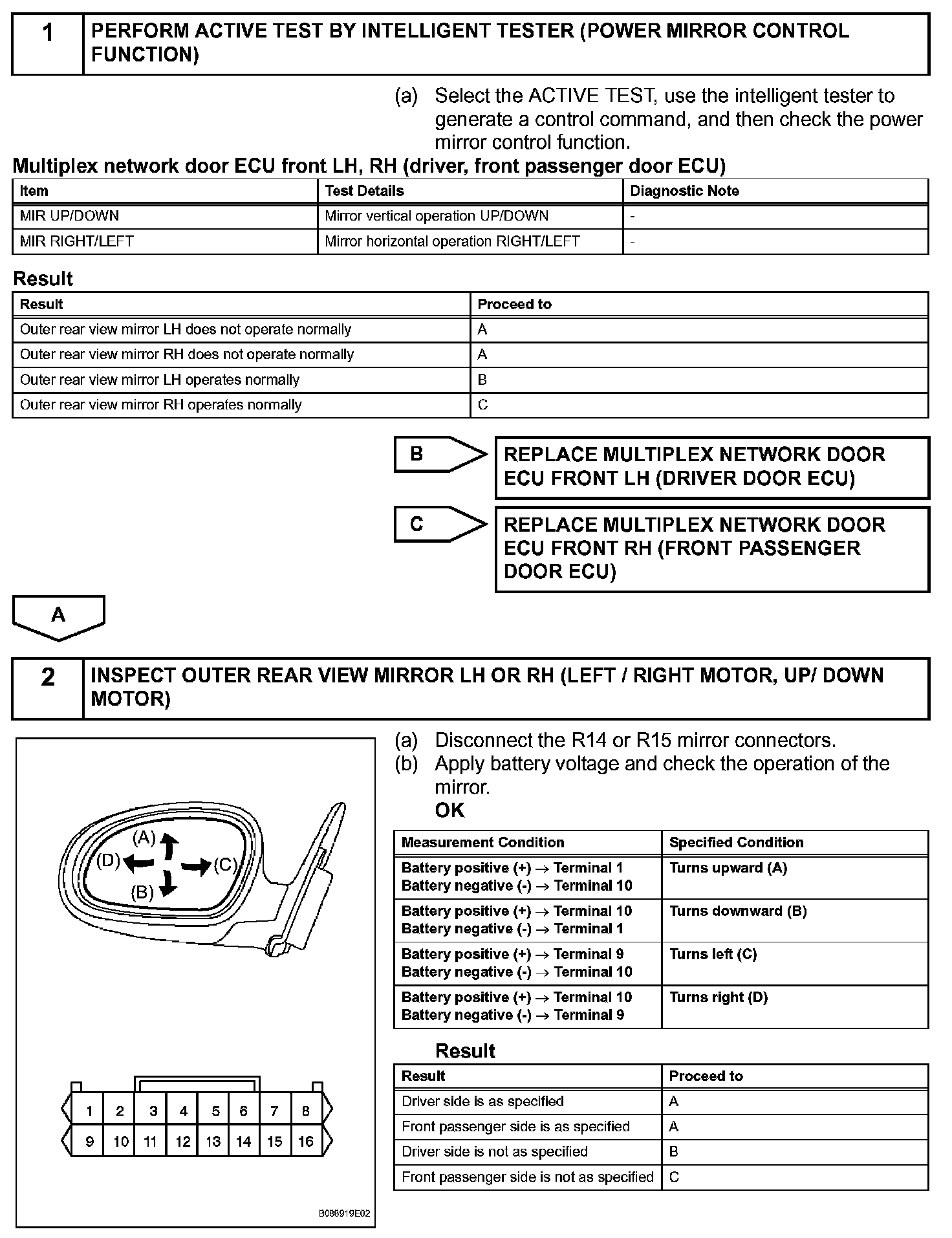

Step 1 - 2:

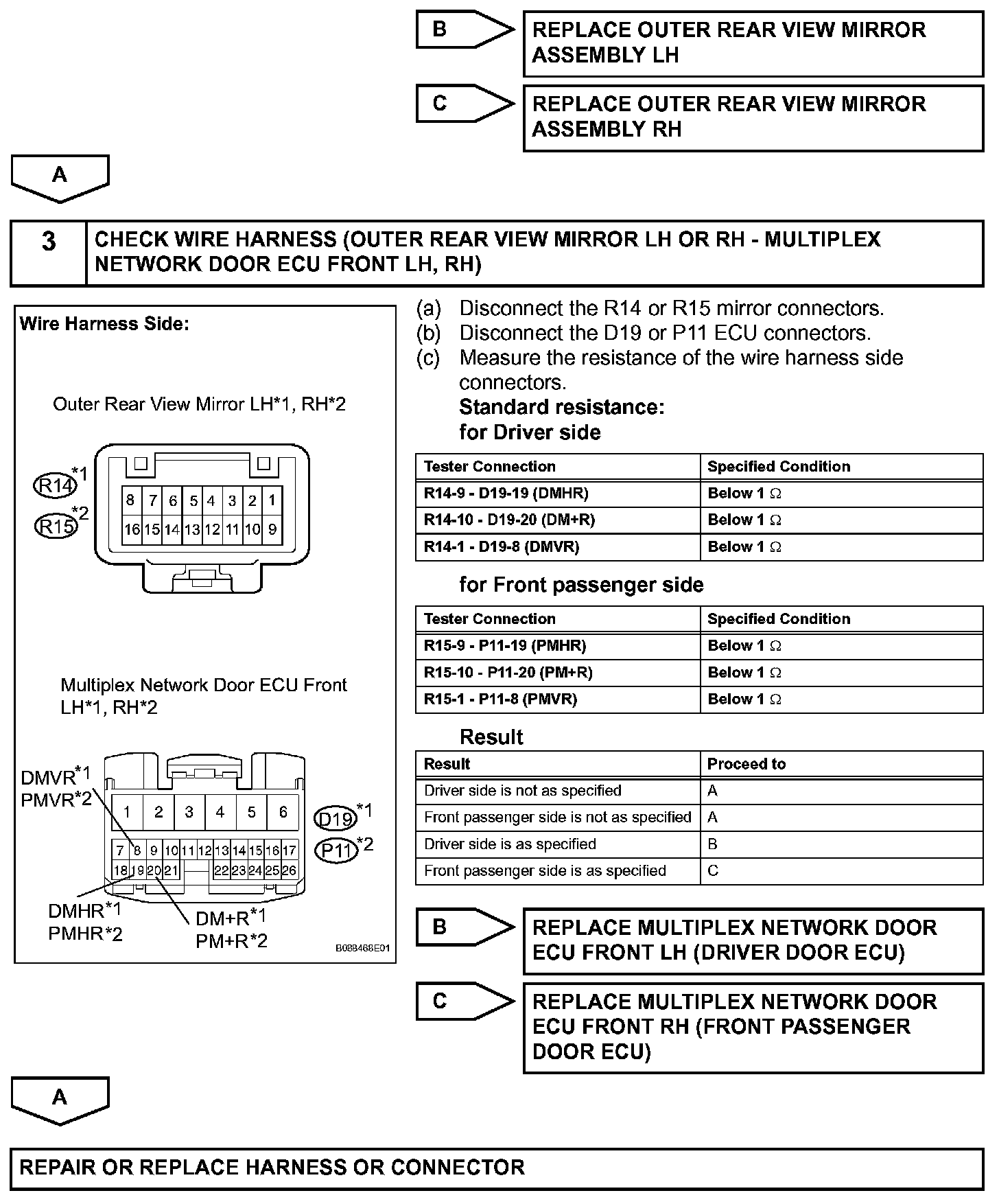

Step 2(Continued) - 3:
