Home >> Lexus >> 2007 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> How to Proceed With Troubleshooting

How to Proceed With Troubleshooting

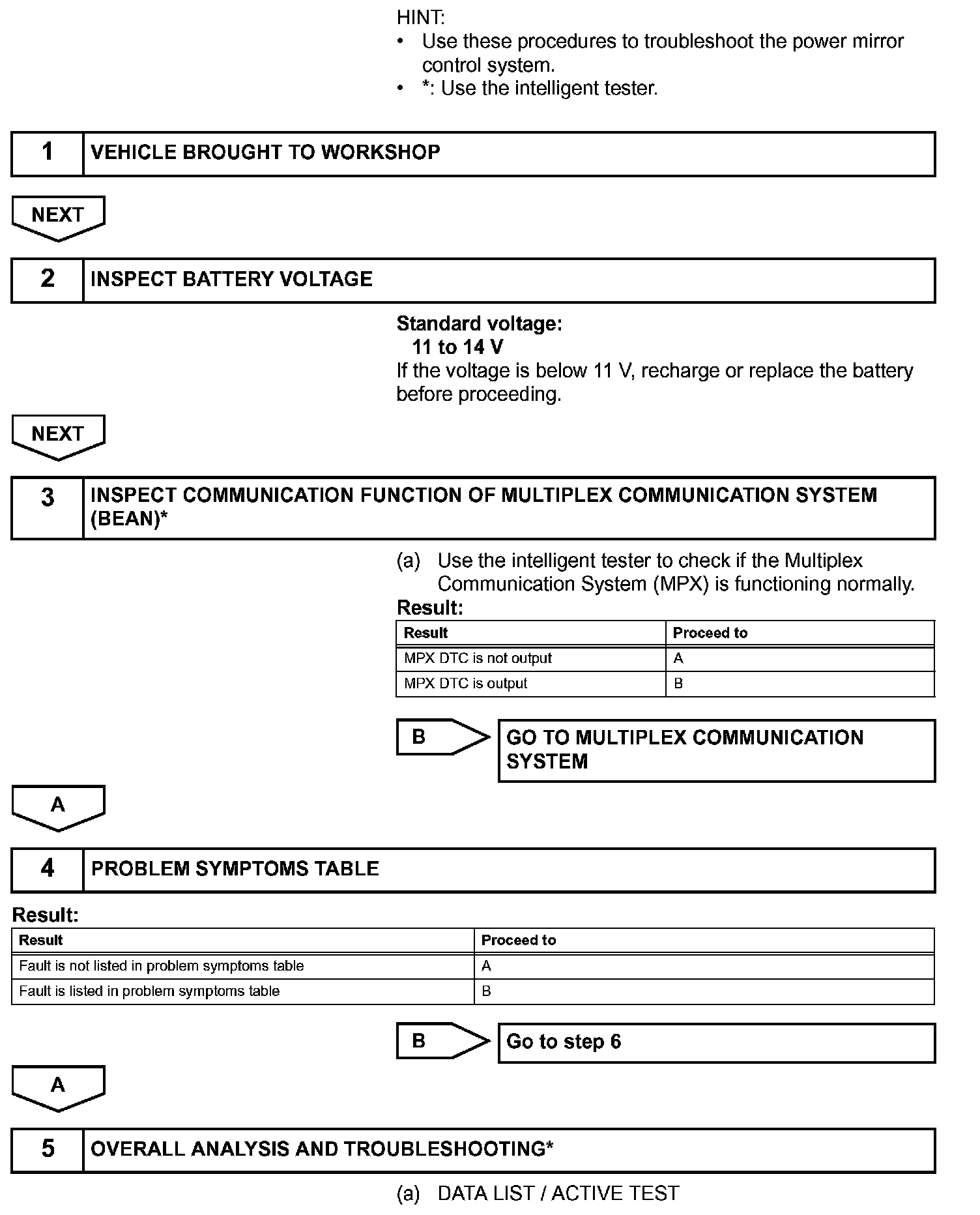

Step 1 - 5:

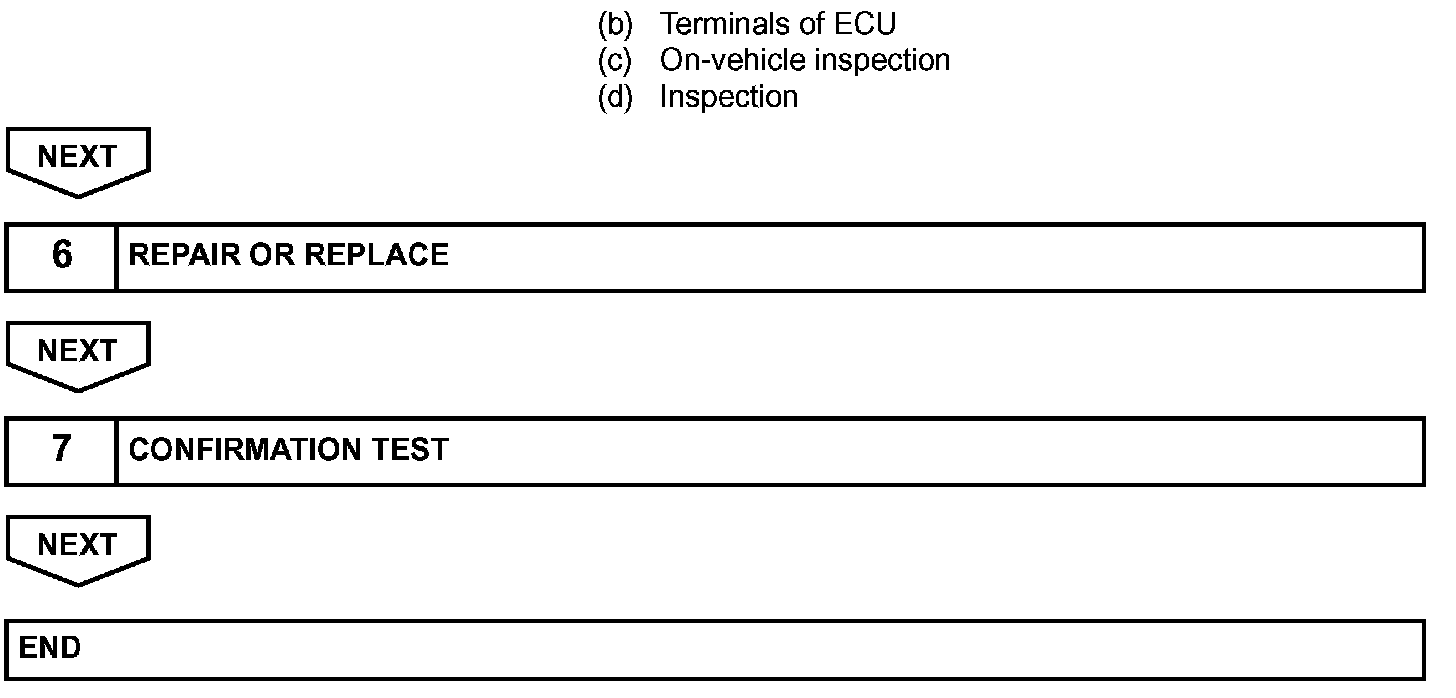

Step 5(Continued) - 7:
