Mirror Motor Circuit

Mirror Motor Circuit

DESCRIPTION
This circuit detects the conditions of the mirror master switch and mirror control switch. The operating condition of the mirror switch is input by the driver side junction block ECU, and the input signals are sent to the multiplex network door ECU front LH or RH (driver or front passenger door ECU). Mirror adjustment is controlled by the multiplex network door ECU front LH or RH.

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

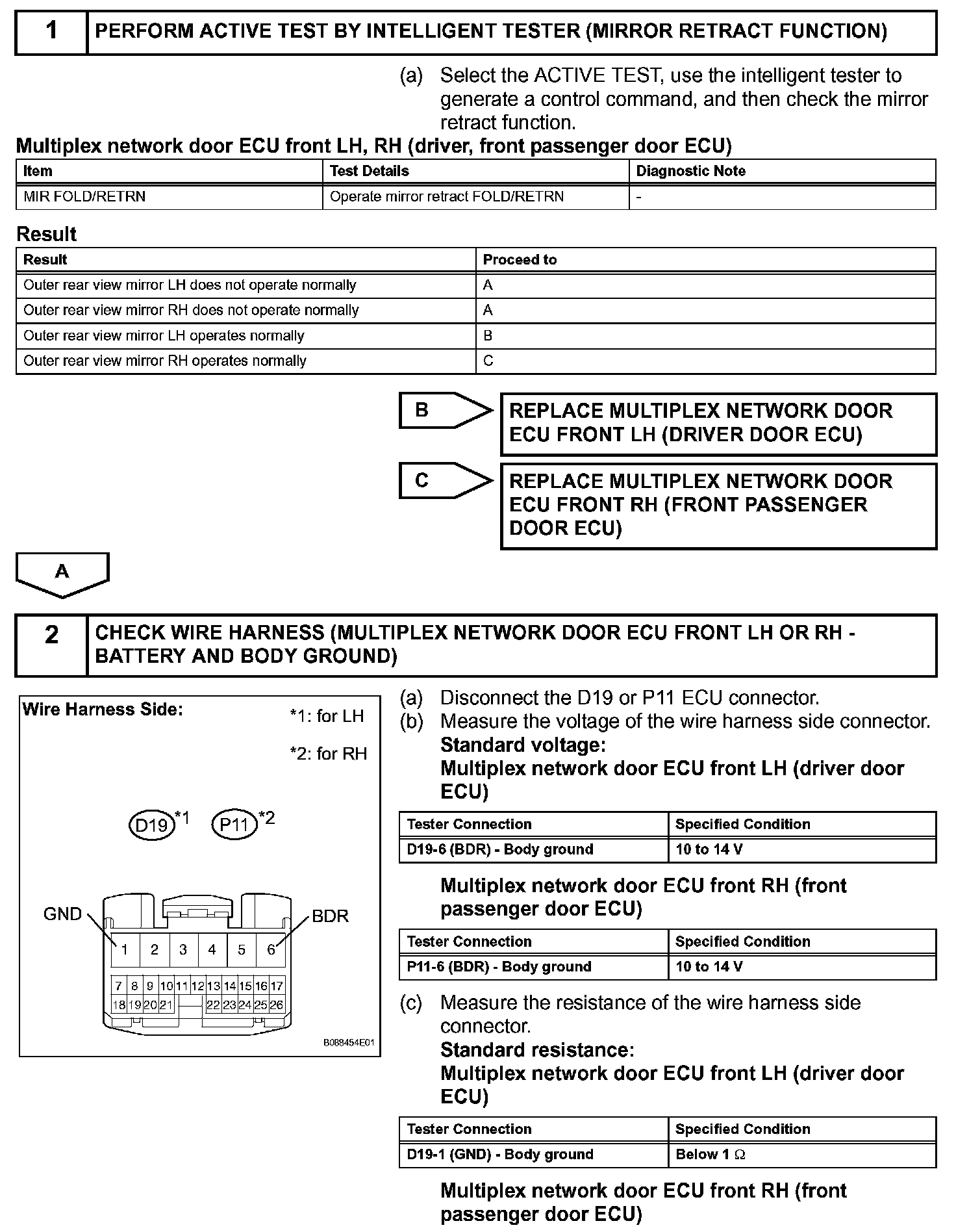

Step 1 - 2:

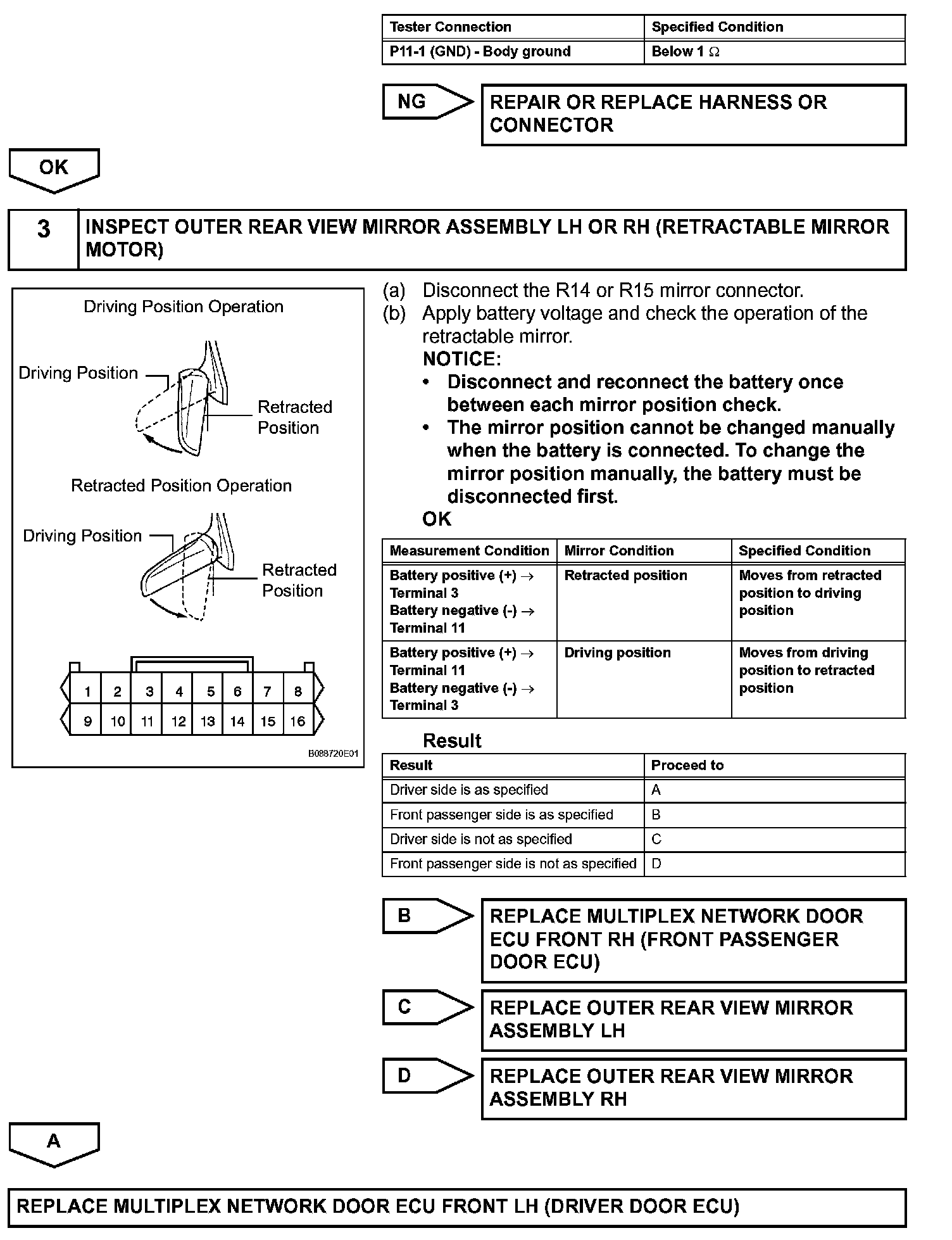

Step 2(Continued) - 3:
