Only Front Passenger's Door Cannot Be Operated By Manual Operation and Key-Linked Lock and Unlock Function
Only Front Passenger's Door cannot be Operated by Manual Operation and Key-linked Lock and Unlock FunctionDESCRIPTION
Switch signals via the master switch and driver's door key are transmitted to the theft warning ECU from the multiplex network door ECU, and LOCK or UNLOCK signals are transmitted to each multiplex network door ECU from the theft warning ECU. Then each multiplex network door ECU drives the door lock motor of each door.

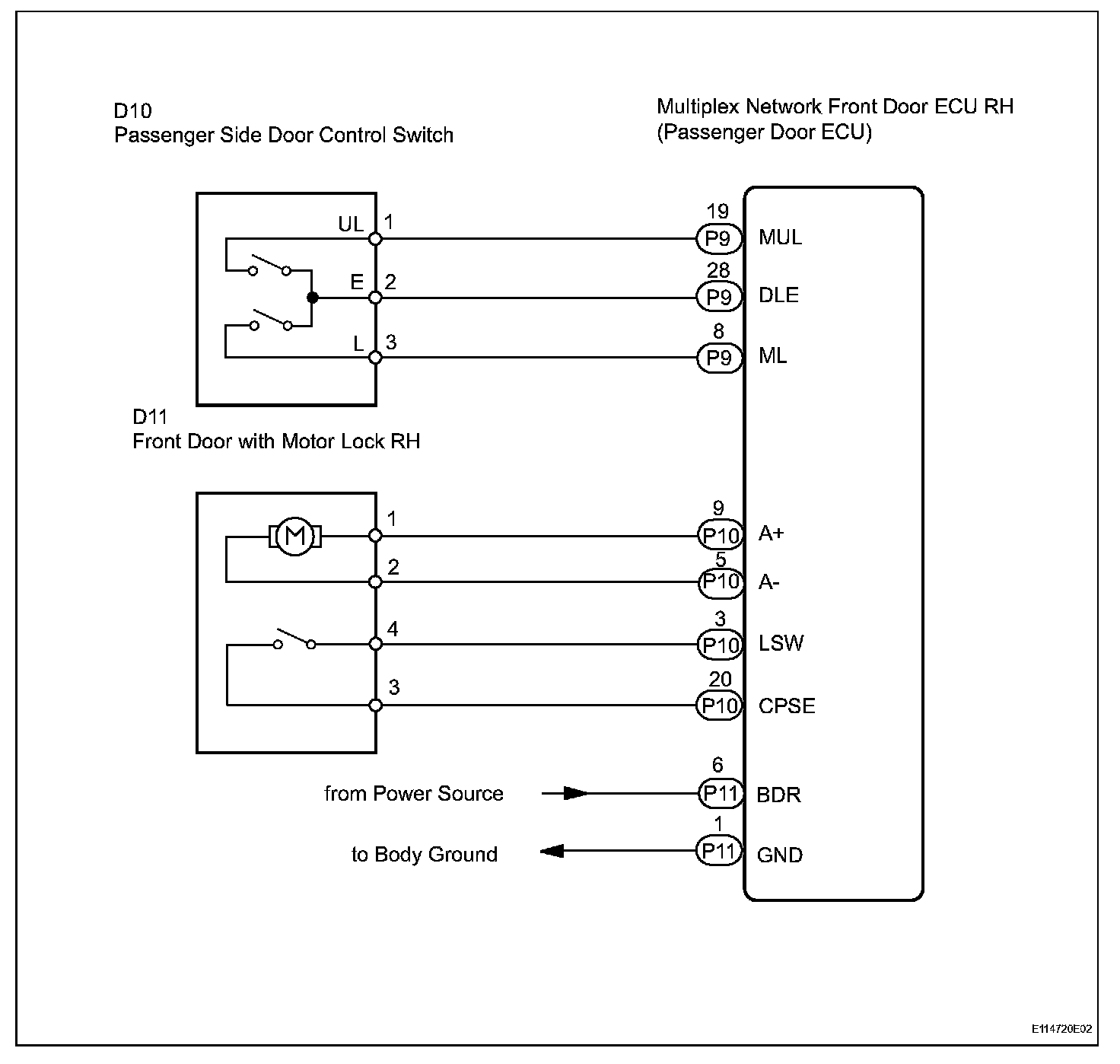

Wiring Diagram:

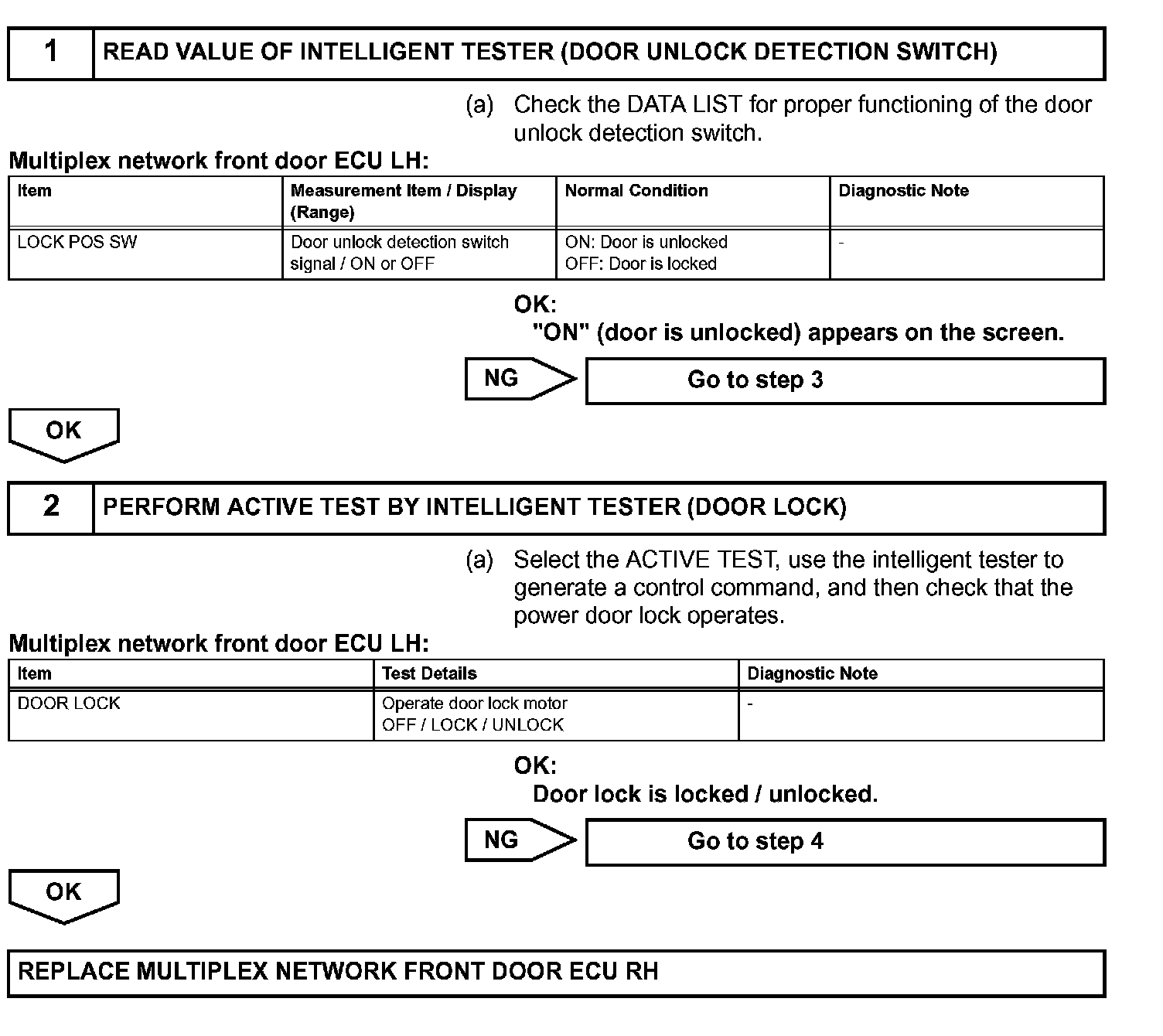

Step 1-2:

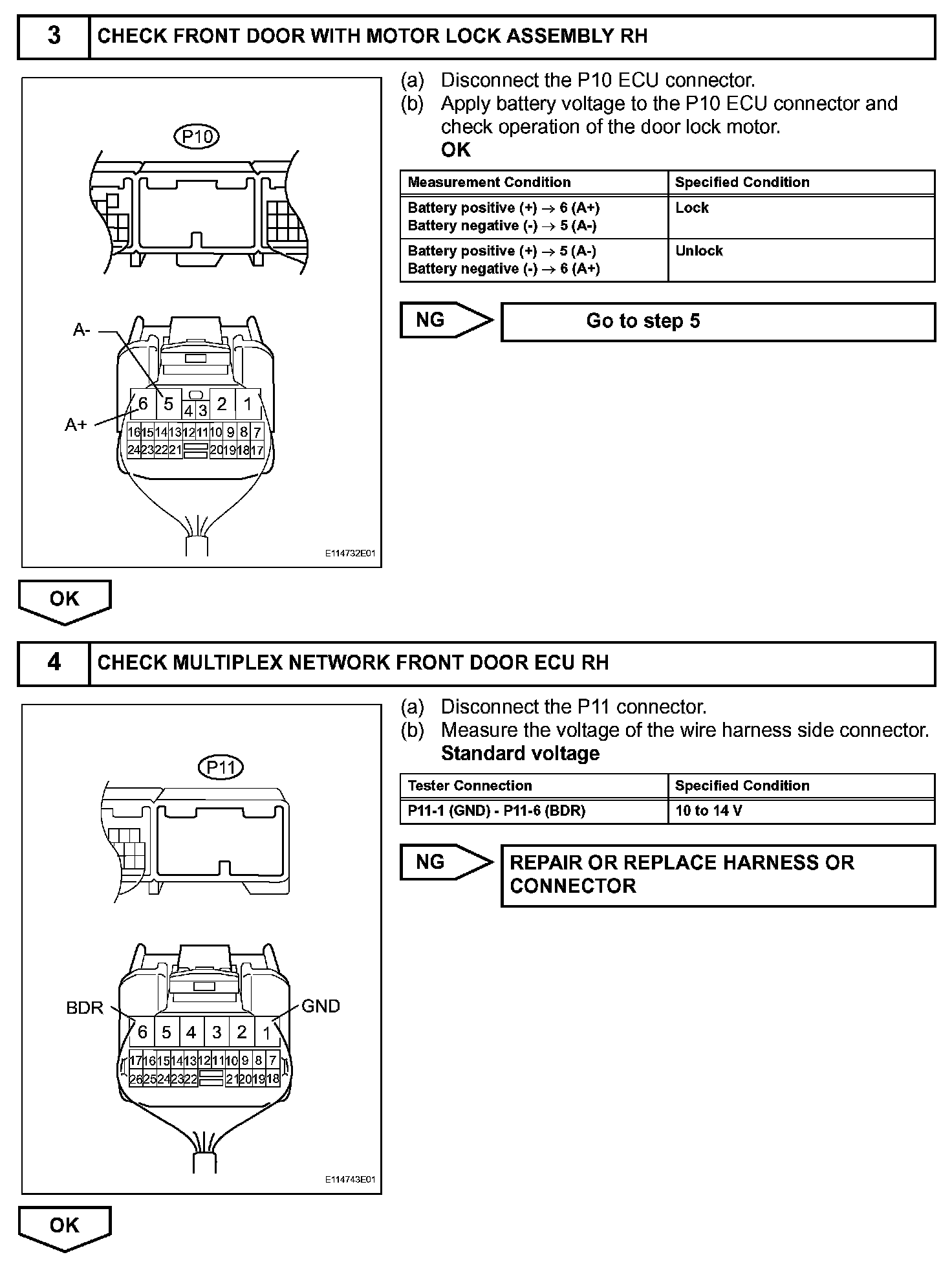

Step 3-4:

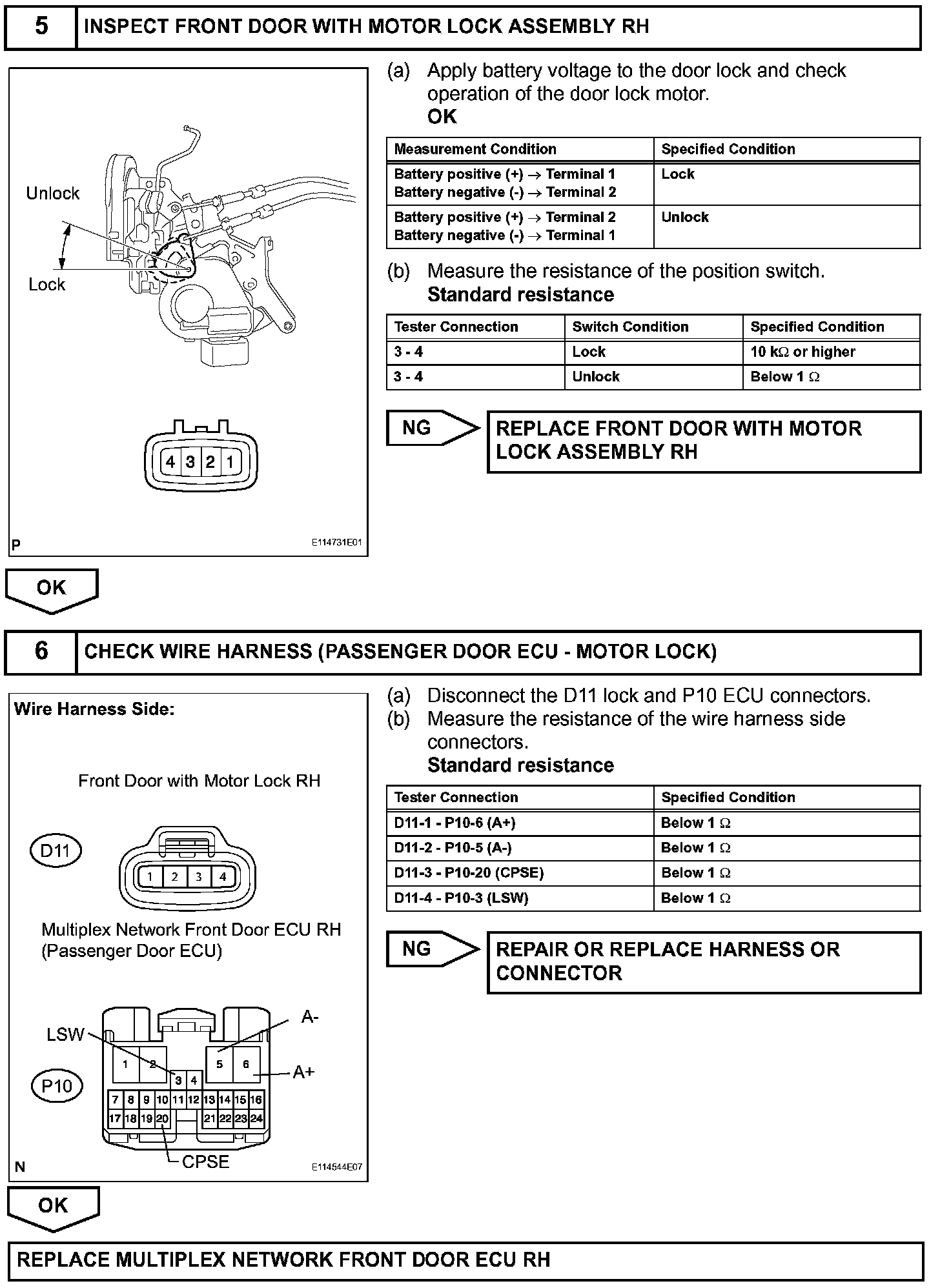

Step 5-6:
INSPECTION PROCEDURE
