Wireless Door Lock Control System

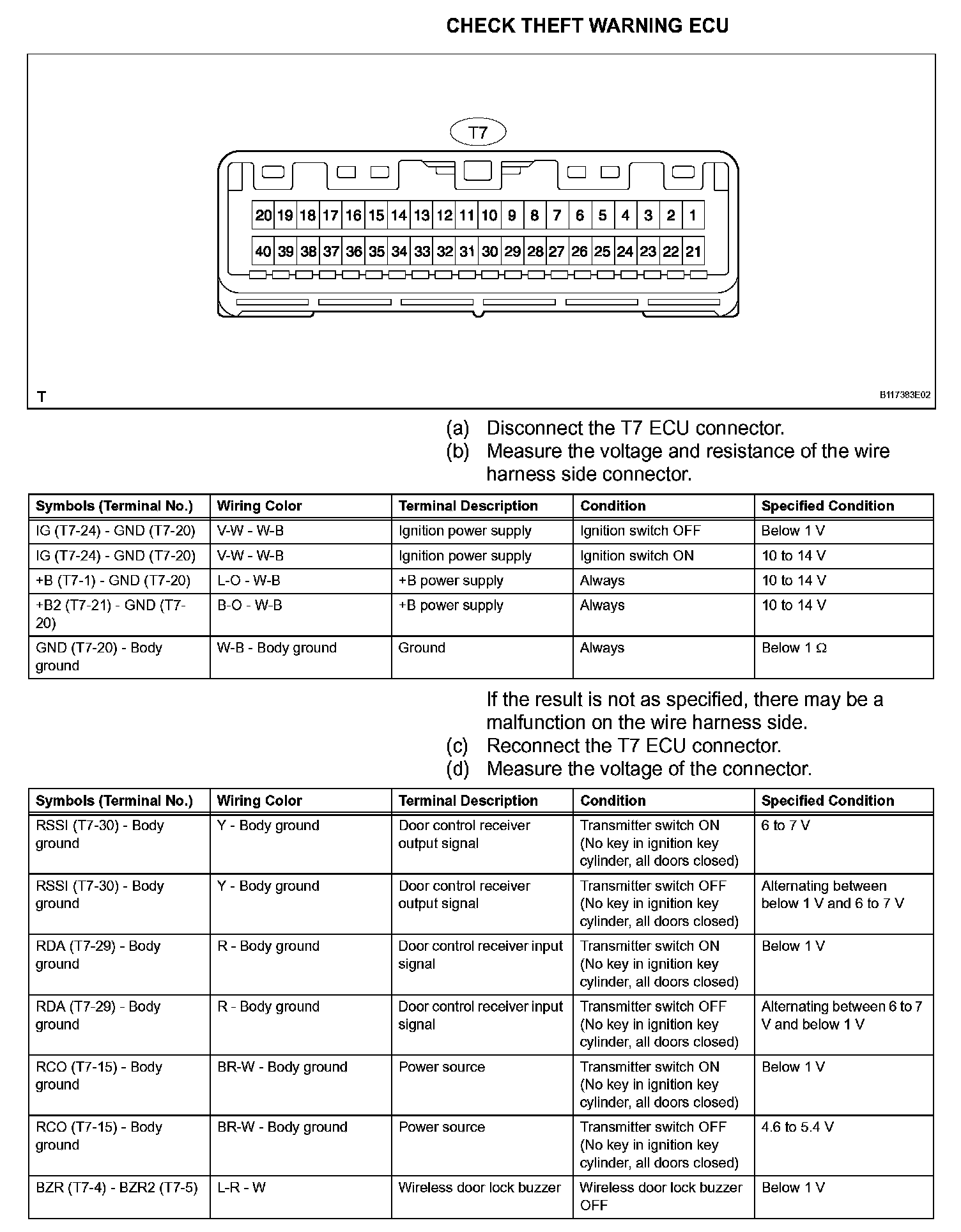

Terminals Of Control Module/Pinouts - Check Theft Warning ECU (Part 1):

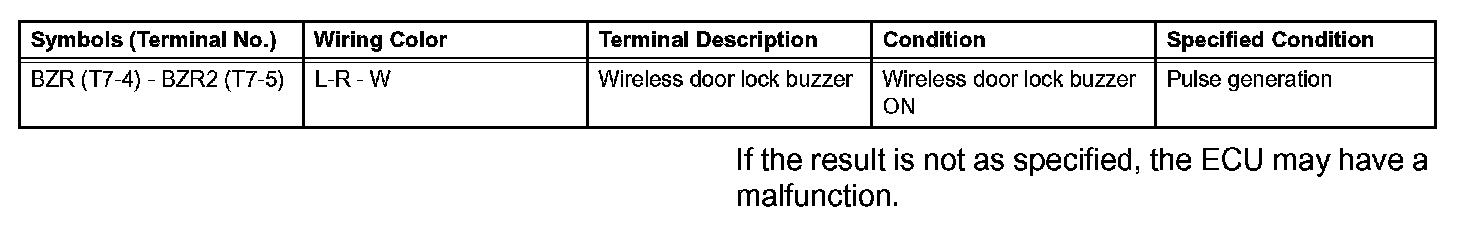

Terminals Of Control Module/Pinouts - Check Theft Warning ECU (Part 2):

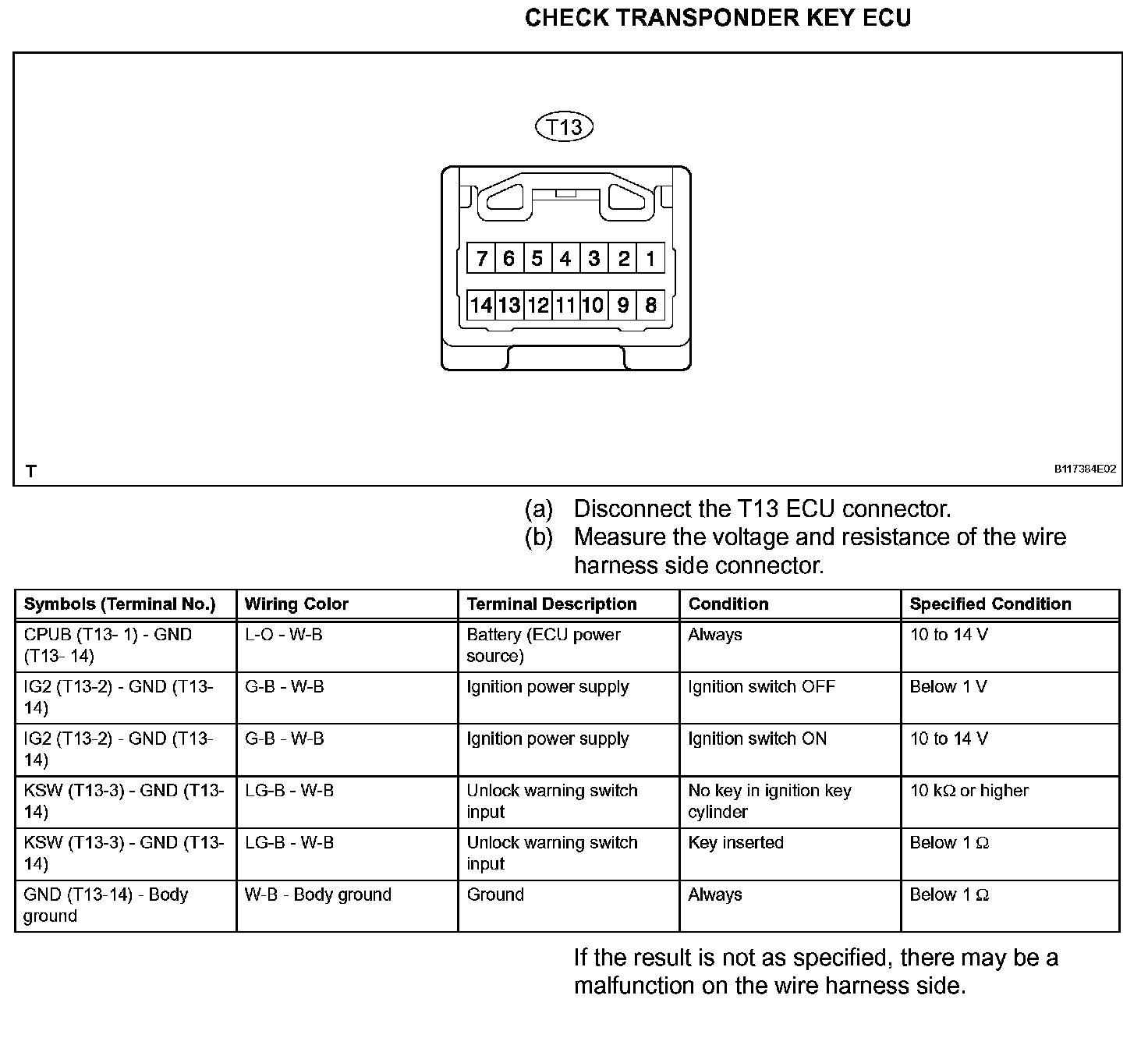

Terminals Of Control Module/Pinouts - Check Transponder Key ECU:

Terminals Of Control Module/Pinouts - Check Multiplex Network Front Door ECU LH (Driver Door ECU):

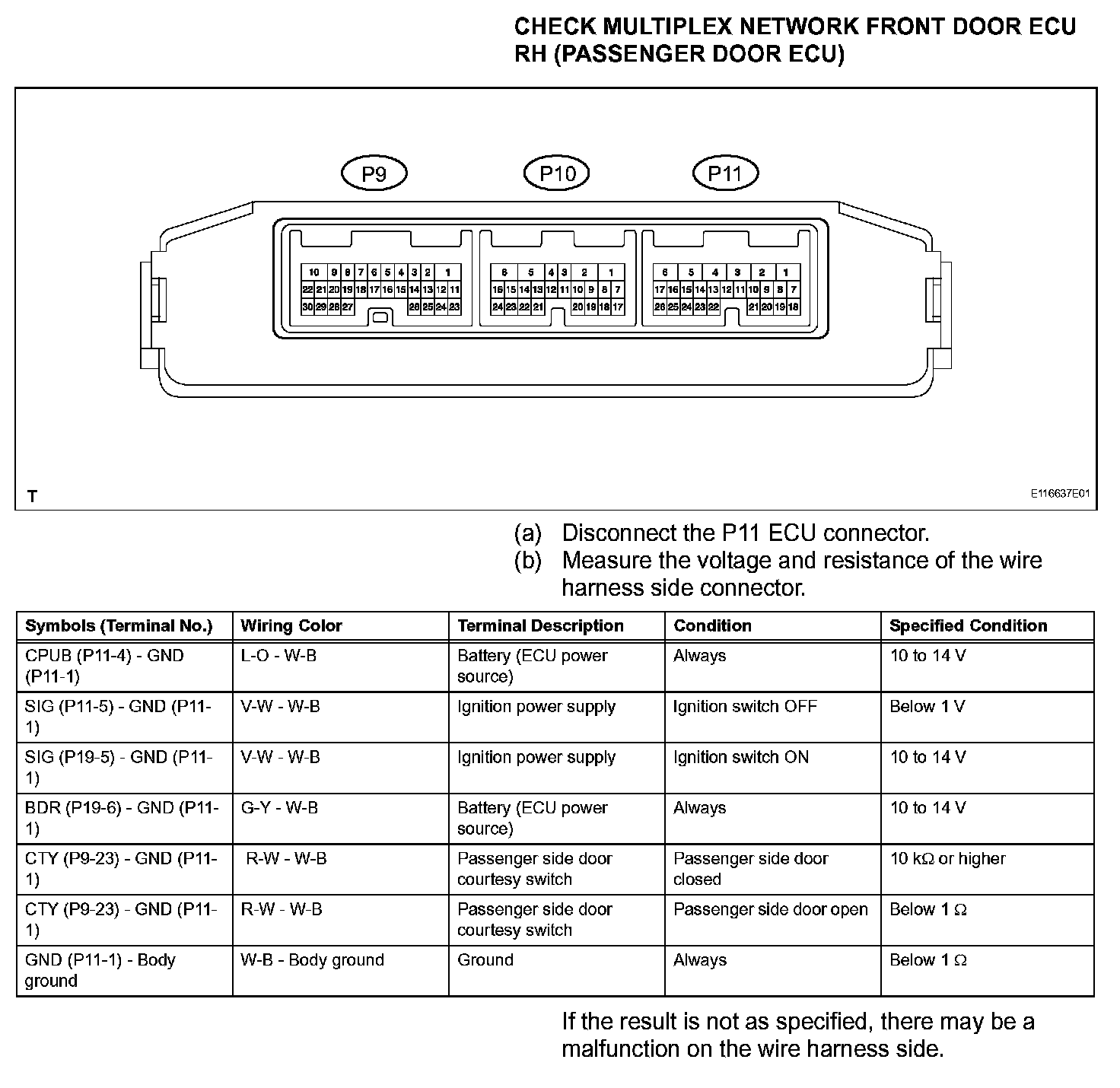

Terminals Of Control Module/Pinouts - Check Multiplex Network Front Door ECU RH (Passenger Door ECU):

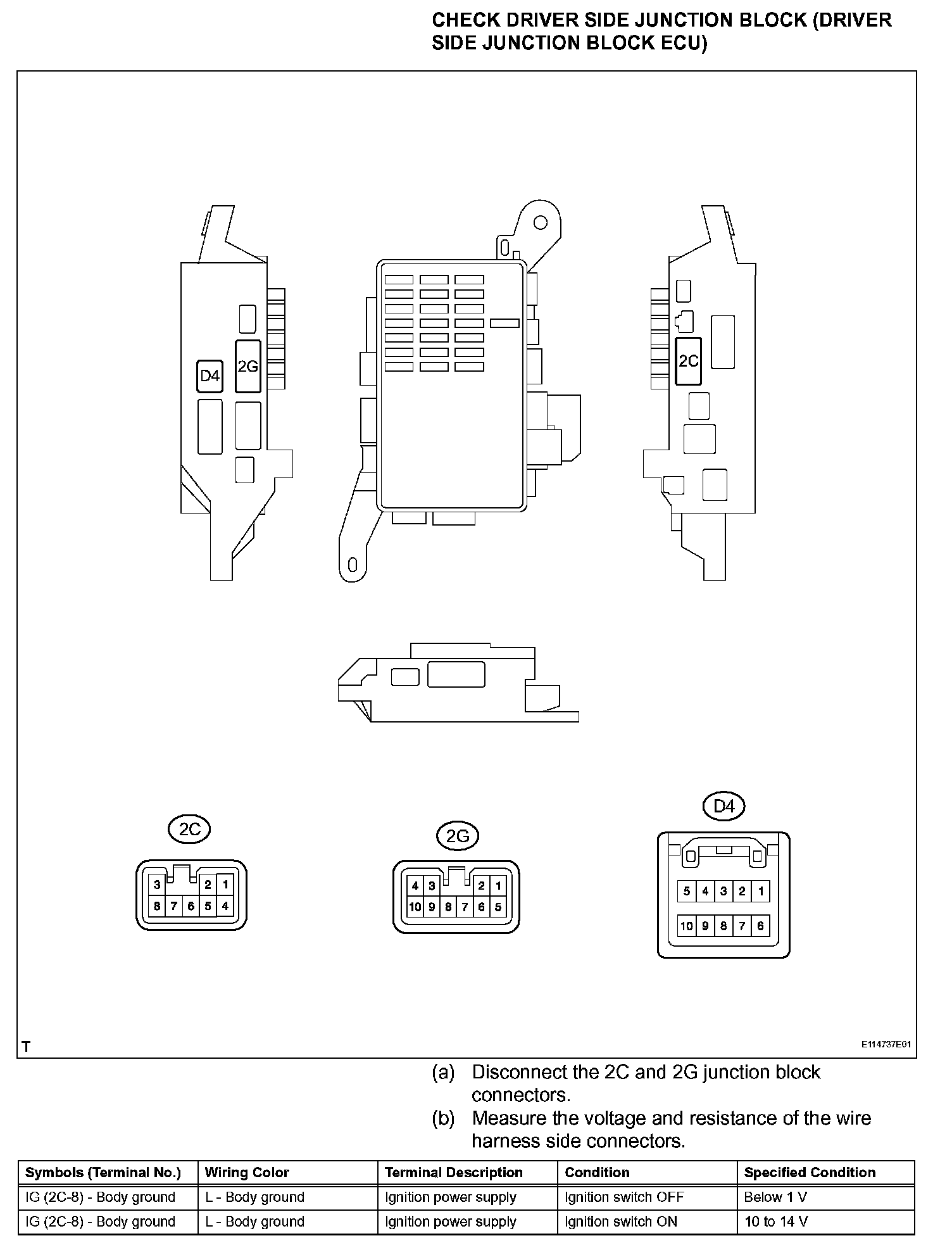

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Driver Side Junction Block ECU) (Part 1):

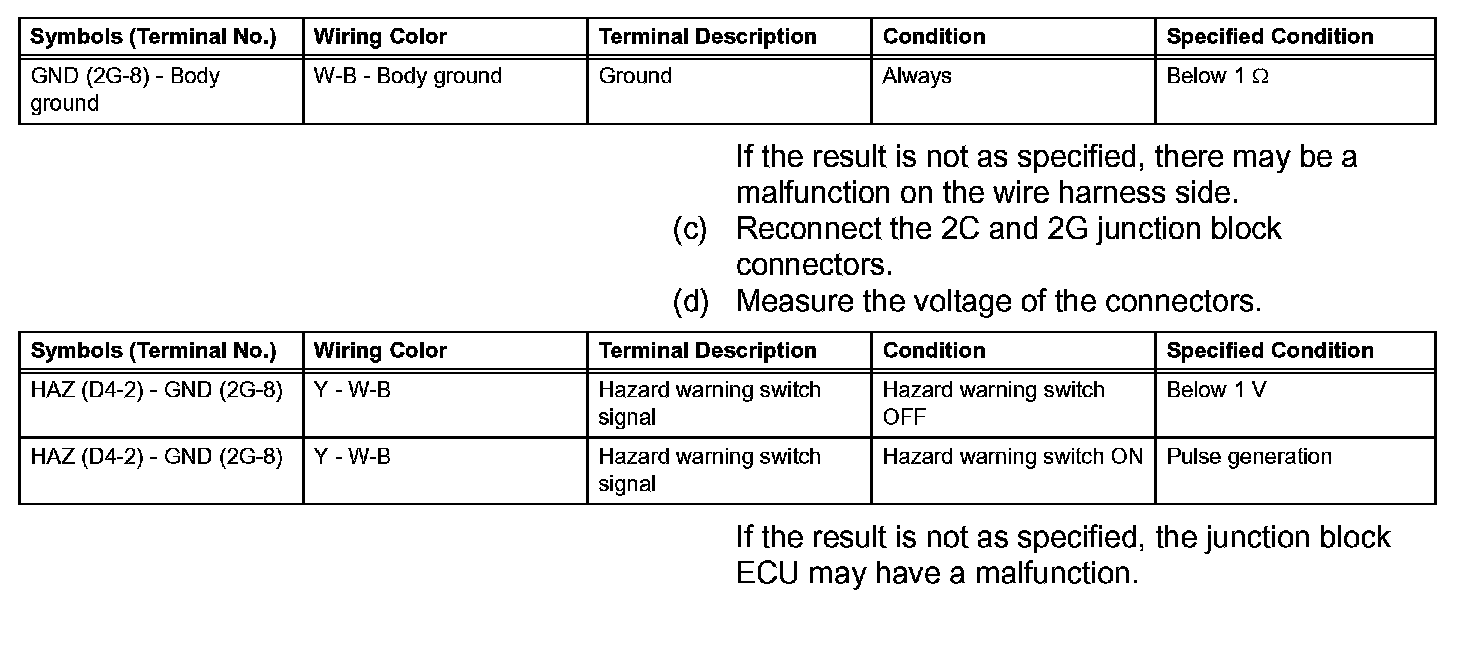

Terminals Of Control Module/Pinouts - Check Driver Side Junction Block (Driver Side Junction Block ECU) (Part 2):

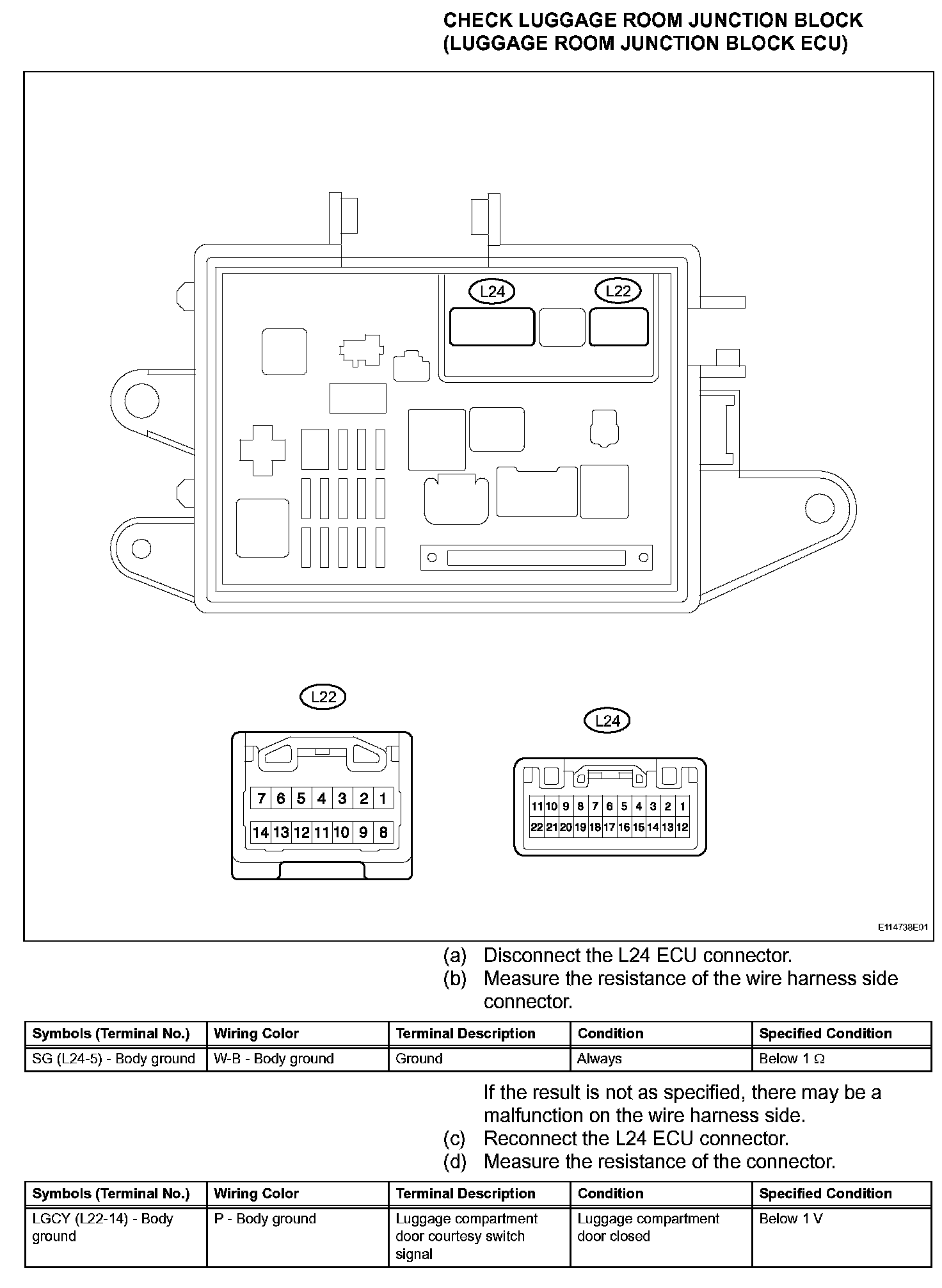

Terminals Of Control Module/Pinouts - Check Luggage Room Junction Block (Luggage Room Junction Block ECU) (Part 1):

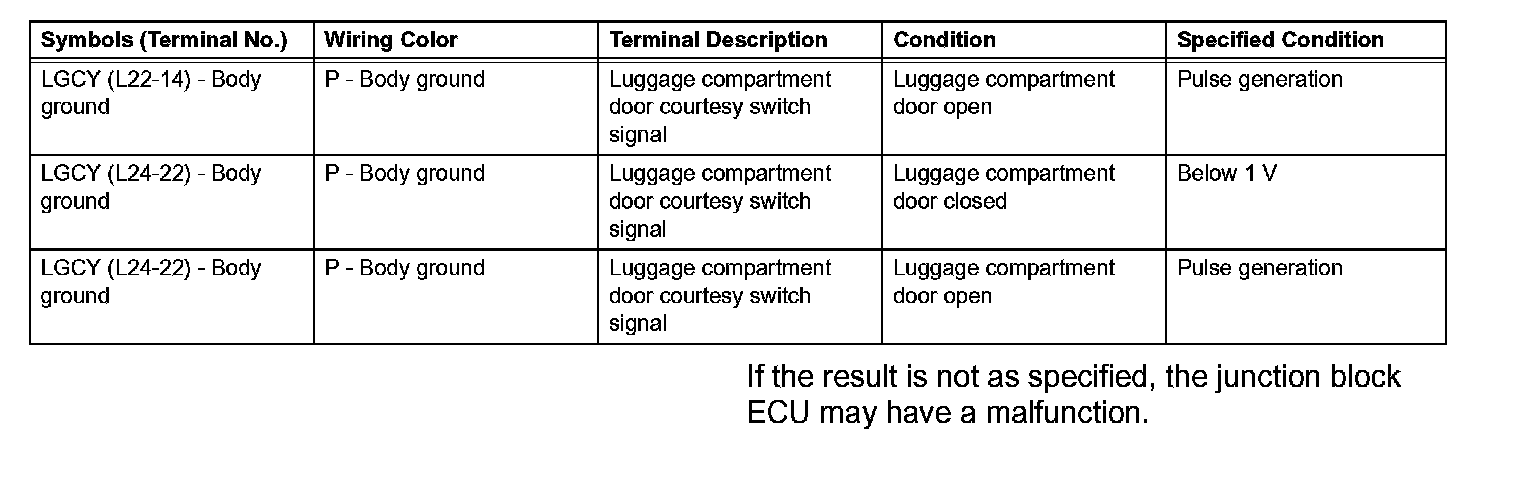

Terminals Of Control Module/Pinouts - Check Luggage Room Junction Block (Luggage Room Junction Block ECU) (Part 2):
