Key Reminder Warning System

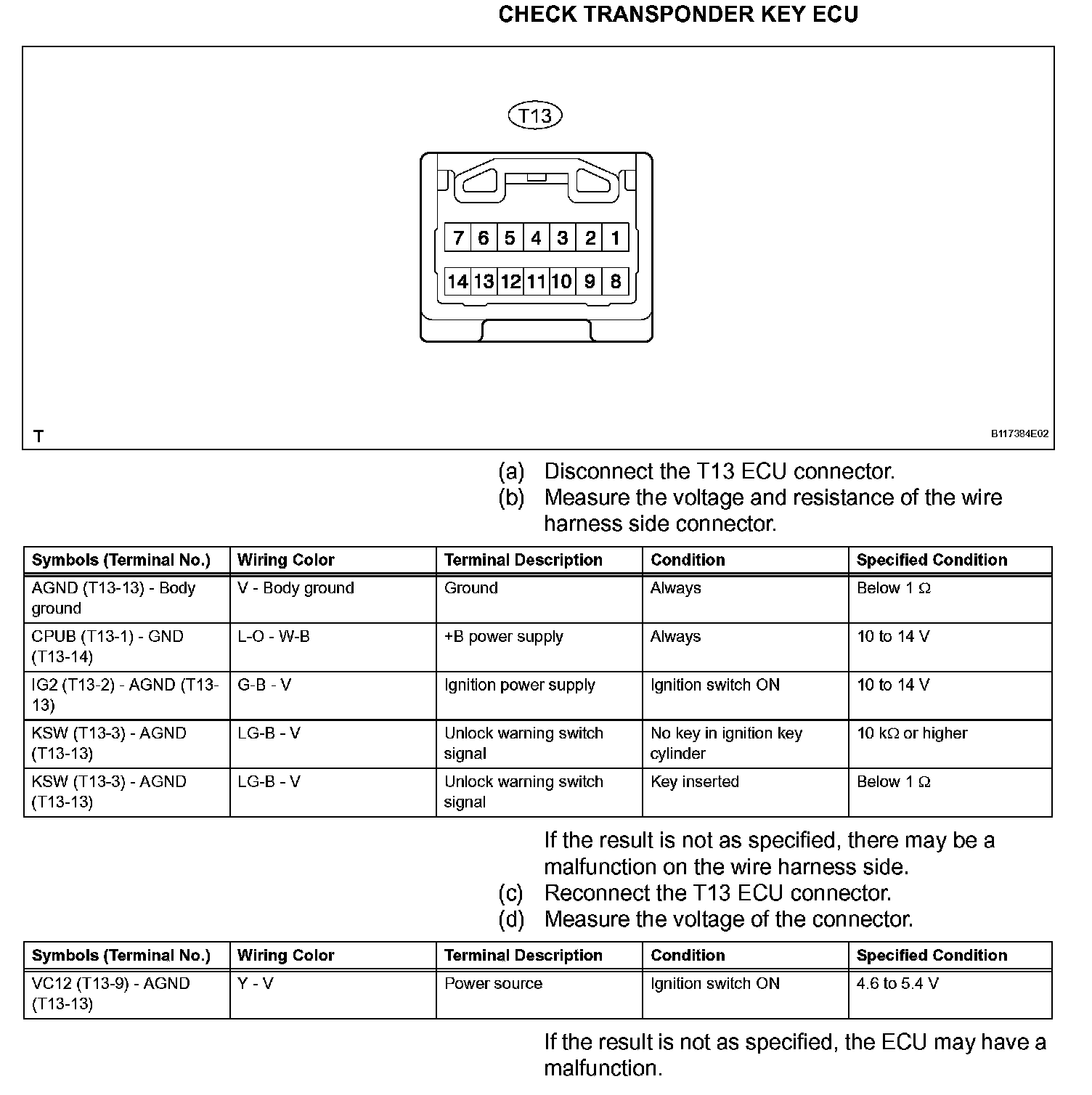

Terminals Of Control Module/Pinouts - Check Transponder Key ECU:

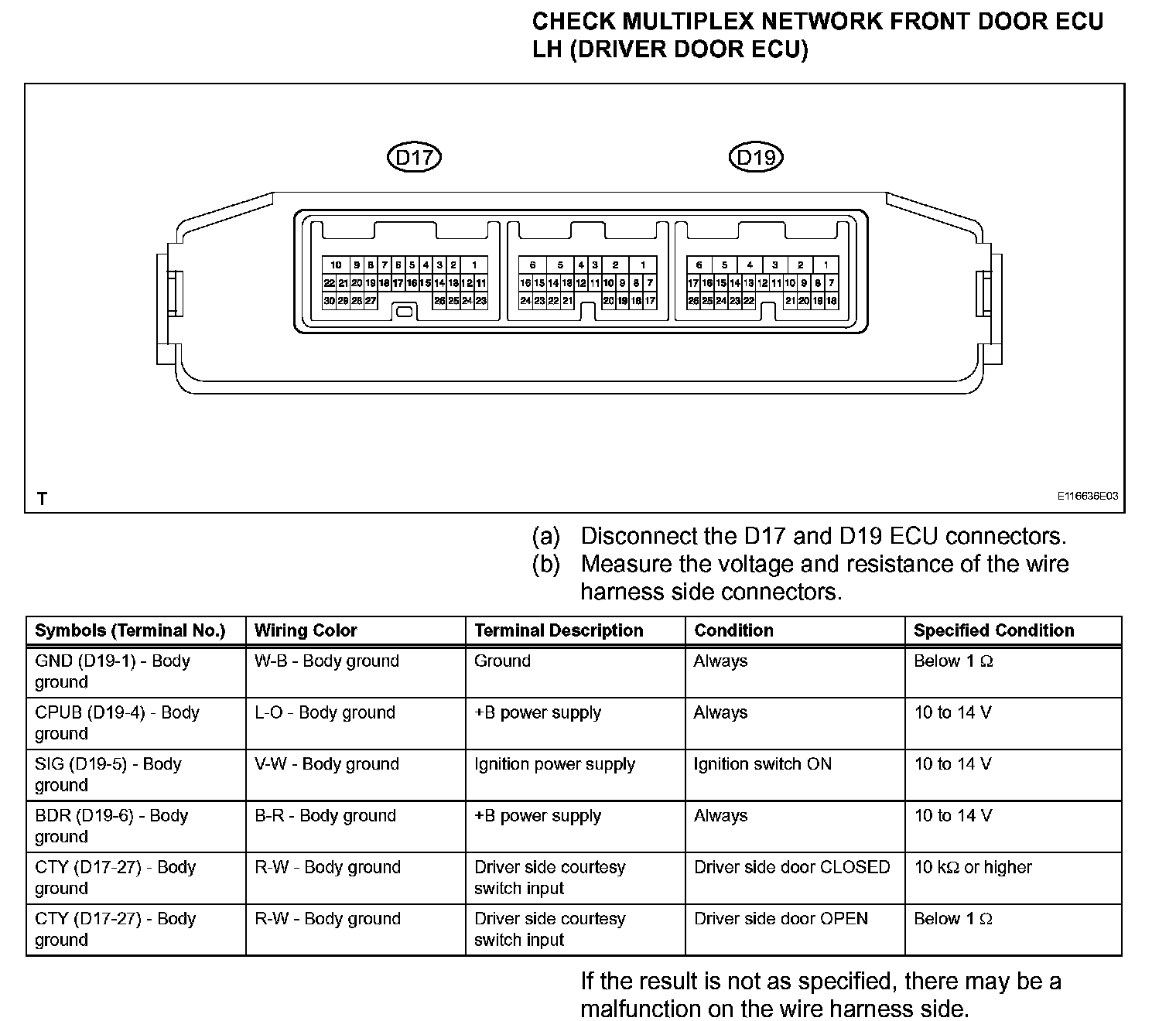

Terminals Of Control Module/Pinouts - Check Multiplex Network Front Door ECU LH (Driver Door ECU):

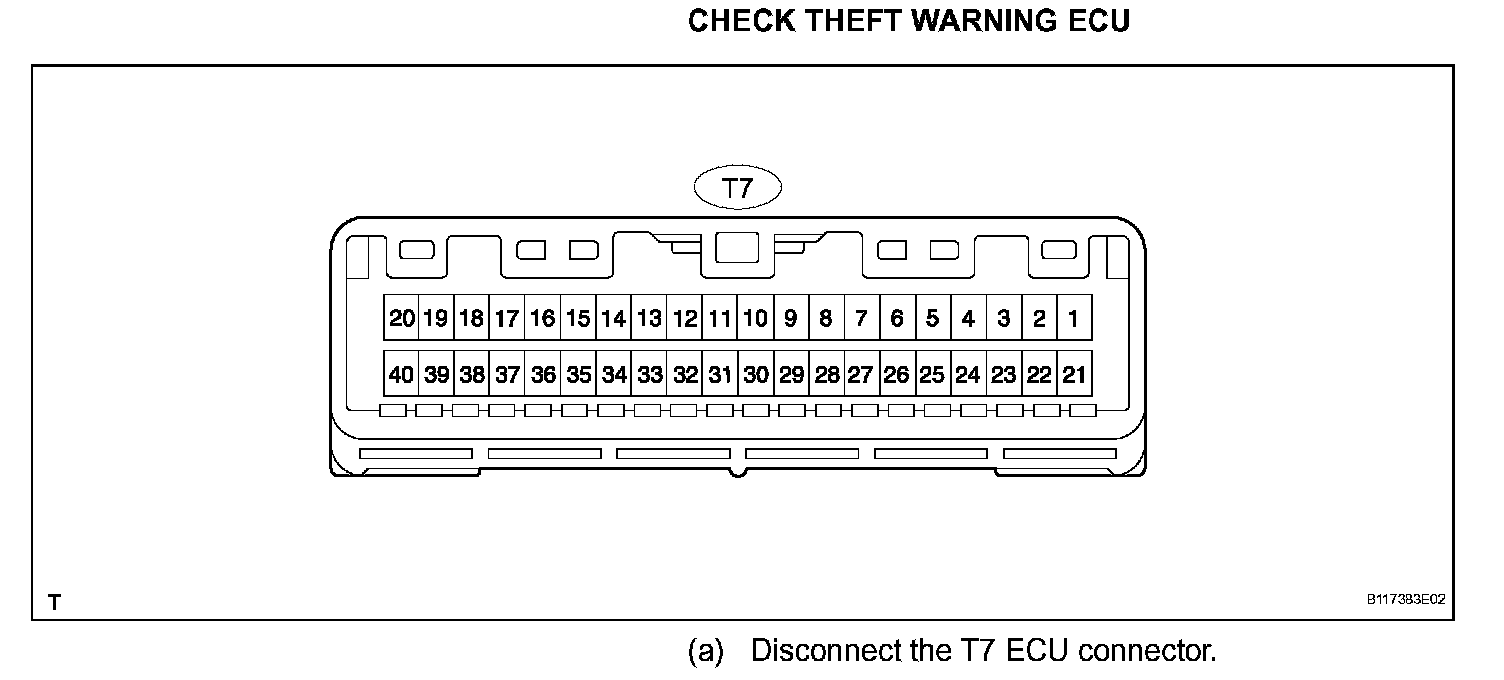

Terminals Of Control Module/Pinouts - Check Theft Warning ECU (Part 1):

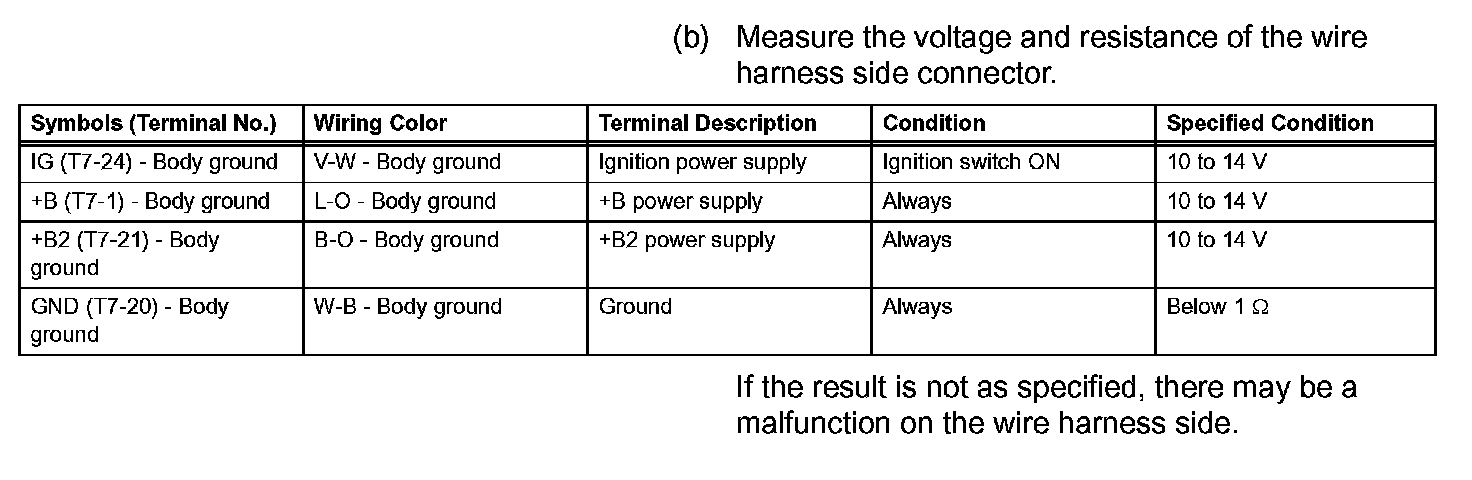

Terminals Of Control Module/Pinouts - Check Theft Warning ECU (Part 2):
