Door Control Switch

INSPECTION

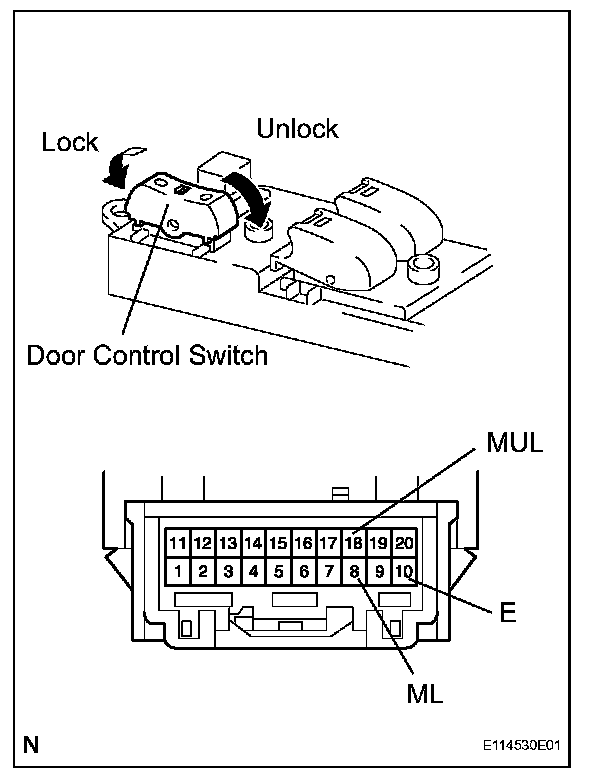

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY




a. Measure the resistance of the switch.

If the result is not as specified, replace the switch assembly.

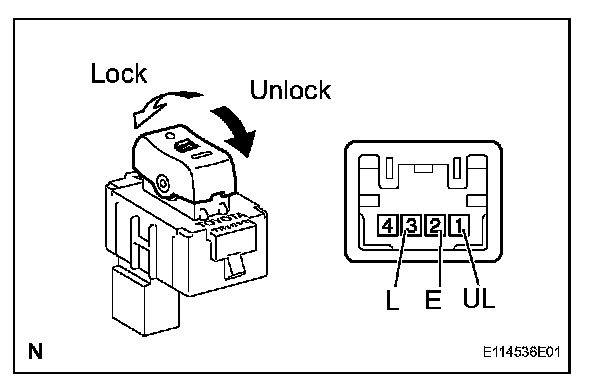

2. INSPECT DOOR CONTROL SWITCH ASSEMBLY

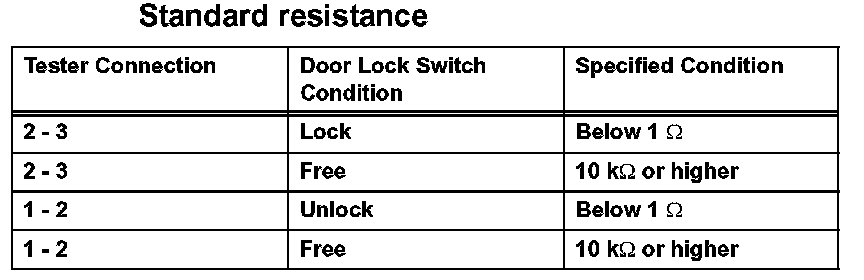

a. Measure the resistance of the switch.

If the result is not as specified, replace the switch assembly.
