Rear Shelf: Testing and Inspection
INSPECTION1. INSPECT PACKAGE TRAY TRIM ASSEMBLY

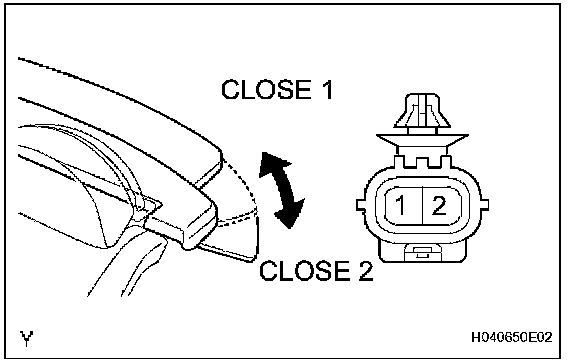

a. Disconnect the P8 tray motor connector.

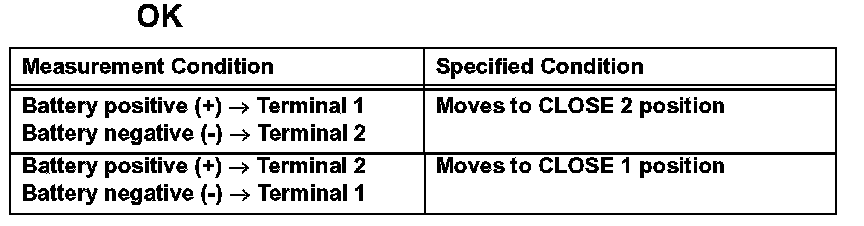

b. Apply battery voltage to the tray motor terminal and check operation of the package tray trim.
If the result is not as specified, replace the package tray trim assembly.
