Trunk / Liftgate Shock / Support: Service and Repair

LUGGAGE COMPARTMENT DOOR SUPPORT

DISPOSAL

1. DISPOSE OF LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY









a. Remove the support.
b. Horizontally fix the stay in a vise with the piston's rod pulled out.

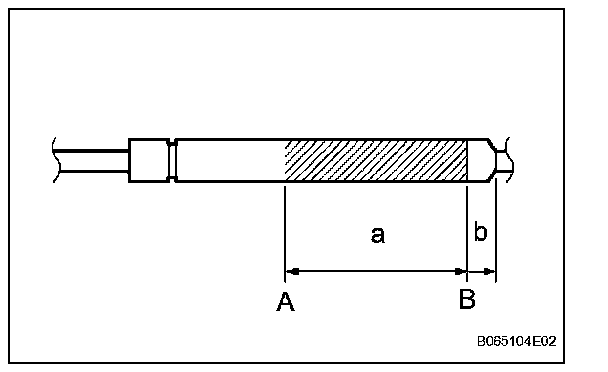

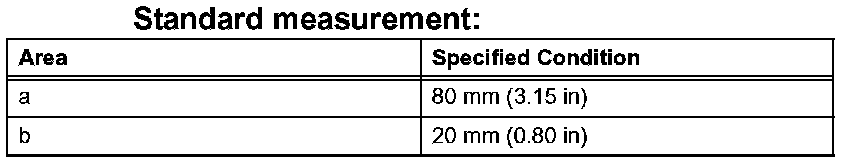

c. Using a metal saw, gradually cut any area between A and B to release the gas.

CAUTION: As metal debris may be blown outward by the gas, you must:
- Wear protective glasses.
- Cover the area being cut.

NOTICE: The gas is colorless, odorless and harmless.
