Pinout Values and Diagnostic Parameters

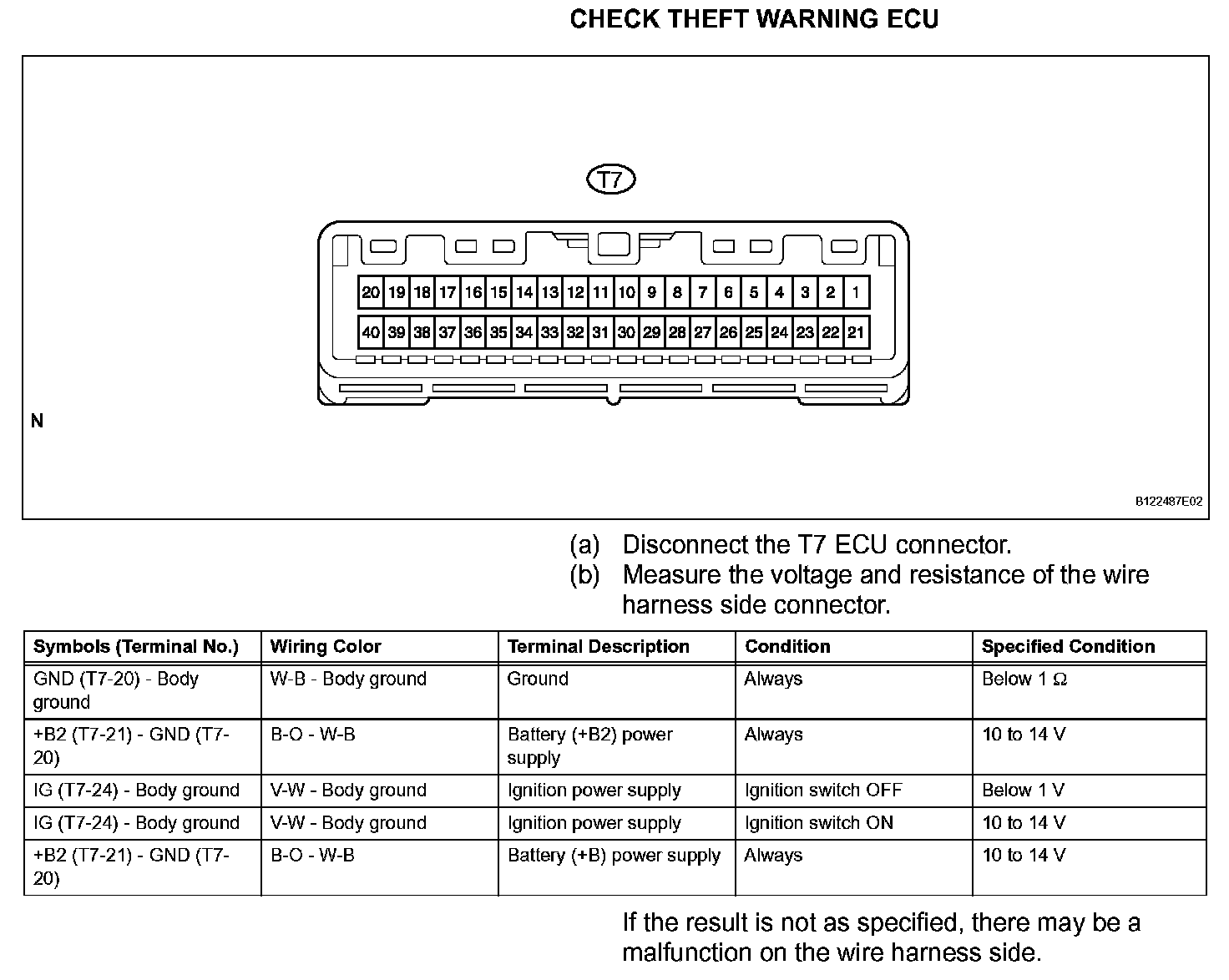

Terminals Of Control Module/Pinouts - Check Theft Warning ECU:

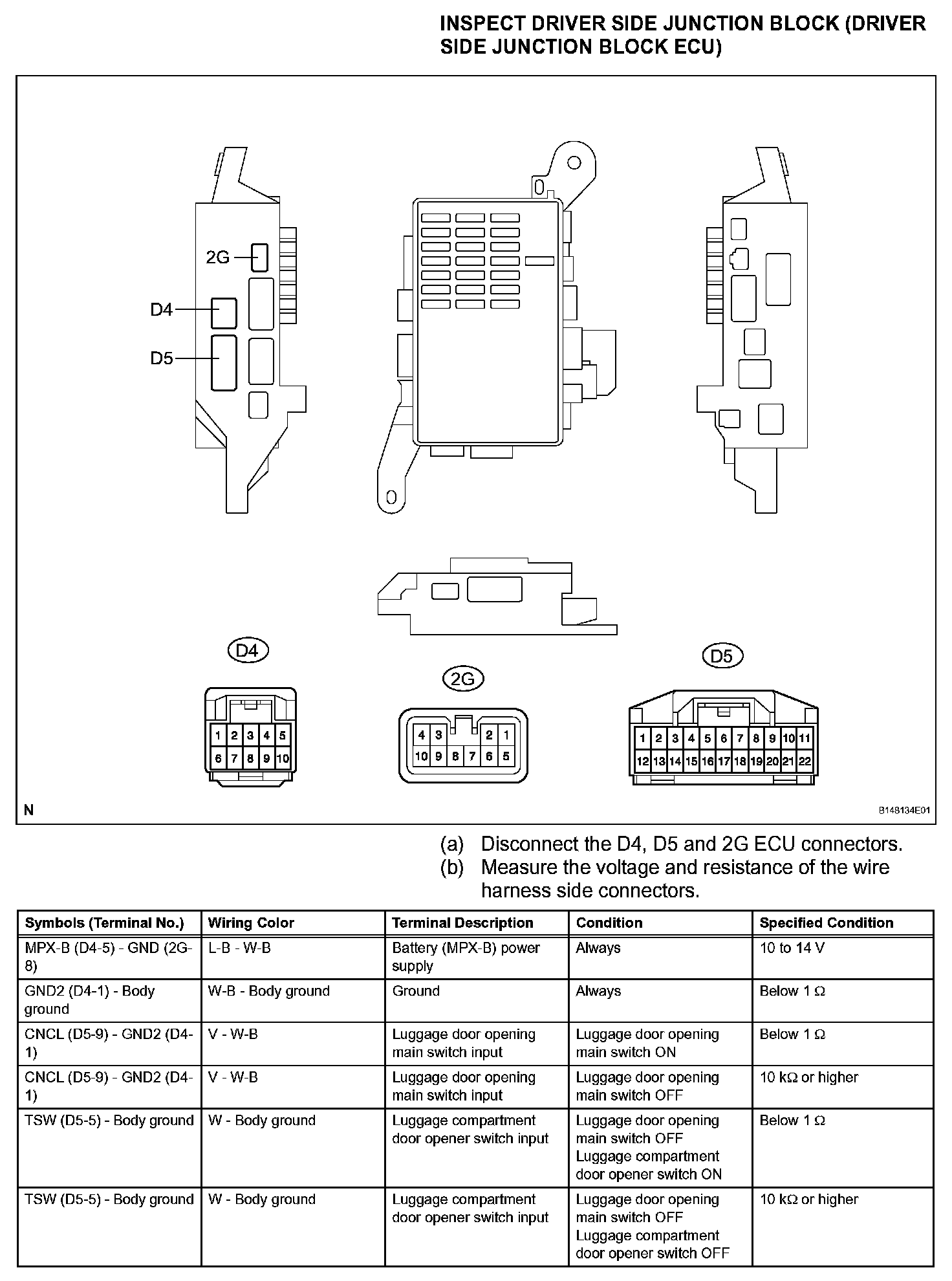

Terminals Of Control Module/Pinouts - Inspect Driver Side Junction Block (Driver Side Junction Block ECU) (Part 1):

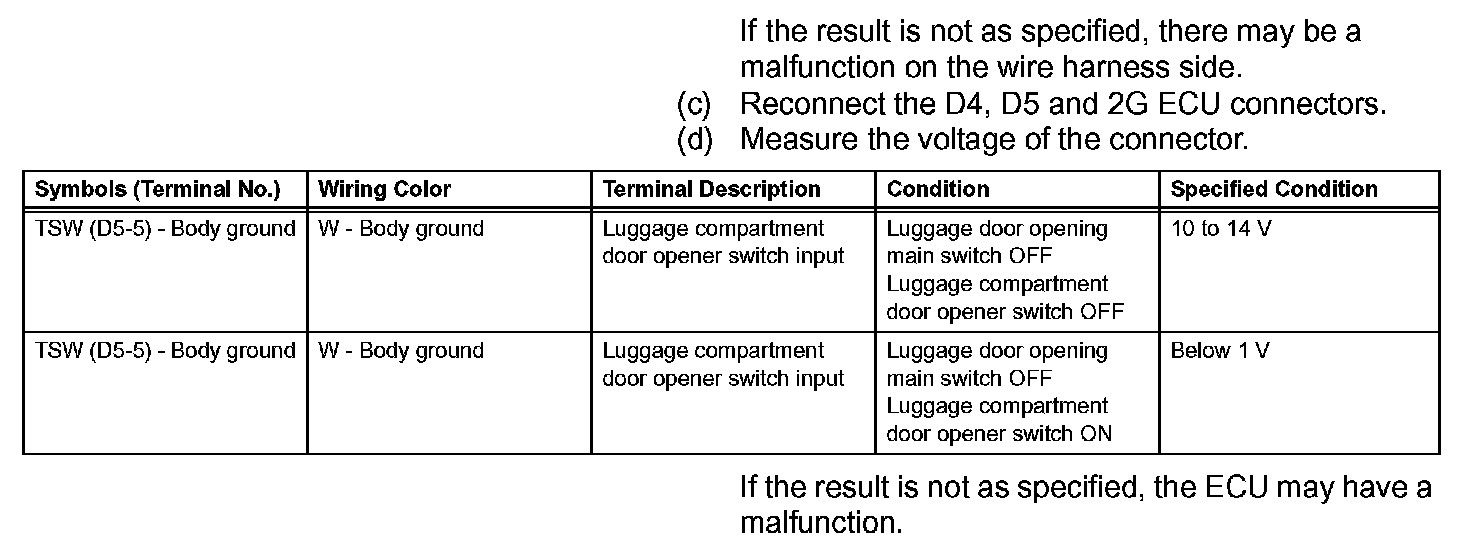

Terminals Of Control Module/Pinouts - Inspect Driver Side Junction Block (Driver Side Junction Block ECU) (Part 2):

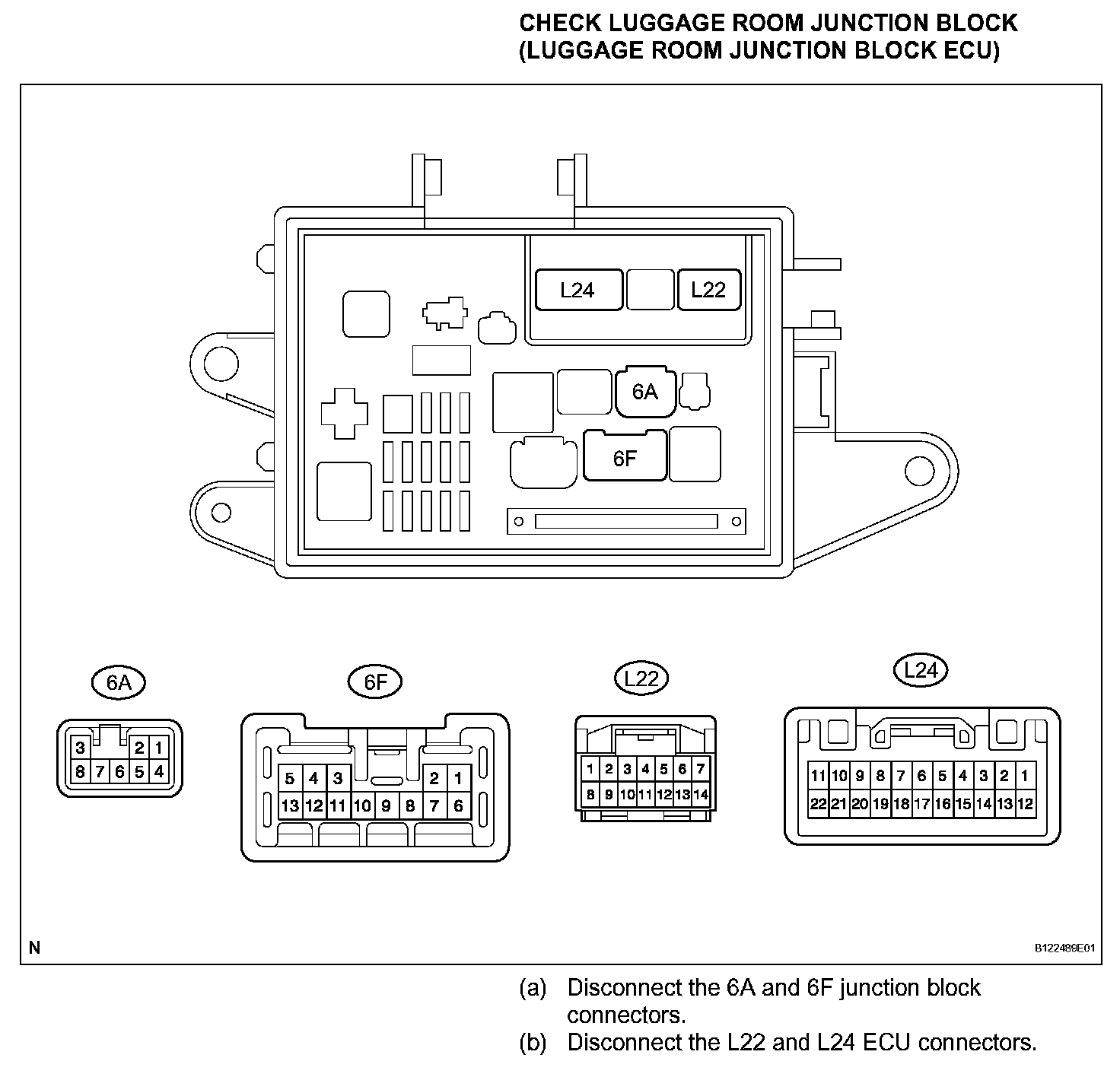

Terminals Of Control Module/Pinouts - Check Luggage Room Junction Block (Luggage Room Junction Block ECU) (Part 1):

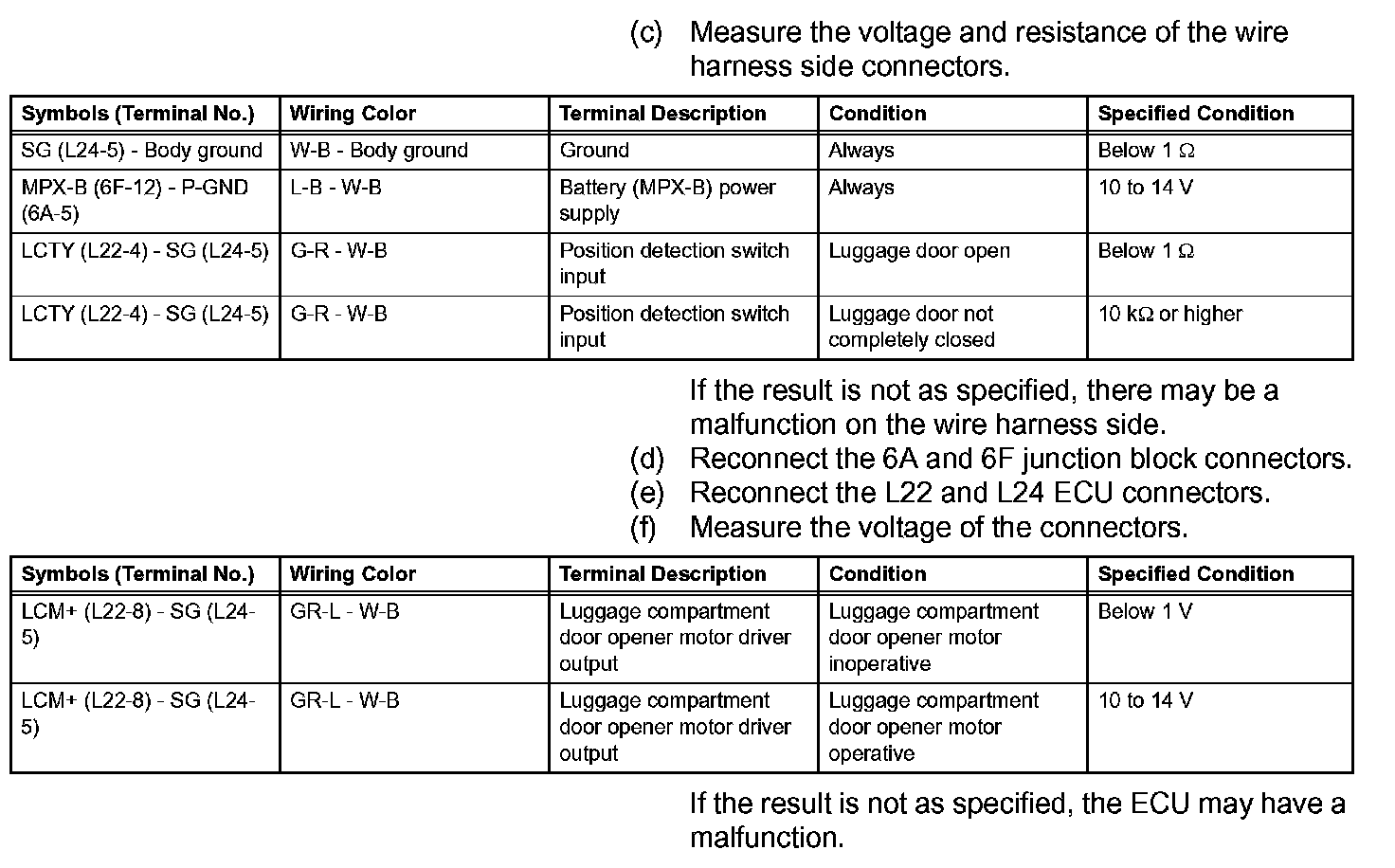

Terminals Of Control Module/Pinouts - Check Luggage Room Junction Block (Luggage Room Junction Block ECU) (Part 2):
