Luggage Compartment Door Panel Sub-Assembly
ON-VEHICLE INSPECTION1. INSPECT LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY

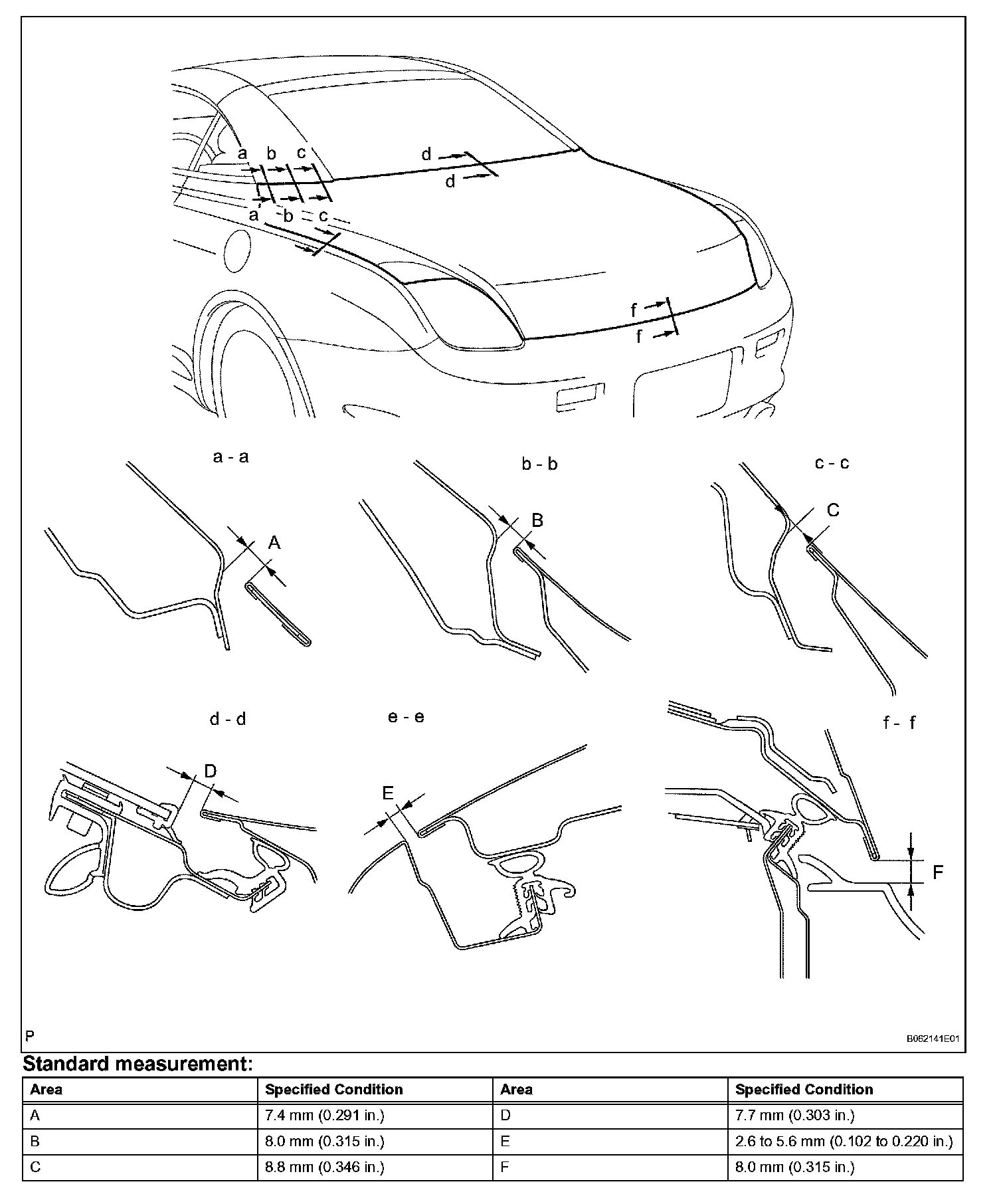

a. Check that the clearance measurements of areas A to F are within the standard range.
1. INSPECT LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY
a. Check that the clearance measurements of areas A to F are within the standard range.
