Luggage Compartment Door Opening Main Switch Circuit

Luggage Compartment Door Opening Main Switch Circuit

DESCRIPTION

The luggage compartment door opener switch signal is transmitted multiple times to the theft warning ECU from the driver side junction block. Then, when the theft warning ECU recognizes the main key, the luggage room junction block drives the luggage door compartment lock (luggage compartment door opener motor).

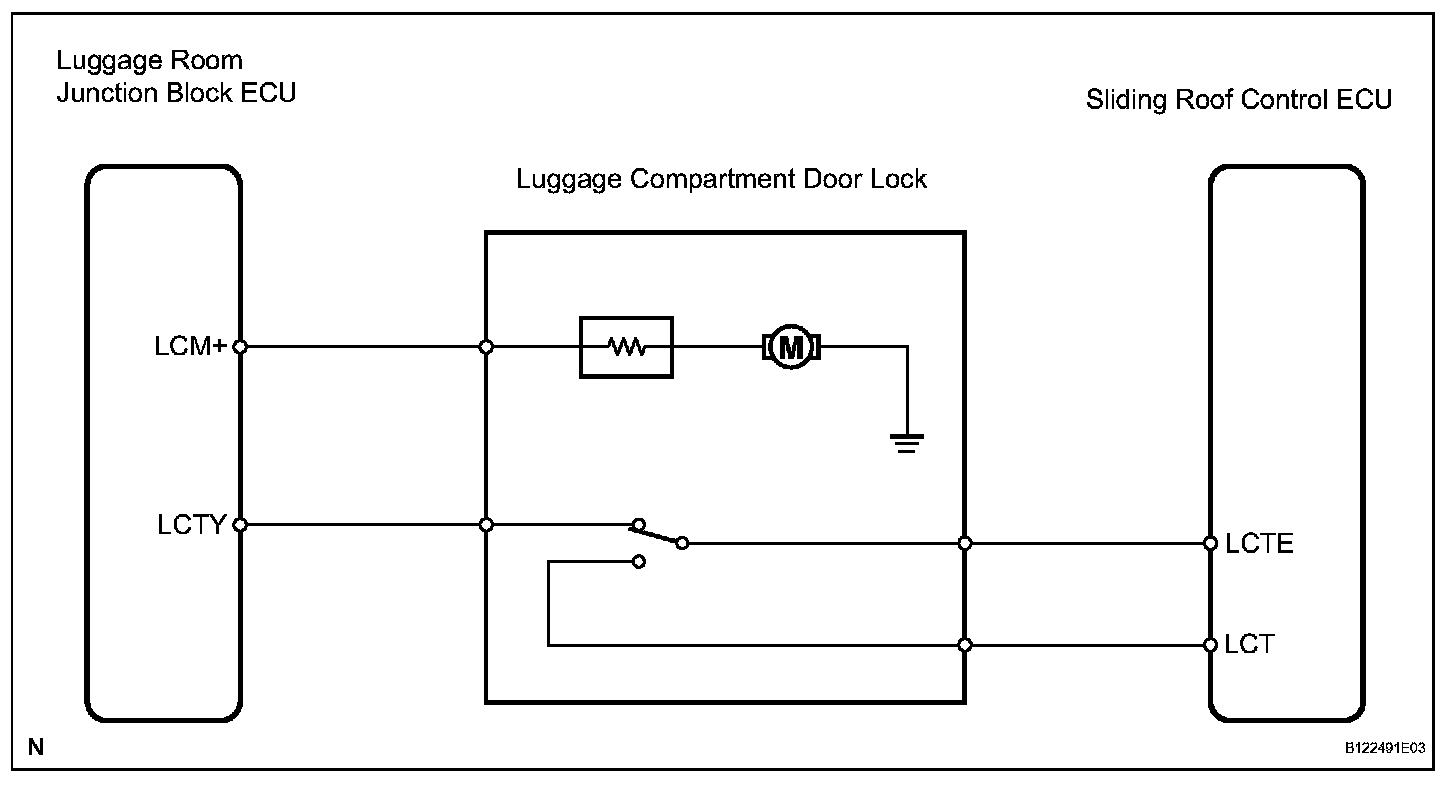

Wiring Diagram:

WIRING DIAGRAM
Refer to the driver side junction block circuit.

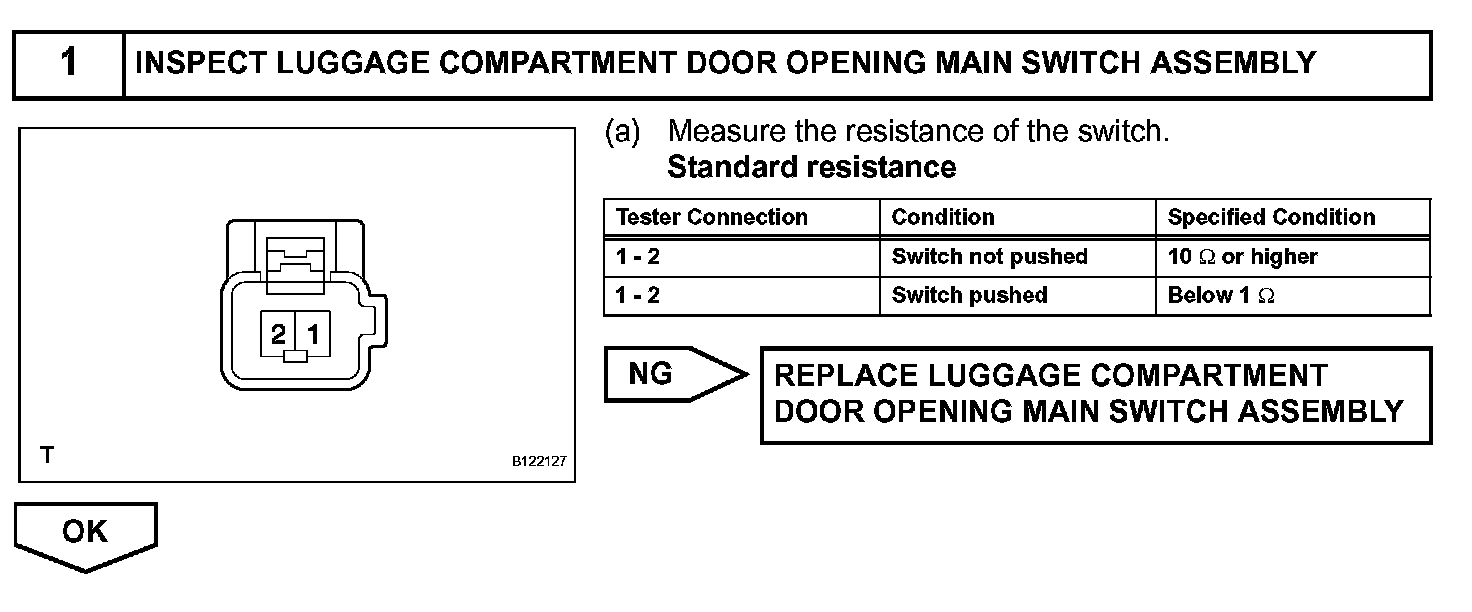

Step 1:

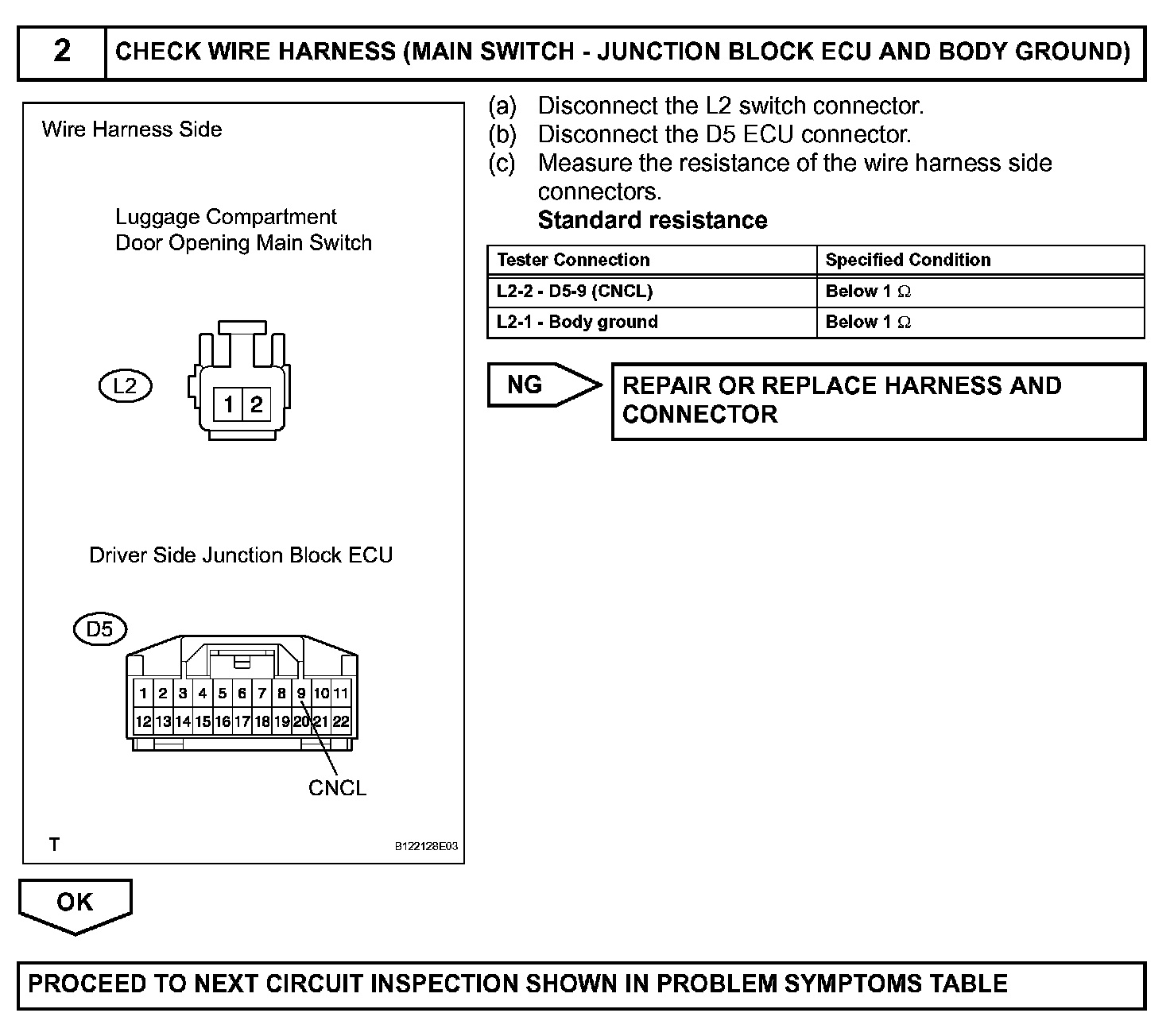

Step 2:

INSPECTION PROCEDURE
