Procedures

DISPOSAL

HINT: Use the same procedures for the RH side and LH side.

1. DISPOSE OF HOOD SUPPORT ASSEMBLY LH









a. Remove the support.
b. Horizontally fix the stay in a vise with the piston's rod pulled out.

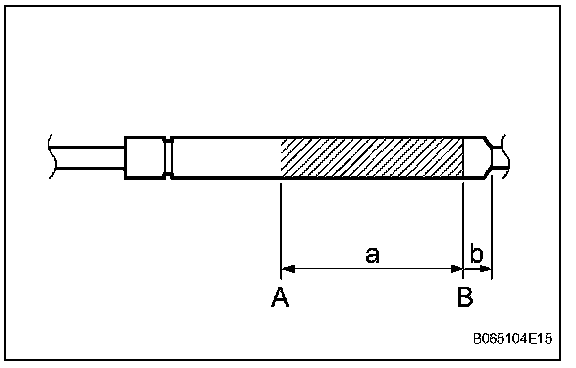

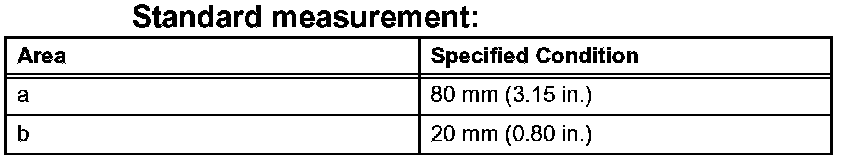

c. Using a metal saw, gradually cut any area between A and B to release the gas.

CAUTION: As metal debris may be blown outward by the gas, you must:
- Wear protective glasses.
- Cover the area being cut.


NOTICE: The gas is colorless, odorless and harmless.
