Luggage Room J/B ECU Power Source Circuit

Luggage Room J/B ECU Power Source Circuit

DESCRIPTION
This circuit provides power to operate the luggage room junction block ECU.

WIRING DIAGRAM

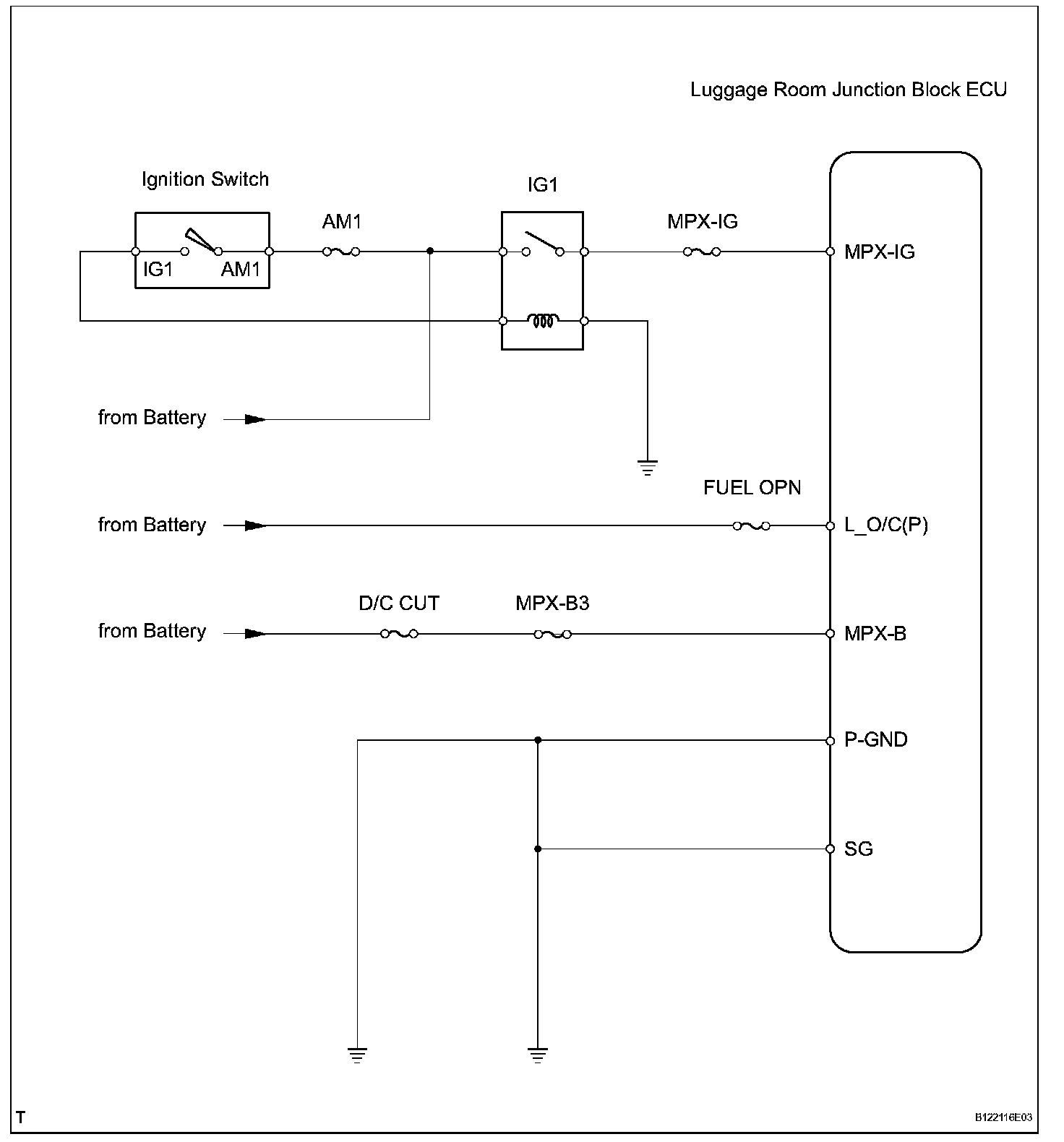

Wiring Diagram:






INSPECTION PROCEDURE

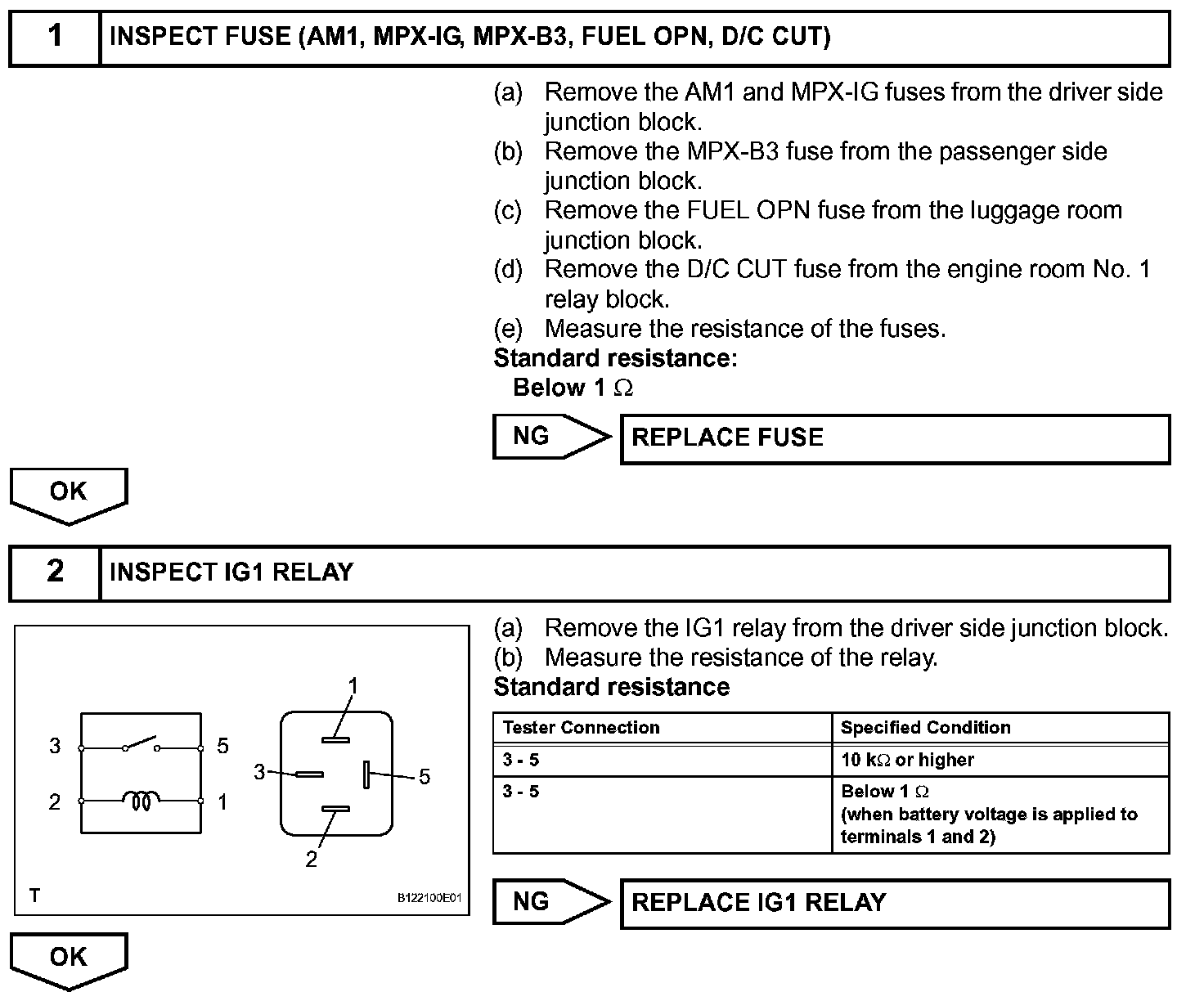

Step 1 - 2:




Step 3:
