Fuel Lid Opening Switch Circuit

Fuel Lid Opener Switch Circuit

DESCRIPTION
The circuit opens the fuel lid when the ECU sends signals to the fuel lid opening switch.

WIRING DIAGRAM

Wiring Diagram:






INSPECTION PROCEDURE

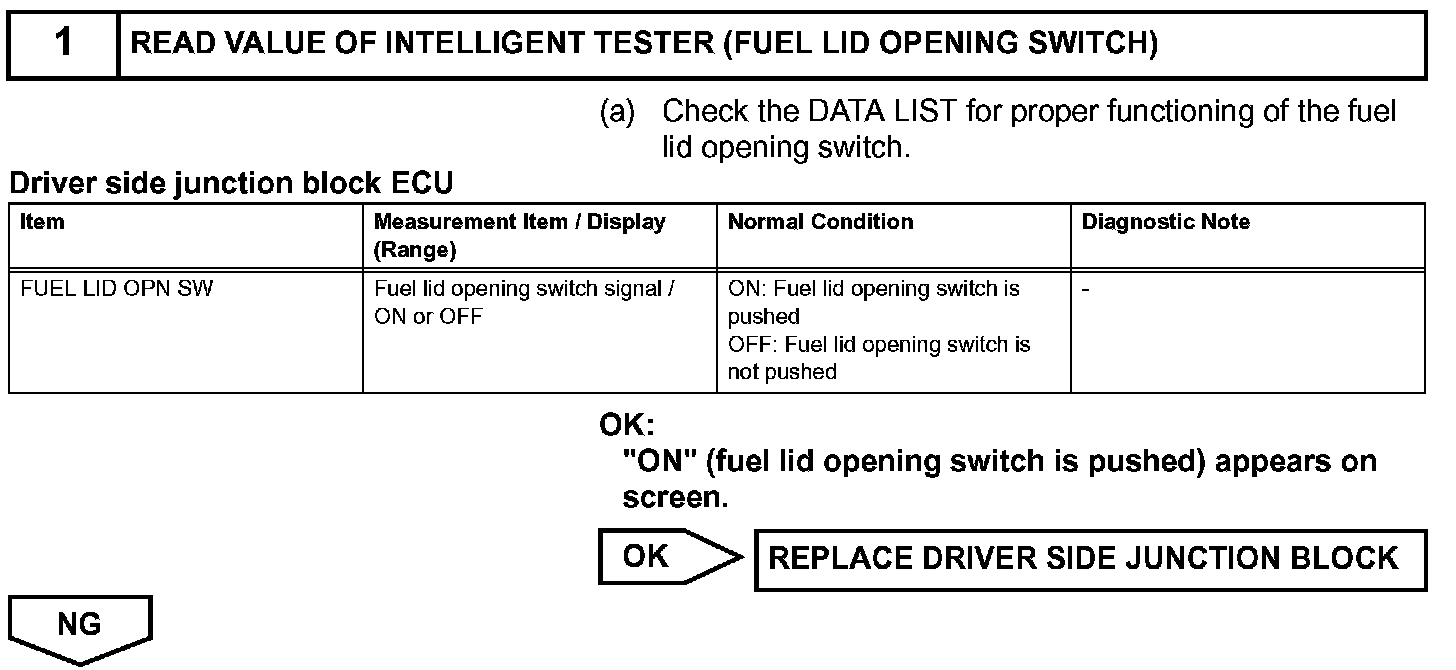

Step 1:

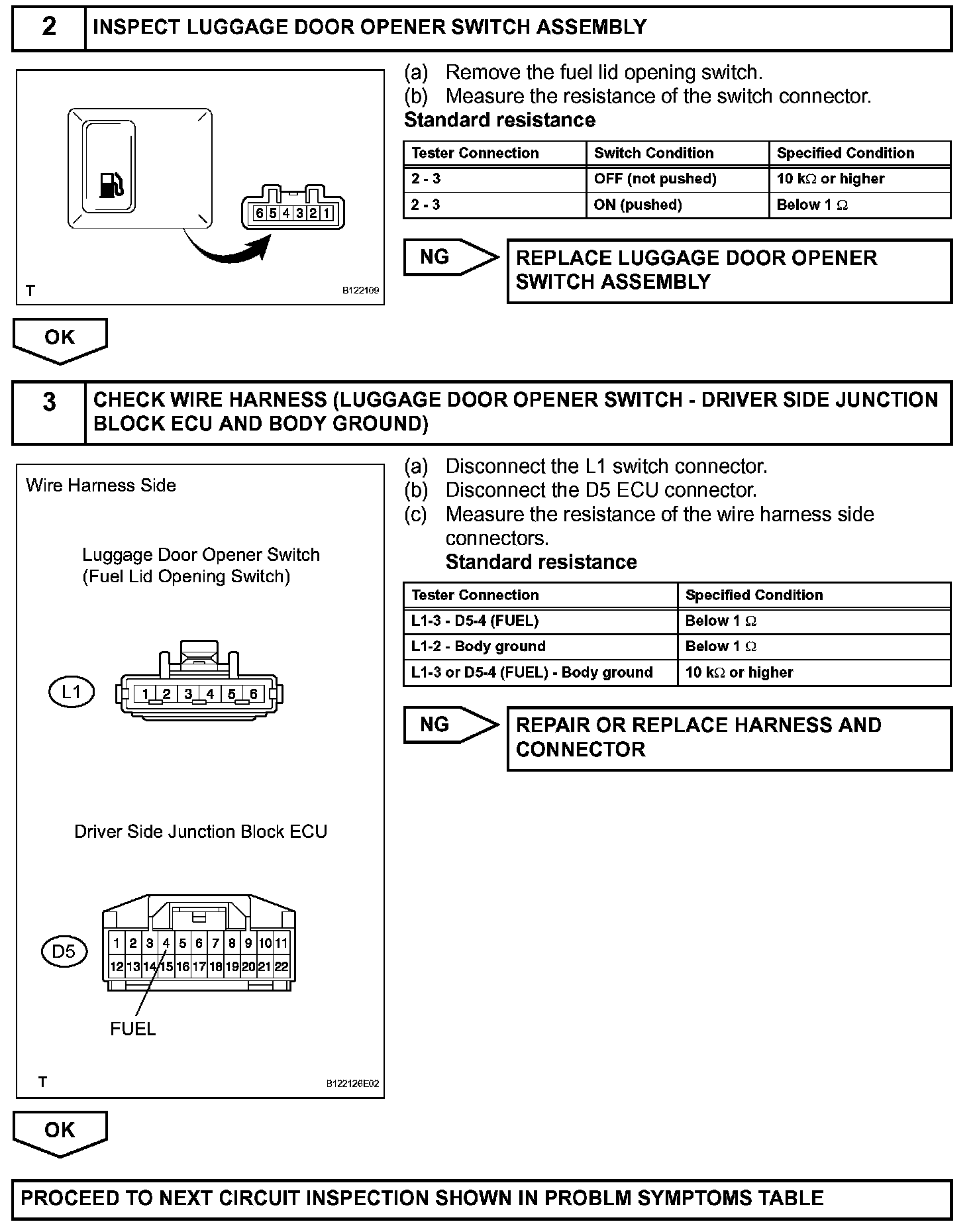

Step 2 - 3:
