Fuel Lid Opener Motor Circuit
Fuel Lid Opener Motor CircuitDESCRIPTION
The circuit opens the fuel lid when the ECU sends signals to the fuel lid opener motor.

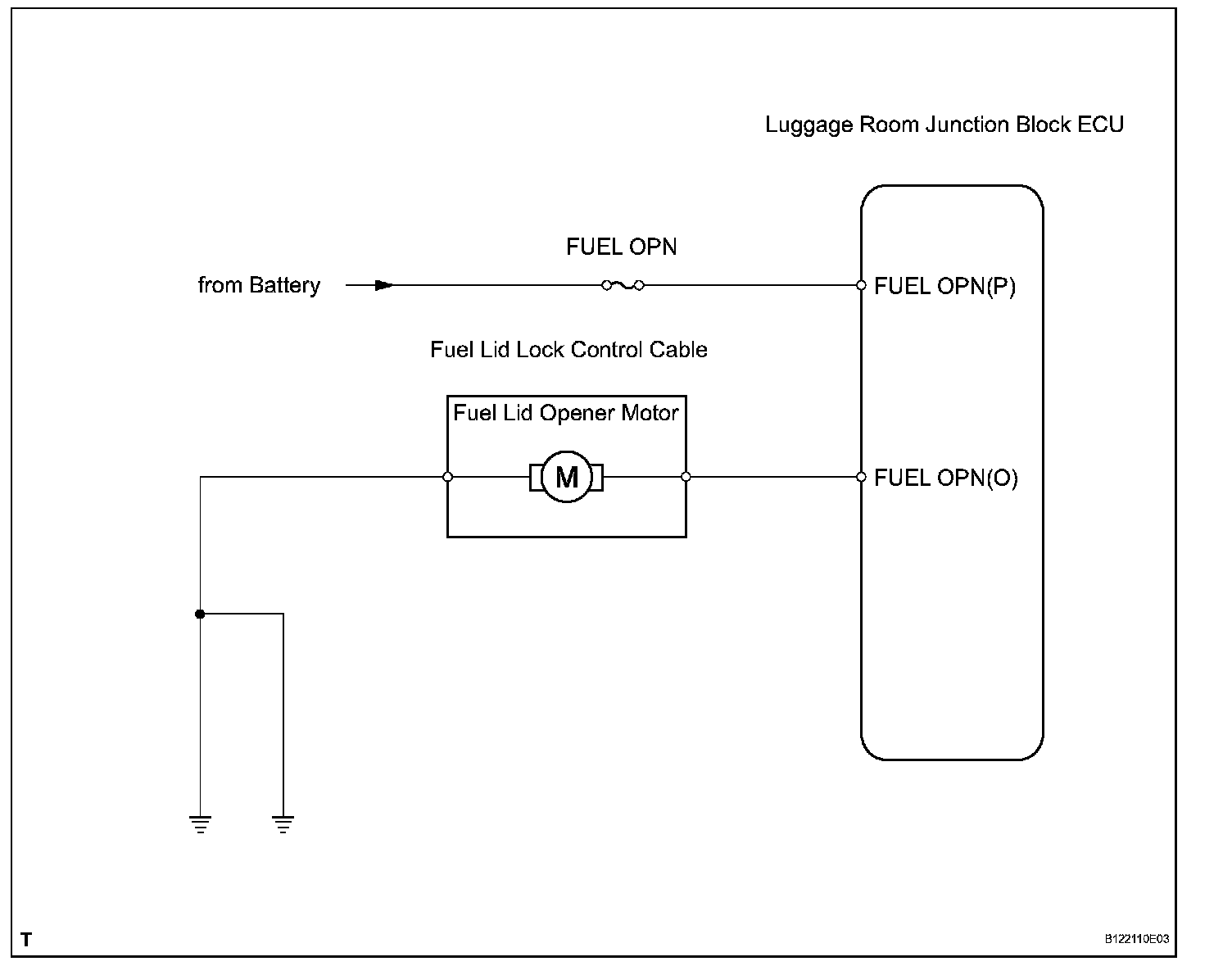

WIRING DIAGRAM
Wiring Diagram:
INSPECTION PROCEDURE

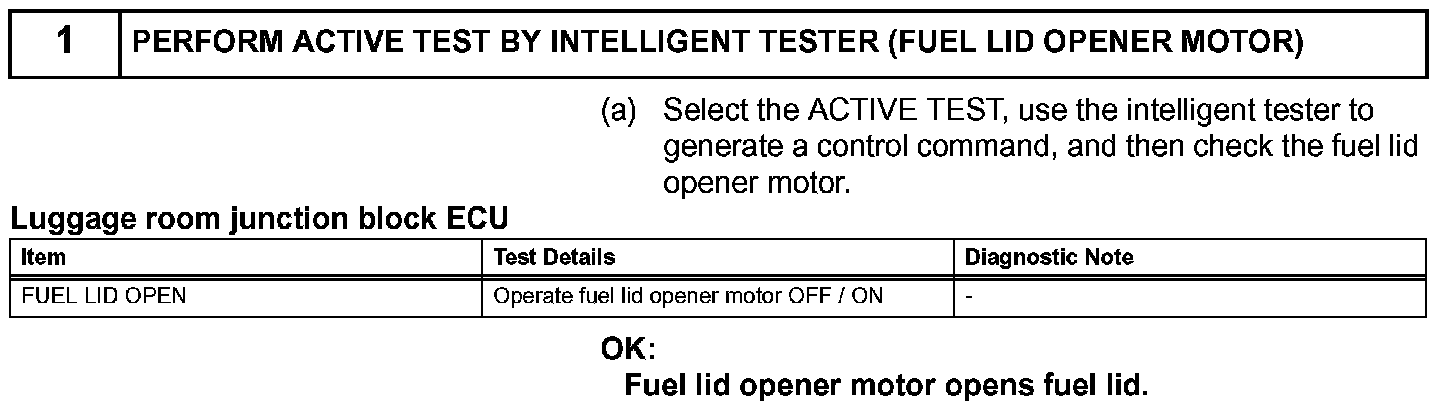

Step 1:

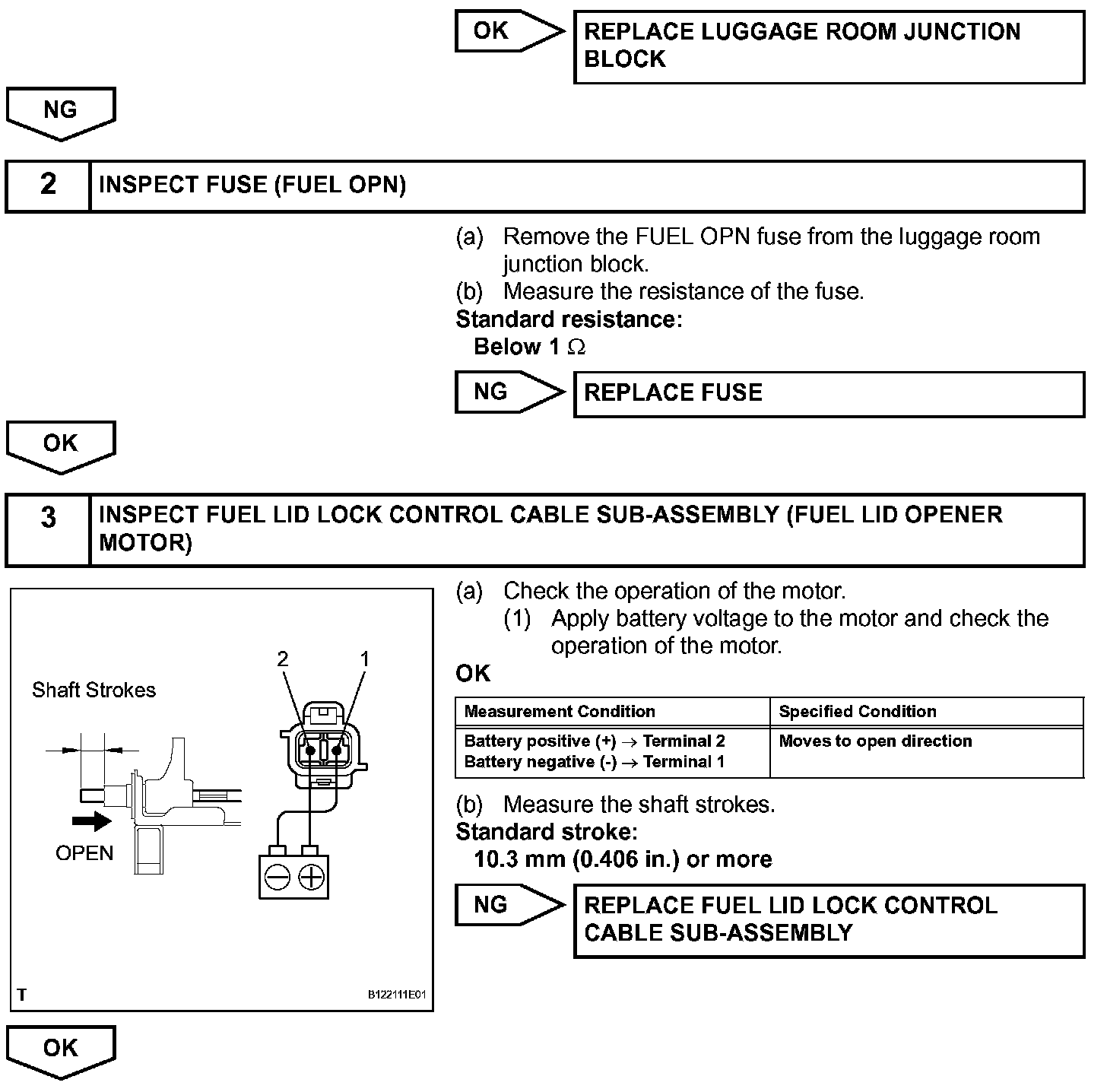

Step 1(Continued) - 3:

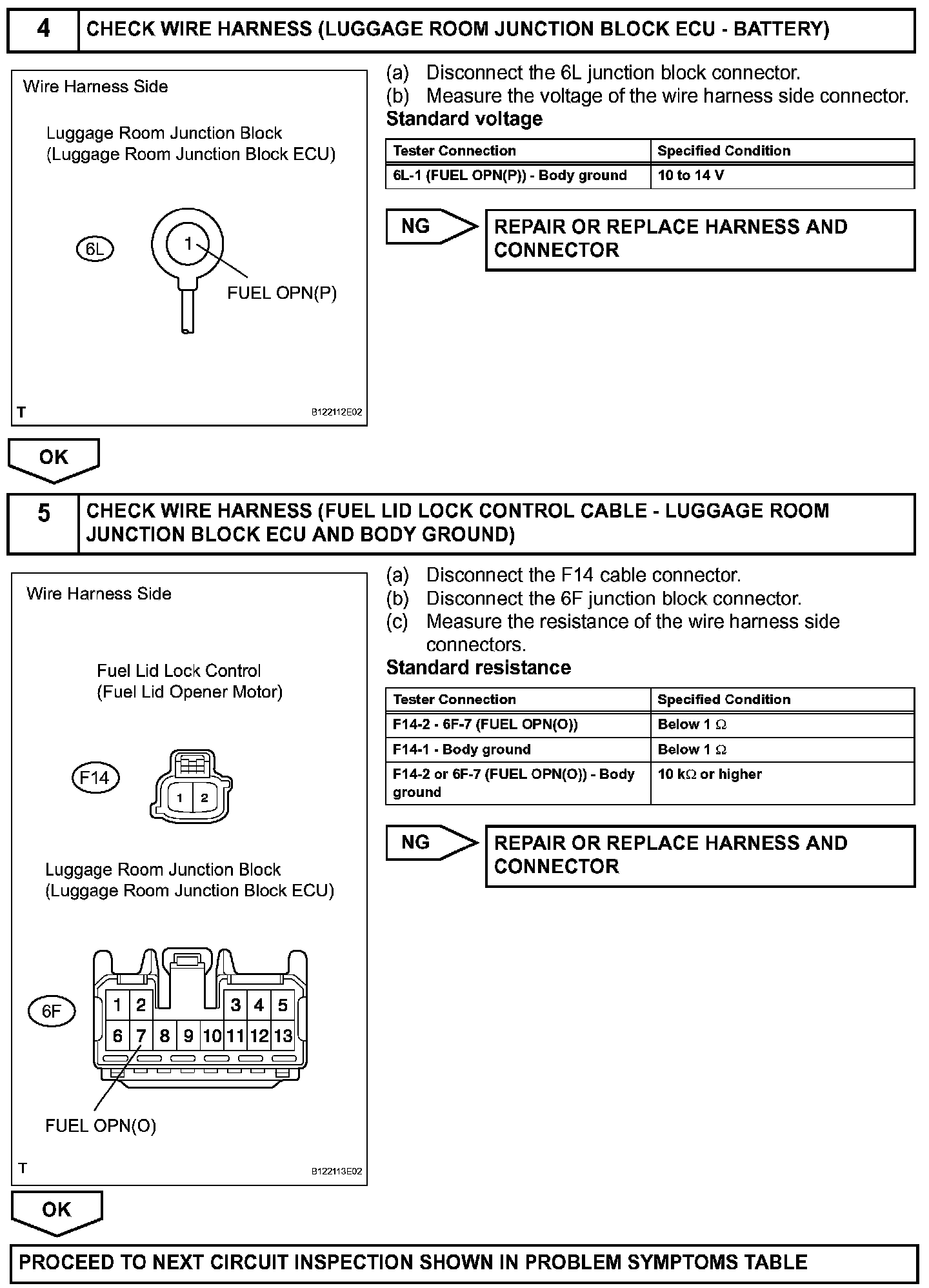

Step 4 - 5:
