Driver Side J/B ECU Power Source Circuit

Driver Side J/B ECU Power Source Circuit

DESCRIPTION
This circuit provides power to operate the driver side junction block ECU.

WIRING DIAGRAM

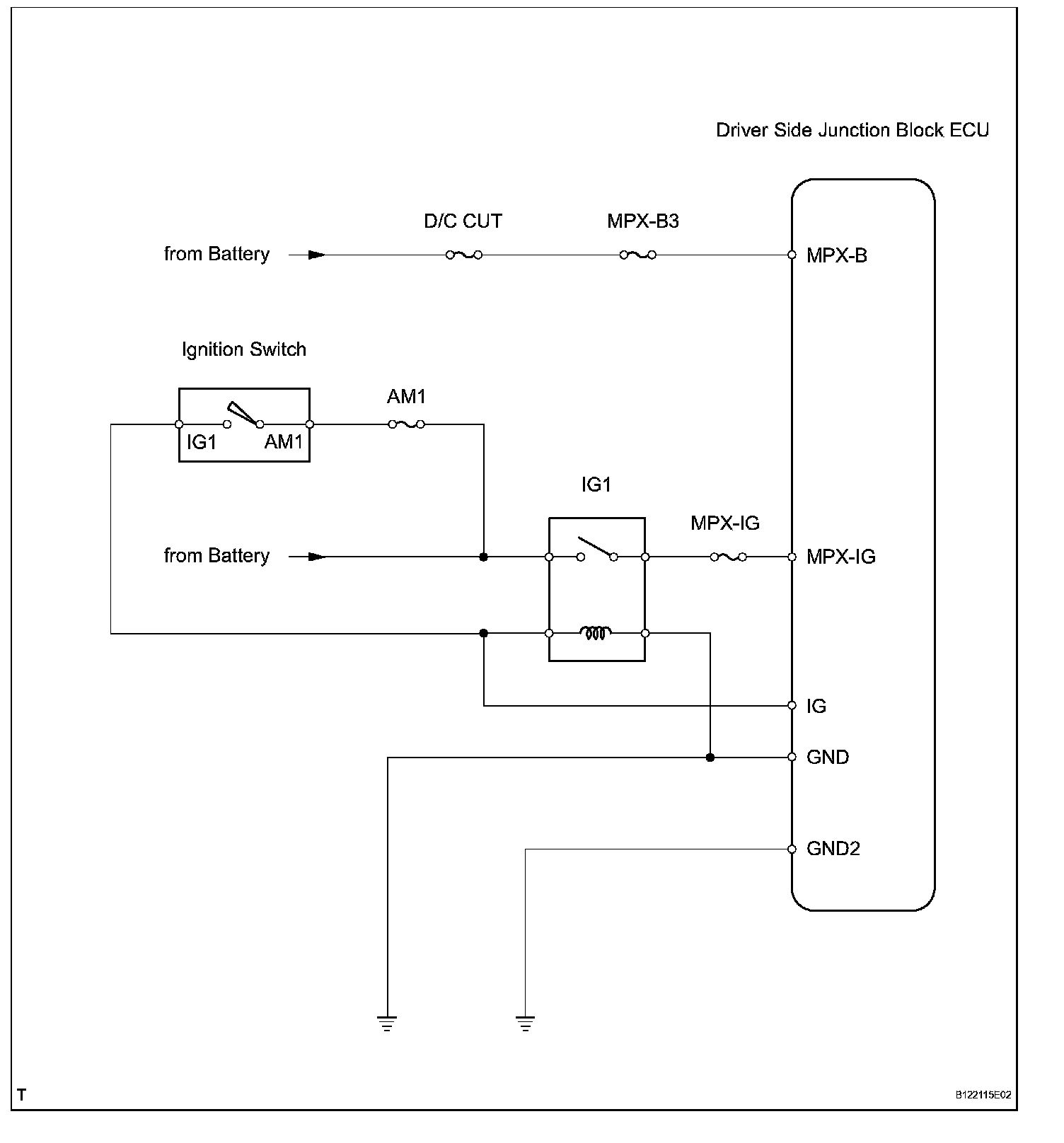

Wiring Diagram:






INSPECTION PROCEDURE

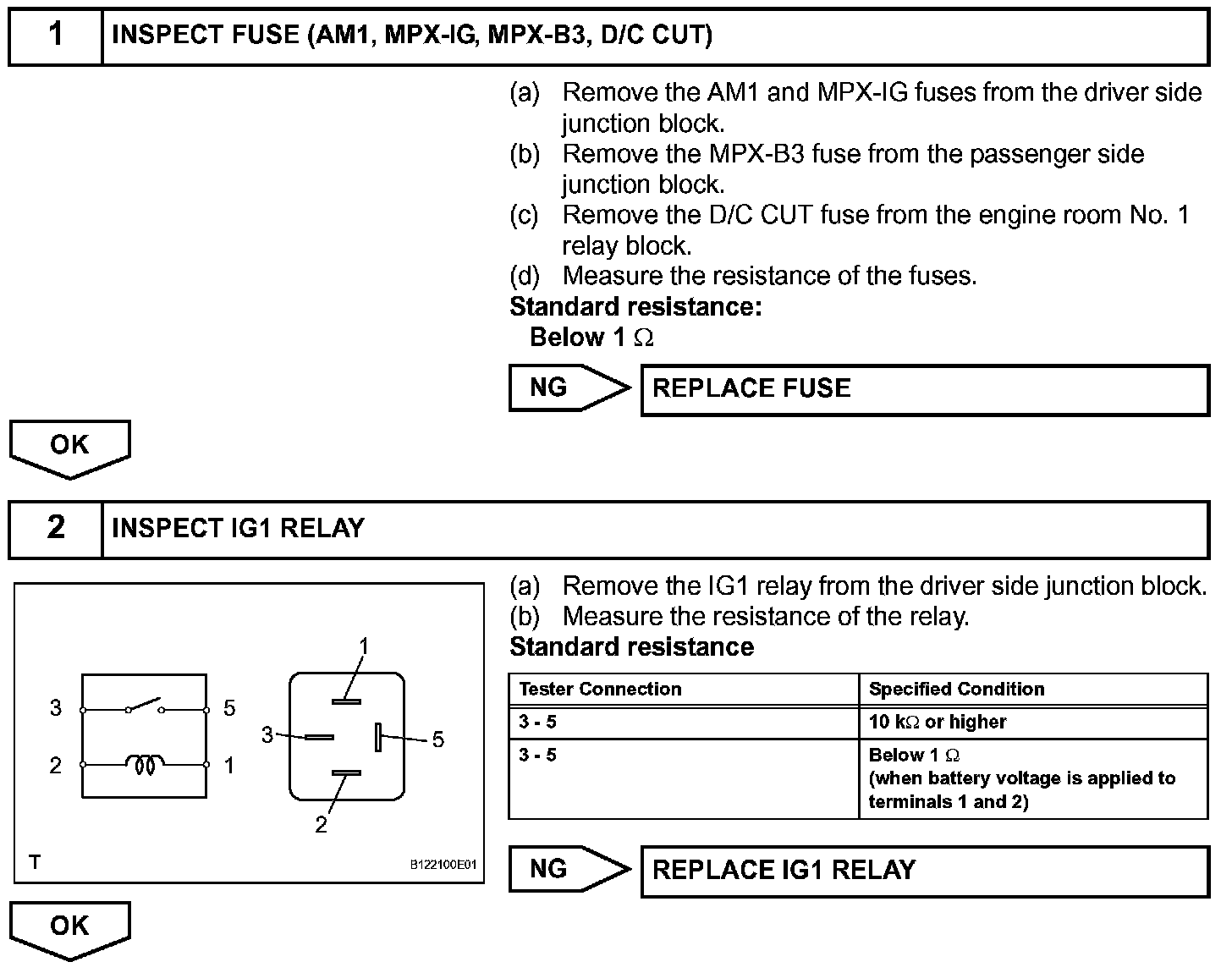

Step 1 - 2:

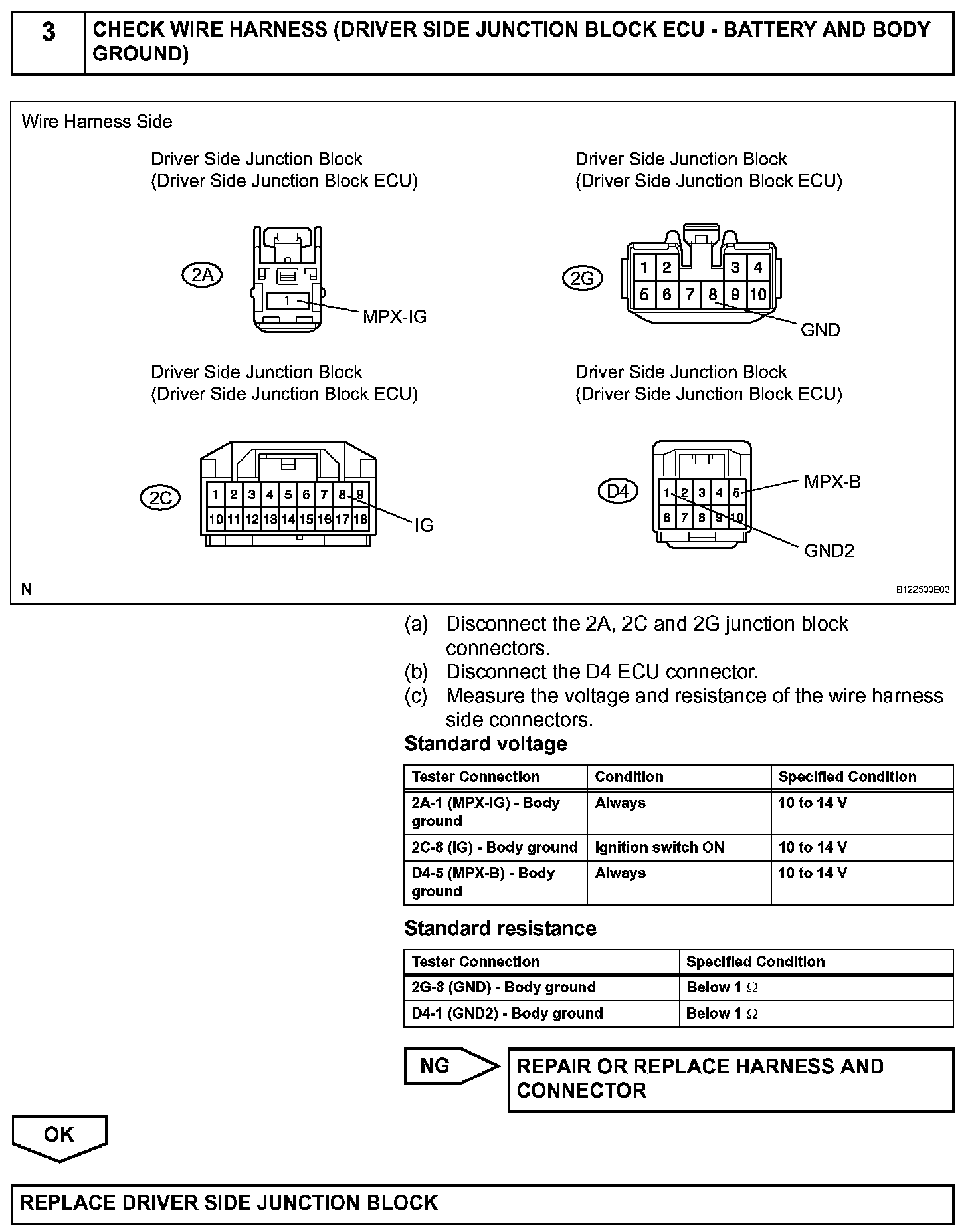

Step 3:
