Tape Is Tangled Due To Incorrect Tape Speed Or Auto-Reverse Malfunction
Tape Is Tangled Due To Incorrect Tape Speed Or Auto-Reverse Malfunction
Tape is Tangled due to Incorrect Tape Speed or Auto-Reverse Malfunction

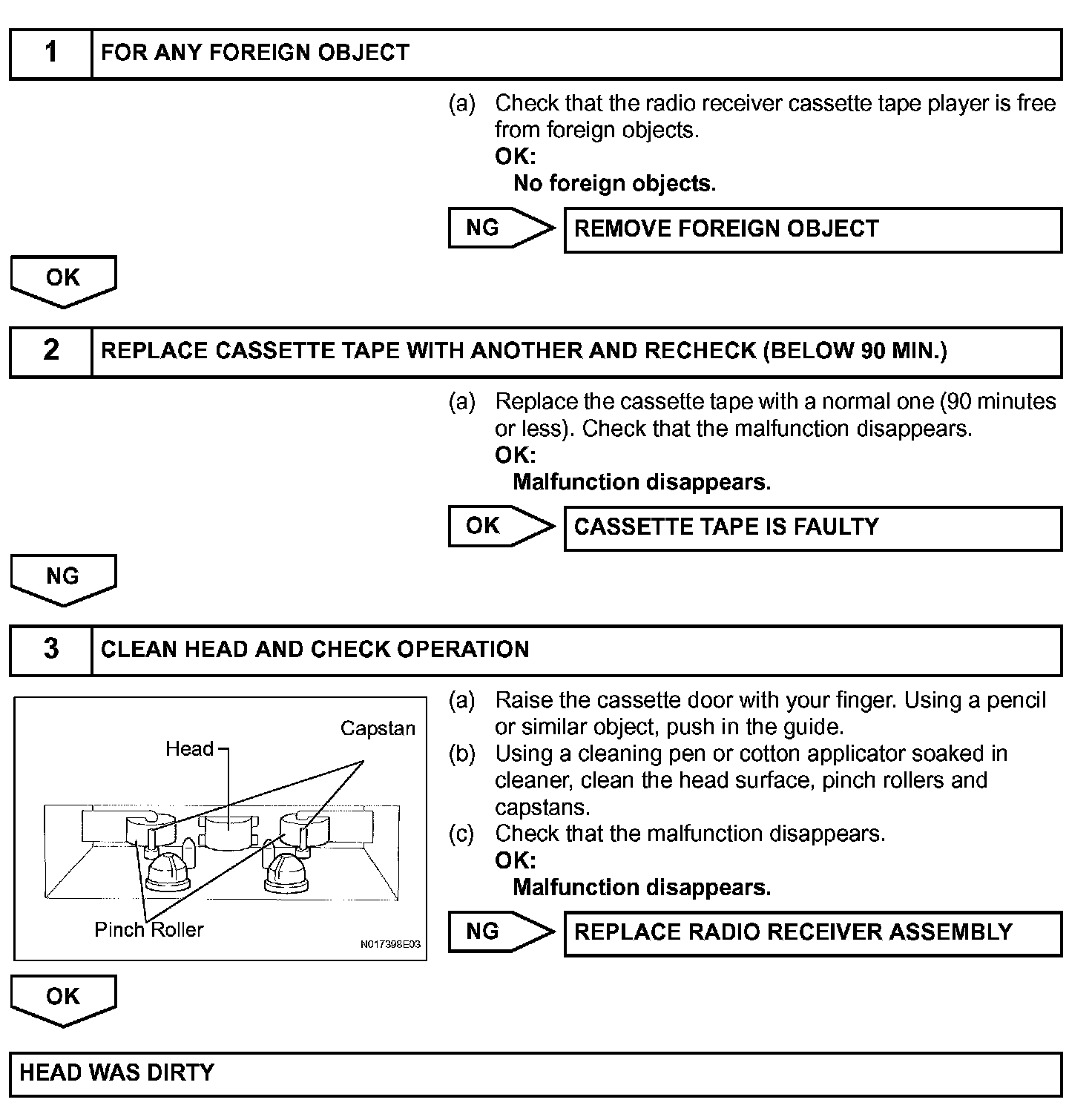

Step 1-3:
INSPECTION PROCEDURE
