Pinout Values and Diagnostic Parameters

Terminals Of Control Module/Pinouts - Check Radio Receiver Assembly (Part 1):

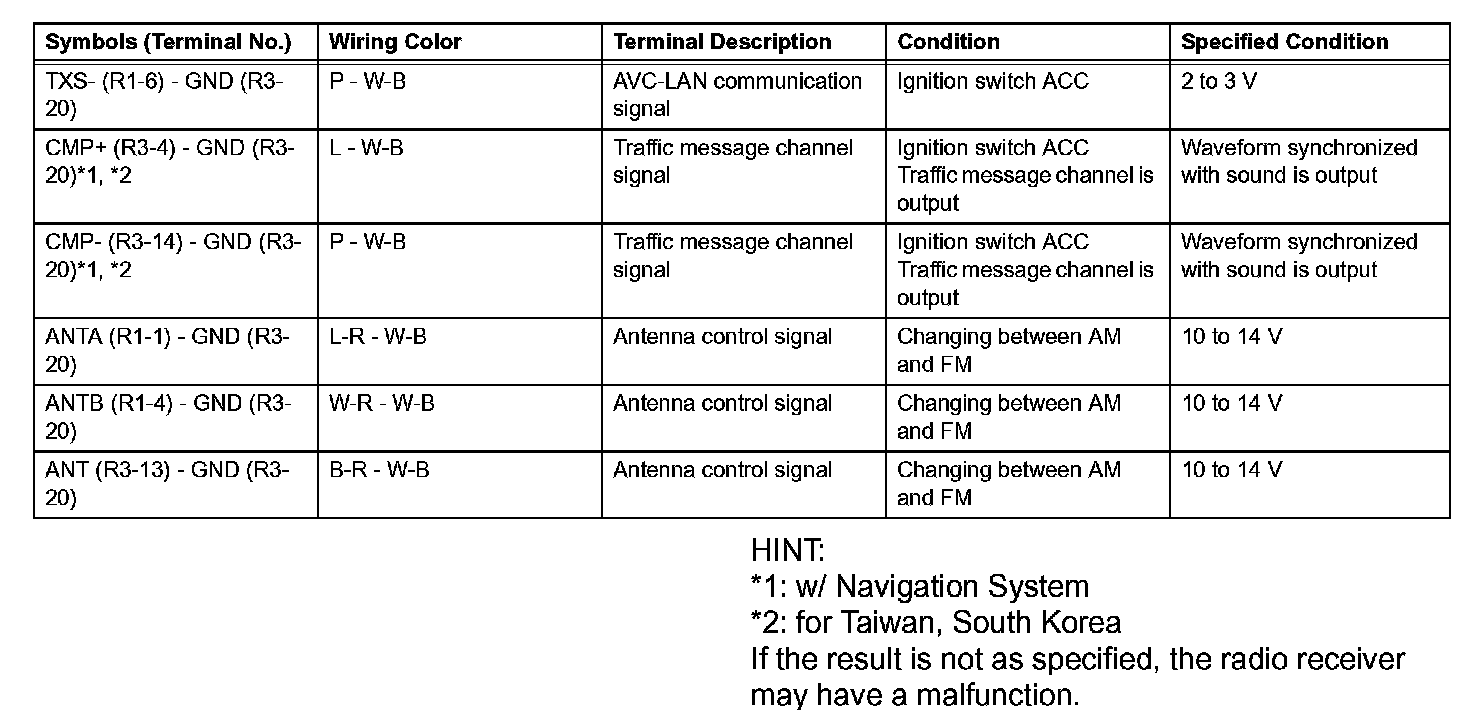

Terminals Of Control Module/Pinouts - Check Radio Receiver Assembly (Part 2):

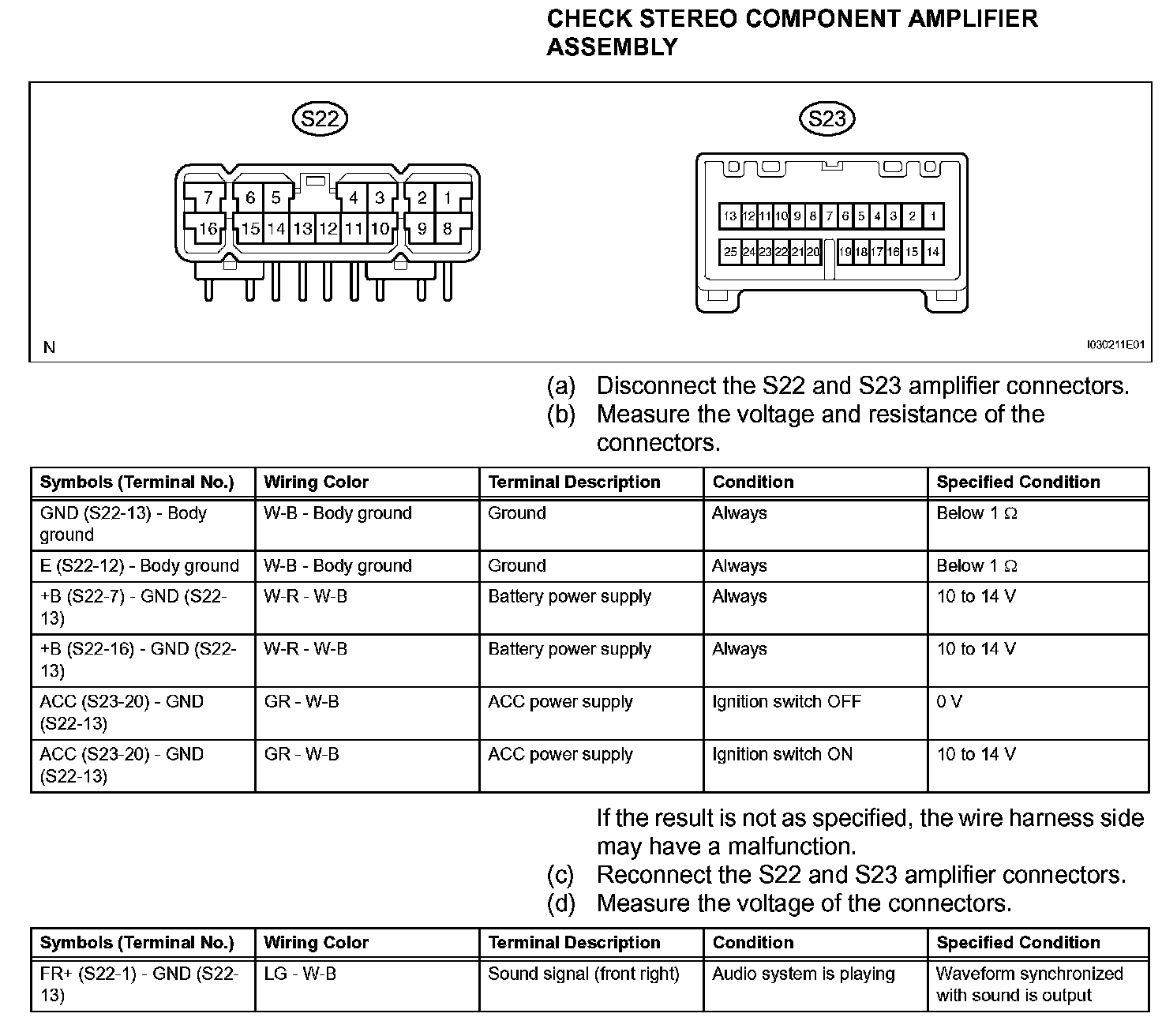

Terminals Of Control Module/Pinouts - Check Stereo Component Amplifier Assembly (Part 1):

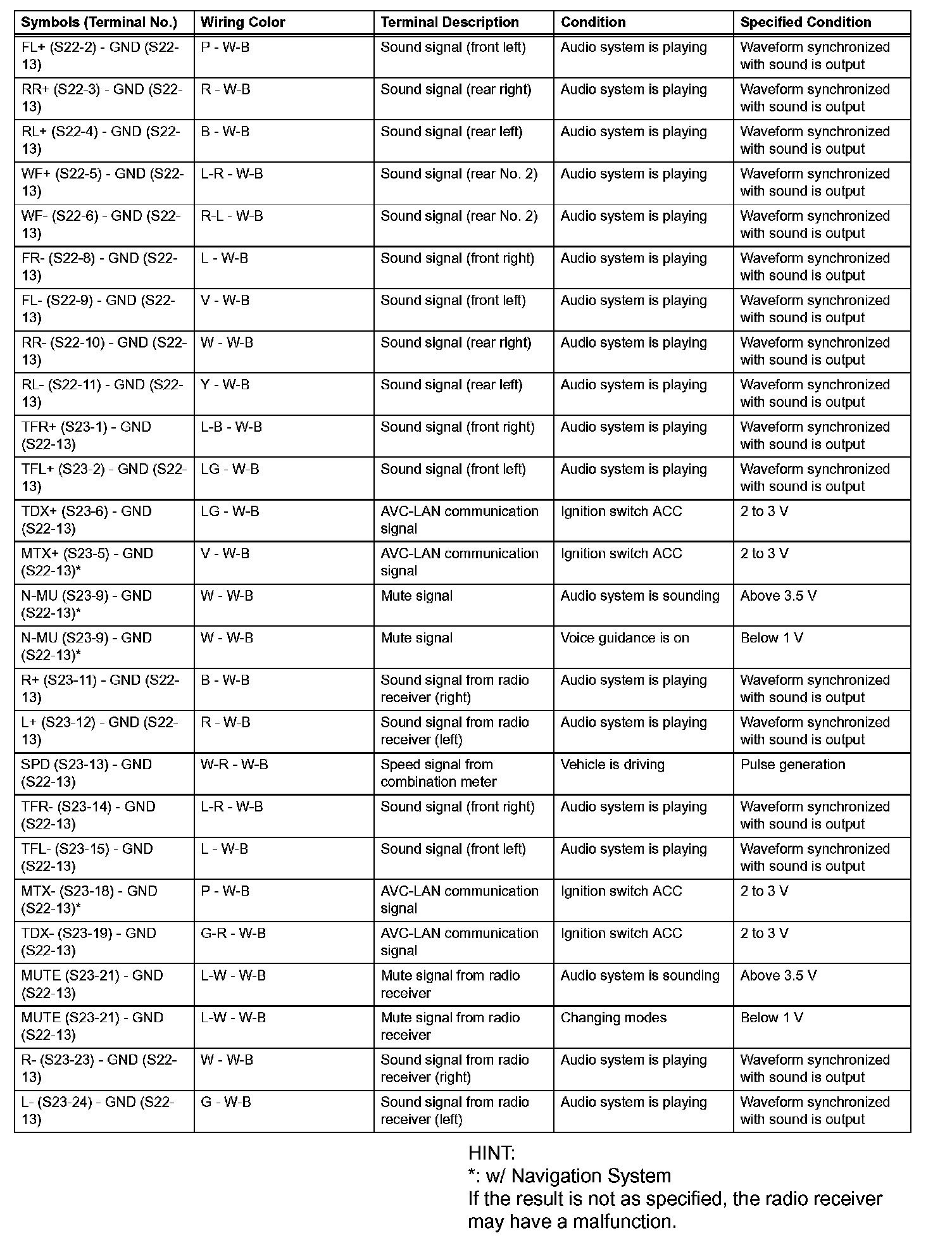

Terminals Of Control Module/pinouts - Check Stereo Component Amplifier Assembly (Part 2):

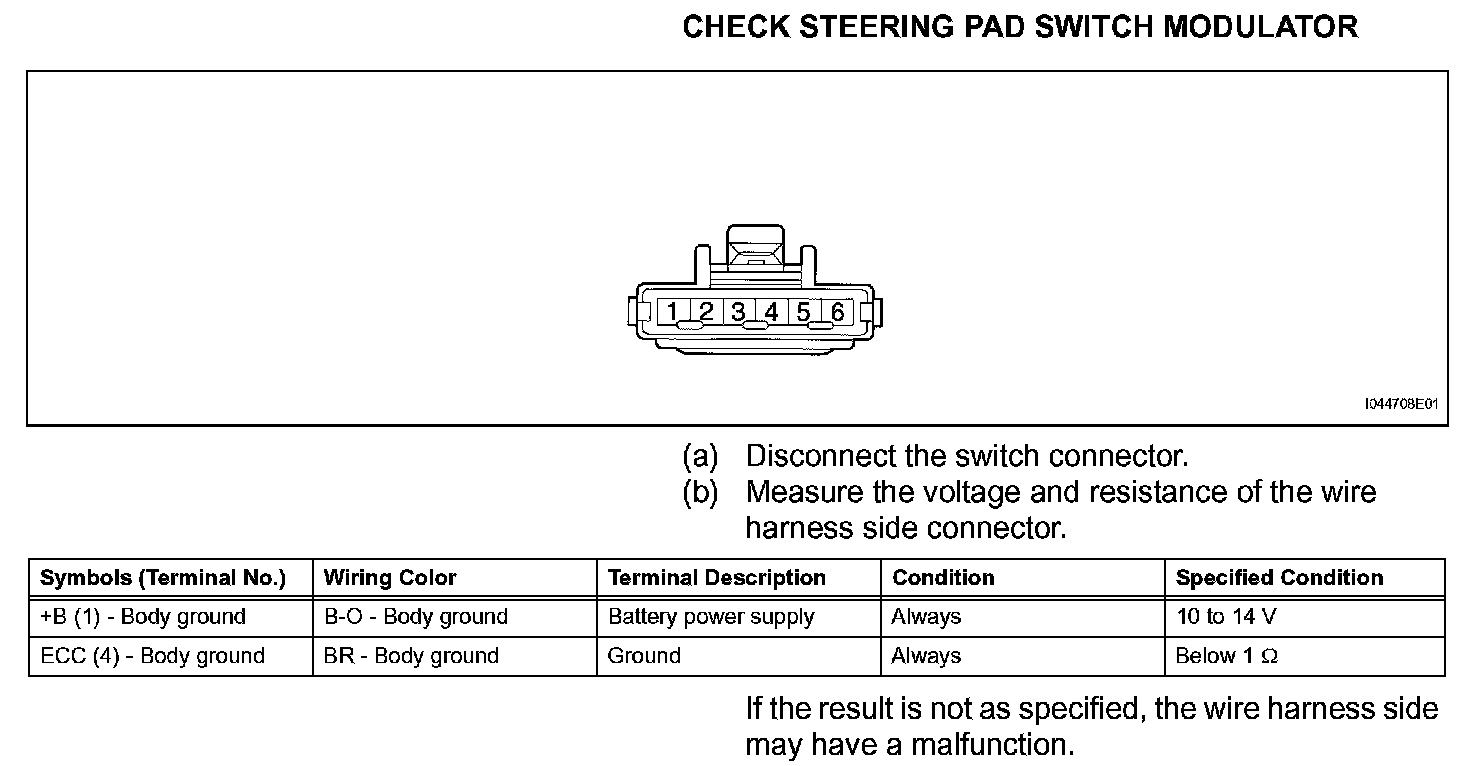

Terminals Of Control Module/pinouts - Check Steering Pad Switch Modulator:

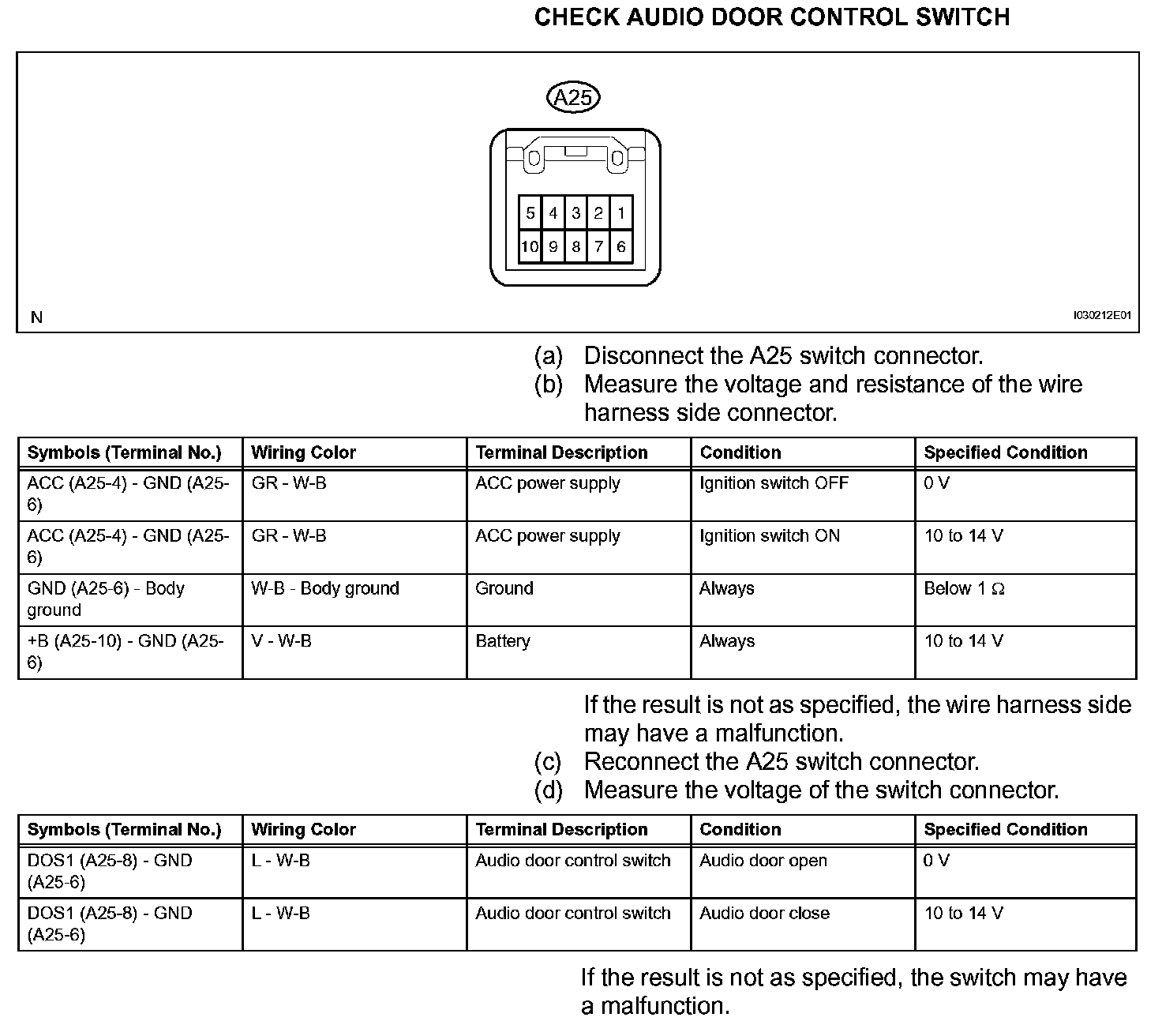

Terminals Of Control Module/pinouts - Check Audio Door Control Switch:

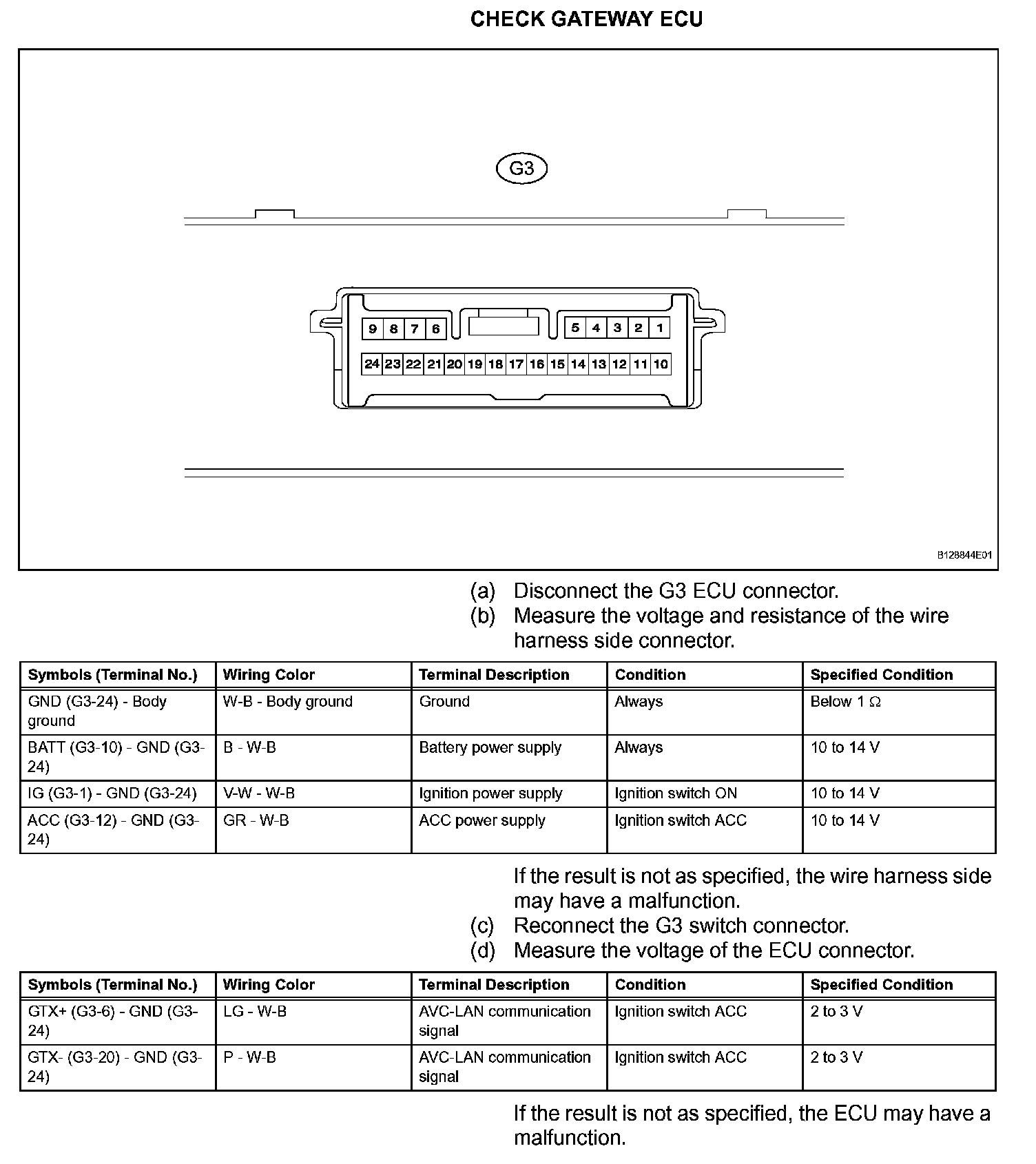

Terminals Of Control Module/pinouts - Check Gateway ECU:
