Steering Pad Switch Circuit

Steering Pad Switch Circuit

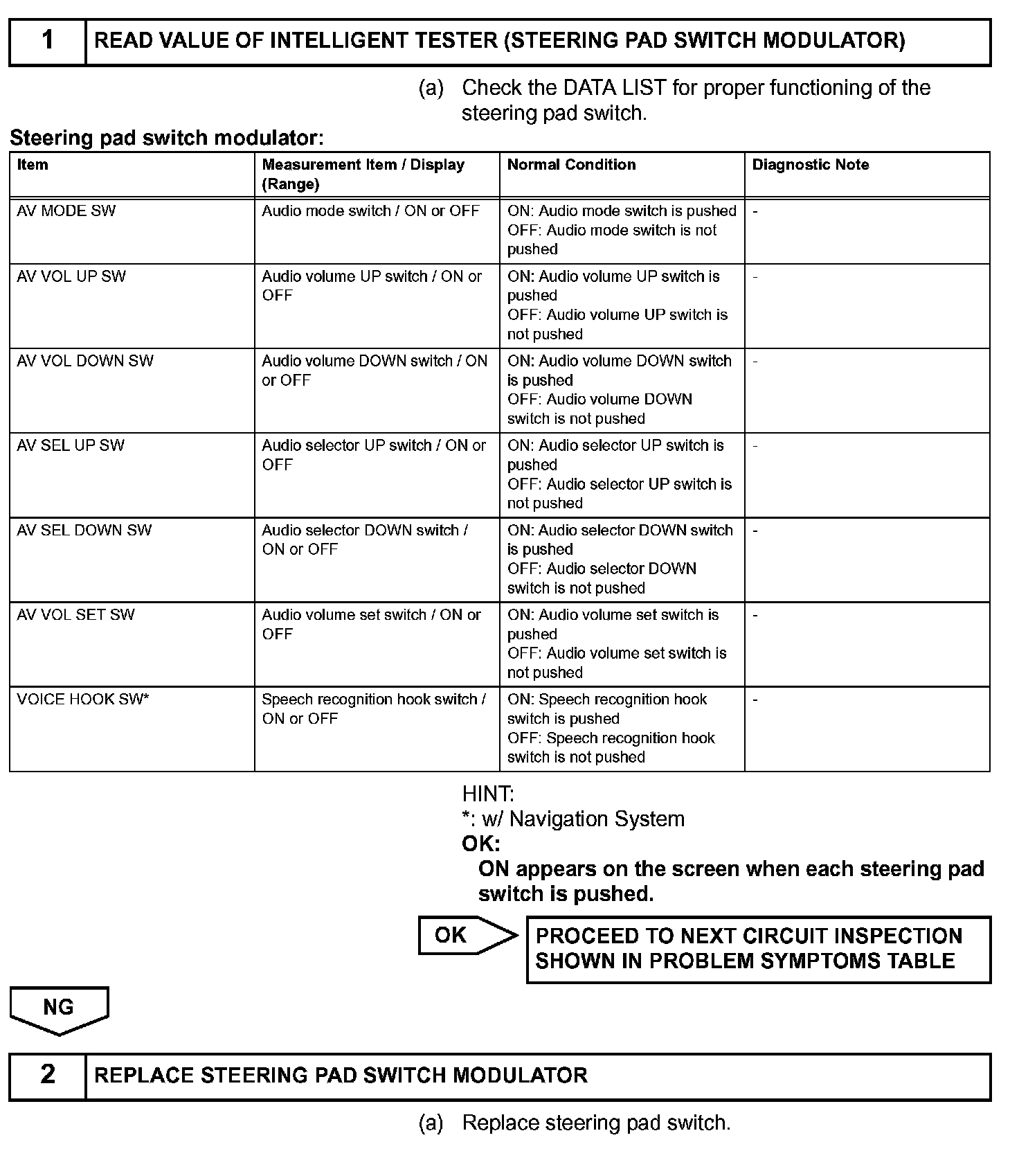

Step 1-2:

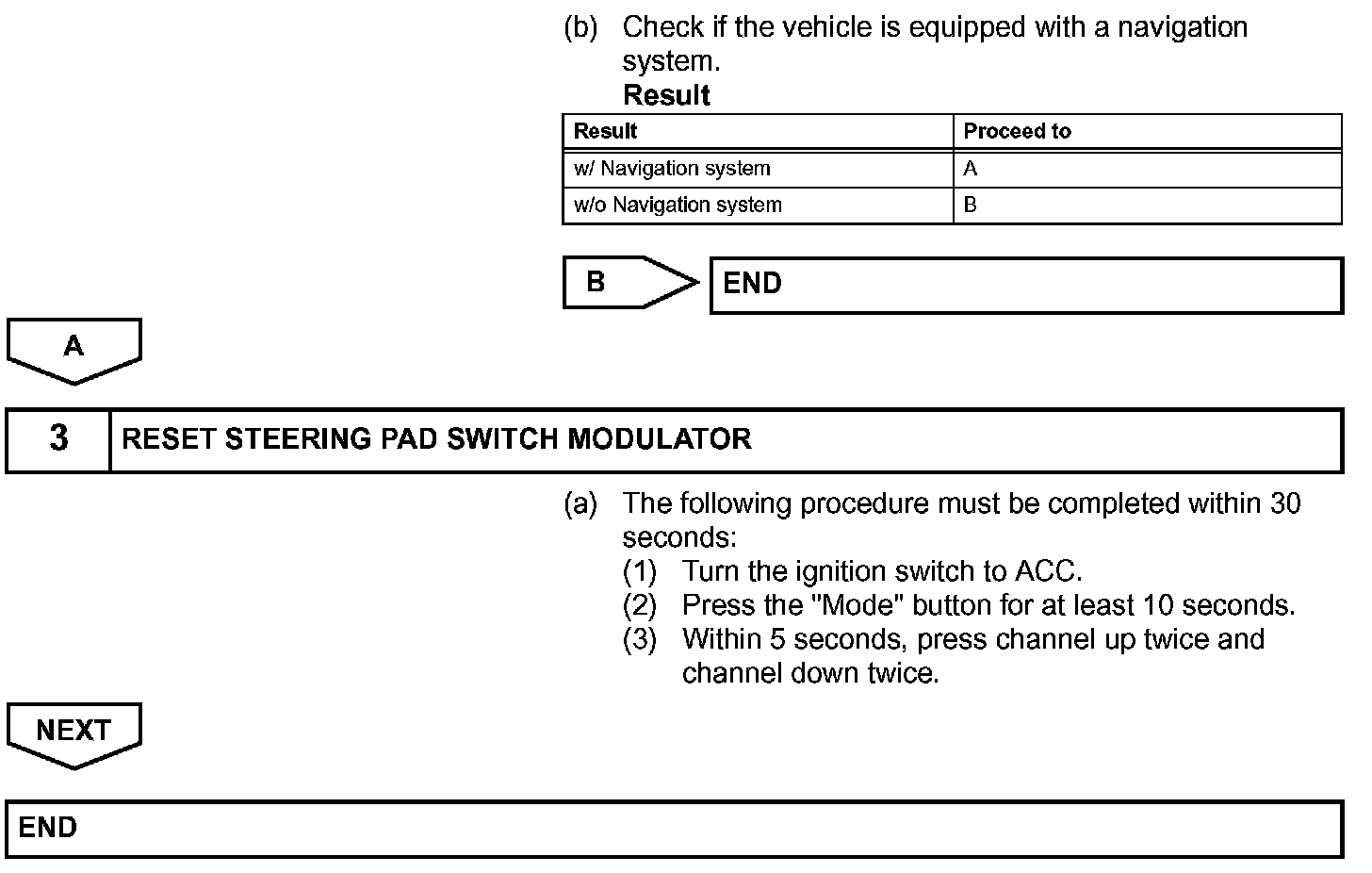

Step 2 (Continued)-3:

INSPECTION PROCEDURE
