Speaker Circuit

Speaker Circuit

DESCRIPTION
The stereo component amplifier sends sound signals to the speakers.

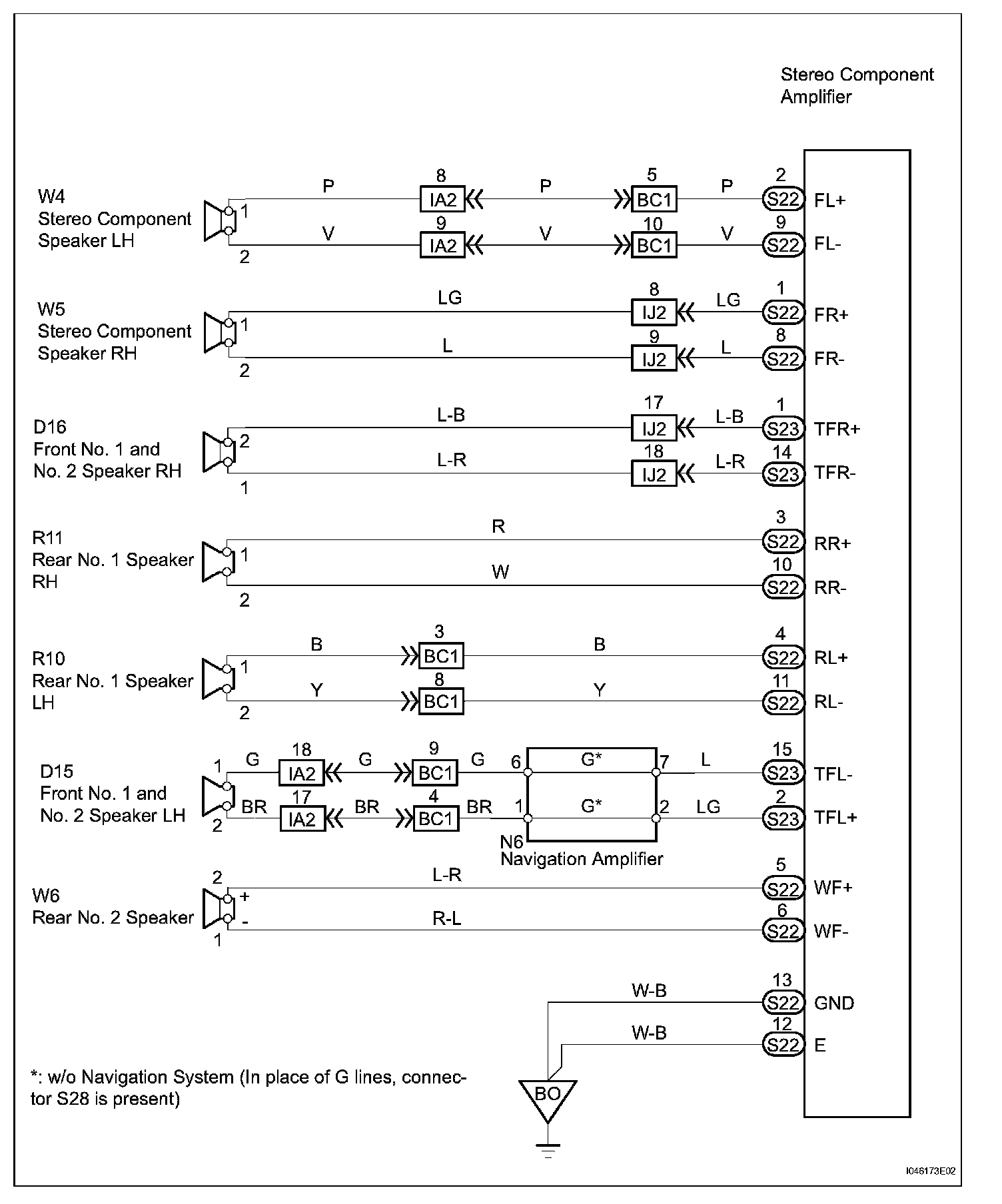

Wiring Diagram:

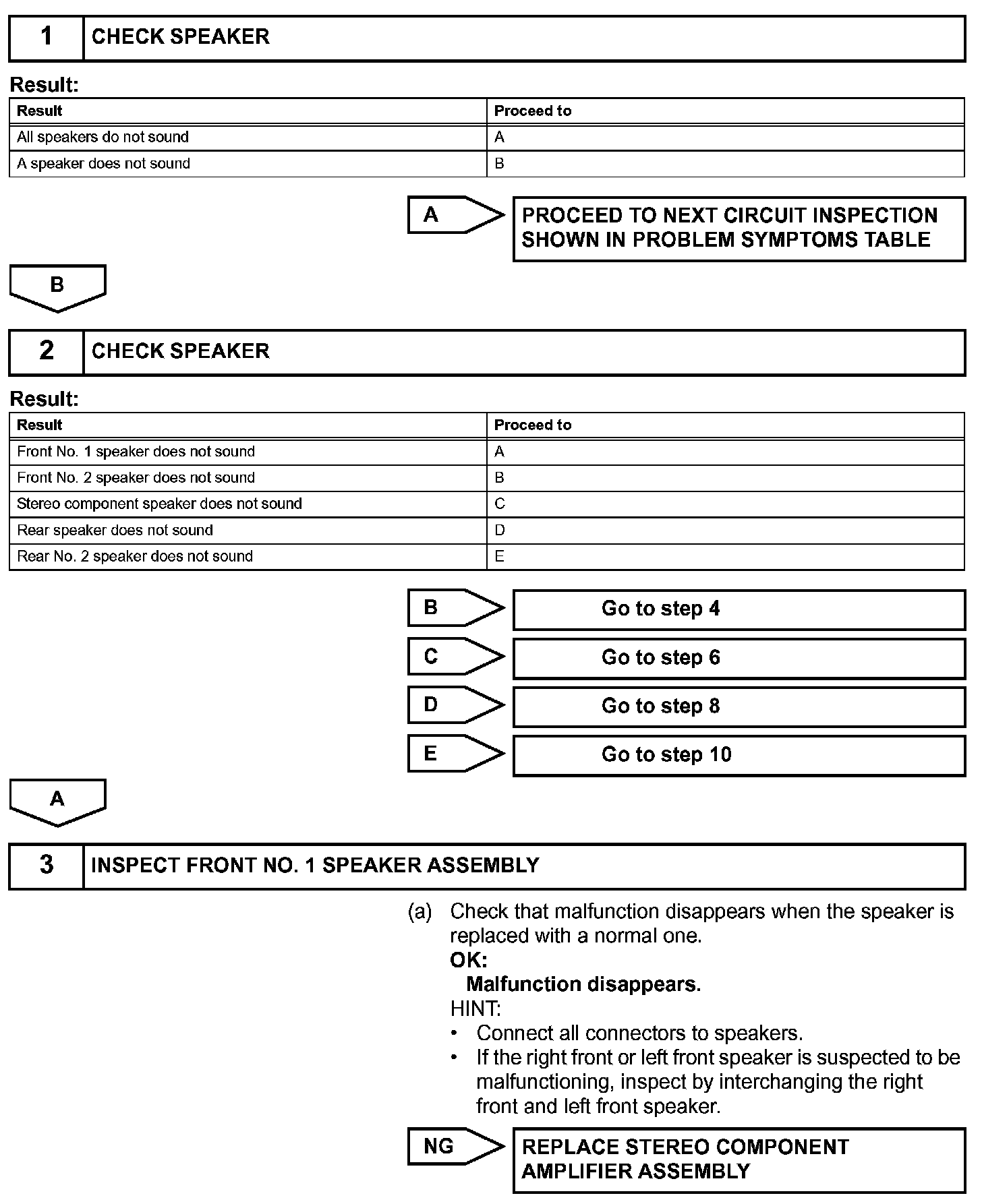

Step 1-3:

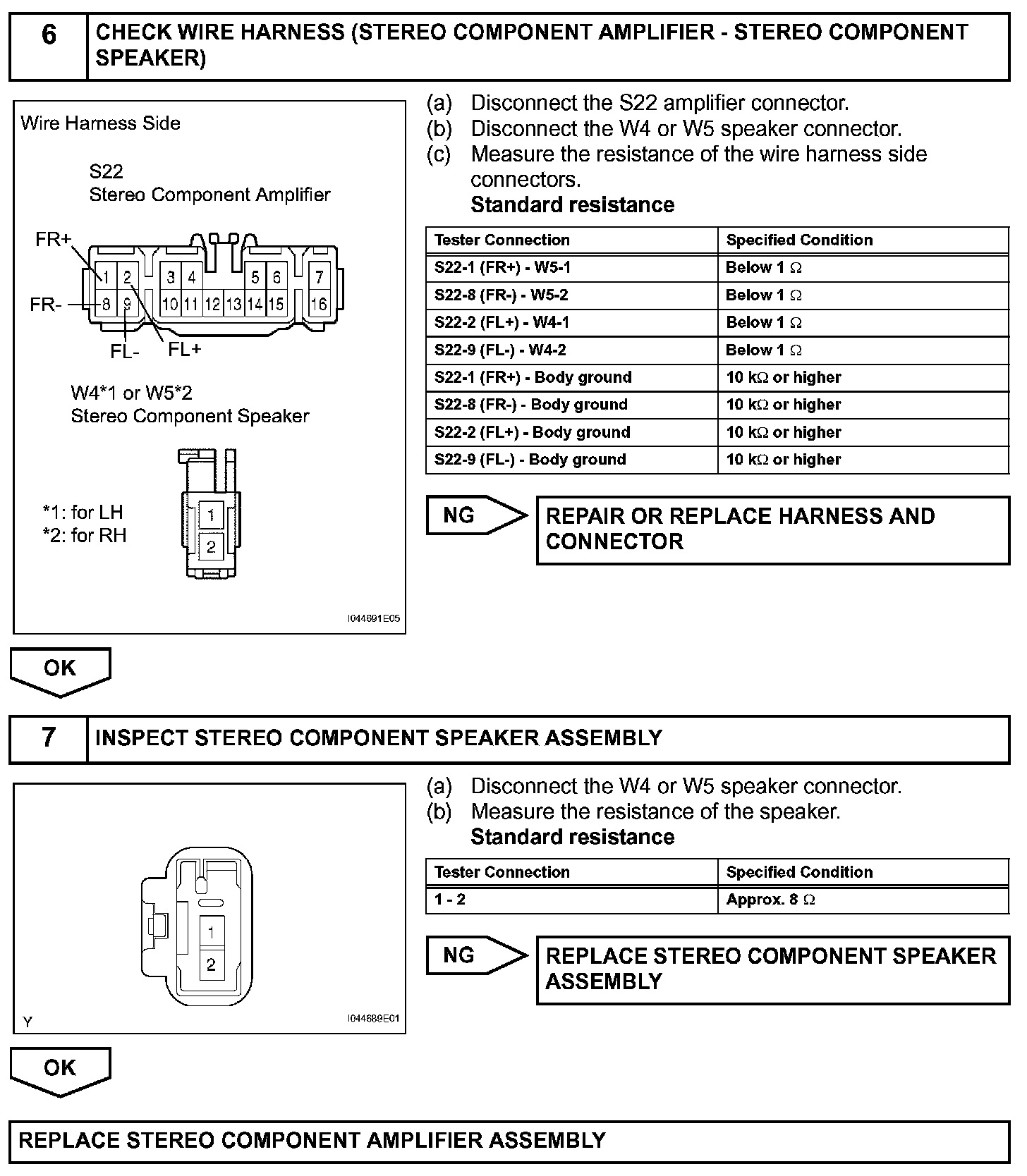

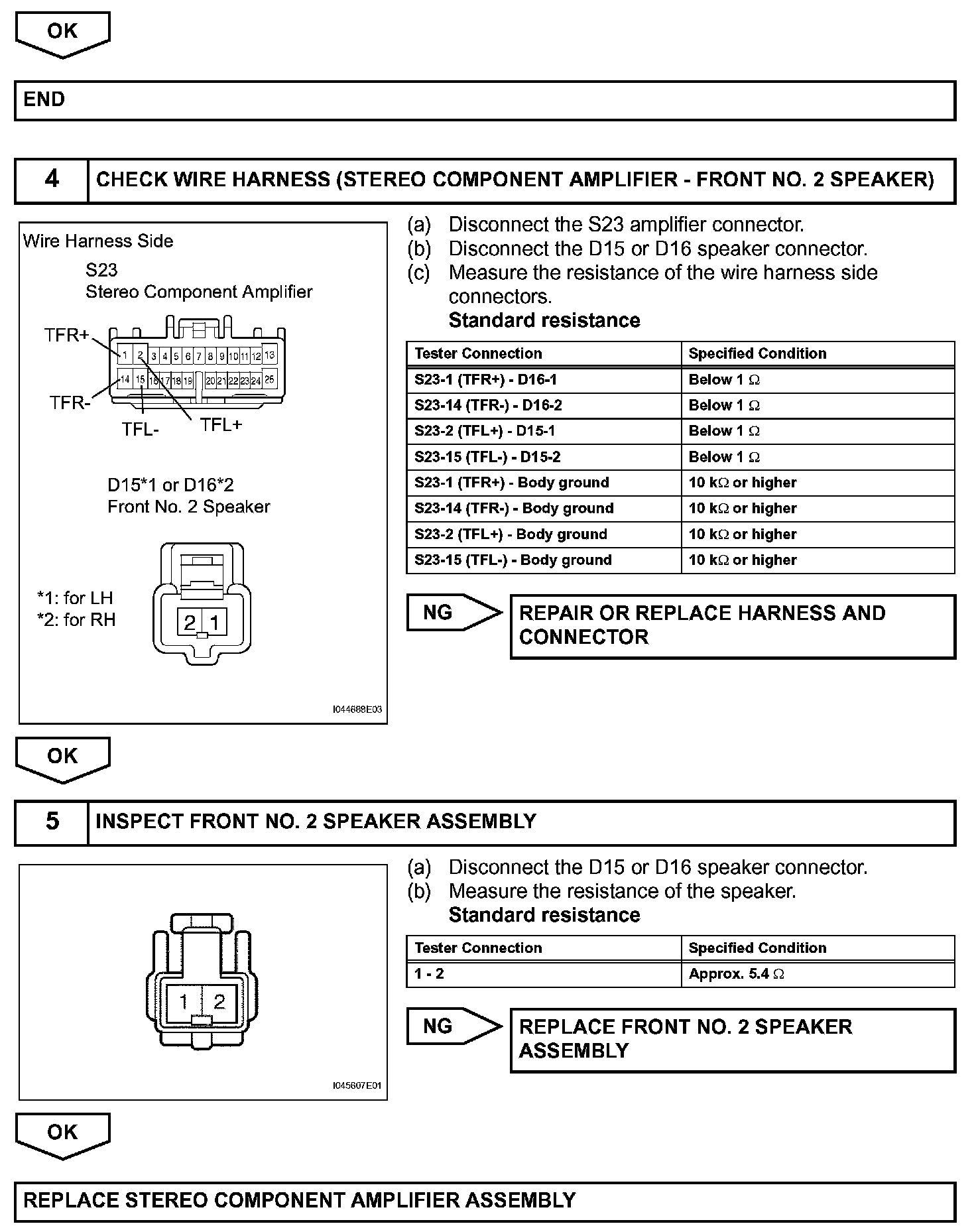

Step 3 (Continued)-5:

Step 6-7:

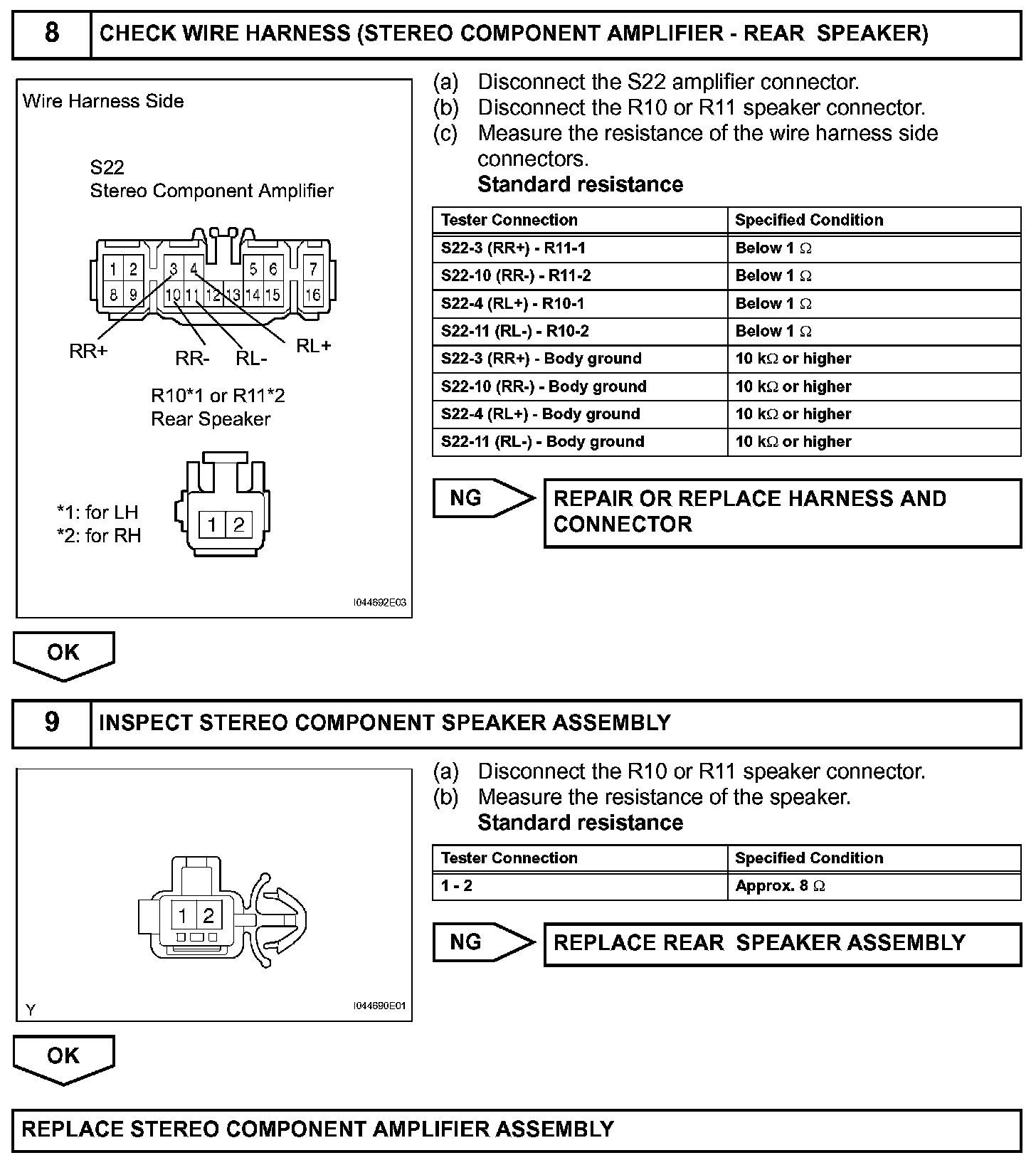

Step 8-9:

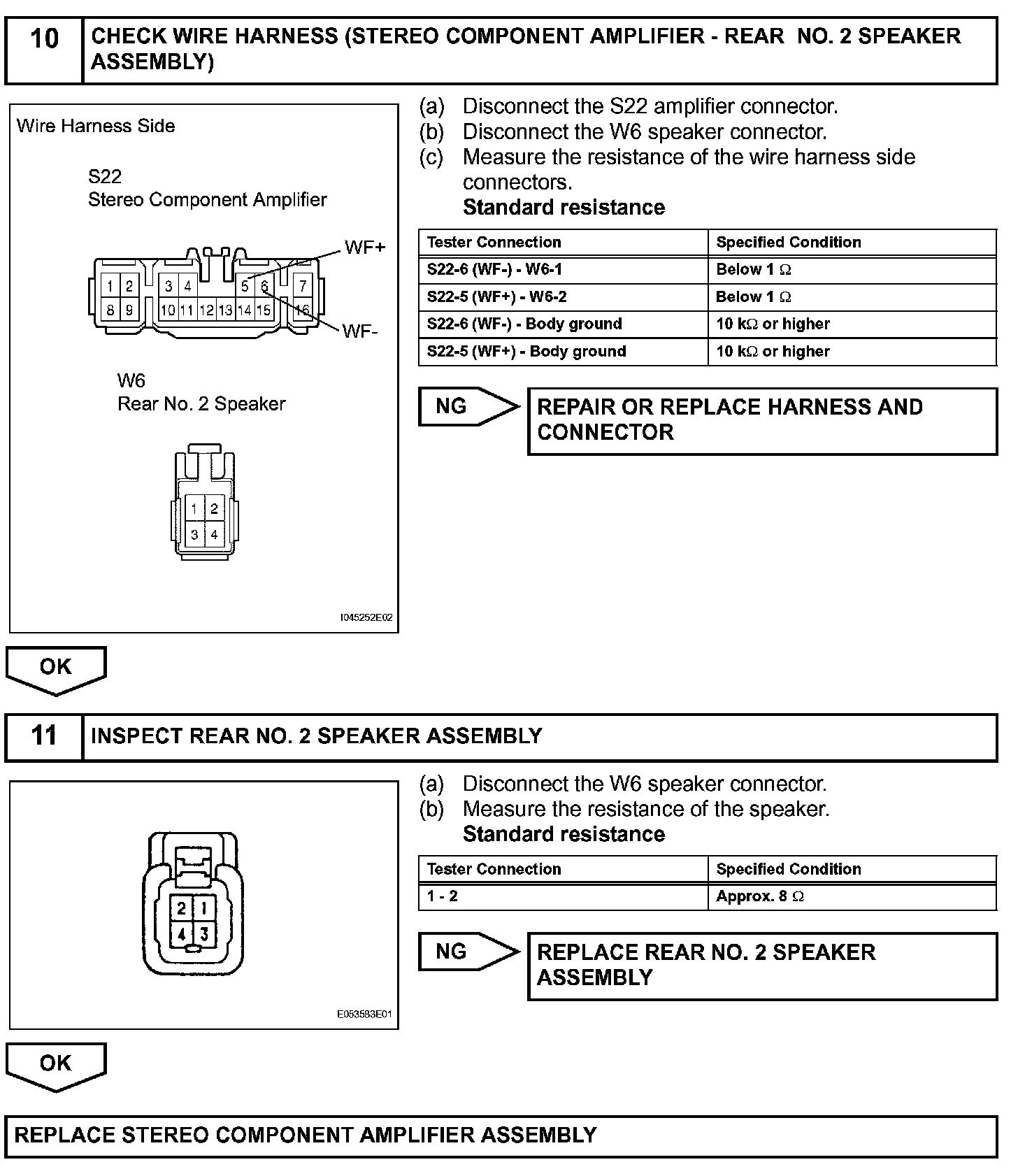

Step 10-11:

INSPECTION PROCEDURE
