Door Control Switch Circuit

Door Control Switch Circuit

DESCRIPTION
This circuit provides power to the audio door control switch.

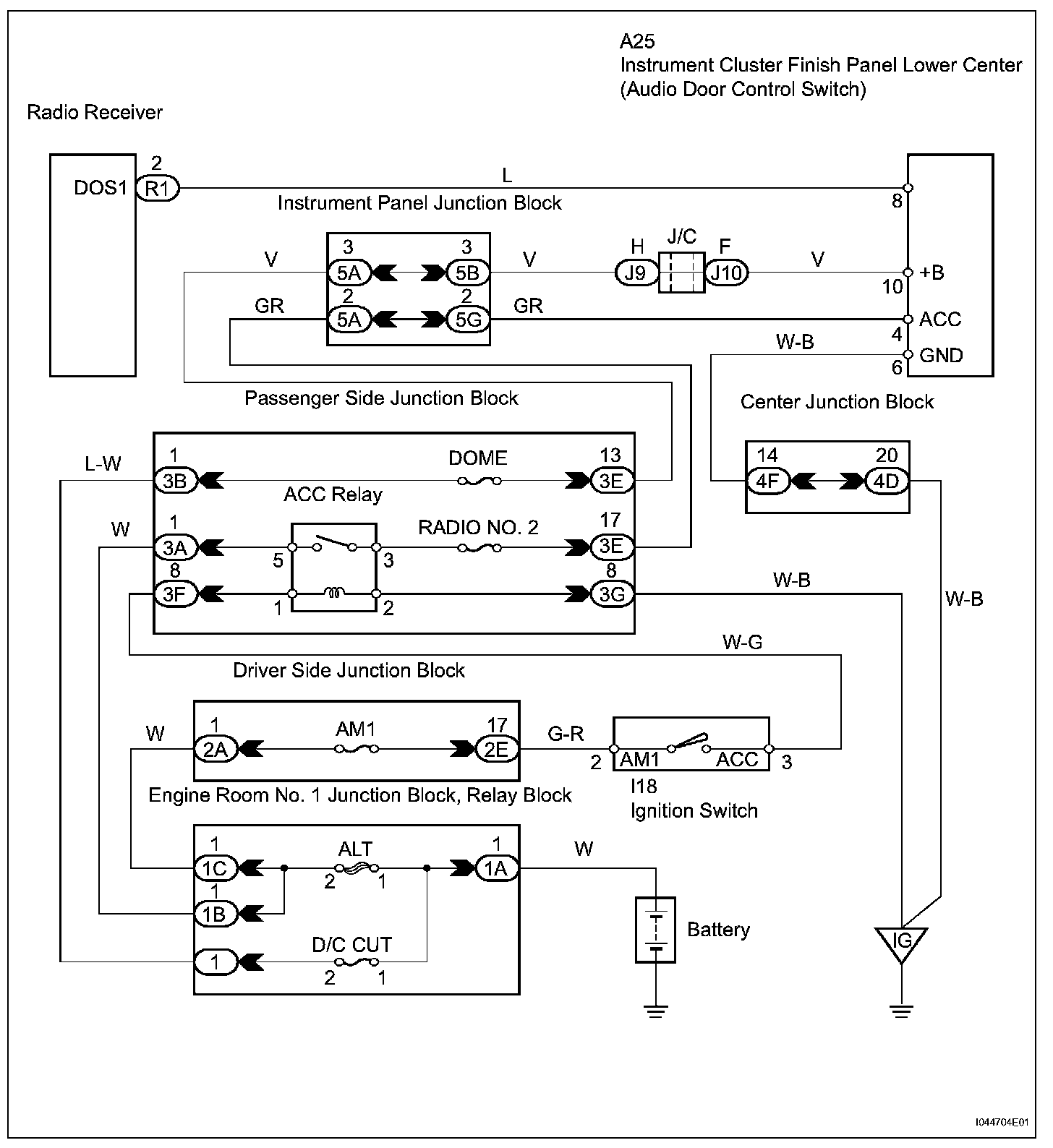

Wiring Diagram:

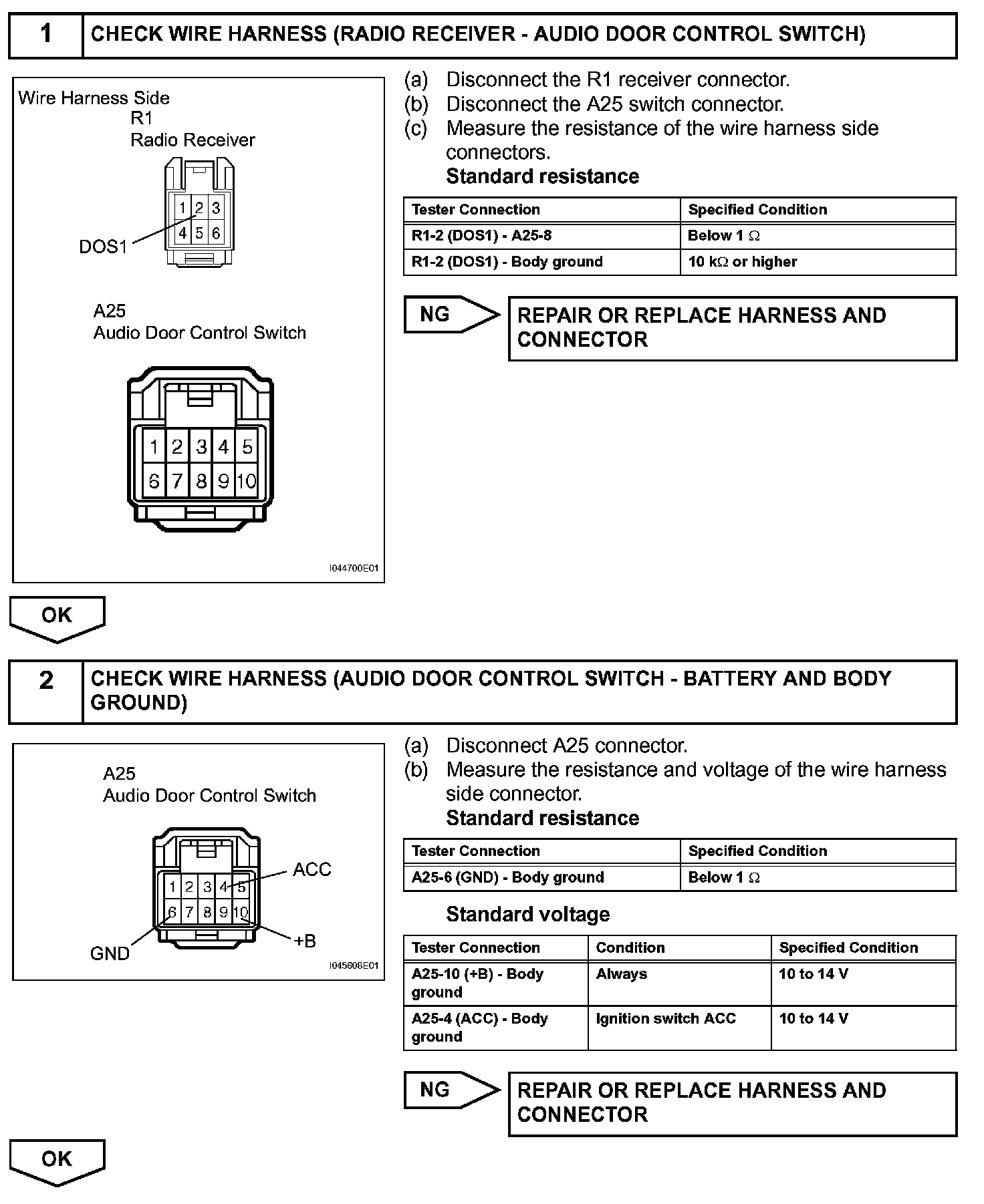

Step 1-2:




Step 3:




INSPECTION PROCEDURE
