AVC-LAN Circuit

AVC-LAN Circuit

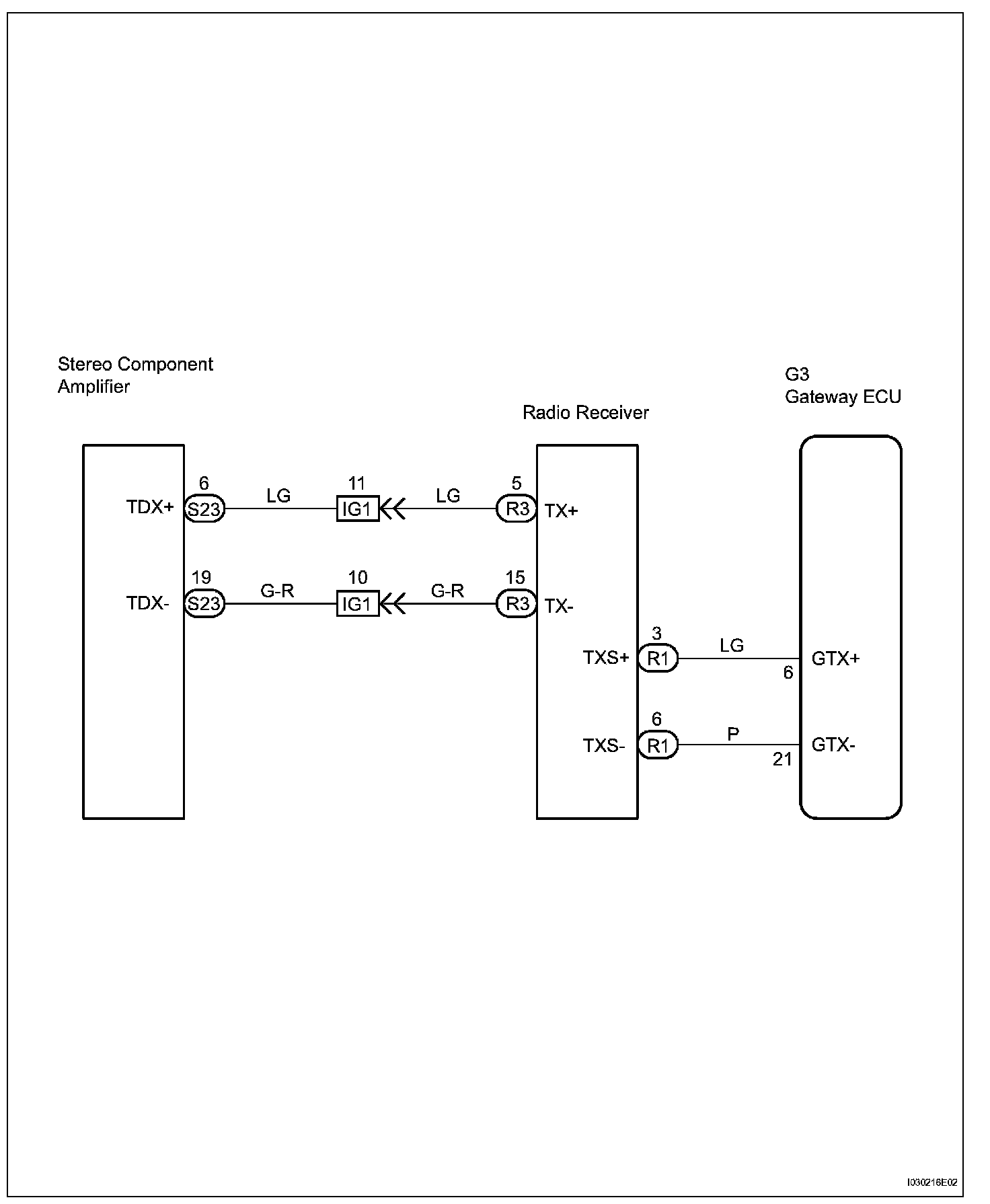

Wiring Diagram:

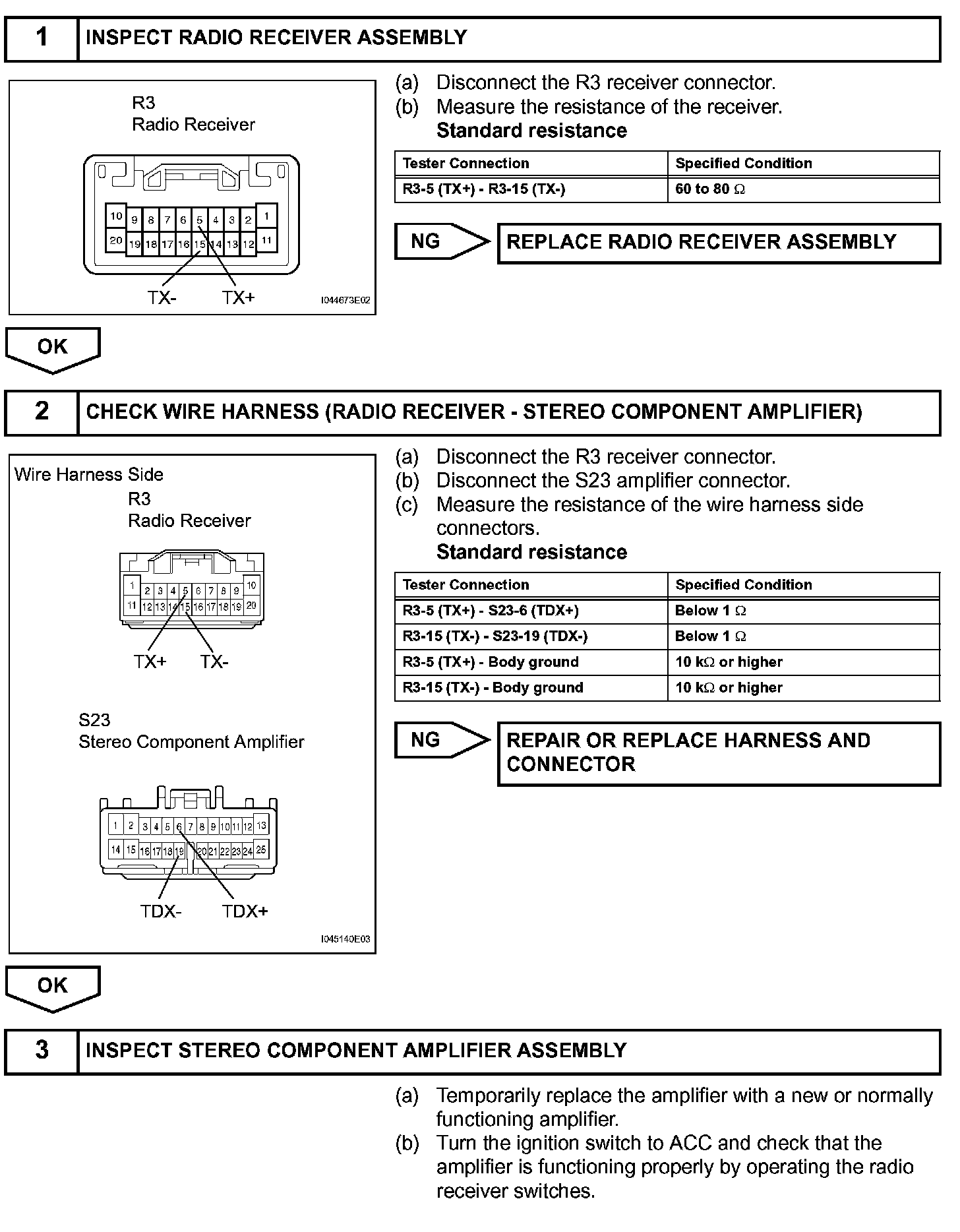

Step 1-3:

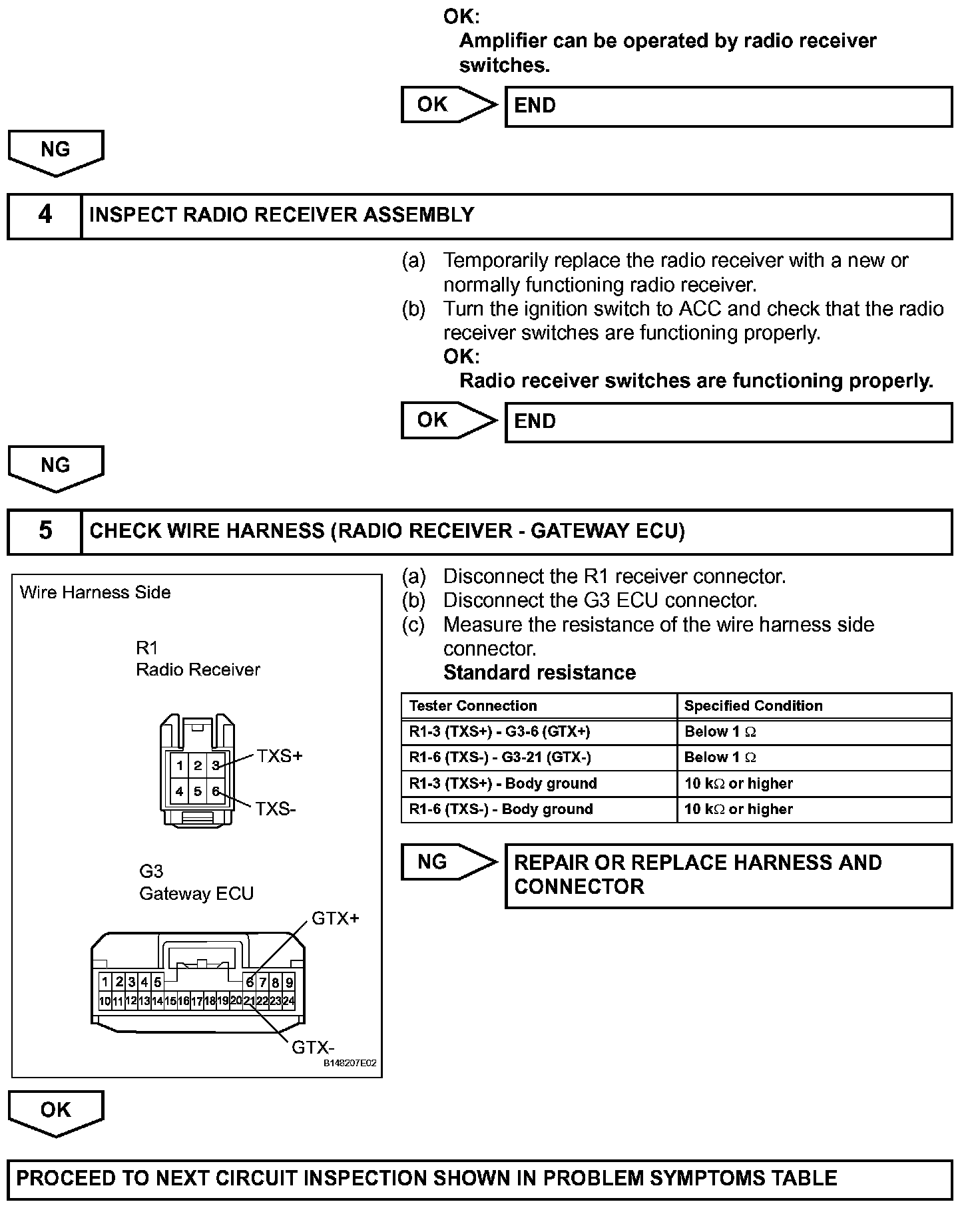

Step 3 (Continued)-5:

INSPECTION PROCEDURE
