Stereo Component Speaker

Stereo Component Speaker:

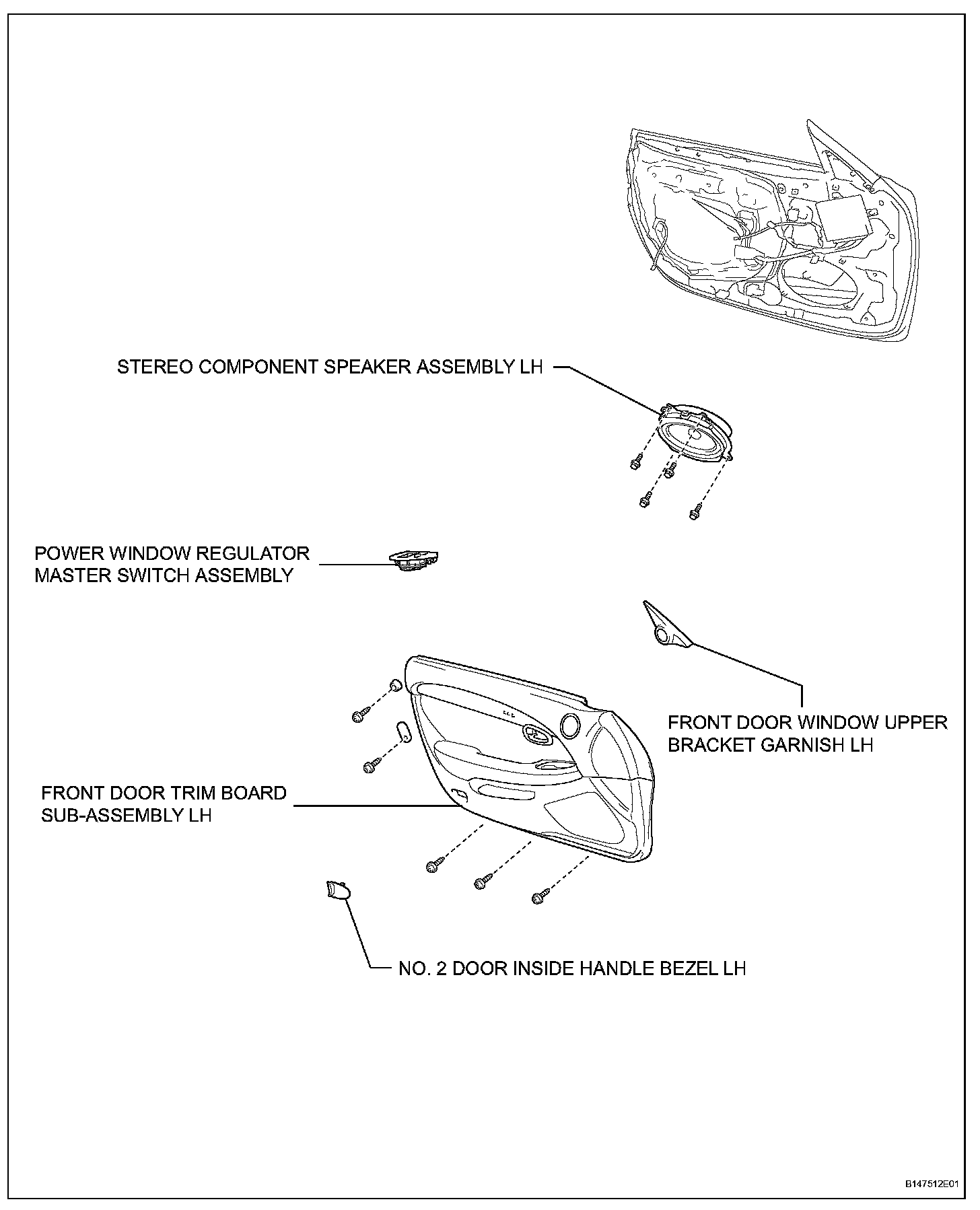

STEREO COMPONENT SPEAKER

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
3. REMOVE NO.2 DOOR INSIDE HANDLE BEZEL LH
4. REMOVE FRONT DOOR WINDOW UPPER BRACKET GARNISH LH
5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

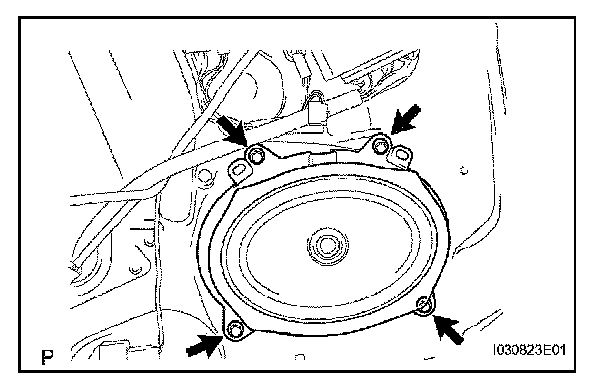

6. REMOVE STEREO COMPONENT SPEAKER ASSEMBLY LH
a. Disconnect the connector.
b. Remove the 4 screws and speaker.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.




1. INSTALL STEREO COMPONENT SPEAKER ASSEMBLY
a. Install the speaker with the 4 screws.
b. Connect the connector.

2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
3. INSTALL FRONT DOOR WINDOW UPPER BRACKET GARNISH LH
4. INSTALL NO.2 DOOR INSIDE HANDLE BEZEL LH
5. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
