Front No.1 Speaker

Front No.1 Speaker:

FRONT NO.1 SPEAKER

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

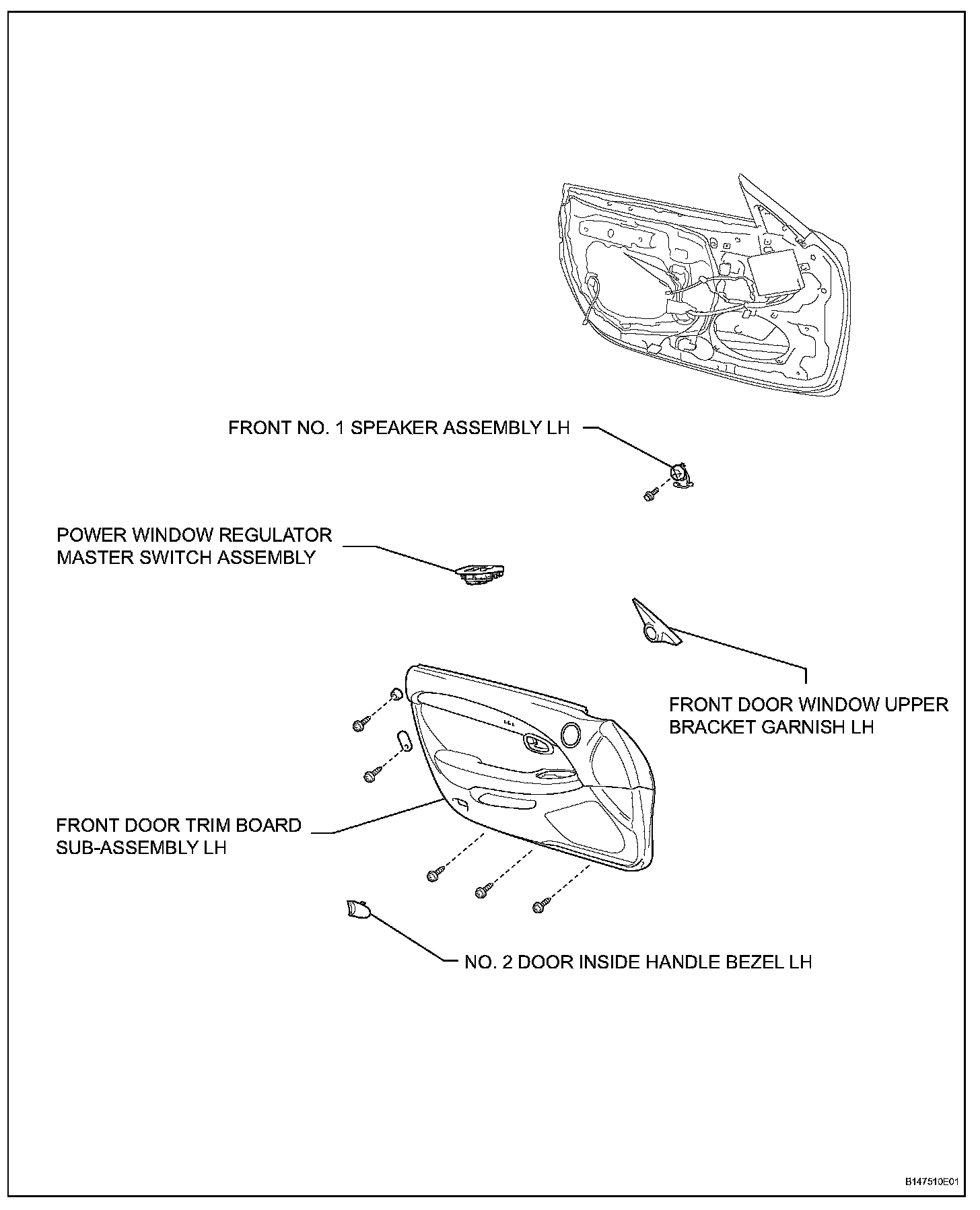

2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
3. REMOVE NO.2 DOOR INSIDE HANDLE BEZEL LH
4. REMOVE FRONT DOOR WINDOW UPPER BRACKET GARNISH LH
5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

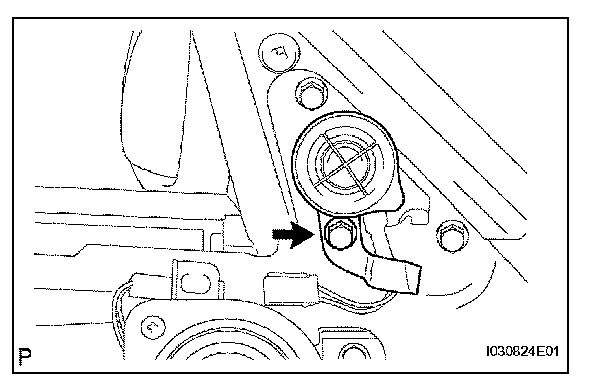

6. REMOVE FRONT NO.1 SPEAKER ASSEMBLY LH
a. Disconnect the connector.
b. Remove the bolt and speaker.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

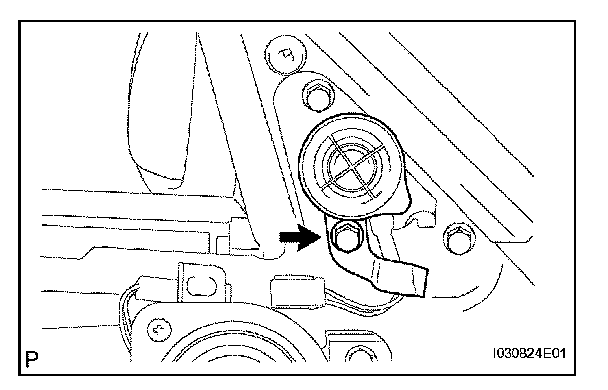

1. REMOVE FRONT NO.1 SPEAKER ASSEMBLY
a. Install the speaker with the bolt.
b. Connect the connector.

2. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
3. REMOVE FRONT DOOR WINDOW UPPER BRACKET GARNISH LH
4. REMOVE NO.2 DOOR INSIDE HANDLE BEZEL LH
5. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
