Radio/Stereo: Testing and Inspection
Radio Receiver Power Source CircuitDESCRIPTION
This circuit provides power to the radio receiver.

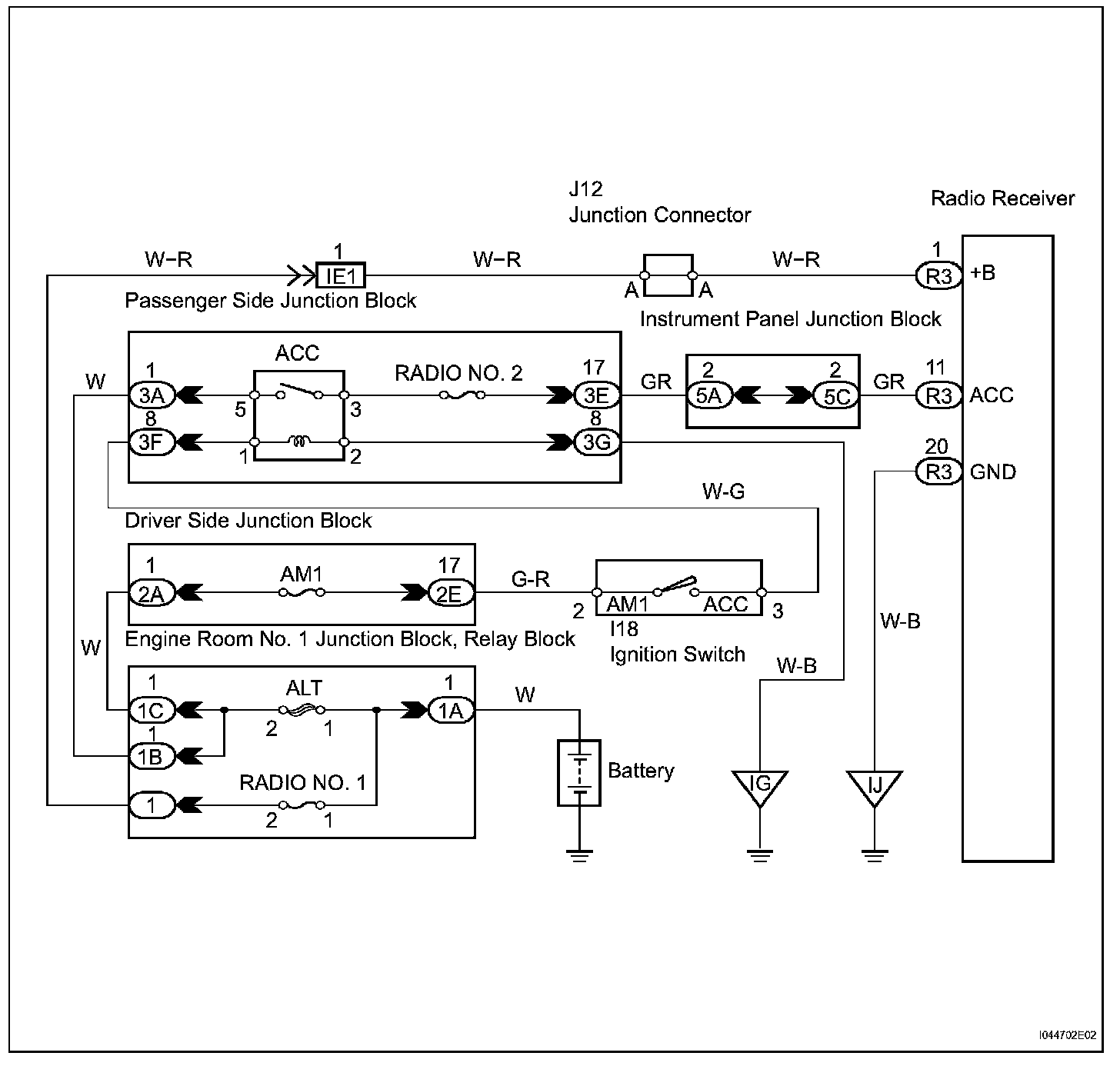

Wiring Diagram:

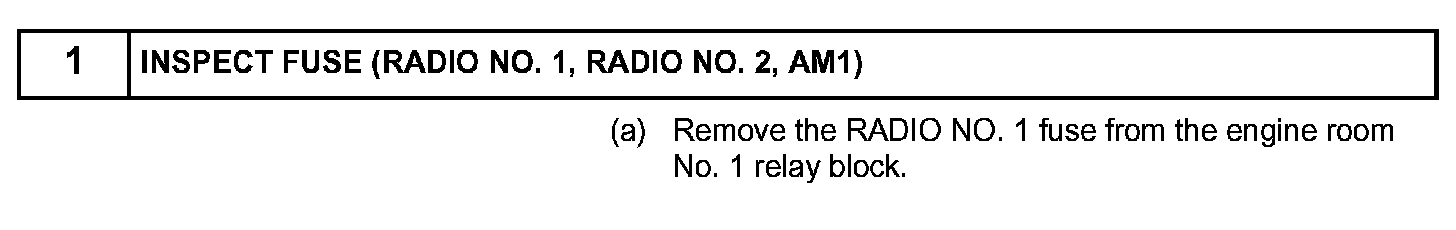

Step 1:

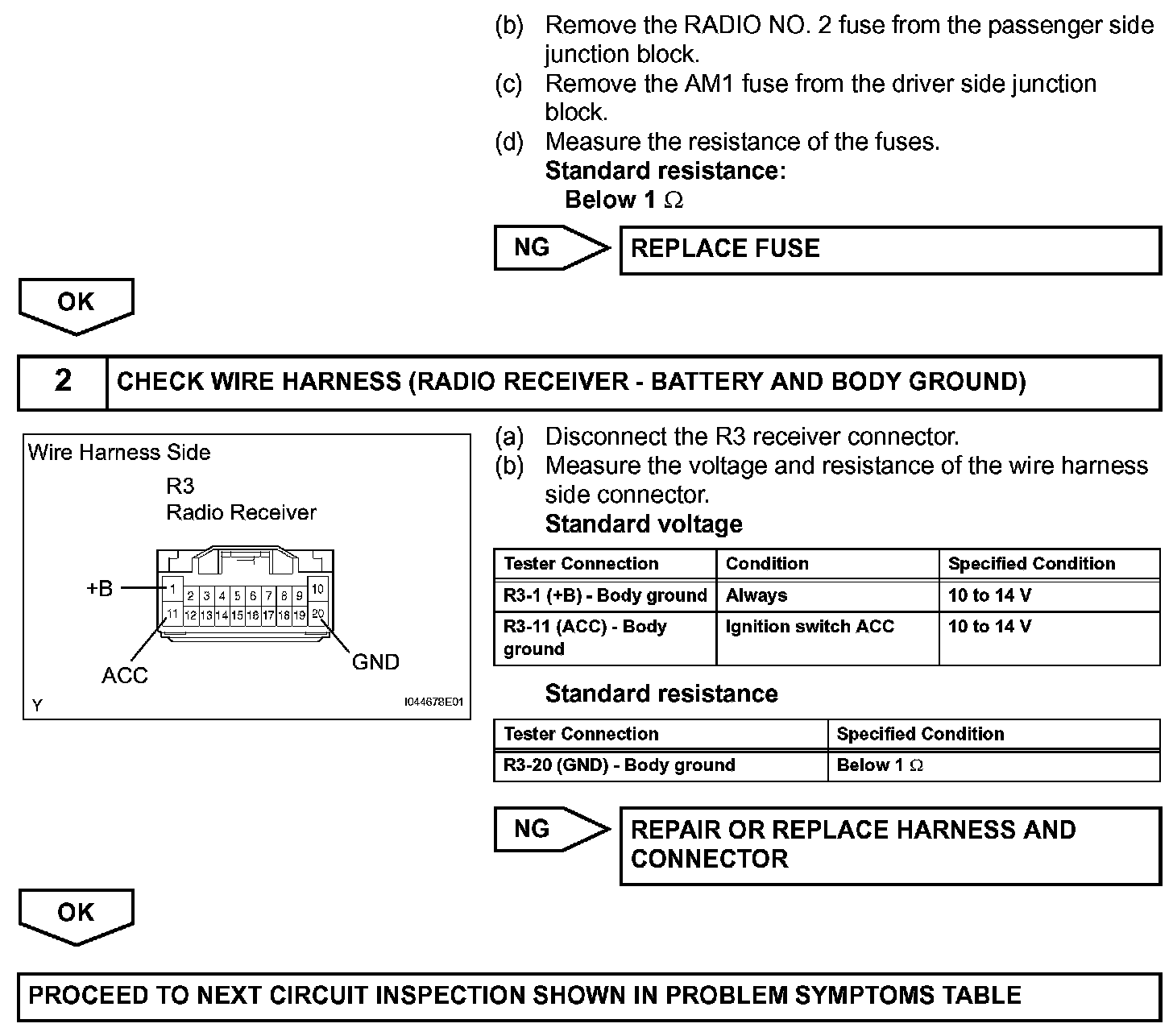

Step 1 (Continued)-2:
INSPECTION PROCEDURE
DESCRIPTION
This circuit provides power to the radio receiver.
INSPECTION PROCEDURE
